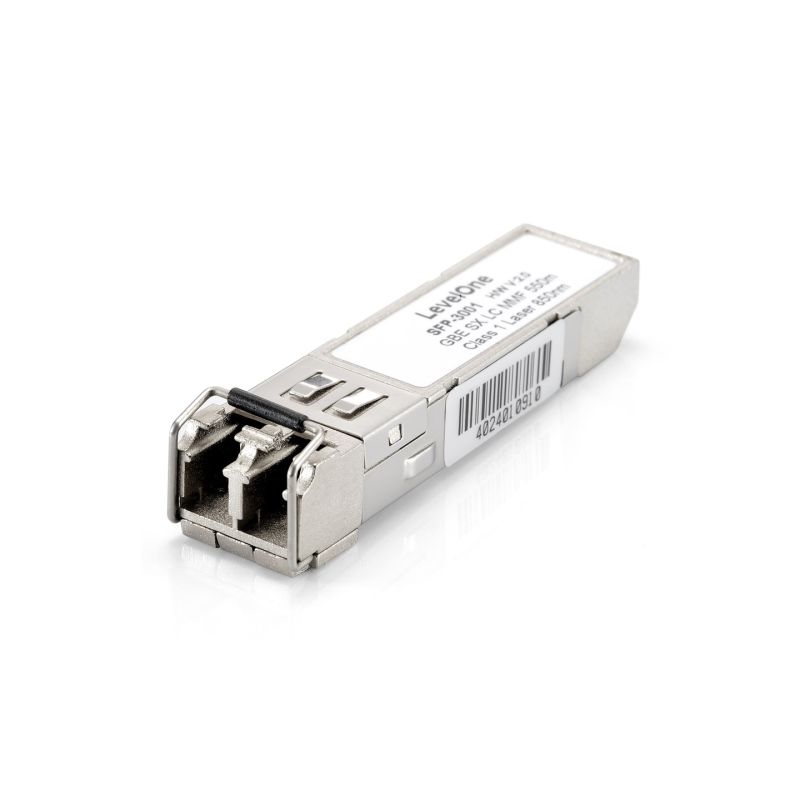

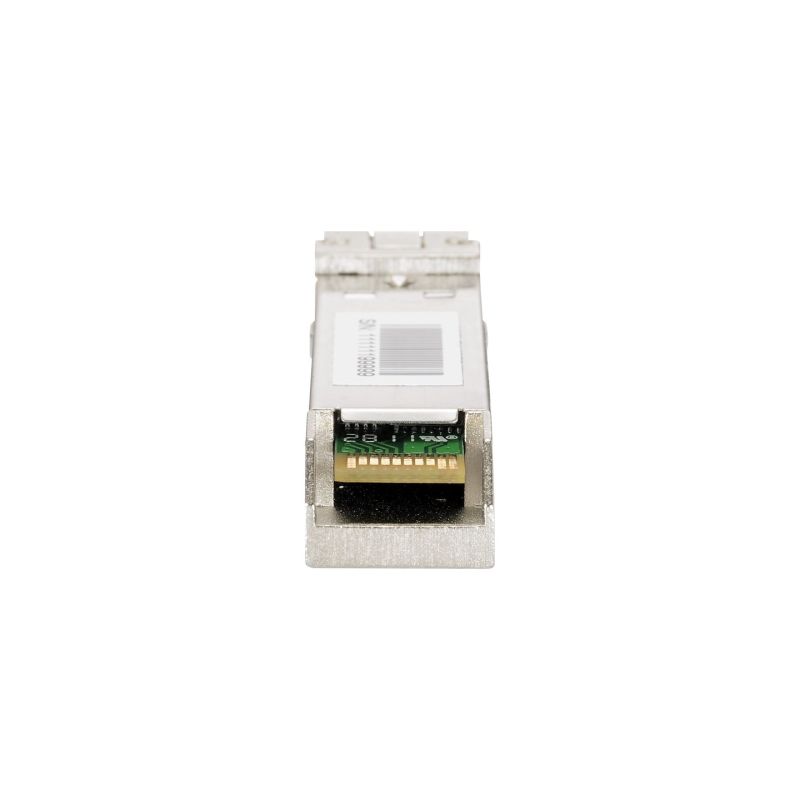

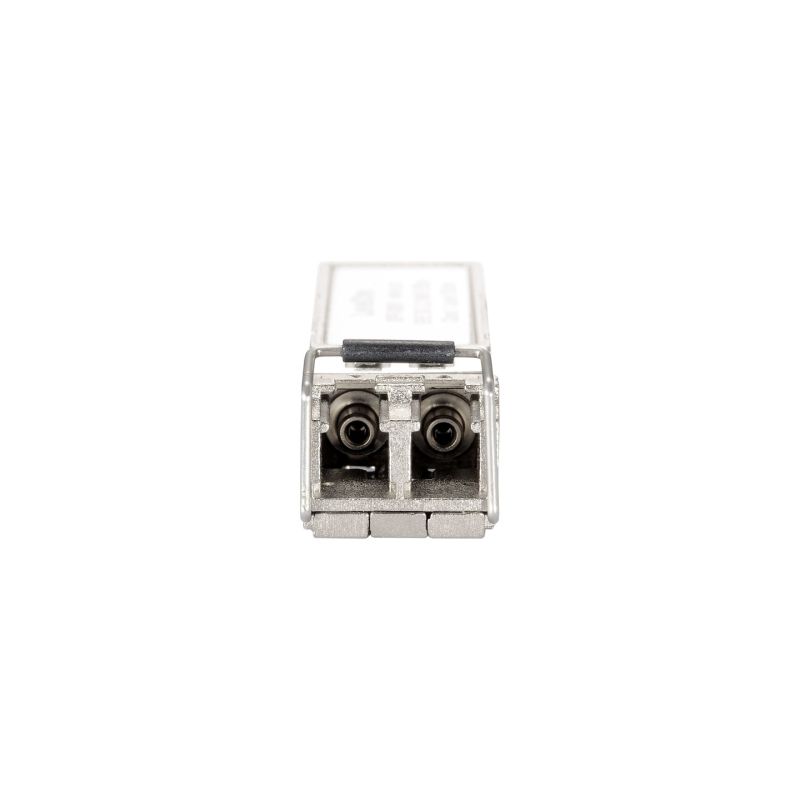

LevelOne SFP-3001 Network Transceiver Module 1250 Mbit/s 850 nm Fiber Optic
LevelOne SFP-3001 Network Transceiver Module 1250 Mbit/s 850 nm Fiber Optic
LevelOne SFP-3001 Network Transceiver Module 1250 Mbit/s 850 nm Fiber Optic
PRICE:
46,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Hot swap: Yes
- Plug & Play Support: Yes
- Power
- Maximum voltage: 6V
- Maximum current: 0.3 A
- Voltage: 3.3 V
- Weight and dimensions
- Product depth: 12 mm
- Product weight: 20 g
- Product width: 57 mm
- Product height: 13.7 mm
- Working conditions
- Relative humidity range: 5 - 95%
- Temperature range (operation): 0 - 70 °C
- Temperature range (storage): -40 - 85 °C
- Efficiency
- Two-way duplex transmission: Full
- Maximum transfer distance: 550 m
- Supported fiber optic cable diameters
- 62.5/125 µm
- 50/125
- Single-mode fiber (SMF) support: No
- Tx power (maximum): -3 dBmW
- Tx power (minimum): -9.5 dBmW
- Communication standards: IEEE 802.3z
- Interface type: SFP
- SFP Transceiver Type: Fiber Optic
- Maximum data transfer rate: 1250 Mbit/s
- Fiber optic connector: LC
- Number of ports: 1
- Multi-mode fiber (MMF) support: Yes
- Wavelength: 850 nm
- Packaging data
- Package width: 106 mm
- Package depth: 20 mm
- Weight with packaging: 35 g
- Package height: 65 mm
- Package contents
- Number of pieces: 1
- Certificates
- Safety: EN 60825-1
- Certificates of conformity: RoHS
- Logistics data
- Harmonized System (HS) code: 85369010
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | No name |
