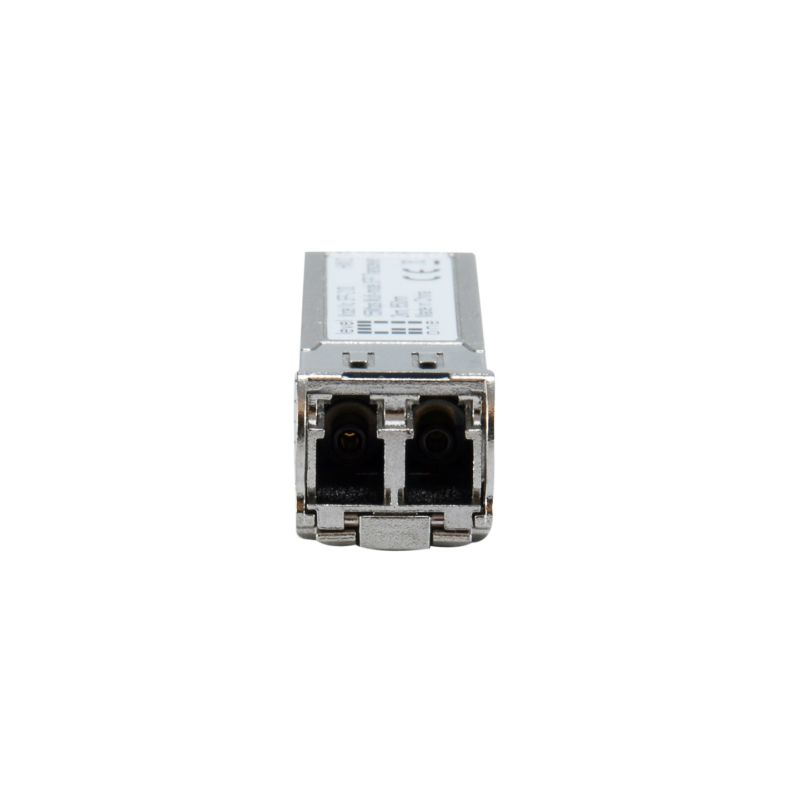

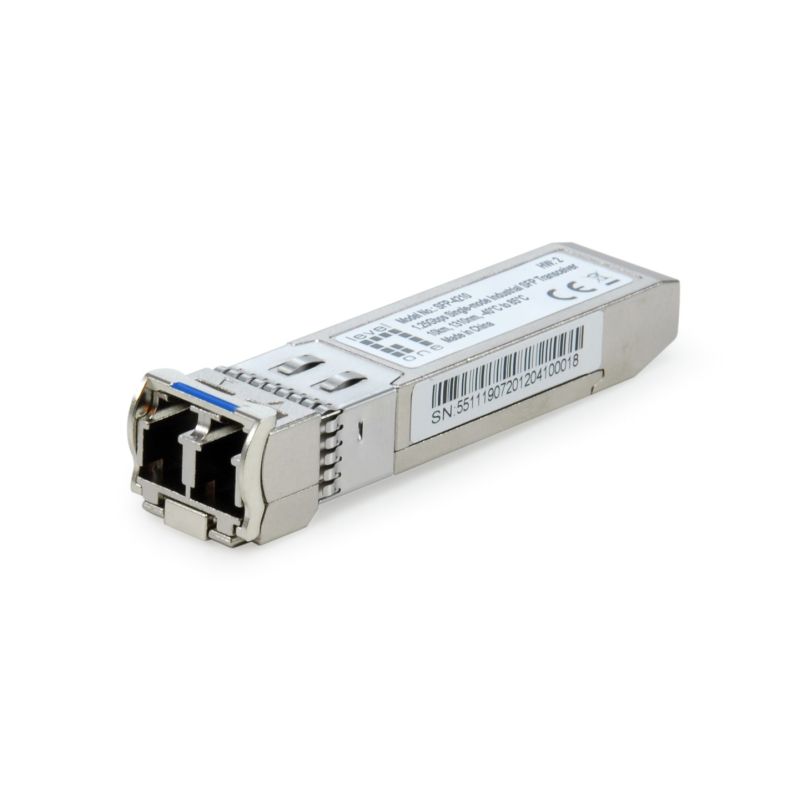

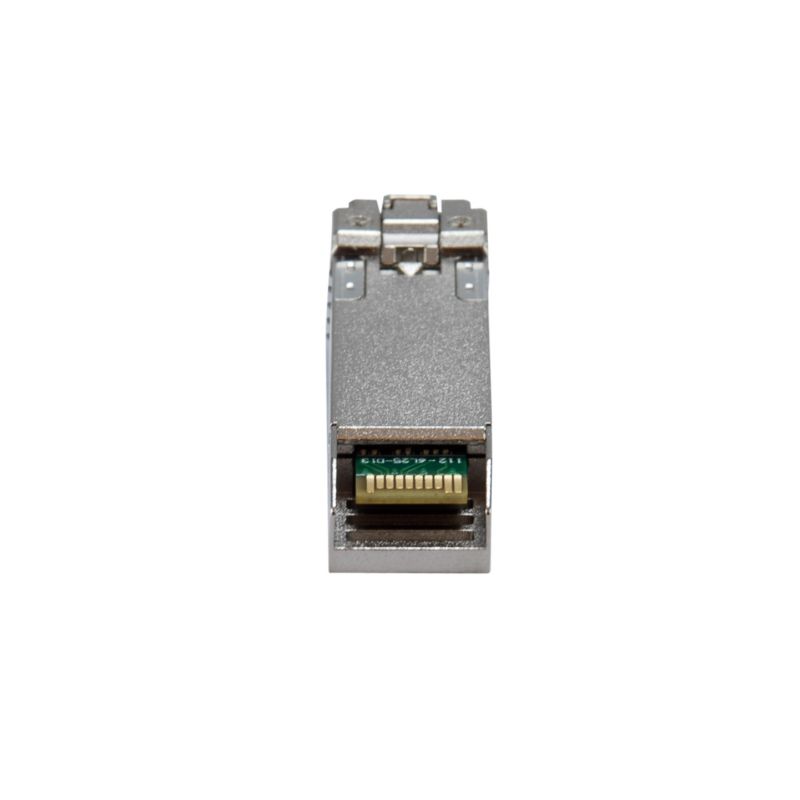

LevelOne SFP-4210 Network Transceiver Module 1250 Mbit/s 1310 nm Fiber Optic
LevelOne SFP-4210 Network Transceiver Module 1250 Mbit/s 1310 nm Fiber Optic
LevelOne SFP-4210 Network Transceiver Module 1250 Mbit/s 1310 nm Fiber Optic
PRICE:
56,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Hot swap: Yes
- Product color: Silver
- Power
- Power consumption: 0.8 W
- Maximum current: 0.3 A
- Maximum voltage: 3.47 V
- Weight and dimensions
- Product height: 12 mm
- Product weight: 20 g
- Product width: 14 mm
- Product depth: 57 mm
- Working conditions
- Temperature range (storage): -40 - 85 °C
- Relative humidity range: 0 - 85%
- Temperature range (operation): 0 - 70 °C
- Efficiency
- Tx power (minimum): -9.5 dBmW
- Maximum data transfer rate: 1250 Mbit/s
- Multi-mode fiber (MMF) support: No
- Two-way duplex transmission: Full
- SFP Transceiver Type: Fiber Optic
- Digital Diagnostic Monitoring (DDM): Yes
- Maximum transfer distance: 10000 m
- Single-mode fiber (SMF) support: Yes
- Fiber optic connector: LC
- Rx power (maximum): 2 dBmW
- Tx power (maximum): -3 dBmW
- Copper Ethernet cabling technology: 1000BASE
- Interface type: SFP
- Communication standards: IEEE 802.3z
- Wavelength: 1310 nm
- Rx power (minimum): -25 dBmW
- Supported fiber optic cable diameters: 9/125 µm
- Packaging data
- User Guide: Yes
- Package height: 20 mm
- Package depth: 106 mm
- Package width: 65 mm
- Packaging type: Box
- Weight with packaging: 39 g
- Package contents
- Number of pieces: 1
- Certificates
- Certificates of conformity: RoHS
- Logistics data
- Products in the main (outer) box: 150 pcs.
- Gross pallet length: 80 cm
- Country of origin: China
- Harmonized System (HS) code: 85369010
- Gross pallet width: 120 cm
- Pallet height (air): 166.9 cm
- Products per pallet: 35 pcs.
- Main (outer) housing gross weight: 6.67 kg
- Width of the collection box (external): 310 mm
- Main (outer) case length: 375 mm
- Height of the standard (outer) box: 268 mm
