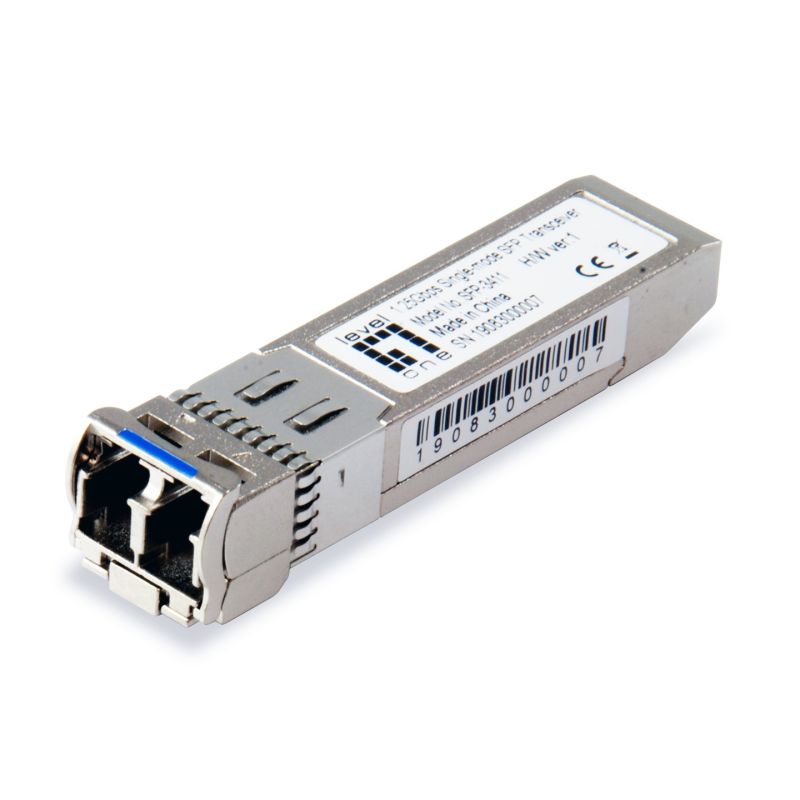

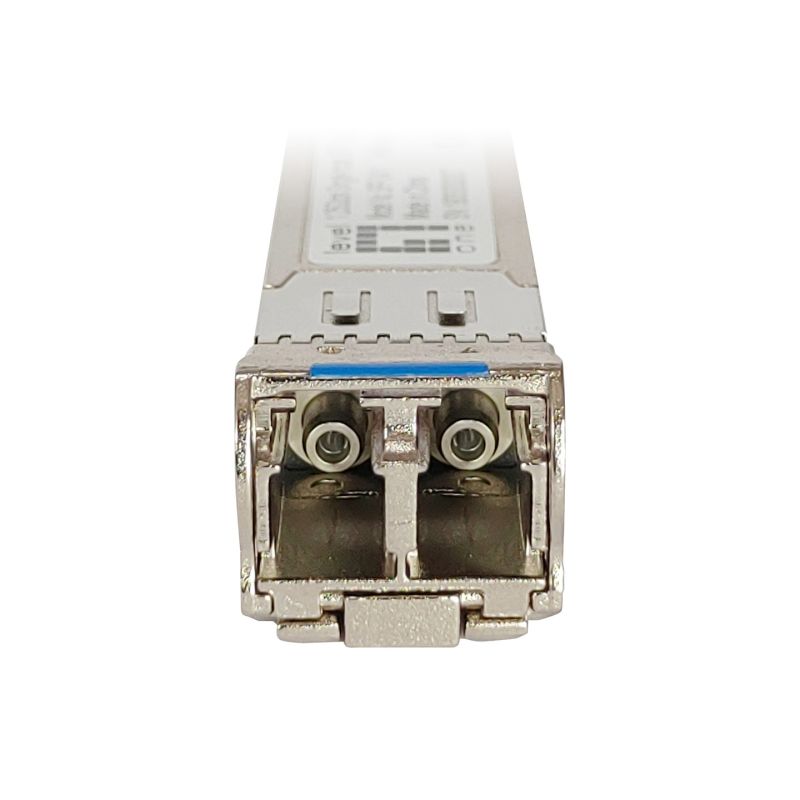

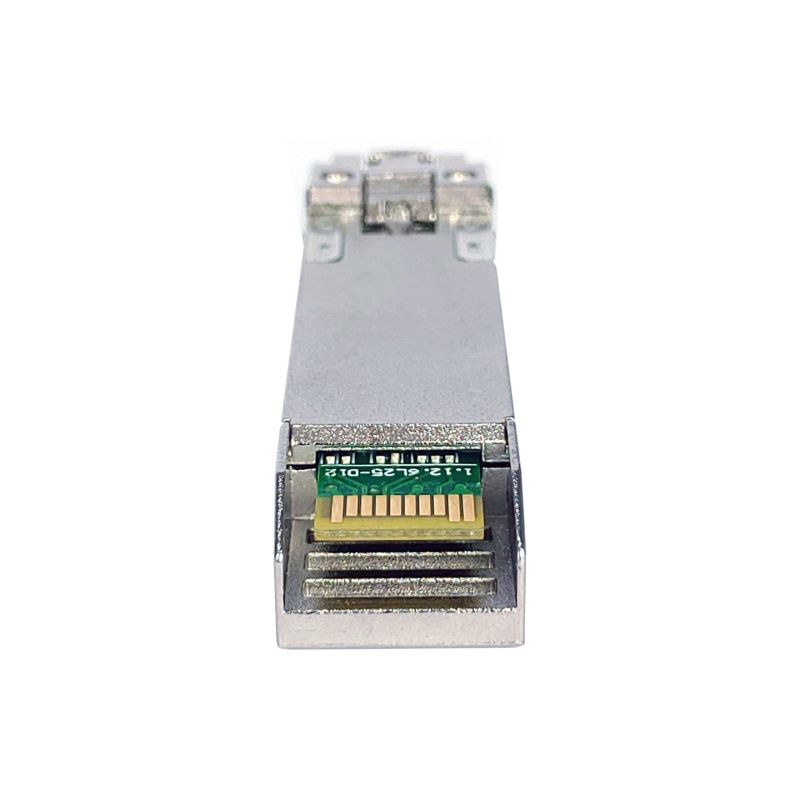

LevelOne SFP Transceiver 1.25Gbps SM Duplex LC 1310nm 40km
LevelOne SFP Transceiver 1.25Gbps SM Duplex LC 1310nm 40km
LevelOne SFP Transceiver 1.25Gbps SM Duplex LC 1310nm 40km
PRICE:
56,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Hot swap: Yes
- Product color: Silver
- Power
- Maximum current: 0.25 A
- Voltage: 3.3 V
- Weight and dimensions
- Product depth: 12 mm
- Product width: 57 mm
- Product weight: 22 g
- Product height: 14 mm
- Working conditions
- Permissible relative humidity: 0 - 85%
- Relative humidity range: 0 - 85%
- Temperature range (storage): -40 - 85 °C
- Temperature range (operation): 0 - 70 °C
- Efficiency
- Wavelength: 1310 nm
- SFP network card standard: LX
- Interface type: SFP
- Fiber optic connector: LC
- Supported fiber optic cable diameters: 9/125 µm
- Maximum transfer distance: 40000 m
- Maximum data transfer rate: 1250 Mbit/s
- Copper Ethernet cabling technology: 1000BASE
- Communication standards: IEEE 802.3z
- Single-mode fiber (SMF) support: Yes
- SFP Transceiver Type: Fiber Optic
- Rx power (minimum): -25 dBmW
- Link balance (budget): 20 dB
- Tx power (minimum): -5 dBmW
- Digital Diagnostic Monitoring (DDM): Yes
- Multi-mode fiber (MMF) support: No
- Tx power (maximum): 0 dBmW
- Rx power (maximum): -2 dBmW
- Packaging data
- Weight with packaging: 40 g
- Package height: 65 mm
- Packaging type: Box
- Package depth: 20 mm
- User Guide: Yes
- Package width: 106 mm
- Package contents
- Number of pieces: 1
- Certificates
- Certificates of conformity: RoHS
- Other functions
- Power: -25 - - 2 dBmW
- Logistics data
- Harmonized System (HS) code: 85369010
- Country of origin: China
