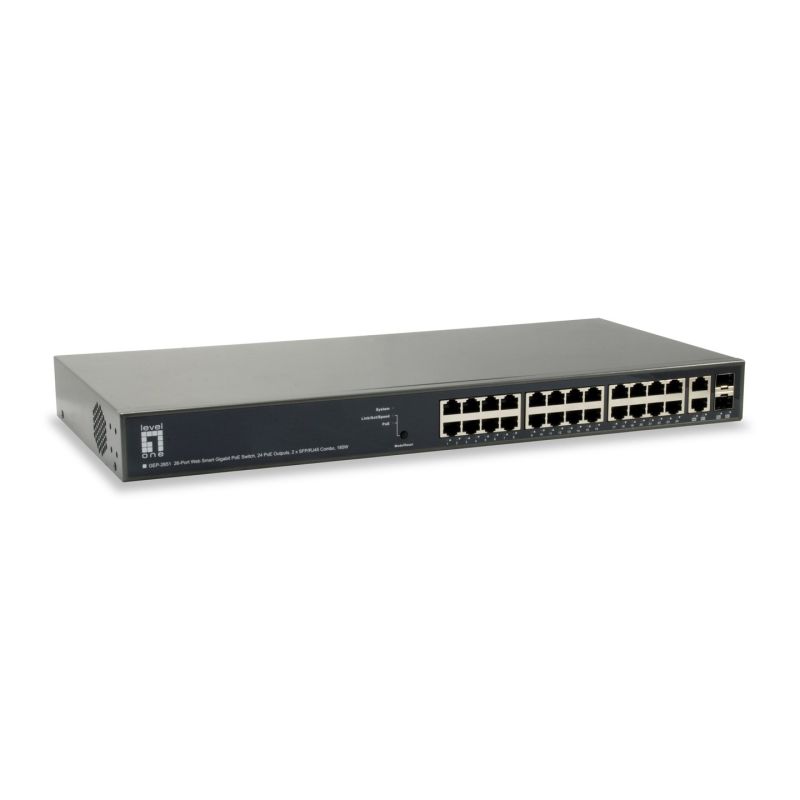

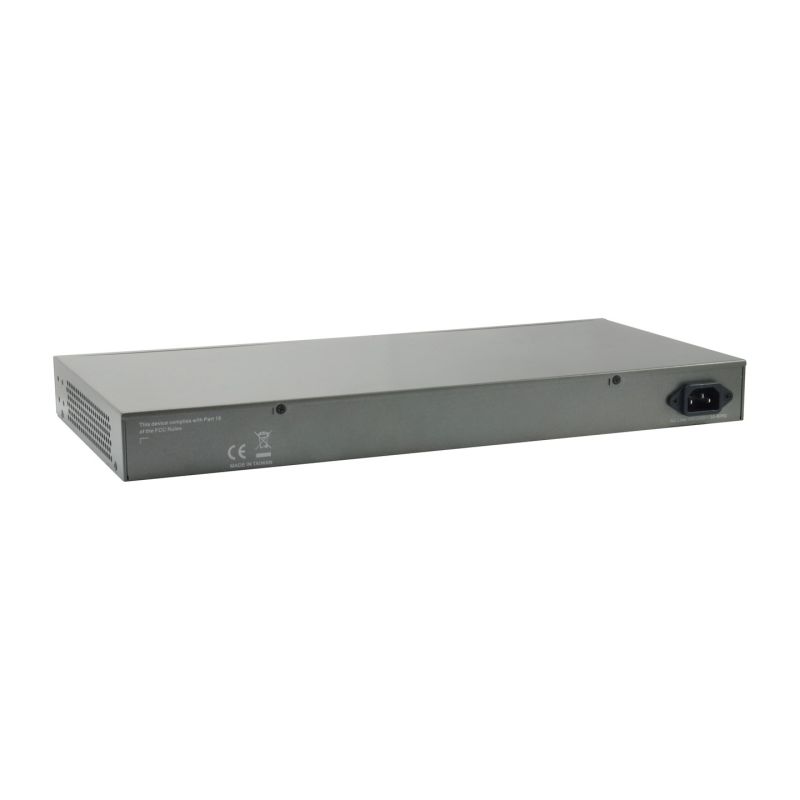

LevelOne TURING WebSmart/GB PoE Switch 26-Port 185W 1Gbps
LevelOne TURING WebSmart/GB PoE Switch 26-Port 185W 1Gbps
LevelOne TURING WebSmart/GB PoE Switch 26-Port 185W 1Gbps
PRICE:
1086,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Reset button: Yes
- Rack mounting options: Yes
- LED diodes
- PoE
- Action
- Speed
- Link
- Safety: UL 60950-1, 2nd Edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10
- Power
- AC input frequency: 50 - 60 Hz
- AC input voltage: 100 - 240 V
- Power consumption: 18.29 W
- Weight and dimensions
- Product depth: 211 mm
- Product width: 442 mm
- Product weight: 3.1 kg
- Product height: 44 mm
- Security
- Access Control List (ACL): Yes
- Loop protection: Yes
- IGMP snooping: Yes
- DHCP functions
- DHCP client
- DHCP snooping
- DHCP server
- Static Port Protection: Yes
- Encryption/Security: 802.1x RADIUS
- BPDU Filtering/Protection: Yes
- Management features
- System Event Report: Yes
- Switch Layer: L3
- Switch type: Managed
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Temperature range (operation): 0 - 45 °C
- Temperature range (storage): -20 - 70 °C
- Permissible relative humidity: 10 - 90%
- Relative humidity range: 10 - 90%
- Network
- Cable length measurement: Yes
- Traffic Growth Control: Yes
- MAC address auto-aging supported: Yes
- Flow Control Support: Yes
- Virtual LAN Features
- MAC address-based VLAN
- Tagged VLAN
- Port-based VLAN
- Number of VLANs: 256
- Port Mirroring: Yes
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- MAC address auto-learning supported: Yes
- Communication standards
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3z
- IEEE 802.3
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.3ab
- IEEE 802.1p
- IEEE 802.3ad
- Copper Ethernet cabling technology
- 1000BASE-T
- 100BASE-TX
- VLAN support: Yes
- Efficiency
- Device software updates: Yes
- MTBF (Mean Time Between Failures): 211272 h
- Buffer size: 512 KB
- Flash memory size: 32 MB
- Internal memory capacity: 128 MB
- Packaging data
- Package height: 90 mm
- Packaging depth: 520 mm
- Weight with packaging: 3.5 kg
- Package width: 300 mm
- Package contents
- Quick Start Guide: Yes
- Wires: Alternating Current
- User Manual: Yes
- Protocols
- Supported network protocols: IPv4/IPv6
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of Gigabit Ethernet ports: 24
- Number of SFP Combo Ports: 2
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Height of the standard (outer) box: 324 mm
- Main (outer) case length: 540 mm
- Harmonized System (HS) code: 85176990
- Gross weight of the main (outer) housing: 21 kg
- Width of the collection box (external): 482 mm
- Country of origin: Taiwan
- Products in the main (outer) box: 5 pcs.
- Data transfer
- Store-and-forward: Yes
- Jumbo Frame Compatible: Yes
- Static Route: Yes
- Jumbo Frames Expansion: 9600
- Address table size: 8000 entries
- Routing/Switching Throughput: 52 Gbit/s
- Transfer speed: 38.7 Mpps
- Power over Ethernet (PoE)
- Power over Ethernet Plus (PoE +) ports: 24
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 185 W
- Power over Ethernet (PoE) power per port: 30 W
- Fiber optic
- Fiber Ethernet cabling technology: 1000BASE-X
