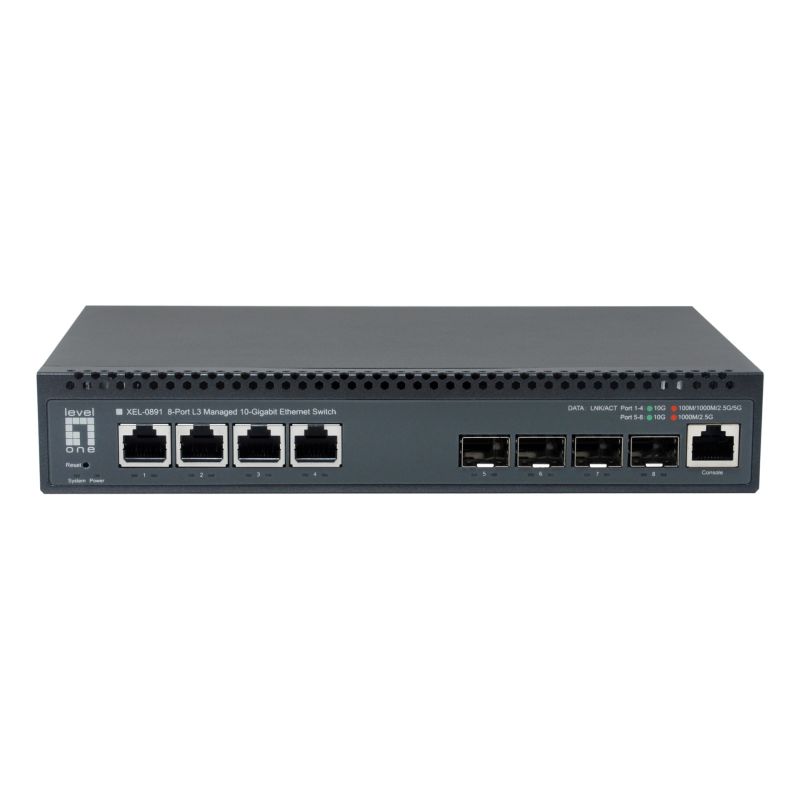

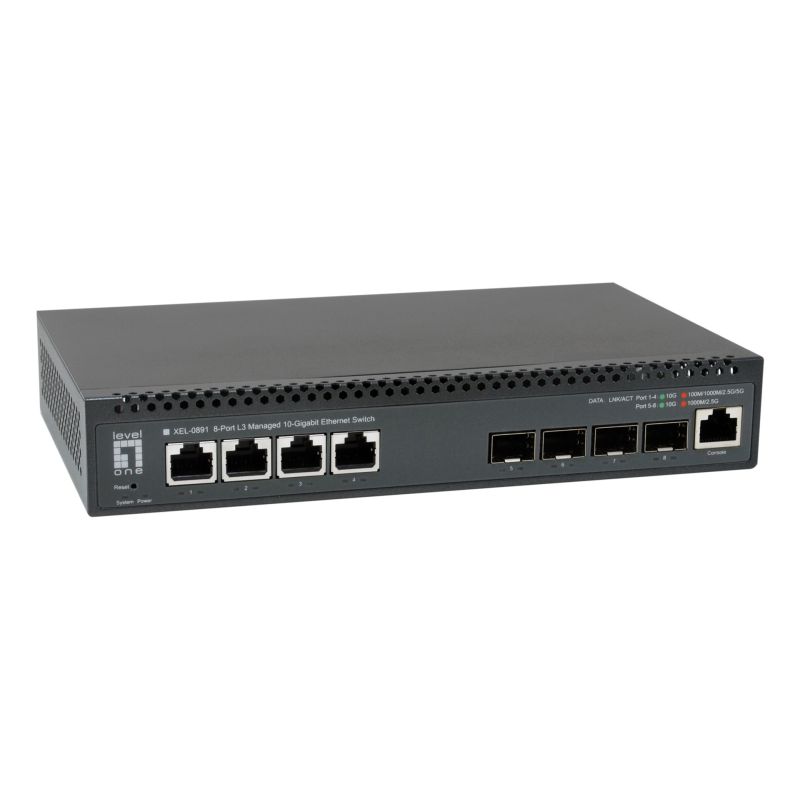

LevelOne XEL-0891 Managed L3 10G Ethernet (100/1000/10000) Desktop Gray
LevelOne XEL-0891 Managed L3 10G Ethernet (100/1000/10000) Desktop Gray
LevelOne XEL-0891 Managed L3 10G Ethernet (100/1000/10000) Desktop Gray
PRICE:
864,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Delivery box width: 42.3 cm
- Delivery box height: 21.8 cm
- Shipping box length: 32.3 cm
- Products per shipping crate (inner): 5 pcs.
- Gross weight of shipping crate (inner): 8.5 kg
- Design
- Product color: Gray
- LEDs: Yes
- Layout: Desktop
- Power
- Power source: DC
- Power supply included: Yes
- Power consumption (max): 29.6 W
- Input current: 3 A
- DC input voltage: 12V
- Weight and dimensions
- Product height: 37.8 mm
- Product weight: 1.1 kg
- Product width: 220 mm
- Product depth: 130 mm
- Security
- DHCP functions
- DHCP relay
- DHCP Option 82
- DHCP Option 60
- DHCP snooping
- DHCP Option 43
- DHCP Option 67
- DHCP Option 61
- DHCP client
- IGMP snooping: Yes
- IGMP Proxy: Yes
- DHCP functions
- Management features
- System Event Report: Yes
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Switch type: Managed
- Switch Layer: L3
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Permissible relative humidity: 5 - 90%
- Relative humidity range: 10 - 90%
- Network
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- Communication standards
- IEEE 802.3x
- IEEE 802.3
- IEEE 802.3ae
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.1s
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3bz
- IEEE 802.3ad
- Flow Control Support: Yes
- Full duplex: Yes
- 10G Support: Yes
- Traffic Growth Control: Yes
- VLAN support: Yes
- Frequency Limit: Yes
- Efficiency
- MTBF (Mean Time Between Failures): 50000 h
- Packaging data
- Package width: 310 mm
- Package height: 80 mm
- Weight with packaging: 1.5 kg
- Packaging type: Box
- Packaging depth: 200 mm

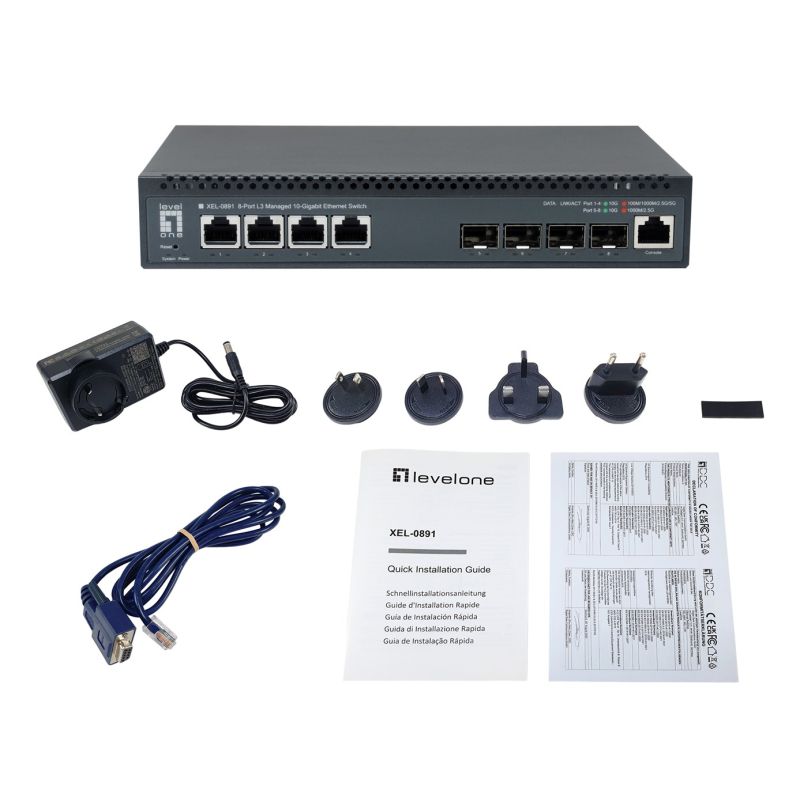

- Package contents
- Cables: LAN (RJ-45) to DB9
- Quick Start Guide: Yes
- Ports and interfaces

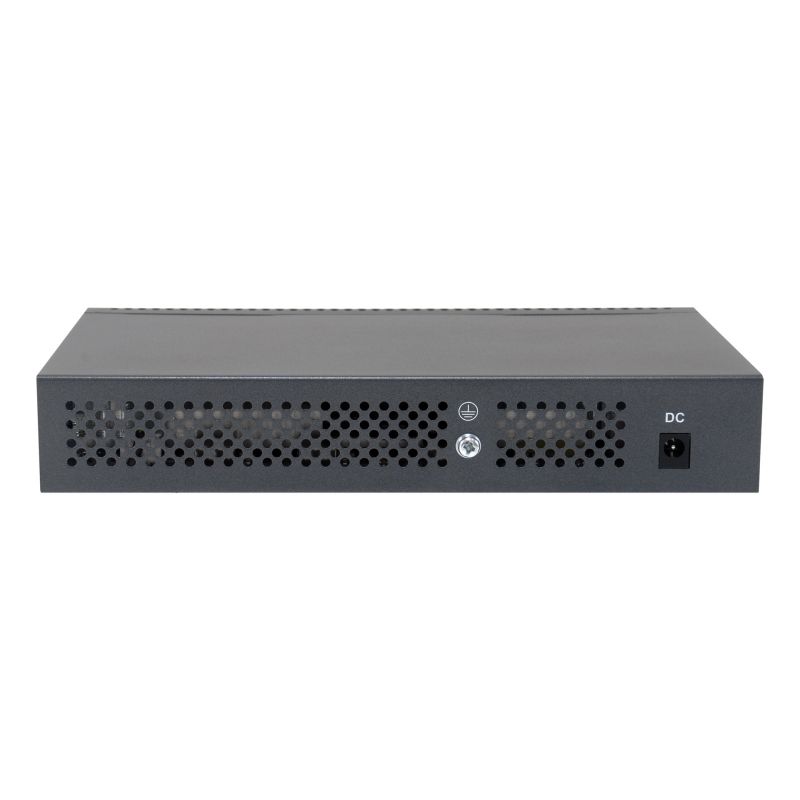

- Power connector: DC-in jack
- Number of SFP+ Module slots: 4
- Basic Ethernet Switching RJ-45 Ports Type: 10G Ethernet (100/1000/10000)
- Console port: RJ-45
- Basic RJ-45 Switching Number of Ethernet Ports: 4
- Logistics data
- Country of origin: China
- Harmonized System (HS) code: 8517620000
- Data transfer
- Forwarding speed: 119.04 Mpps
- Packet buffer memory: 12 MB
- Address table size: 16000 entries
- Routing/switching capacity: 160 Gbit/s
- Jumbo Frame Compatible: Yes
- Static Route: Yes
- Jumbo Frames Expansion: 12000
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Multicast Listener Discovery (MLD) snooping: Y
