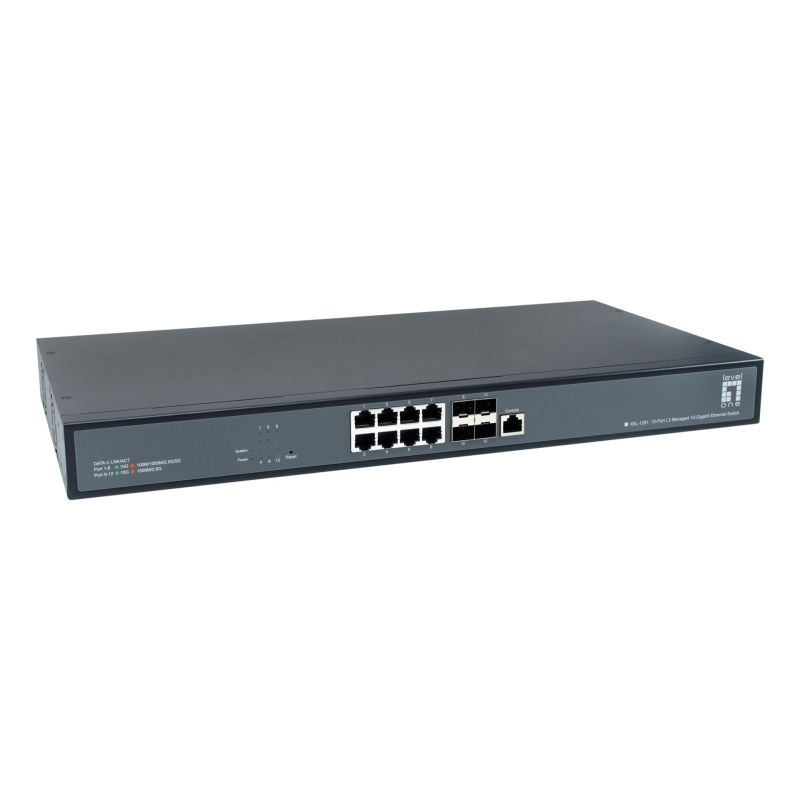

LevelOne XEL-1291 Managed L3 10G Ethernet (100/1000/10000) 1U Black
LevelOne XEL-1291 Managed L3 10G Ethernet (100/1000/10000) 1U Black
LevelOne XEL-1291 Managed L3 10G Ethernet (100/1000/10000) 1U Black
PRICE:
1506,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Delivery box height: 34.5 cm
- Delivery box width: 50.9 cm
- Shipping box length: 38.9 cm
- Gross weight of shipping crate (inner): 19 kg
- Products per shipping crate (inner): 5 pcs.
- Design
- Rack mounting options: Yes
- Product color: Black
- Layout: 1U
- LEDs: Yes
- Power
- Power supply included: Yes
- Power source: DC
- Power consumption (max): 48.2 W
- AC input voltage: 100 - 240 V
- Input current: 2 A
- AC input frequency: 50/60 Hz
- Weight and dimensions
- Product width: 440 mm
- Product height: 44 mm
- Product depth: 207 mm
- Product weight: 2.5 kg
- Security
- DHCP functions
- DHCP Option 60
- DHCP relay
- DHCP snooping
- DHCP Option 61
- DHCP Option 43
- DHCP Option 82
- DHCP Option 67
- DHCP client
- IGMP snooping: Yes
- IGMP Proxy: Yes
- DHCP functions
- Management features
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Switch type: Managed
- Switch Layer: L3
- System Event Report: Yes
- Working conditions
- Permissible relative humidity: 5 - 90%
- Temperature range (operation): 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 10 - 90%
- Network
- Full duplex: Yes
- VLAN support: Yes
- 10G Support: Yes
- Communication standards
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.3
- IEEE 802.3bz
- IEEE 802.3z
- IEEE 802.1s
- IEEE 802.3az
- IEEE 802.3x
- IEEE 802.3ab
- Connection Aggregator: Yes
- Flow Control Support: Yes
- Frequency Limit: Yes
- Spanning Tree Protocol: Yes
- Traffic Growth Control: Yes
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- Packaging data
- Package depth: 315 mm
- Package width: 495 mm
- Package height: 72 mm
- Packaging type: Box
- Weight with packaging: 3.61 kg

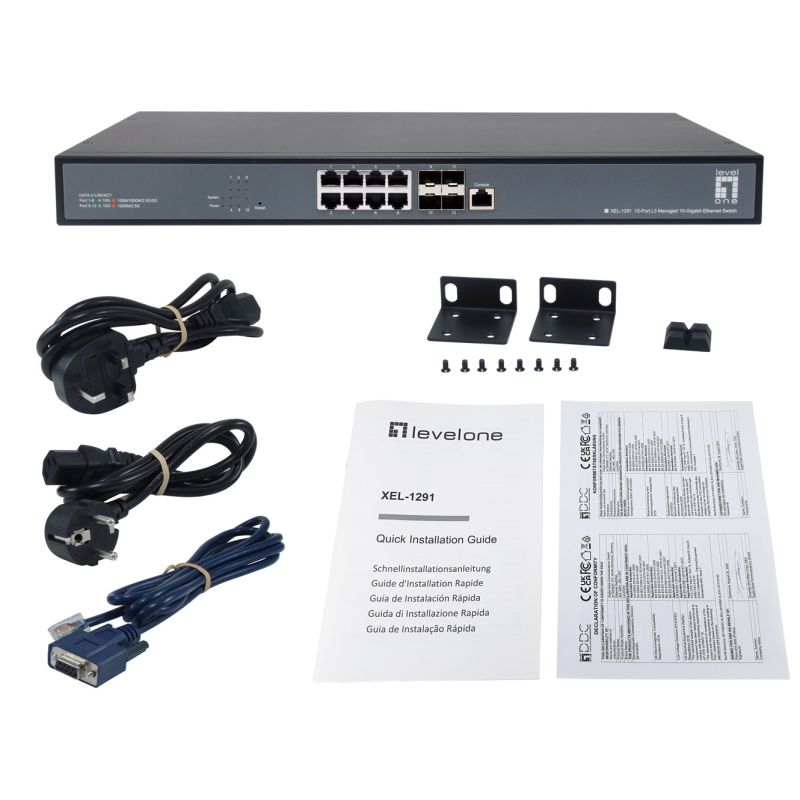

- Package contents
- Wires: Alternating Current
- Quick Start Guide: Yes
- Hook mounting kit: Yes
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet Switching RJ-45 Ports Type: 10G Ethernet (100/1000/10000)
- Power Connector: AC Input Socket
- Number of SFP+ Module slots: 4
- Console port: RJ-45
- Logistics data
- Harmonized System (HS) code: 8517620000
- Country of origin: China
- Data transfer
- Routing/switching capacity: 240 Gbit/s
- Jumbo Frame Compatible: Yes
- Static Route: Yes
- Forwarding speed: 178.56 Mpps
- Jumbo Frames Expansion: 12000
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Multicast Listener Discovery (MLD) snooping: Y
- Fiber optic
- Maximum transfer distance (multi mode): 16 m
