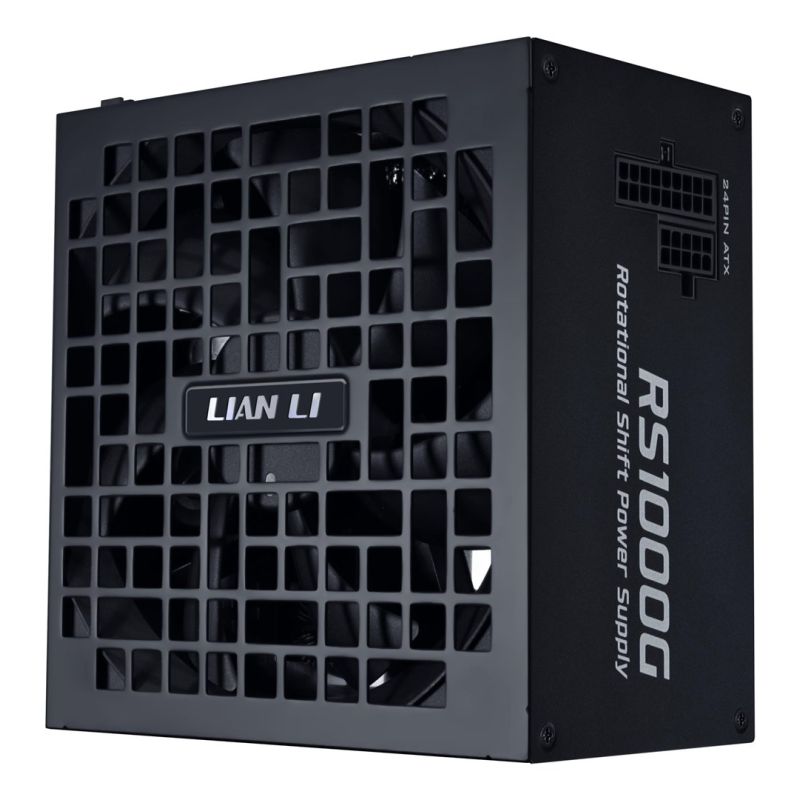

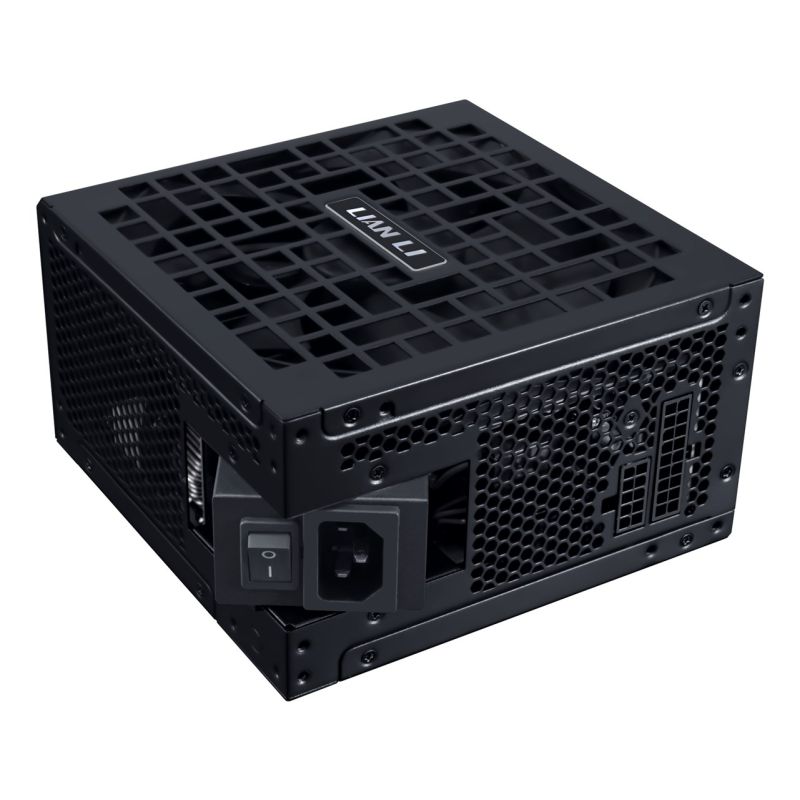

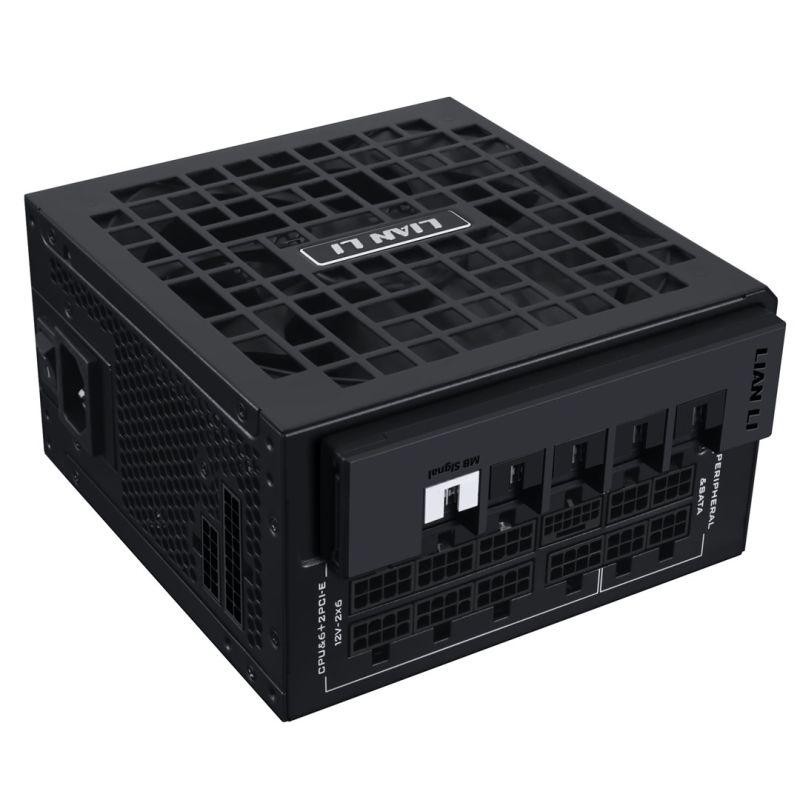

Lian Li RS1000G Power Supply Module 1000W 20+4 pin ATX ATX Black
Lian Li RS1000G Power Supply Module 1000W 20+4 pin ATX ATX Black
Lian Li RS1000G Power Supply Module 1000W 20+4 pin ATX ATX Black
PRICE:
214,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Number of fans: 1 fan
- Fan speed: 0 - 1600 RPM
- Fan bowl diameter: 13.5 cm
- Power
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Input current: 8 - 15 A
- Power protection features
- Short circuit
- Overload protection
- Below temperature
- Low voltage protection
- Protection against overvoltage
- Overcurrent
- No load operation
- Surge & inrush protection (SIP)
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 83.3A
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (+3.3V): 20 A
- Total power (+5 Vsb): 15 W
- Total power (+5V): 100 W
- Total power: 1000 W
- Maximum output current (+5V): 20A
- Total power (+3.3V): 100 W
- Total power (+12V): 1000 W
- Weight and dimensions
- Product depth: 150 mm
- Product height: 150 mm
- Product width: 86 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- Noise level: 36.21 dB
- 80 PLUS Certificate: 80 PLUS Gold
- Power supply type (PSU): ATX
- ATX version: 3.1
- Intended use: PC
- Bearing Technology: FDB
- MTBF (Mean Time Between Failures): 100000 h
- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 4
- CPU power cable length: 70 cm
- PCI Express power cable length: 65 cm
- ATX power supply connector (20+4 pin): Yes
- Motherboard cable length: 62 cm
- Peripheral (Molex) Power cable length: 500 mm
- PCI Express power connectors (6+2 pin): 2
- Motherboard power connector: 20+4 pin ATX
- Wiring Type: Fully Modular
| Name | Details |
|---|---|
| Producer | LIAN LI |
