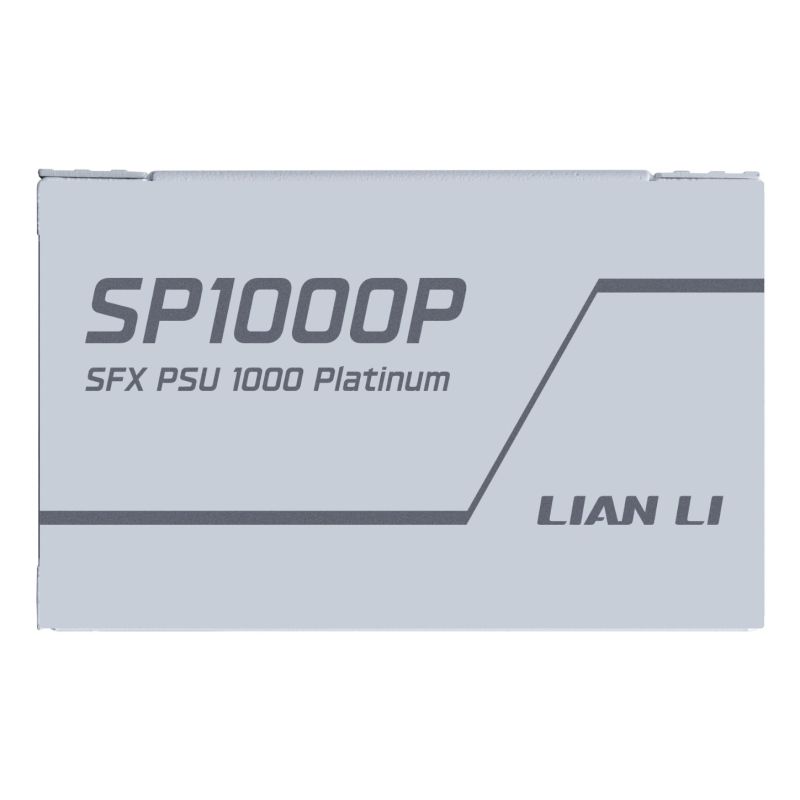

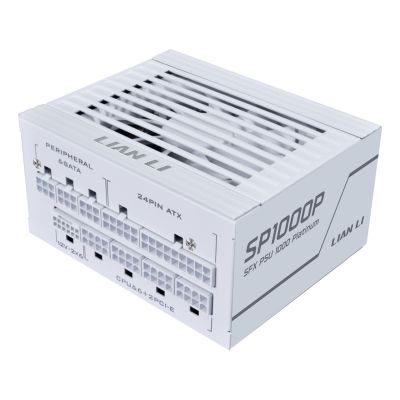

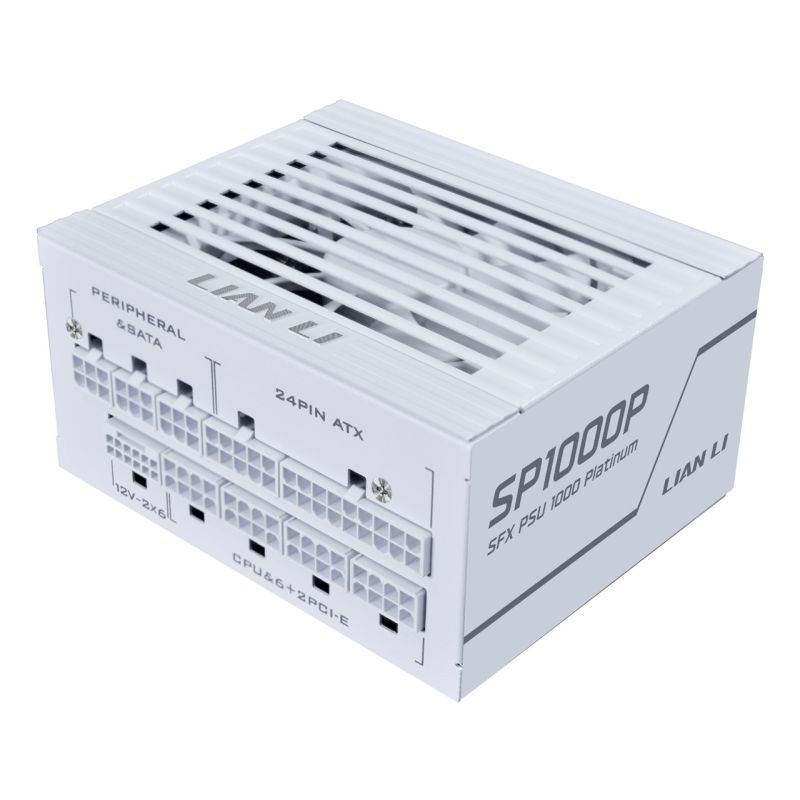

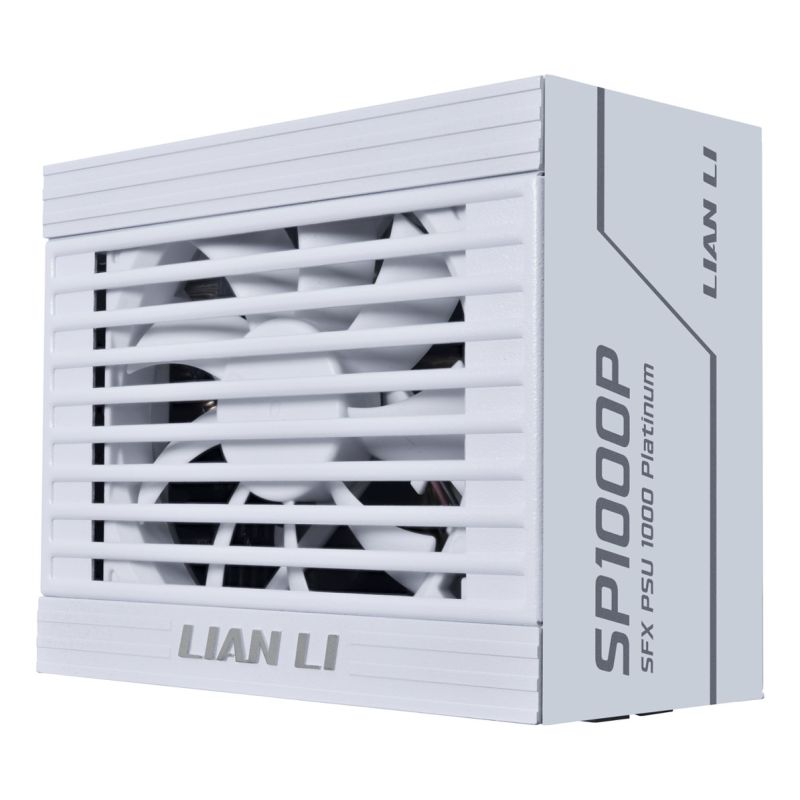

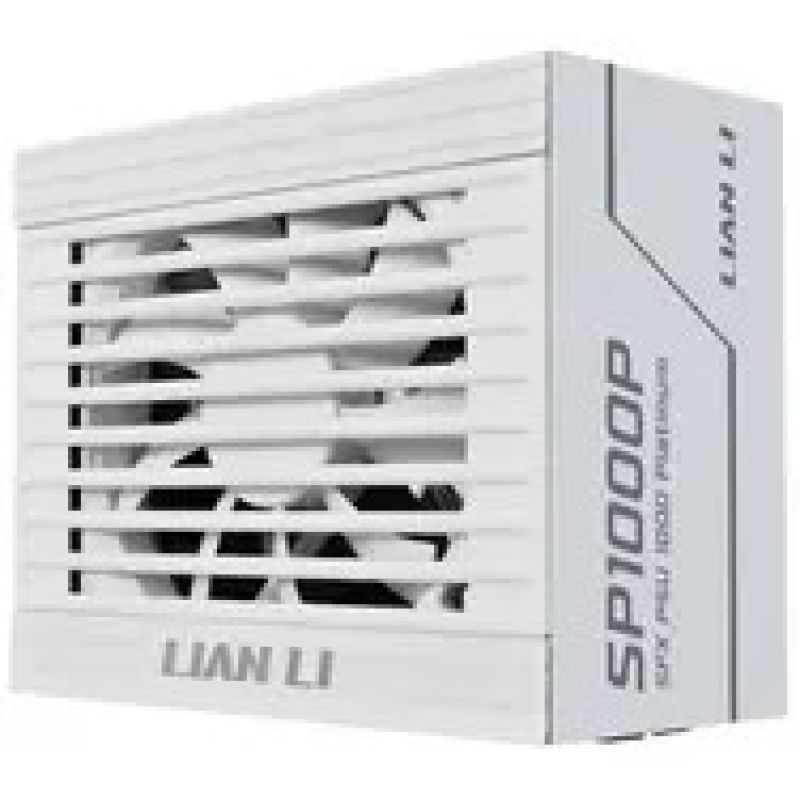

Lian Li SP1000P Power Supply Module 1000W 24-pin ATX SFX White
Lian Li SP1000P Power Supply Module 1000W 24-pin ATX SFX White
Lian Li SP1000P Power Supply Module 1000W 24-pin ATX SFX White
PRICE:
296,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: White

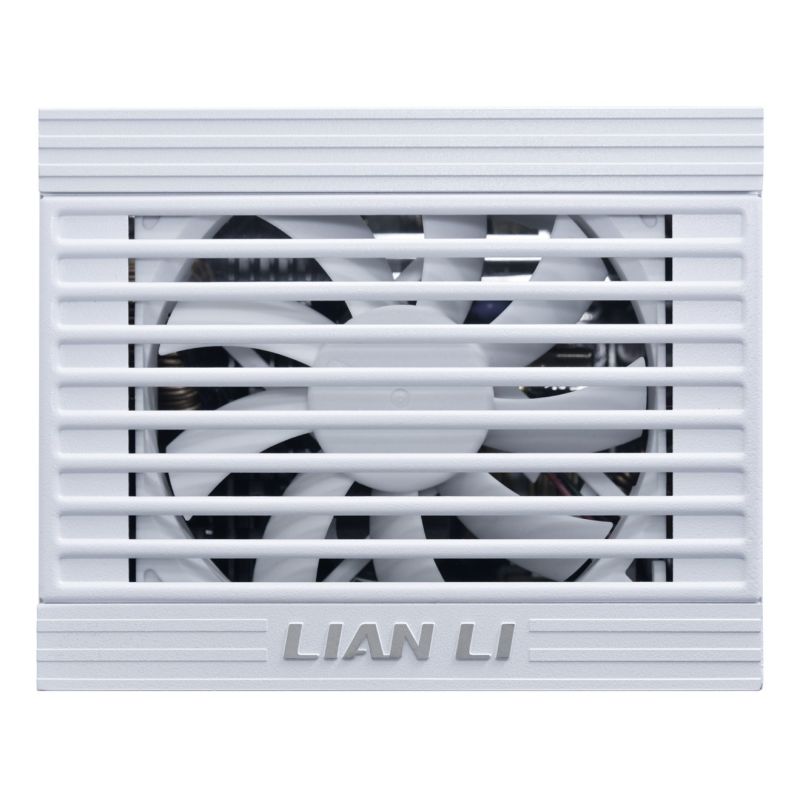

- Fan bowl diameter: 9.2 cm
- Number of fans: 1 fan

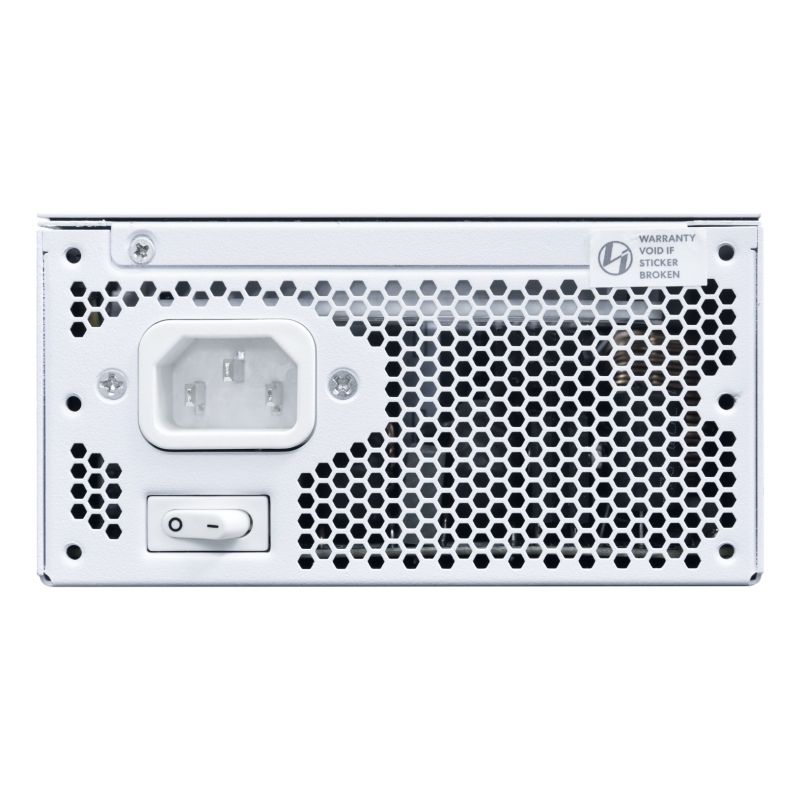

- Built-in switch: Yes

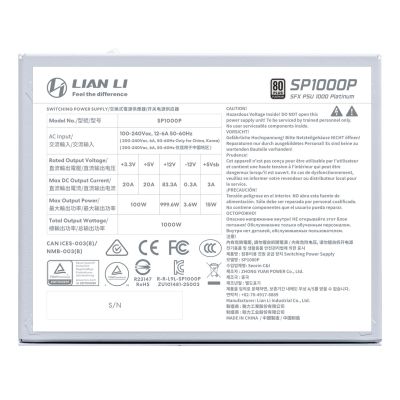

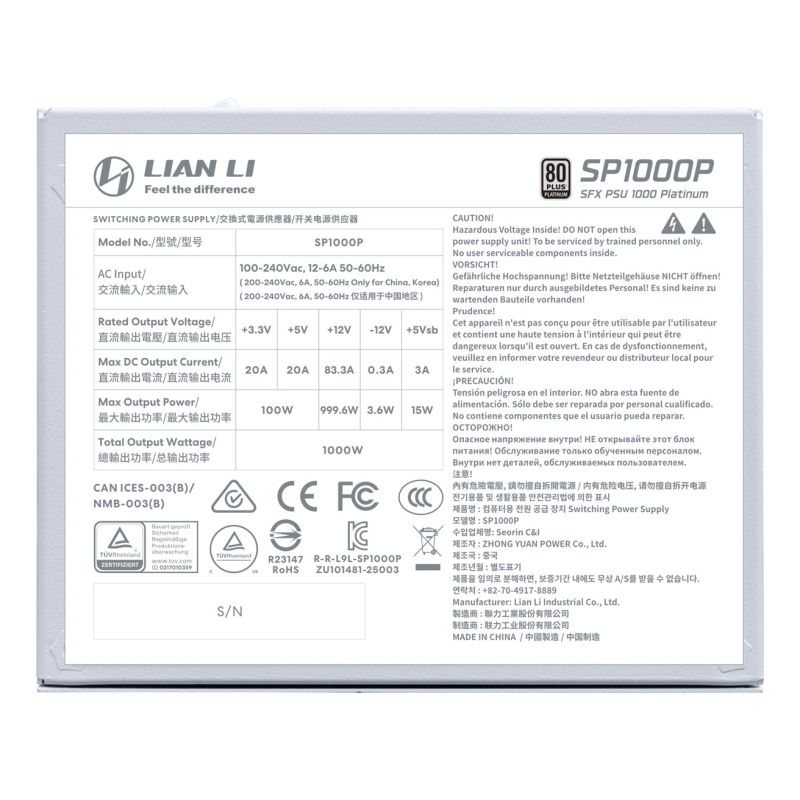

- Power
- AC input voltage: 100 - 240 V
- Input current: 6 - 12 A
- AC input frequency: 50/60 Hz
- Maximum output current (+5 Vsb): 3 A
- PFC (Power Factor Correction) Type: Active
- Maximum output current (-12V): 0.3A
- Maximum output current (+12V): 83.3A
- Maximum output current (+3.3V): 20 A
- Total power (+5 Vsb): 15 W
- Power factor: 0.95
- Total power (+5V): 100 W
- Power protection features
- Low voltage protection
- Short circuit
- Overheating protection
- Protection against overvoltage
- Overcurrent
- Overcharge protection
- Over-discharge
- Surge & inrush protection (SIP)
- Total power (+3.3V): 100 W
- Total power (+12V): 999.6 W
- Maximum output current (+5V): 20A
- Total power: 1000 W
- Total power (-12V): 3.6 W
- Weight and dimensions
- Product depth: 100 mm
- Product width: 125 mm
- Product height: 63.5 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- Power supply unit (PSU) type: SFX
- 80 PLUS Certificate: 80 PLUS Platinum
- Bearing Technology: FDB
- Intended use: PC
- Noise level: 45 dB
- ATX version: 3.1

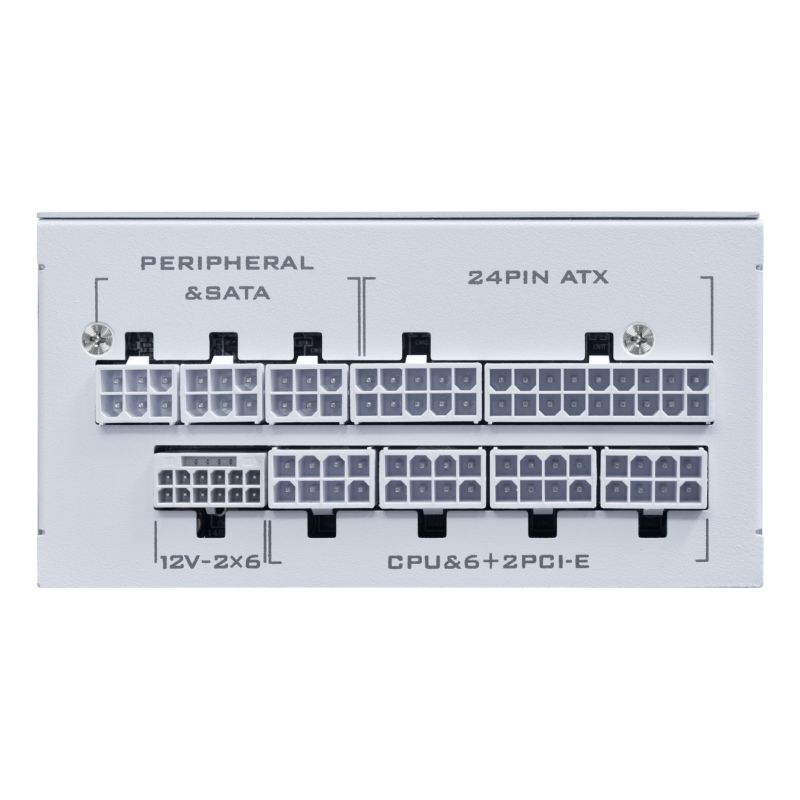

- Ports and interfaces
- ATX power socket (24-pin): Yes
- CPU power cable length: 45 cm
- CPU power supply connector (4+4 pin): Yes
- Number of SATA power connectors: 3
- SATA power cable length
- 350
- 650 mm
- 500 mm
- PCI Express power supply connector (8-pin): 3
- Wiring Type: Fully Modular
- Motherboard power connector: 24-pin ATX
- Motherboard cable length: 35 cm
- EPS power connector (4+4 pin): Yes
| Name | Details |
|---|---|
| Department | Electronics |
| Category | Computers and accessories |
| Product Type | Power supplies |
| Producer | LIAN LI |
| Colour | White |
