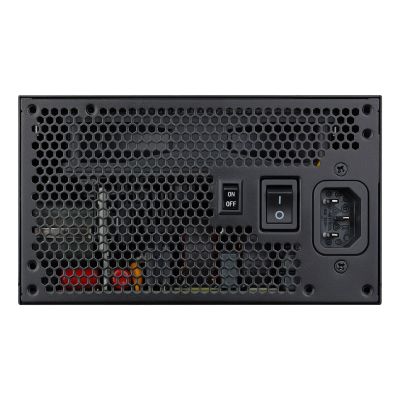

Lian Li SX0850P Power Supply Module 850 W 20+4 pin ATX ATX Black
Lian Li SX0850P Power Supply Module 850 W 20+4 pin ATX ATX Black
Lian Li SX0850P Power Supply Module 850 W 20+4 pin ATX ATX Black
PRICE:
261,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design

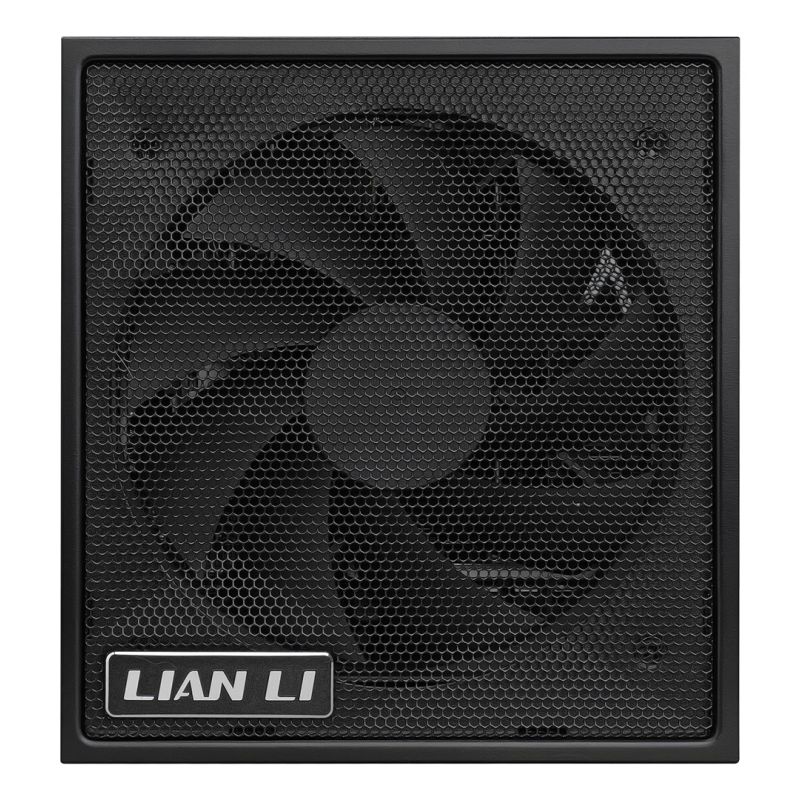

- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Product color: Black
- Built-in switch: Yes
- Power
- Total power (+5V): 100 W
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 70.8 A
- Total power: 850 W
- Power protection features
- Over-discharge
- Surge & inrush protection (SIP)
- Short circuit
- Overheating protection
- Low voltage protection
- Overcharge protection
- Protection against overvoltage
- Overcurrent
- Power factor: 0.95
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 6 - 12 A
- Total power (+12V): 849.6 W
- Total power (-12V): 3.6 W
- Total power (+3.3V): 100 W
- Maximum output current (+3.3V): 20 A
- Total power (+5 Vsb): 15 W
- Maximum output current (-12V): 0.3A
- Maximum output current (+5V): 20A
- Maximum output current (+5 Vsb): 3 A
- Weight and dimensions
- Product width: 150 mm
- Product height: 86 mm
- Product depth: 140 mm
- Efficiency
- Intended use: PC
- ATX version: 3.1
- Bearing Technology: FDB
- 80 PLUS Certificate: 80 PLUS Platinum
- MTBF (Mean Time Between Failures): 100000 h
- Power supply type (PSU): ATX
- Ports and interfaces
- Wiring Type: Fully Modular
- PCI Express power connectors (6+2 pin): 1
- SATA power cable length
- 400
- 700 mm
- 550
- 850 mm
- Peripheral (Molex) Power Connectors (4-pin): 1
- Motherboard cable length: 60 cm
- PCI Express power supply connector (8-pin): 2
- Peripheral (Molex) Power Cable Length
- 850 mm
- 700
- 550
- 400
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (16-pin): 1
- Motherboard power connector: 20+4 pin ATX
- ATX power supply connector (20+4 pin): Yes
- Number of SATA power connectors: 2
- PCI Express power cable length: 55 cm
