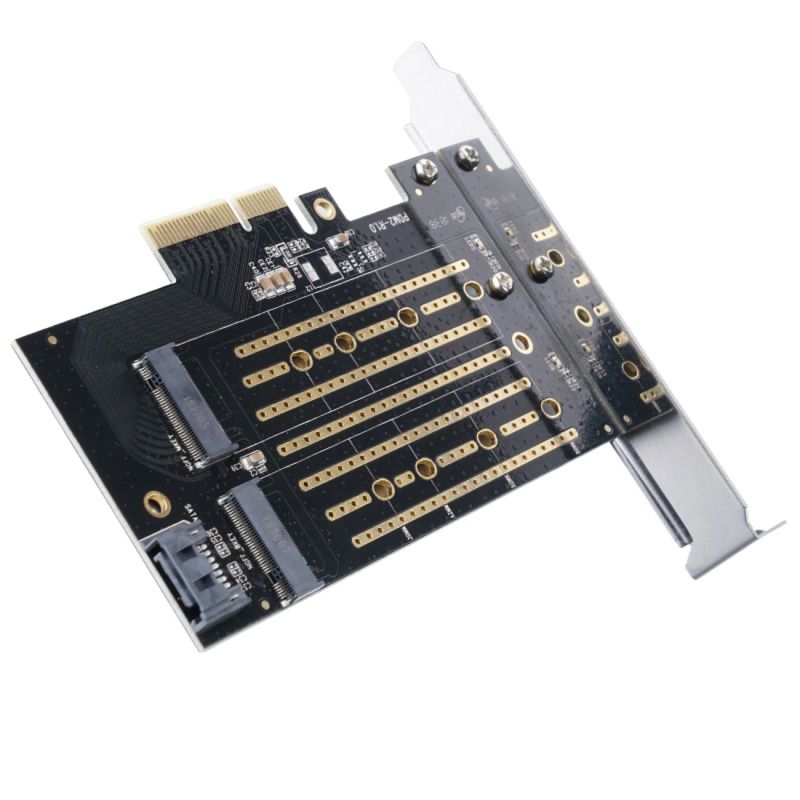

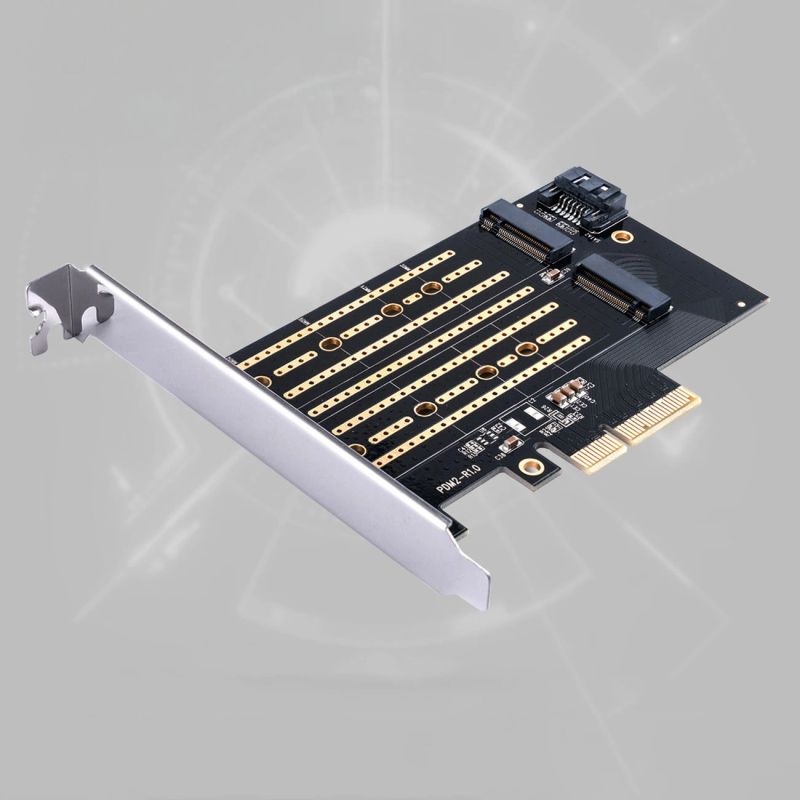

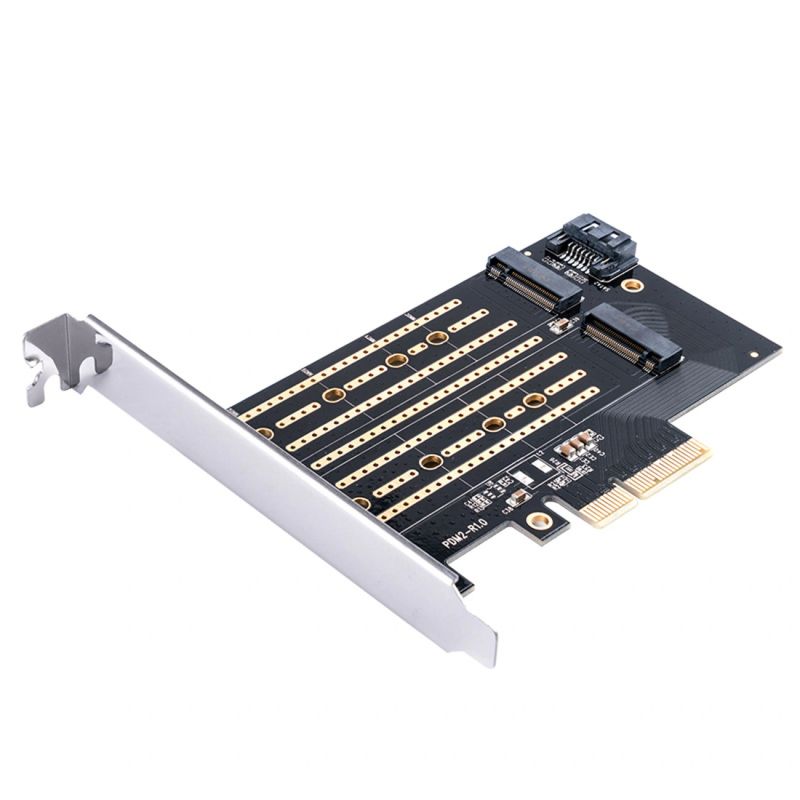

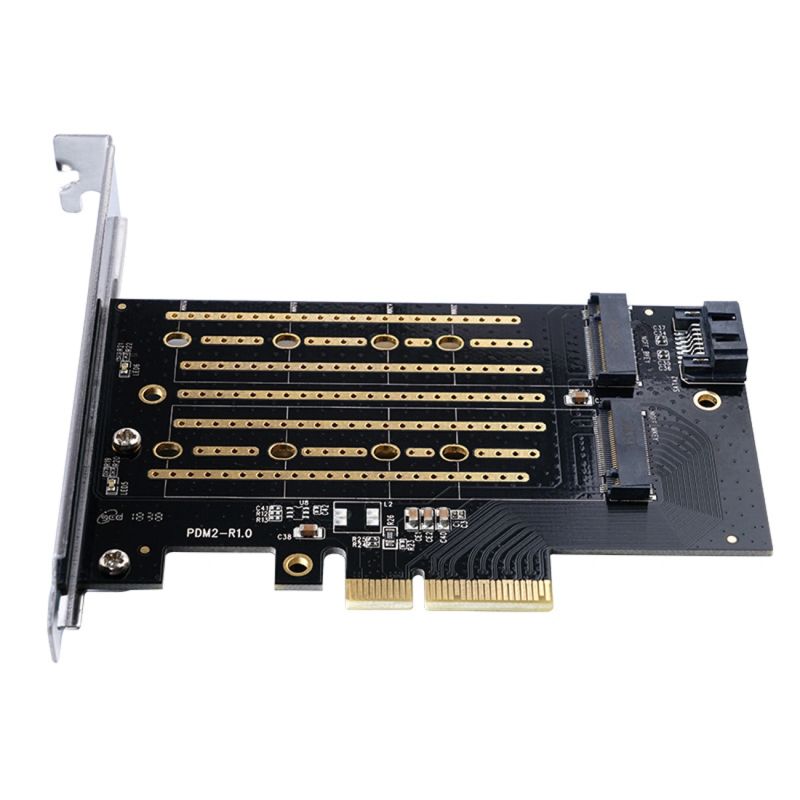

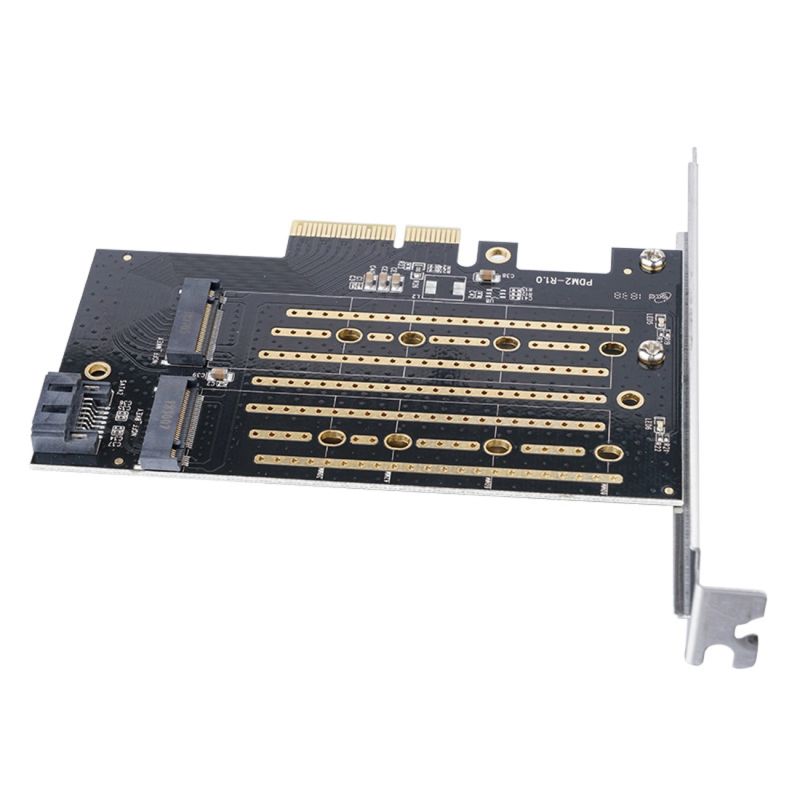

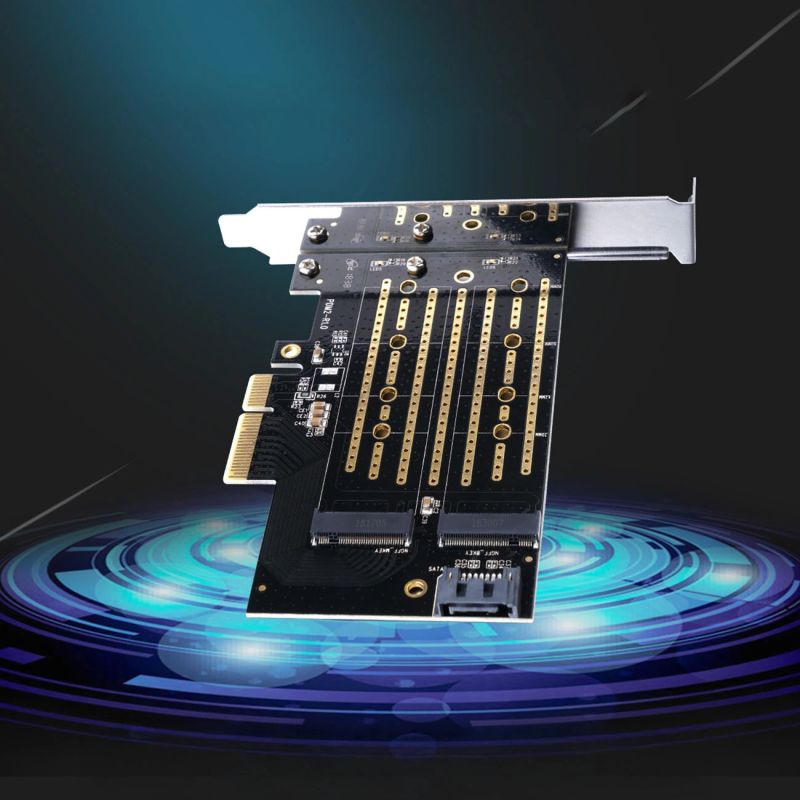

Orico PDM2 PCI-E 3.0 x4 expansion card for M.2 NVMe and SATA drives – black
The Orico PDM2 allows you to install two M.2 drives in a desktop computer and use an available PCI-E slot to expand storage capacity. The card supports both NVMe and SATA drives, providing great flexibility when upgrading your computer. The PCI-E 3.0 x4 interface enables a theoretical throughput of up to 32 Gbps for NVMe drives, while compatibility with the 2230, 2242, 2260 and 2280 formats makes it easy to fit different drives. The carefully designed construction with heat-dissipating openings supports stable operation even during intensive use. It is a practical solution for users expanding their computer with additional high-speed storage.
~
Specifications:
- Manufacturer: Orico
- Model: Orico PDM2
- Input interface: PCI-E 3.0 Gen3 x4
- Supported drives: M.2 NVMe and M.2 SATA
- Key types: B-Key, M-Key, B+M Key
- Supported SSD formats: 2230 / 2242 / 2260 / 2280
- Transfer speed: up to 32 Gbps (NVMe), up to 6 Gbps (SATA)
- Maximum capacity: up to 2 TB per drive, up to 4 TB in total
- Compatibility: Windows, macOS, Linux
- Installation: screw mounting
- Bracket material: stainless steel
- Colour: black
~
Key advantages of the Orico PDM2:
- Support for two M.2 drives: enables you to expand your computer’s storage capacity.
- Compatibility with NVMe and SATA: works with two popular SSD protocols.
- Transfer speeds of up to 32 Gbps: lets you take advantage of the performance of fast NVMe drives.
- Support for multiple formats: suitable for 2230, 2242, 2260 and 2280 drives.
- Cooling-supporting construction: helps maintain stable drive operation.
~
Two M.2 slots expand upgrade options
The card features two independent M.2 connectors, allowing you to install two SSD drives in a single adapter. This solution is useful when expanding your computer’s storage with additional drives without having to replace existing ones.
NVMe and SATA protocol support provides flexibility
The Orico PDM2 works with M.2 drives using both the NVMe and SATA interfaces. Support for B-Key, M-Key and B+M Key allows you to use a wide range of compatible drives and makes upgrading your computer easier.
PCI-E 3.0 x4 bandwidth supports fast data transfer
The PCI-E 3.0 Gen3 x4 interface provides a theoretical throughput of up to 32 Gbps for NVMe drives and up to 6 Gbps for SATA drives. Thanks to its direct connection to the motherboard, the card allows you to take advantage of the capabilities of modern SSD drives.
Compatibility with popular SSD sizes
The adapter supports M.2 drives in the 2230, 2242, 2260 and 2280 formats. Multiple mounting points enable secure installation of drives of different lengths and make it easy to adjust the configuration to your needs.
Construction supporting stable drive operation
The board is equipped with numerous copper heat-dissipating traces and a solid steel mounting bracket. This solution improves heat dissipation and supports reliable operation during everyday computer use.
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Product Type | SSD drives |
| Producer | Orico |
| Colour | Black |
| Department | Electronics |
