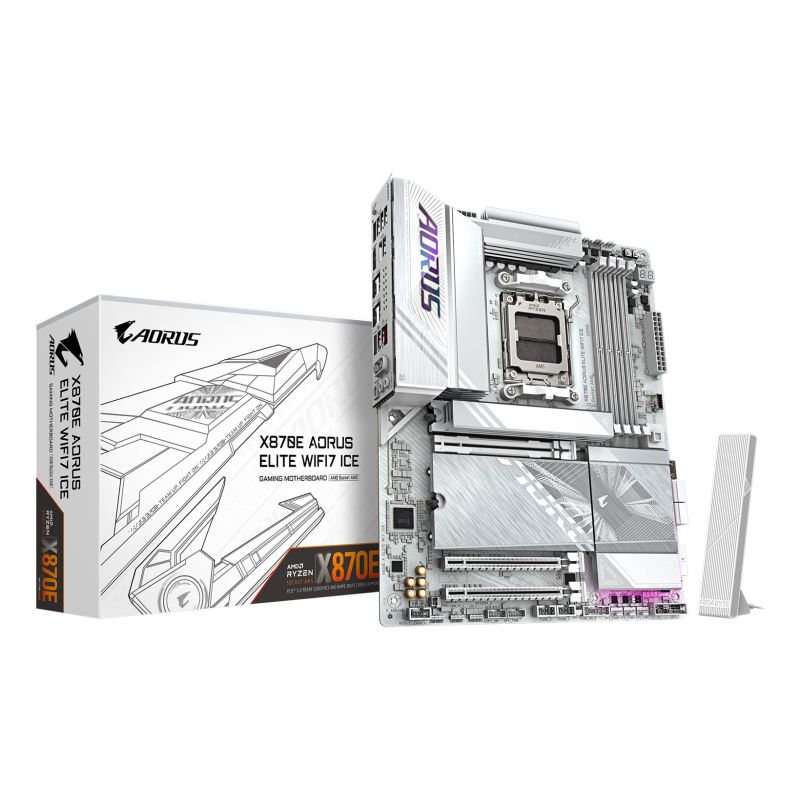

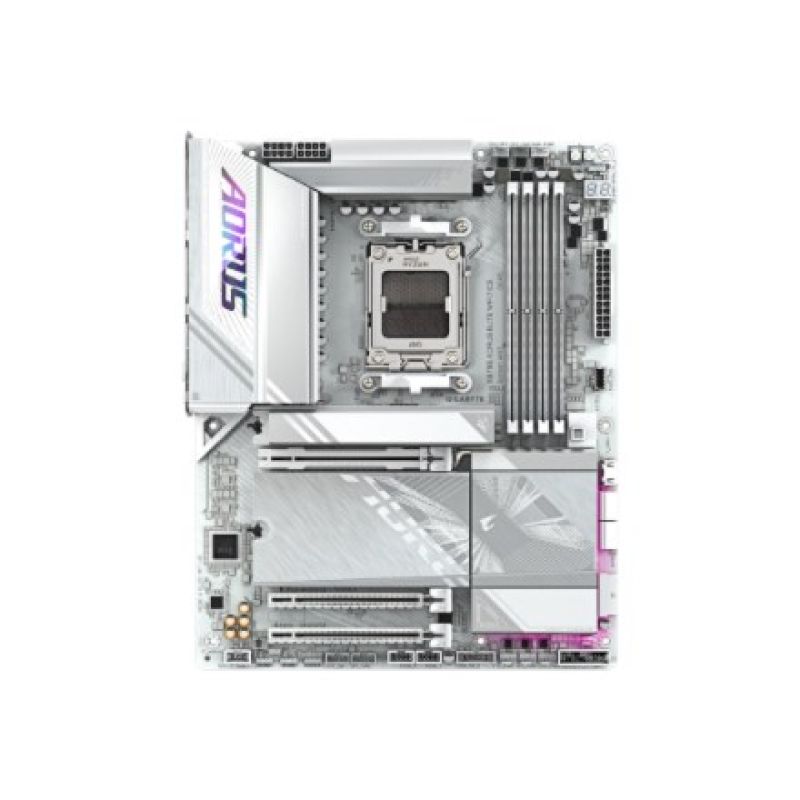

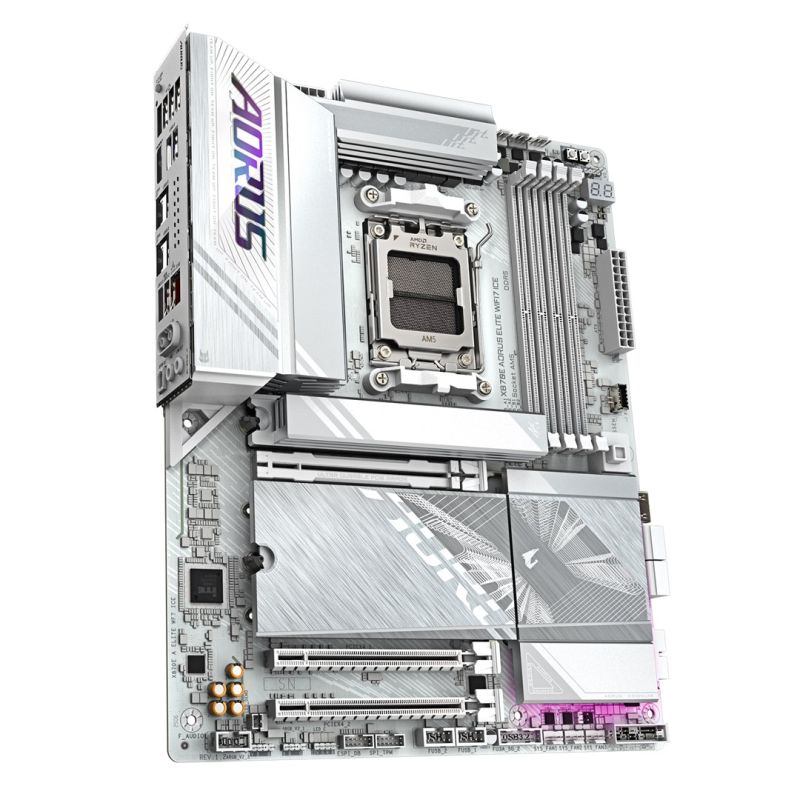

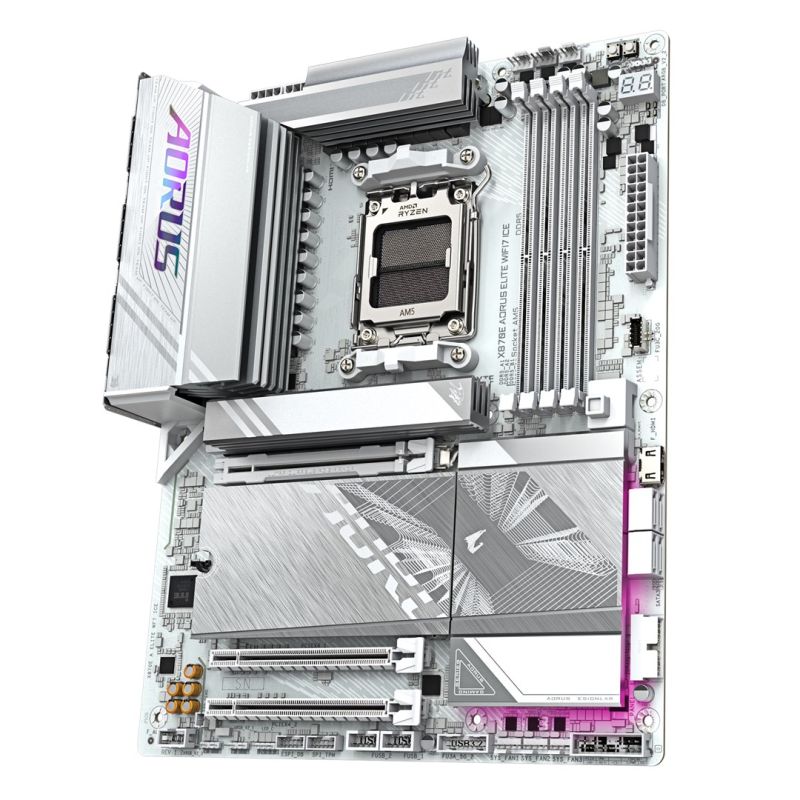

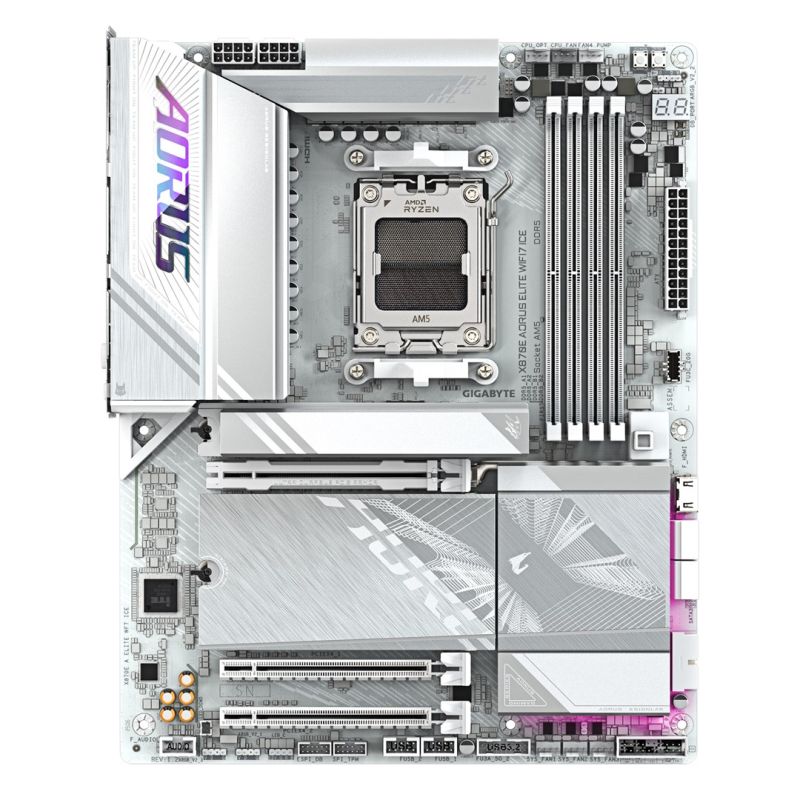

MB AMD X870E SAM5 ATX GIGABYTE Motherboard
MB AMD X870E SAM5 ATX GIGABYTE Motherboard
MB AMD X870E SAM5 ATX GIGABYTE Motherboard
PRICE:
481,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Supported CPU sockets: Socket AM5
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- Built-in graphics card: No
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory clock speeds
- 5600 MHz
- 6400 MHz
- 4400 MHz
- 7800
- 8000
- 6000 MHz
- 8200
- 5200 MHz
- 7200
- 4800 MHz
- 7000
- 6666 MHz
- 6200 MHz
- 7600
- 6600
- 6800
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 8200 MHz
- Supported memory clock speeds
- Characteristics
- Motherboard Layout: AMD X870E
- Product color: White
- Monitoring computer status
- Tension
- Water cooling
- Temperature
- Fan
- Power supply type: ATX
- Audio output channels: 7.1 ch.
- Supported Windows operating systems: Windows 11 x64
- Chipset Board Family: AMD
- Audio chip: Realtek ALC1220-VB
- Motherboard format: ATX
- Cooling type: Passive
- Intended use: PC
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Product height: 35 mm
- Internal I/O
- 12V power connector: Yes
- Front panel connector: Yes
- ATX power socket (24-pin): Yes
- TPM Connector: Yes
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- RGB LED: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of CPU fan connectors: 2
- USB 3.2 Gen 2x2 ports: 1
- Number of case fan connectors: 4
- Number of water pump connections: 2
- Number of RGB LED connectors: 4
- Number of EPS power connectors (8-pin): 2
- Network
- Bluetooth: Yes
- LAN controller: Realtek RTL8125
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- WLAN controller model: Realtek RTL8922AE
- Ethernet interface type: 2.5 Gigabit Ethernet
- Bluetooth version: 5.4
- Wired LAN: Yes
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- BIOS
- Clear CMOS Jumper: Yes
- Desktop Management Interface (DMI) Version: 2.7
- BIOS memory size: 256 Mbit
- BIOS Type: UEFI AMI
- System BIOS (SMBIOS) version: 2.7
- ACPI version: 5.0
- Packaging data
- Weight with packaging: 2.64 kg
- Package depth: 294 mm
- Package width: 345 mm
- Package height: 80 mm
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Antenna Included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, PCI Express 5.0, SATA III
- Number of supported storage drive sizes: 8
- RAID Service: Yes
- RAID levels
- 0
- 1
- 5
- 10
- Number of supported HDDs: 4
- Supported drive types: HDD & SSD

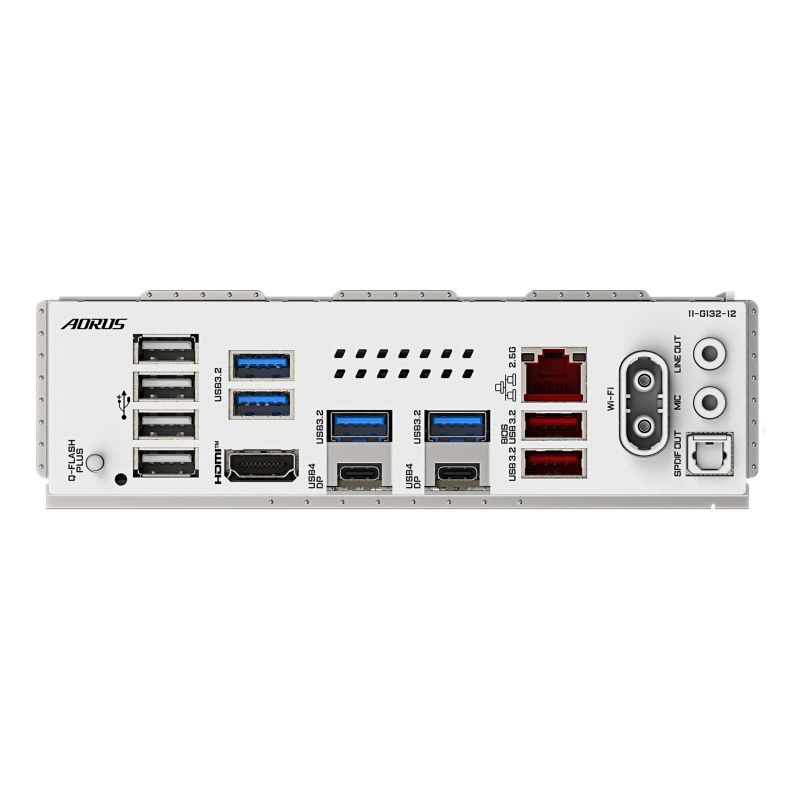

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- Microphone: Yes
- Headphone outputs: 1
- WiFi-AP Antenna Jack Plug: 2
- HDMI version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- DisplayPort version: 1.4
- S/PDIF Output Port: Yes
- Number of USB4 Gen 2x2 ports: 2
- Digital audio input: 1
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 4
- 4. largest M.2 key size: 22110
- 3. largest M.2 key size: 22110
- 4. M.2 highest generation PCI Express: 4.0
- 3. M.2 highest generation PCI Express: 5.0
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- 1. largest M.2 key size: 25110
- 2nd largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 5.0
- 1. M.2 highest generation PCI Express: 5.0
- Battery
- Supported battery type: CR2032
- Number of battery compartments: 1
- Battery weight: 3 g
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 2.64 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
