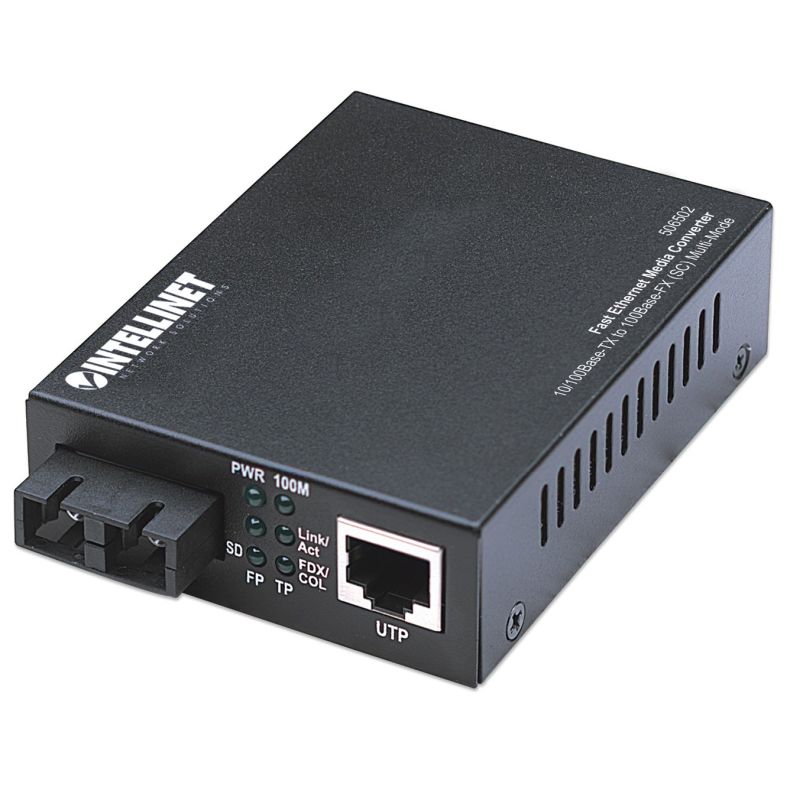

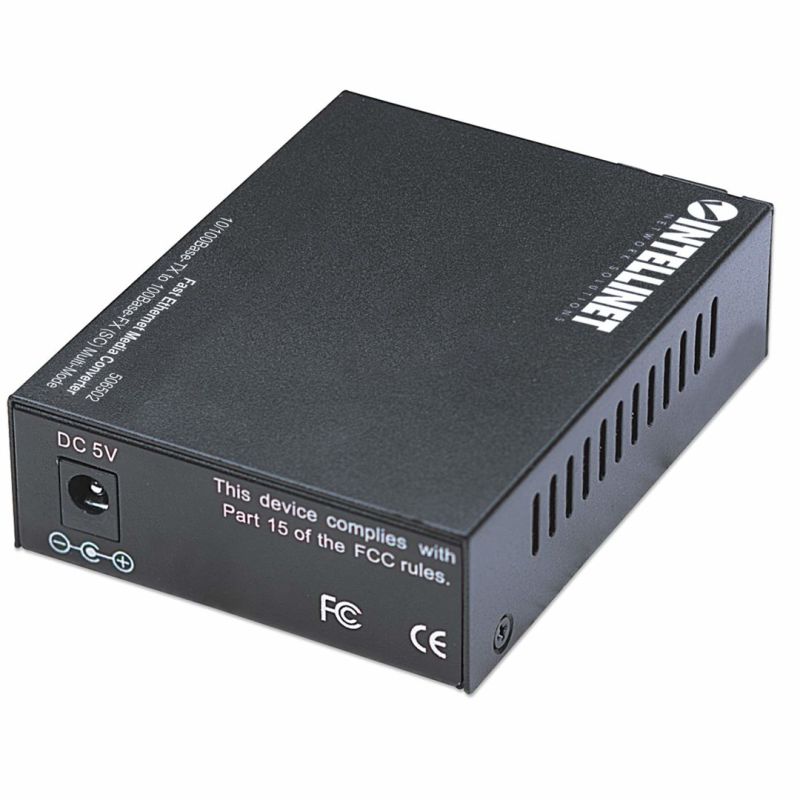

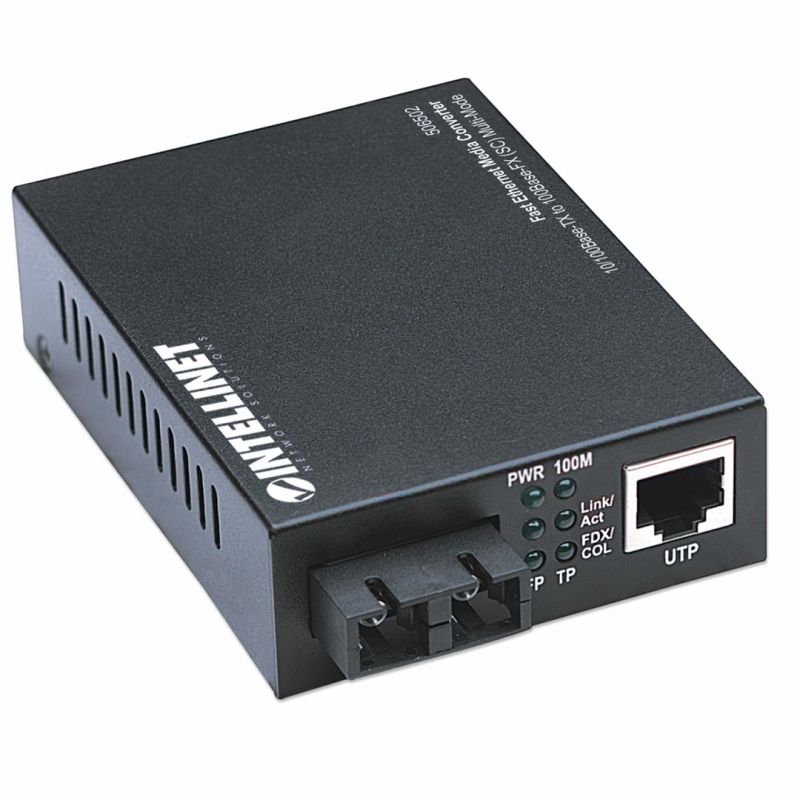

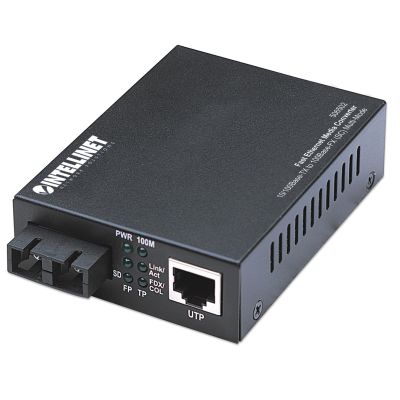

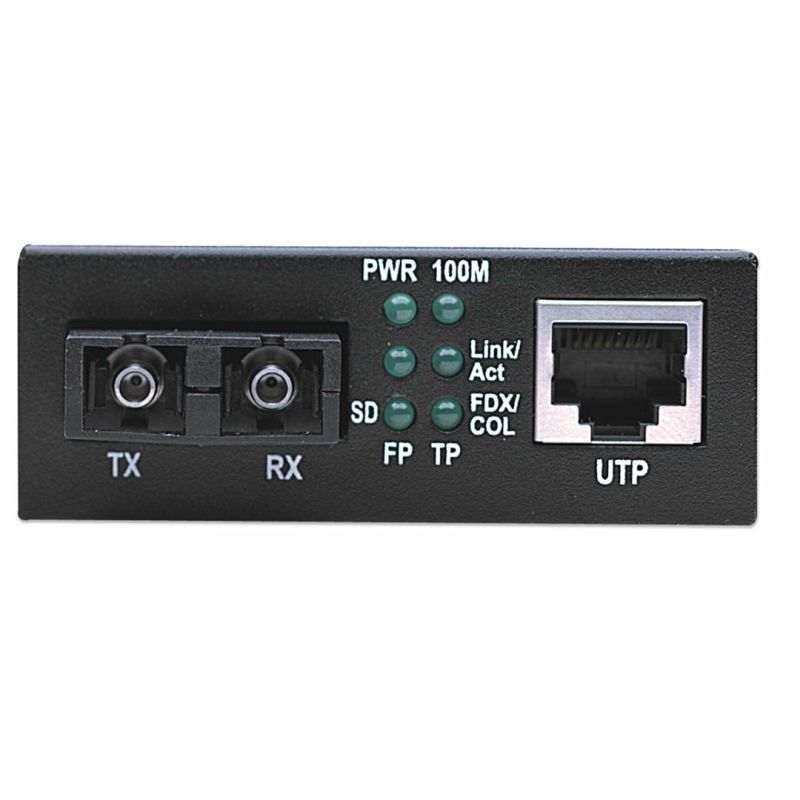

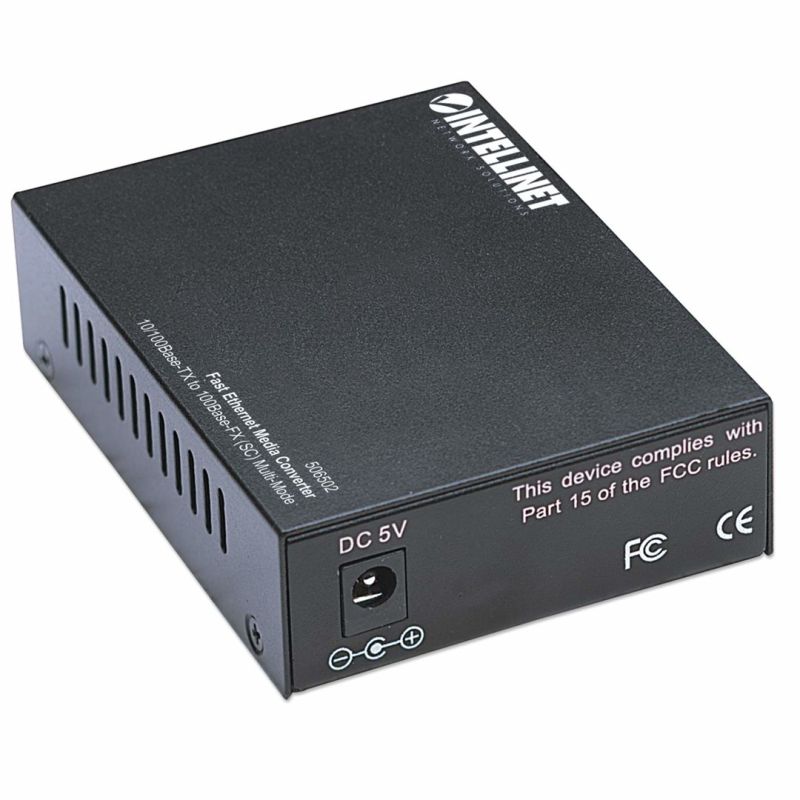

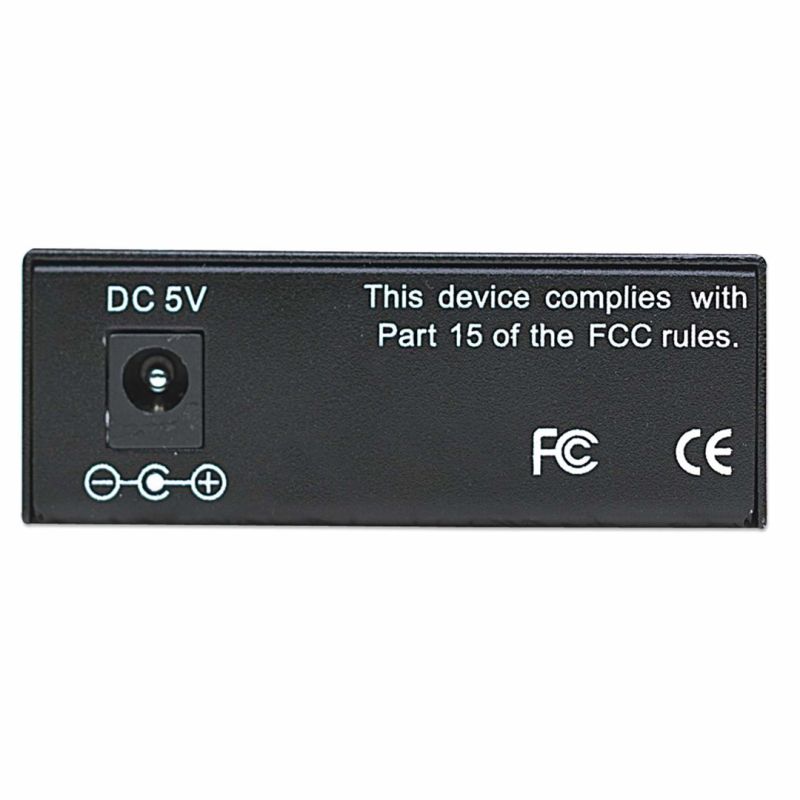

Media converter 100Base RJ45 to SC MM Duplex, 2km
Media converter 100Base RJ45 to SC MM Duplex, 2km
Media converter 100Base RJ45 to SC MM Duplex, 2km
PRICE:
66,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Internal: No
- Housing material: Metal
- Product color: Black
- LED diodes
- Link
- Power supply
- Status
- LAN
- Power
- Power consumption (max): 2.5 W
- Voltage: 5V
- External Power Adapter: Yes
- Input current: 1 A
- Weight and dimensions
- Product weight: 500 g
- Product height: 26 mm
- Product depth: 107 mm
- Product width: 70 mm
- Working conditions
- Temperature range (operation): 0 - 70 °C
- Temperature range (storage): -45 - 80 °C
- Relative humidity range: 10 - 90%
- Network
- Two-way duplex transmission
- Half-duplex
- Full
- Ethernet interface type: Fast Ethernet
- Auto MDI/MDI-X: Yes
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 10 Mbps
- Communication standards
- IEEE 802.3u
- IEEE 802.3
- Maximum data transfer speed: 100 Mbit/s
- Two-way duplex transmission
- Efficiency
- Tx power (maximum): -12 dBmW
- Tx power (minimum): -22 dBmW
- Wavelength: 1310 nm
- Sensitivity: -30 dBmW
- Single-mode fiber structure: Multifunctional
- Supported fiber optic cable diameters
- 50/125
- 62.5/125
- Maximum transfer distance: 2000 m
- Packaging data
- Packaging type: Box
- Package contents
- User Manual: Yes
- AC adapter: Yes
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Number of ports: 1
- Fiber optic connector: SC
- Connection method: Wired
- DC output socket: Yes
- Logistics data
- Harmonized System (HS) code: 85176990
| Name | Details |
|---|---|
| Producer | Intellinet |
