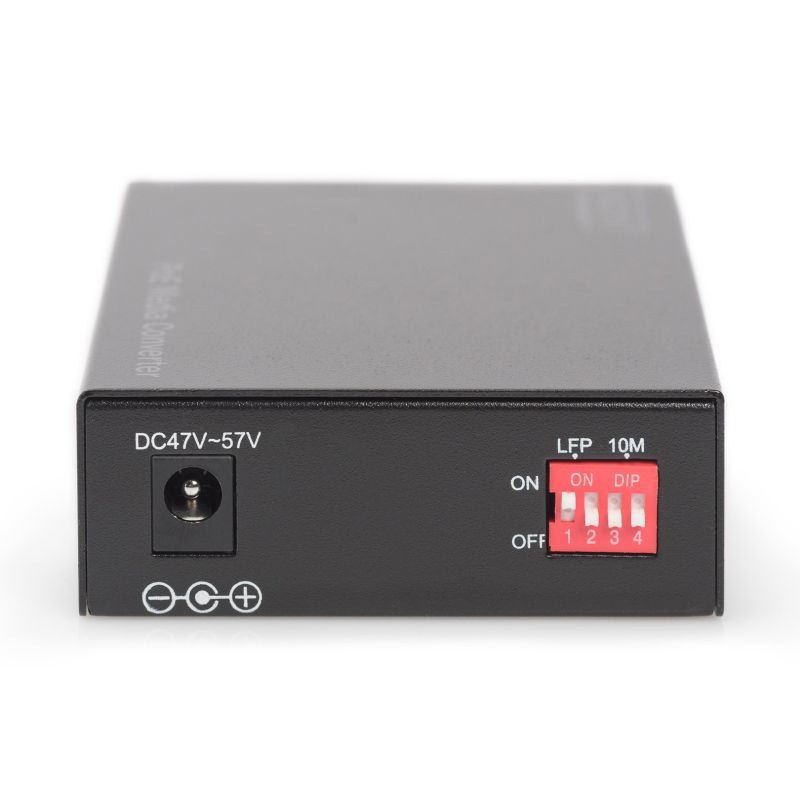

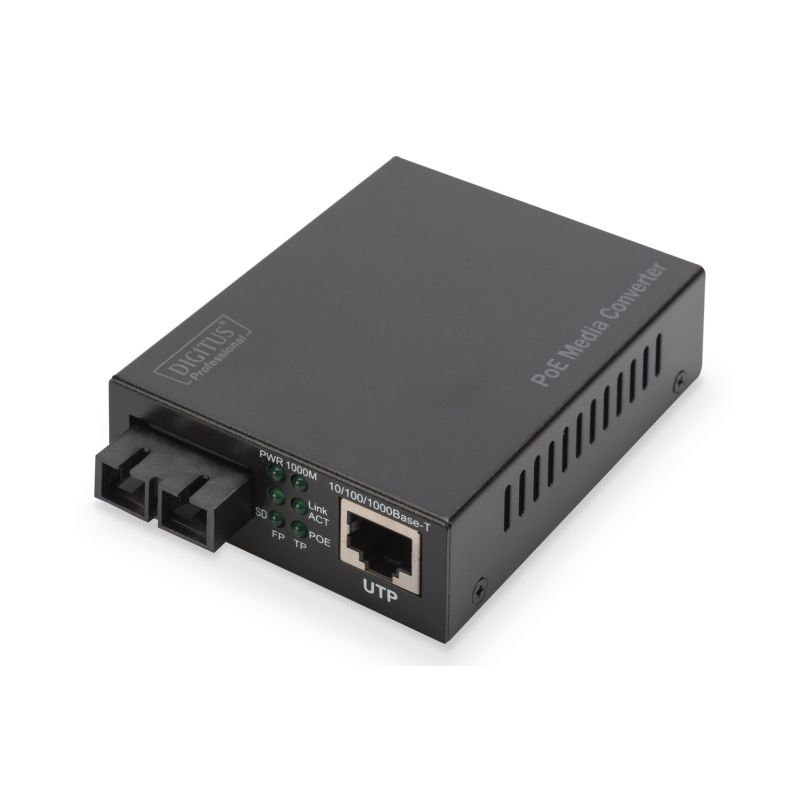

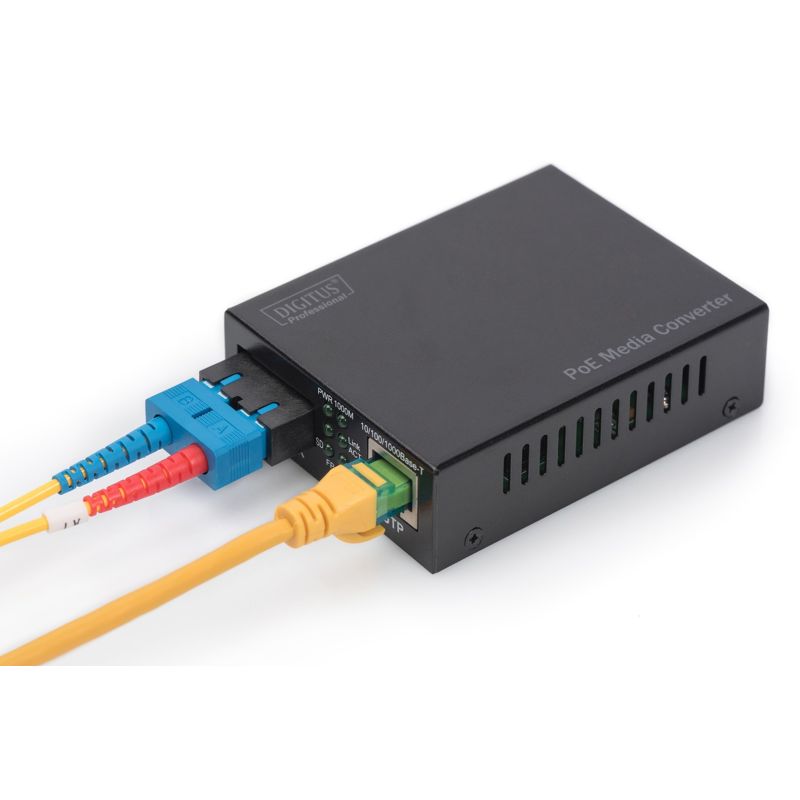

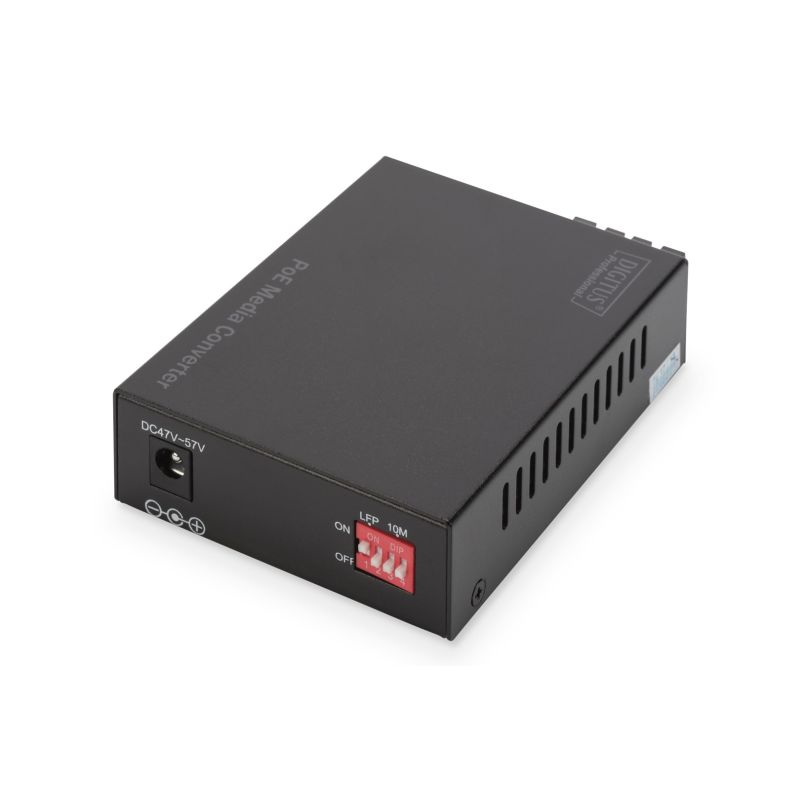

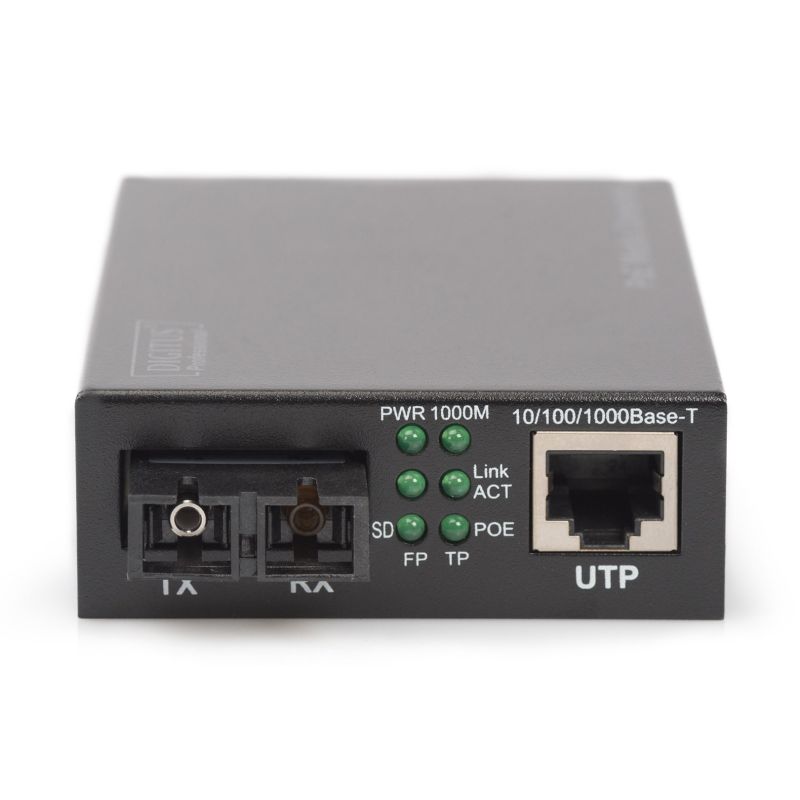

Media converter RJ45 10/100/1000Base-T to SC duplex 1000Base-LX, SM, 20km
Media converter RJ45 10/100/1000Base-T to SC duplex 1000Base-LX, SM, 20km
Media converter RJ45 10/100/1000Base-T to SC duplex 1000Base-LX, SM, 20km
PRICE:
165,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Internal: No
- Product color: Black
- LED diodes
- Power supply
- Link
- Status
- Action
- Power
- PoE Support: Yes
- Operating voltage: 48 - 52 V
- Total Power over Ethernet (PoE) budget: 30 W
- Weight and dimensions
- Product width: 71 mm
- Product depth: 95 mm
- Product height: 26 mm
- Working conditions
- Temperature range (operation): -20 - 65 °C
- Temperature range (storage): -40 - 85 °C
- Network
- Communication standards
- IEEE 802.3at
- IEEE 802.3u
- IEEE 802.3
- IEEE 802.3af
- IEEE 802.3z
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Maximum data transfer speed: 1000 Mbit/s
- Ethernet interface type: Gigabit Ethernet
- Auto MDI/MDI-X: Yes
- Copper Ethernet cabling technology
- 100BASE-TX
- 1000BASE-TX
- Two-way duplex transmission
- Half-duplex
- Full
- Fiber Ethernet cabling technology: 1000BASE‑LX
- Input Interface Converter: 1000Base-LX
- Output interface converter
- 100Base-TX
- 1000Base-TX
- Real data transfer speed: 1000 Mbit/s
- Communication standards
- Efficiency
- Wavelength: 1310 nm
- Maximum transfer distance: 20000 m
- MTBF (Mean Time Between Failures): 500000 h
- Single-mode fiber structure: Single
- Packaging data
- Packaging depth: 240 mm
- Weight with packaging: 800 g
- Package width: 130 mm
- Package height: 60 mm
- Packaging capacity: 1872 cm³
- Package contents
- AC adapter: Yes
- Quick Installation Guide: Yes
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Number of Fast Ethernet (PoE) ports: 1
- Connection method: Wired
- DC output socket: Yes
- Number of ports: 1
- Fiber optic connector: SC
- Logistics data
- Country of origin: China
- Mask with serial number: 85176200
- Box capacity (external): 65436 cm³
- Gross weight of the main (outer) housing: 8 kg
- Main (outer) case length: 570 mm
- Products in the main (outer) box: 10 pcs.
- Width of the collection box (external): 410 mm
- Harmonized System (HS) code: 85176990
- Height of the standard (outer) box: 280 mm
| Name | Details |
|---|---|
| Producer | DIGITUS |
