Mini-PC ZBOX-MI648-BE
Mini-PC ZBOX-MI648-BE
Sign up and unlock up to 10% off!
- Processor
- Effective cores: 8
- Efficient cores: 4
- Processor clock speed: 1.9 GHz
- Processor Cache: 12 MB
- Number of threads: 16
- Processor manufacturer: Intel
- Processor type: Intel® Core™ i5
- Number of processor cores: 12
- Processor model: i5-1340P
- Thermal Design Power (TDP): 28 W
- Built-in processor: Yes
- Processor Generation: 13th Generation Intel® Core™ i5
- Core Performance Boost Frequency
- 4.6 GHz
- 3.4 GHz
- Graphics
- Built-in graphics card model: Intel Iris Xe Graphics
- Built-in graphics card: Yes
- Graphics Adapter Family: Intel
- Memory
- Maximum memory capacity: 64 GB
- Supported memory clock speeds
- 4800 MHz
- 5200 MHz
- Supported memory types: DDR5-SDRAM
- Memory slot type: SO-DIMM
- Number of memory slots: 2
- Design
- Cooling type: Passive
- Product color: Black
- Built-in switch: Yes
- Housing: PC size 0.64L
- Power
- AC adapter output voltage: 19V
- Power supply: 40 W
- Number of power units: 1
- Power supply type: External power supply
- Weight and dimensions
- Product height: 28.5 mm
- Product width: 149.5 mm
- Product depth: 149.5 mm
- Network
- Wi-Fi standards: Wi-Fi 6 (802.11ax)
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wired LAN: Yes
- Wi-Fi: Yes

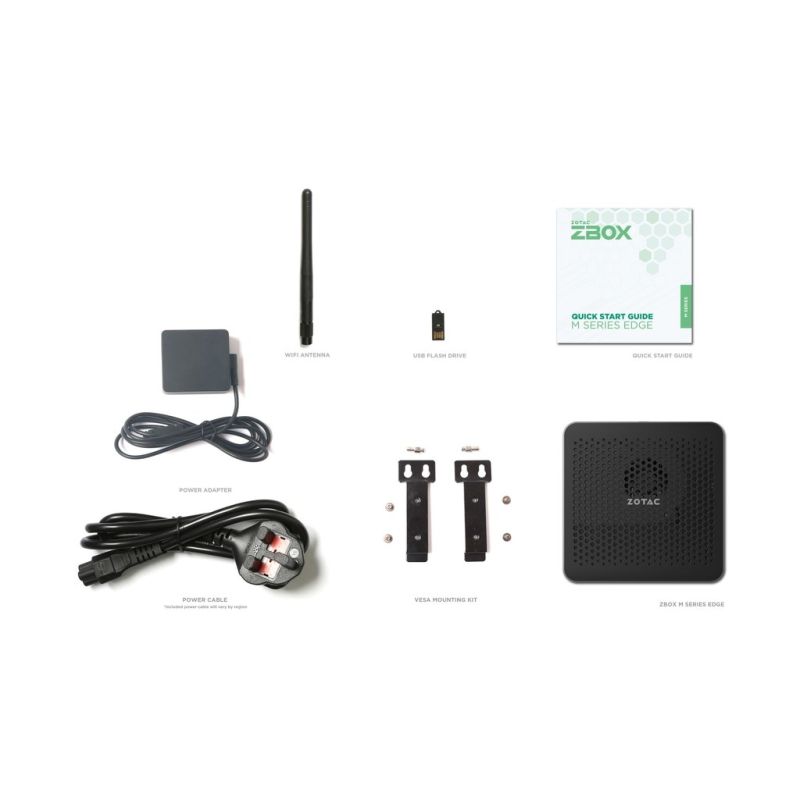

- Package contents
- AC adapter: Yes
- Quick Start Guide: Yes
- Drivers included: Yes
- Power cord included: Yes
- Audio
- Built-in speakers: No
- Data carrier
- Integrated card reader: No
- Supported disk types: SSD
- Storage drive interface: PCI Express, SATA
- SSD type: M.2
- Supported storage drive sizes: M.2
- Ports and interfaces
- Number of Thunderbolt 4 ports: 1
- DisplayPort version: 1.4
- DC output socket: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- HDMI version: 2.0
- Number of HDMI ports: 1
- Number of Ethernet LAN ports (RJ-45): 2
- Headphone outputs: 1
- Microphone: Yes
