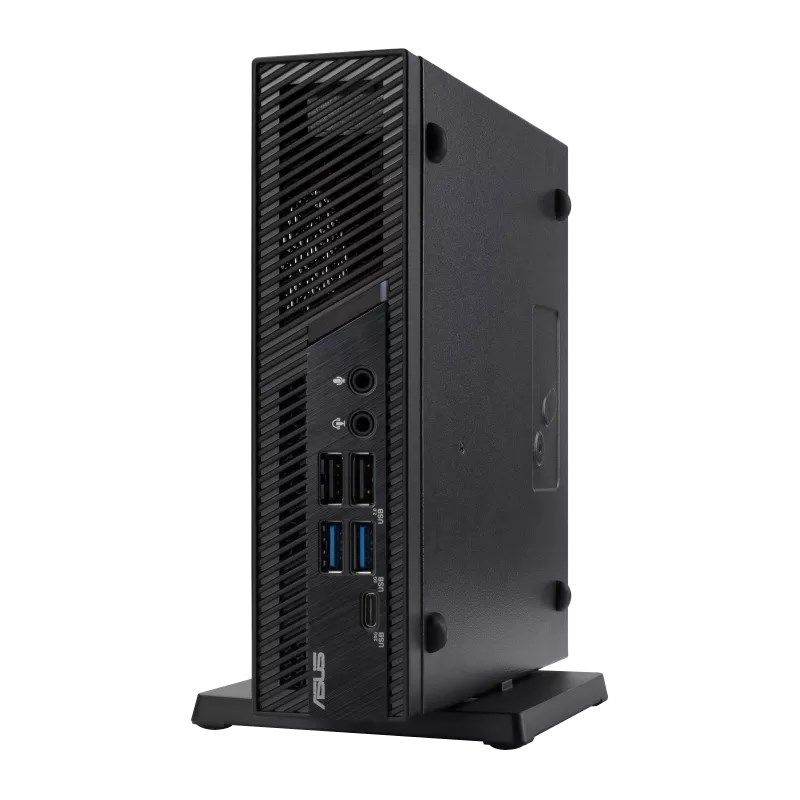

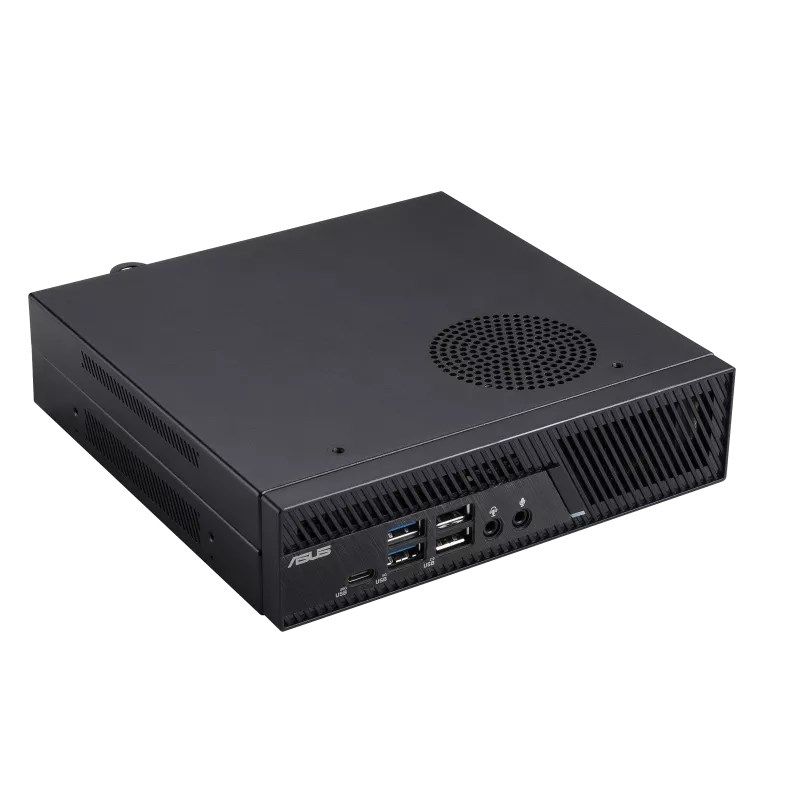

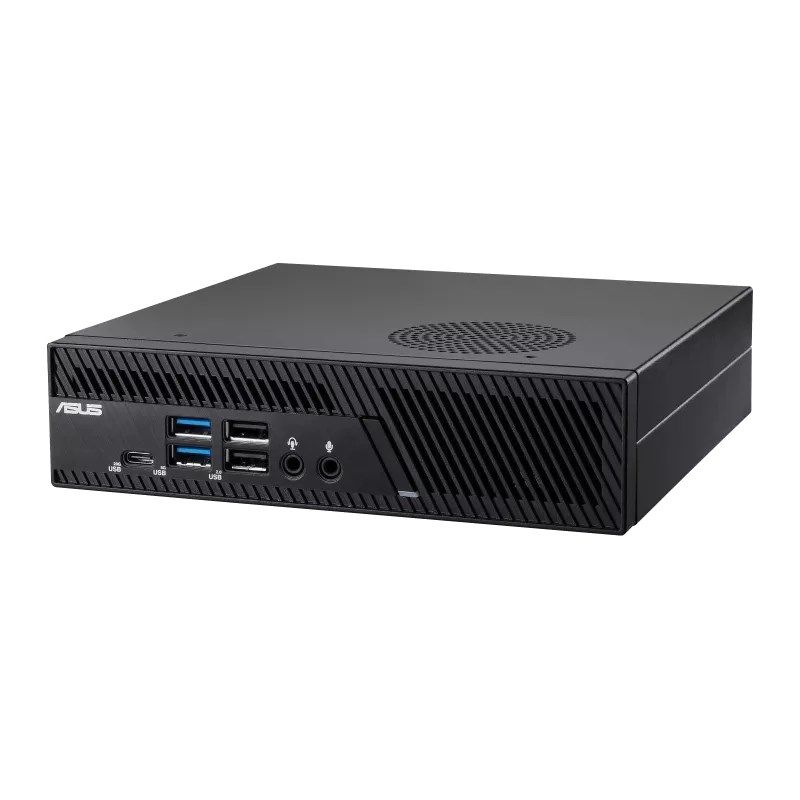

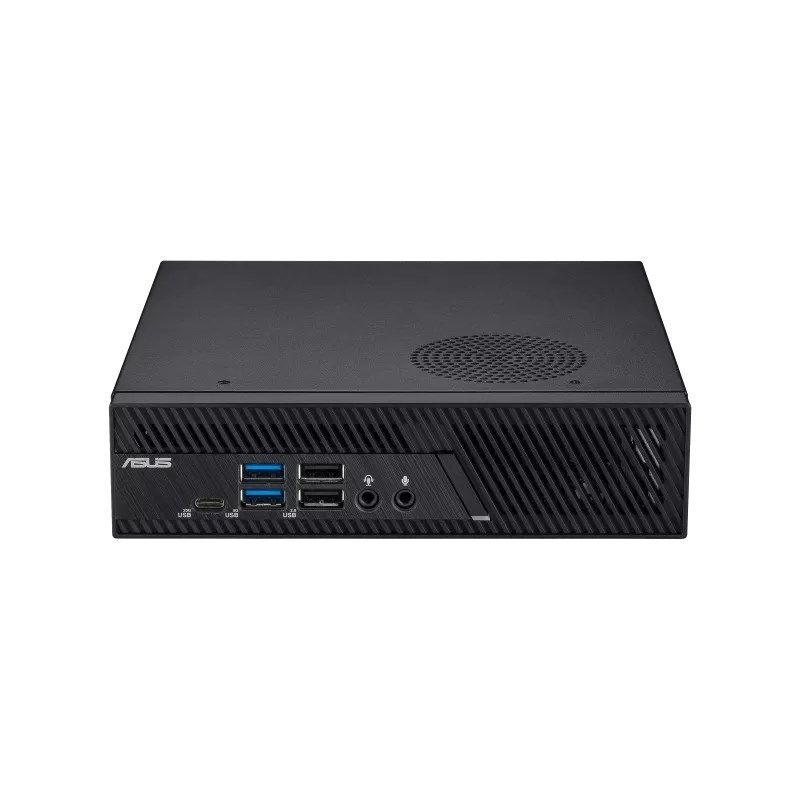

MiniPC ASUS PB63 1B B76/13400/16/512X//B/NO/000/E/V
MiniPC ASUS PB63 1B B76/13400/16/512X//B/NO/000/E/V
Sign up and unlock up to 10% off!
- Processor
- Effective cores: 4
- High-performance core base frequency
- 2.5 GHz
- 1.8 GHz
- Performance-Core Max Turbo Frequency: 4.6 GHz
- Efficient cores: 6
- Base CPU power: 65 W
- Processor Generation: 13th Generation Intel® Core™ i5
- Maximum turbo power: 154 W
- Performance-Core Max Turbo Frequency: 3.3 GHz
- Number of processor cores: 10
- Processor type: Intel® Core™ i5
- Processor manufacturer: Intel
- Processor Cache: 20 MB
- Number of threads: 16
- Processor memory type: Smart Cache
- Maximum processor clock speed: 4.6 GHz
- Processor model: i5-13400
- Graphics
- Built-in graphics processor manufacturer: Intel
- Dedicated graphics card model: Not available
- Built-in graphics card model: Intel UHD Graphics 730
- Built-in graphics card: Yes
- Integrated graphics card type: Intel® UHD Graphics
- Dedicated graphics card: No
- Memory
- RAM: 16 GB
- RAM type: DDR5-SDRAM
- Memory slots: SO-DIMM x 2
- Design
- Color name: Black
- Product color: Black
- Cable lock slot type: Kensington
- Kensington Lock: Yes
- Case: Mini PC
- Intended use: Horizontal/Vertical
- VESA Standard: Yes
- Weight and dimensions
- Package height: 68 mm
- Product depth: 175 mm
- Package width: 360 mm
- Product weight: 1.18 kg
- Weight with packaging: 2.61 kg
- Packaging depth: 240 mm
- Product width: 175 mm
- Product height: 44.2 mm
- Network
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Cabling technology: 10/100/1000Base-T(X)
- Antenna type: 2x2
- Wired LAN: Yes
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Bluetooth version: 5.2
- Data transfer speed via Ethernet LAN
- Efficiency
- Market positioning: Business
- Product type: Mini PC
- Package contents
- Display Included: No
- Software
- Installed operating system: Windows 11 Pro PL
- Operating system architecture: 64-bit
- Data carrier
- Optical drive: No
- Media: SSD
- Total disk capacity: 512 GB
- NVMe: Yes
- Total SSD capacity: 512 GB
- SSD storage interface: PCI Express 4.0
- SSD memory capacity: 512 GB
- SSD type: M.2
- Number of SSDs installed: 1
- Ports and interfaces
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of USB 2.0 ports: 3
- DC output socket: Yes
- Headset/Microphone Combo Port: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of DisplayPorts: 2
- Microphone: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Headphone outputs: 1
- Safety warning
- Warnings
- Do not throw away in regular garbage; the product requires special disposal.
- Avoid exposure to extreme temperatures and humidity.
- Do not open the casing to avoid risk of electric shock.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
