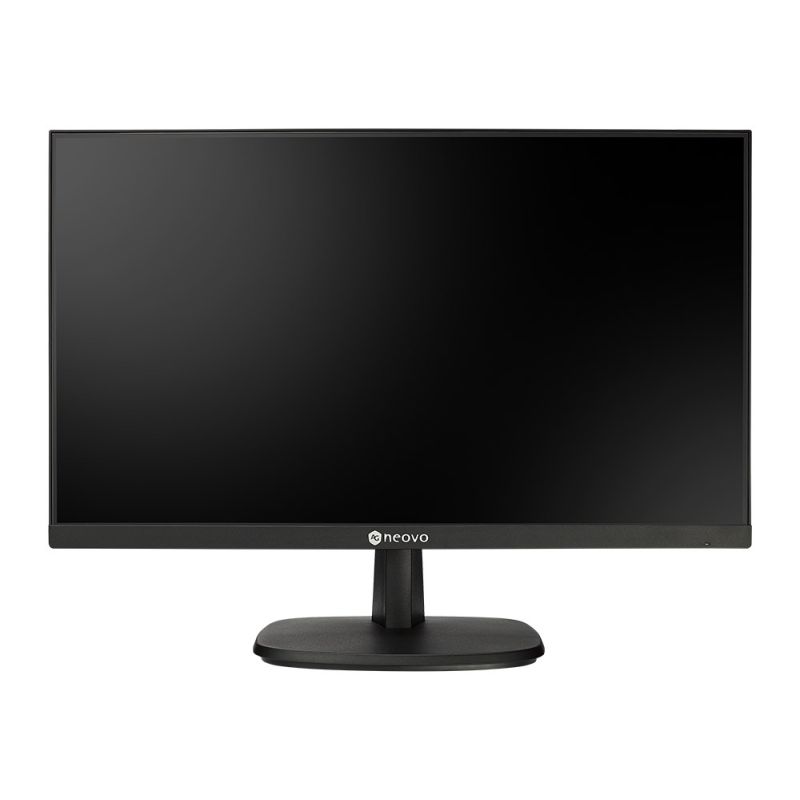

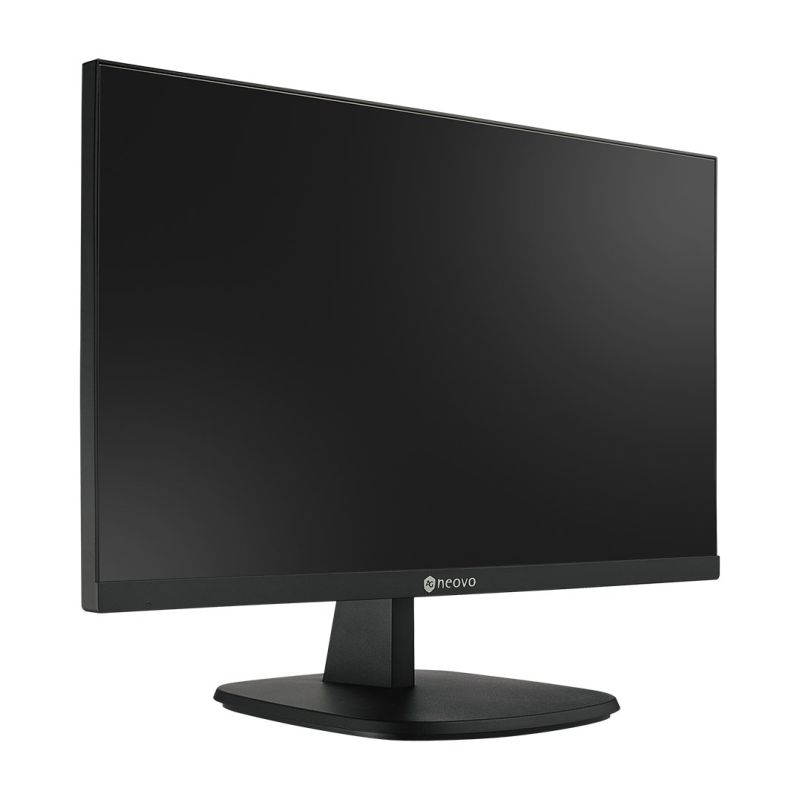

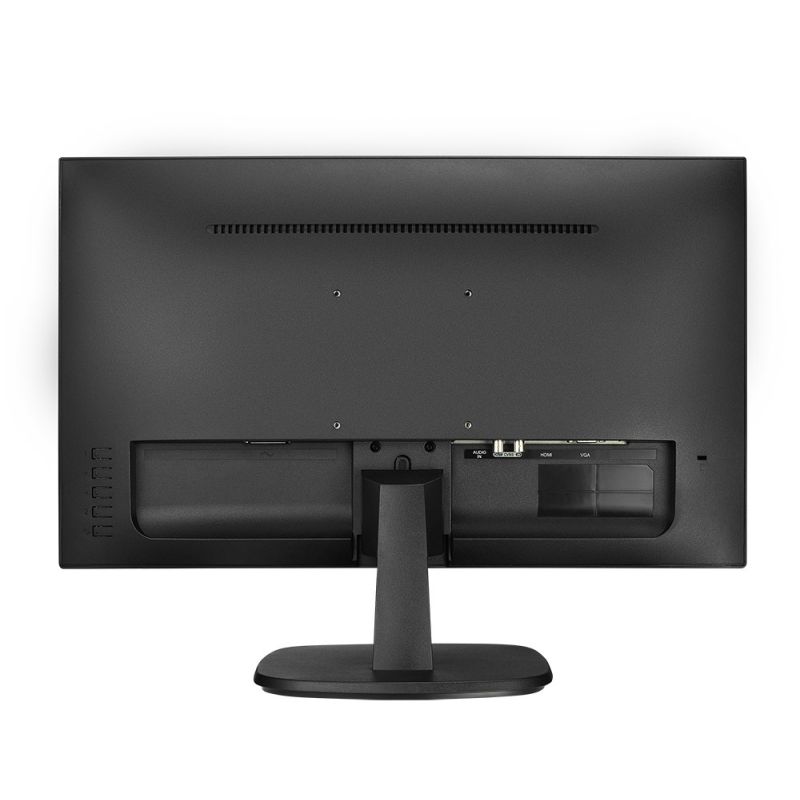

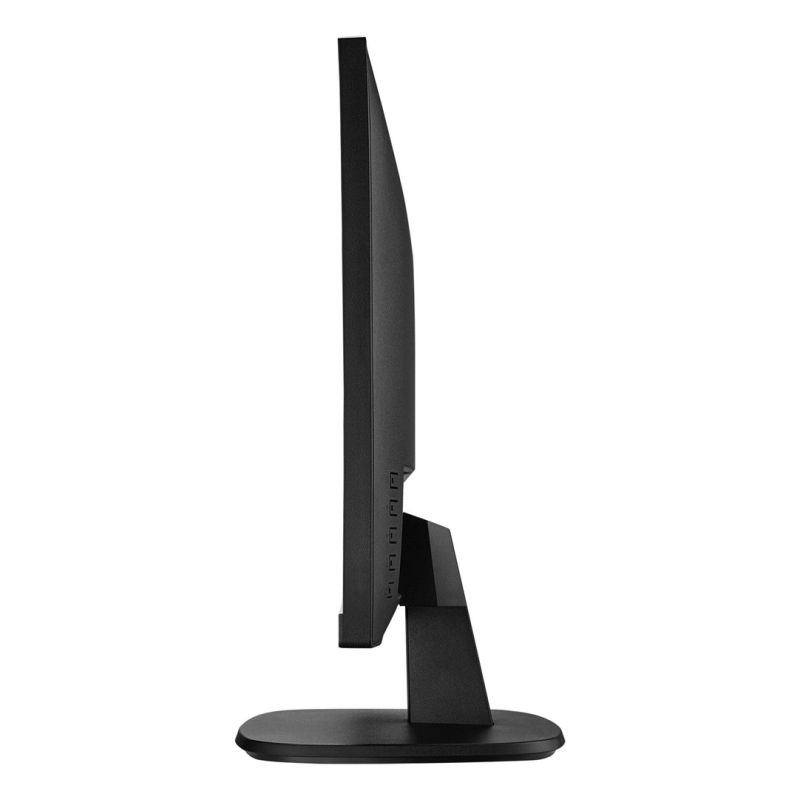

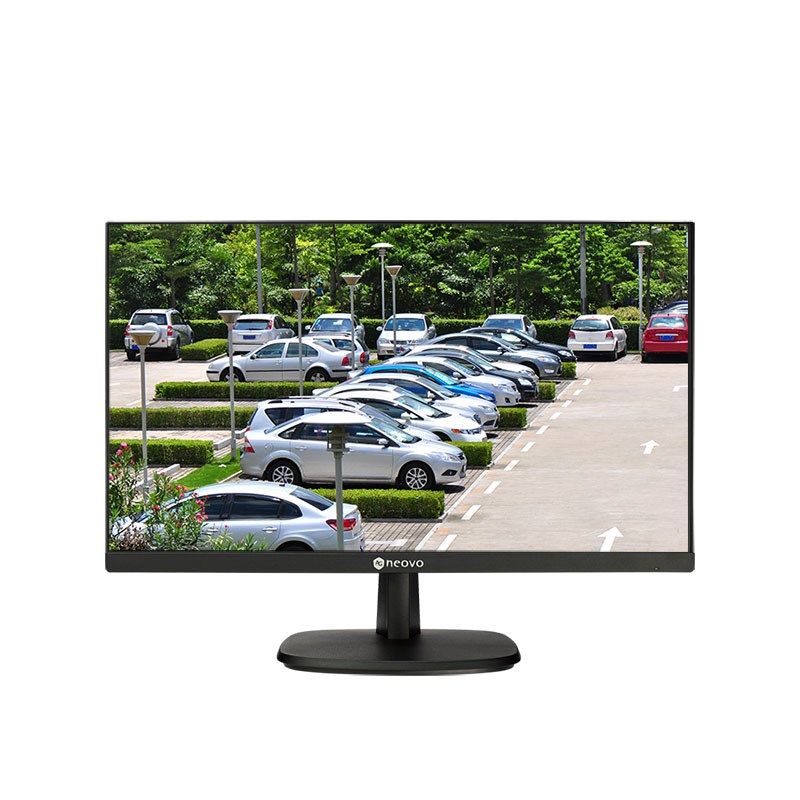

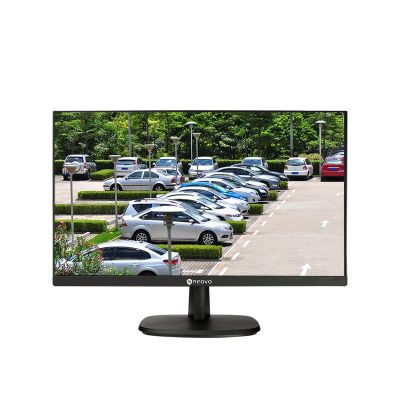

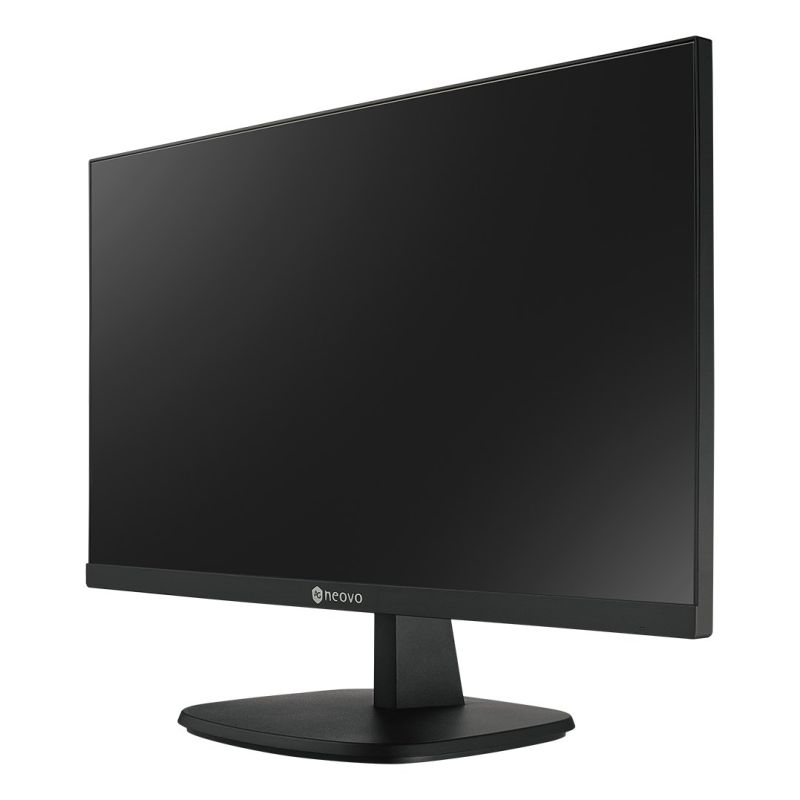

Monitor AG Neovo SC 2402 LED 24" FHD VA VGA HDMI BNC SPK 2x2W VESA CCTV 24/7
Monitor AG Neovo SC 2402 LED 24" FHD VA VGA HDMI BNC SPK 2x2W VESA CCTV 24/7
Sign up and unlock up to 10% off!
- Design
- Product type: CCTV monitor
- Mounting type: Freestanding
- Tilt adjustment: Yes
- Product color: Black
- Tilt angle: 20°
- Power
- Power supply type: AC
- AC adapter output voltage: 100 - 240 V
- Power consumption in standby mode: 0.5 W
- Energy consumption (SDR) per 1000 hours: 15 kWh
- Off mode: 0.2 W
- Energy efficiency class (SDR): E
- Weight and dimensions
- Product weight: 3 kg
- Product width: 540.1 mm
- Product height: 322.1 mm
- Product depth: 41.8 mm
- Device depth (with base): 226.5 mm
- Package depth: 108 mm
- Device width (with base): 540.1 mm
- Packaging type: Box
- Weight (with base): 3.4 kg
- Device height (with base): 408.3 mm
- Weight with packaging: 4.8 kg
- Package height: 480 mm
- Package width: 606 mm
- Working conditions
- Temperature range (operation): -5 - 35 °C
- Relative humidity range: 20 - 85%
- Permissible relative humidity: 10 - 95%
- Temperature range (storage): -20 - 60 °C
- Efficiency
- Number of built-in speakers: 2
- Speaker power: 4 W
- Panel mounting interface: 100 x 100 mm
- VESA Standard: Yes
- Kensington Lock: Yes
- Built-in speakers: Yes
- Cable lock slot type: Kensington
- Package contents
- Quantity: 1
- AC adapter: Yes
- Display
- Spot size: 0.275 x 0.275 mm
- Display type: TFT
- Matrix type: VA
- Viewing angle (vertical): 178°
- Response time (typical): 5 ms
- Horizontal scanning range: 30 - 85 kHz
- Screen diagonal: 24"
- Resolution: 1920 x 1080 px
- Brightness: 250 cd/m²
- Scanning range (length): 48 - 75 Hz
- Contrast ratio (typical): 20000000:1
- Display colors: 16.7 million colors
- Horizontal viewing angle: 178°

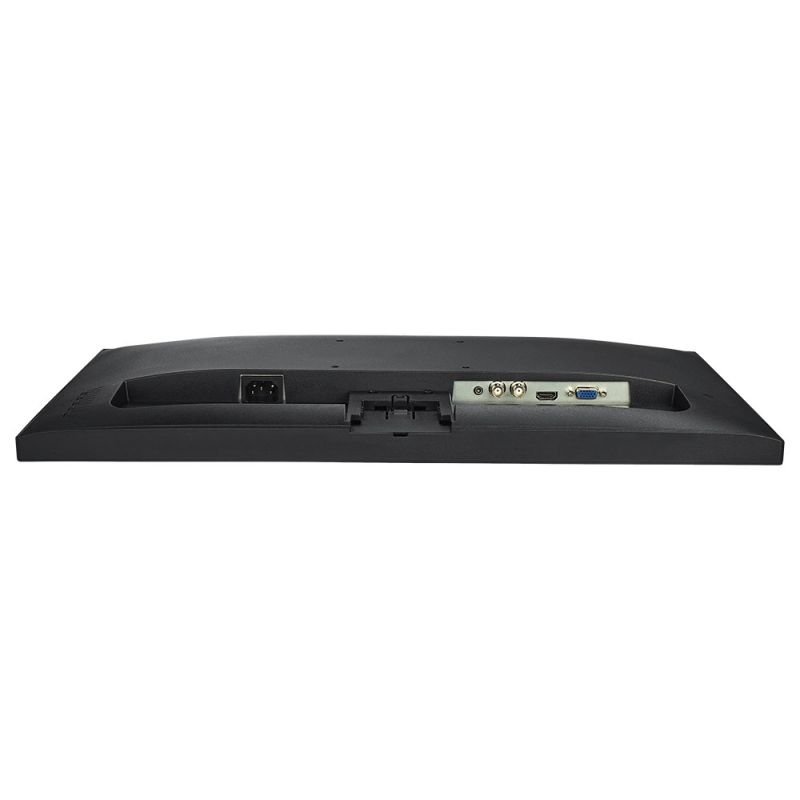

- Ports and interfaces
- Composite video signal: 1
- Number of HDMI ports: 1
- HDMI version: 1.4
- Composite video input: 1
- Number of VGA (D-Sub) ports: 1
- BNC outputs: 1
- 3.5mm input: Yes
- BNC inputs: 1
- Safety warning
- Warnings
- Do not open the monitor housing to prevent electric shock.
- Avoid staring at a screen at high brightness for long periods of time to prevent eye strain.
- Do not place heavy objects on the monitor to avoid damage.
- Warnings
| Name | Details |
|---|---|
| Producer | AG Neovo |
