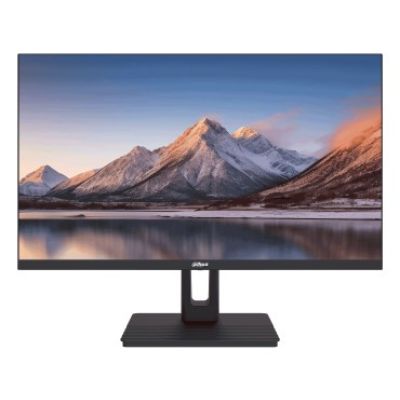

Monitor HDMI, DP, Audio DAHUA LM24-C301B 23.8 inch
Monitor HDMI, DP, Audio DAHUA LM24-C301B 23.8 inch
Sign up and unlock up to 10% off!
- Design
- Detachable base: Yes
- Market positioning: Office
- Frameless design: Yes
- Leg color: Black
- Product color: Black
- Front cover: Black
- Illuminated base: No
- Power
- Power consumption (max): 24 W
- AC adapter output voltage: 12V
- Power consumption in standby mode: 0.5 W
- Power consumption: 24 W
- Energy Efficiency Scale: From A to G
- Energy consumption (SDR) per 1000 hours: 21 kWh
- Off mode: 0.3 W
- Power supply type: External
- Energy efficiency class (HDR): Not available
- Energy efficiency class (SDR): F
- Weight and dimensions
- Height (without base): 320.4 mm
- Weight (without stand): 3.1 kg
- Device width (with base): 539.2 mm
- Width (without base): 539.2 mm
- Frame width (side): 3.1 mm
- Device height (with base): 418.6 mm
- Frame width (bottom): 1.59 cm
- Device depth (with base): 190 mm
- Bezel width (top): 3.1 mm
- Depth (without base): 41.3 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Temperature range (storage): -20 - 60 °C
- Relative humidity range: 10 - 90%
- Permissible relative humidity: 5 - 90%
- Network
- Bluetooth: No
- Wi-Fi: No
- Efficiency
- Low blue light technology: Yes
- AMD FreeSync: No
- NVIDIA G-SYNC: No
- Packaging data
- Package depth: 111 mm
- Weight with packaging: 4 kg
- Package width: 612 mm
- Package height: 405 mm
- Package contents
- Quick Start Guide: Yes
- Base Included: Yes
- Cables: HDMI
- Power supply included: Yes
- User Manual: Yes
- Display
- LED backlight: Yes
- Backlight type: Edge LED
- Supported graphics resolutions: 2560 x 1440
- Native aspect ratio: 16:9
- Supported video modes: 1440p
- Screen diagonal: 23.8"
- Response time (typical): 5 ms
- Viewing angle (vertical): 178°
- Contrast ratio (typical): 1200:1
- Touchscreen: No
- Screen shape: Flat
- Color gamut standard: NTSC
- NTSC coverage (typical): 85%
- Resolution: 2560 x 1440 px
- Color depth: 8 bit
- Maximum refresh rate: 100 Hz
- Display brightness (typical): 300 cd/m²
- Matrix type: IPS
- Screen diagonal length (cm): 61 cm
- Haze index: 25%
- HD Type: Quad HD
- Horizontal viewing angle: 178°
- Display technology: LED
- Multimedia
- Built-in speakers: No
- Built-in camera: No
- Ergonomics
- Tilt angle range: -5 - 15°
- Panel mounting interface: 75 x 75
- Plug & Play Support: Yes
- Wall mountable: Yes
- Tilt adjustment: Yes
- VESA Standard: Yes
- Ports and interfaces
- DisplayPort Quantity: 1
- Number of HDMI ports: 1
- Headphone output: Yes
- HDMI: Yes
- Headphone plug: 3.5 mm
- DisplayPort version: 1.2
- HDMI version: 1.4
- Built-in USB hub: No
- Other functions
- Certificates of conformity
- Electromagnetic compatibility (EMC)
- Low Voltage Directive (LVD)
- Automatic brightness control: No
- Certificates of conformity
| Name | Details |
|---|---|
| Producer | DAHUA |
