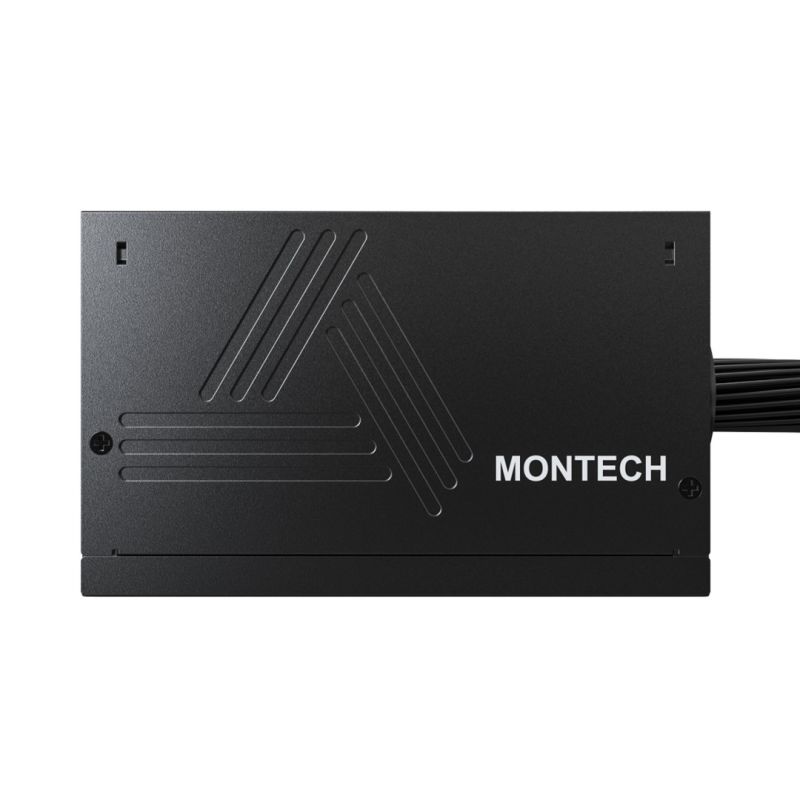

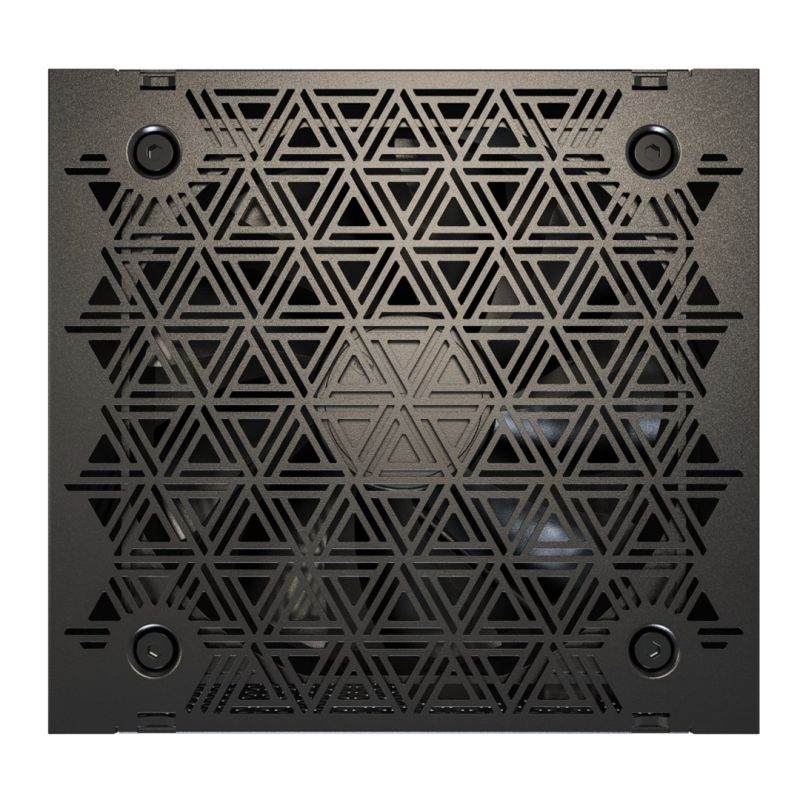

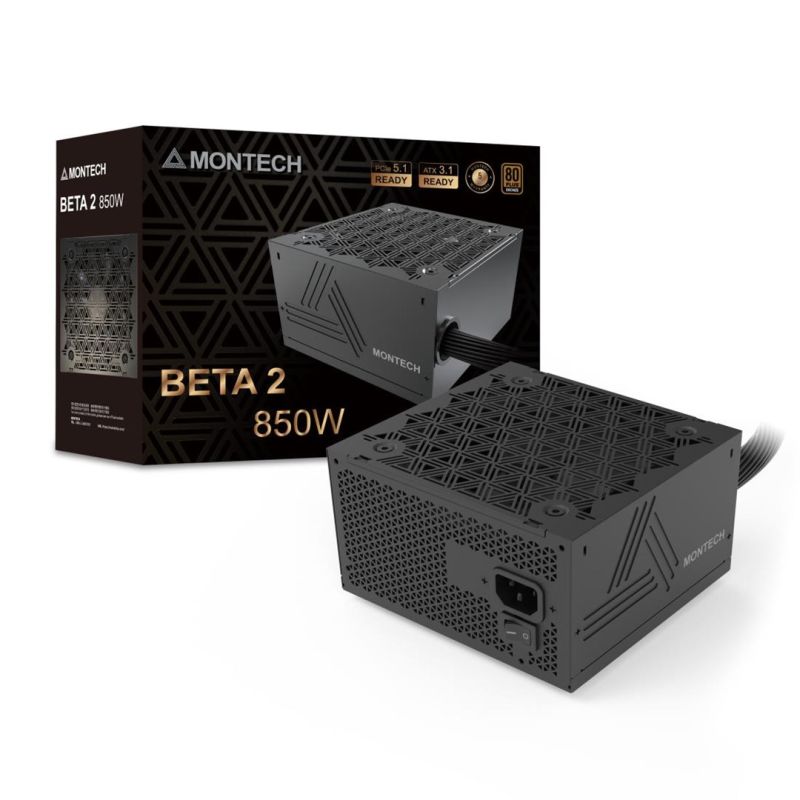

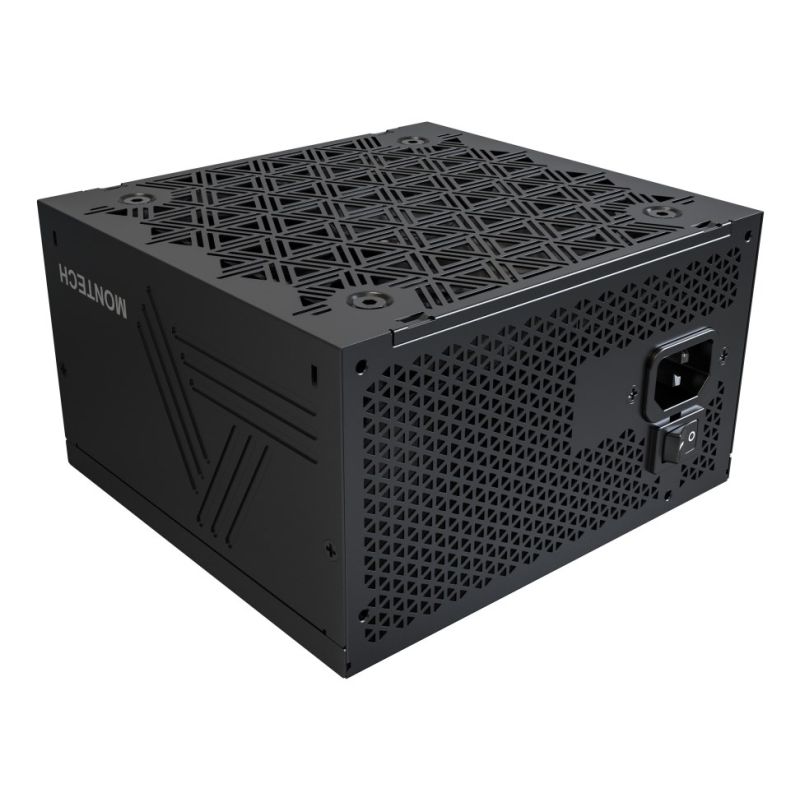

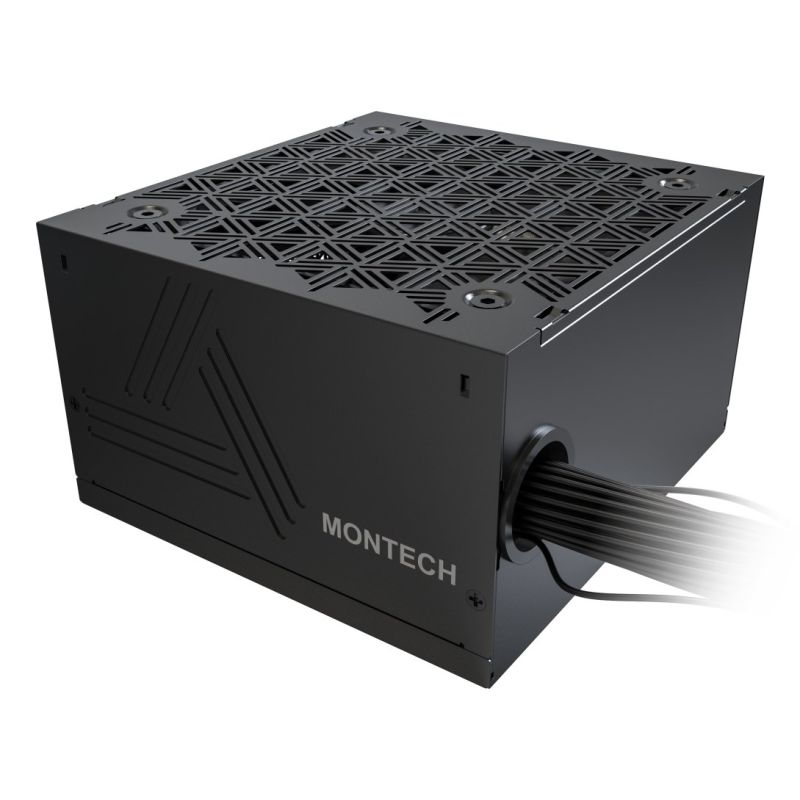

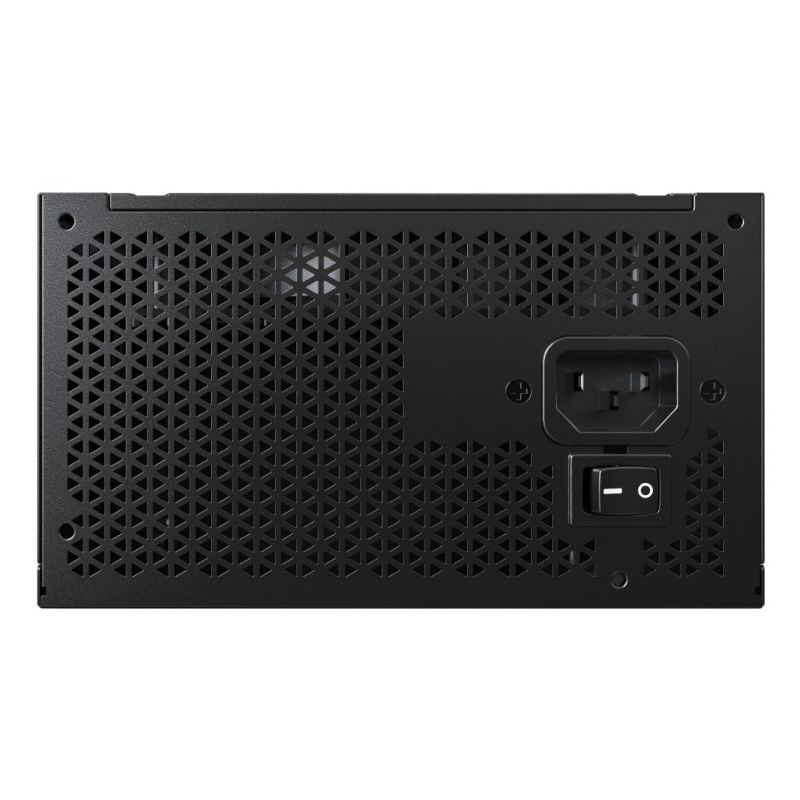

Montech BETA 2 Power Supply Module 850 W 20+4 pin ATX ATX Black
Montech BETA 2 Power Supply Module 850 W 20+4 pin ATX ATX Black
Montech BETA 2 Power Supply Module 850 W 20+4 pin ATX ATX Black
PRICE:
108,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Does not contain
- Mercury
- Cadmium
- Lead
- Does not contain
- Design
- Fan bowl diameter: 12 cm
- Cooling type: Active
- Backlight: No
- Product color: Black
- Built-in switch: Yes
- Number of fans: 1 fan

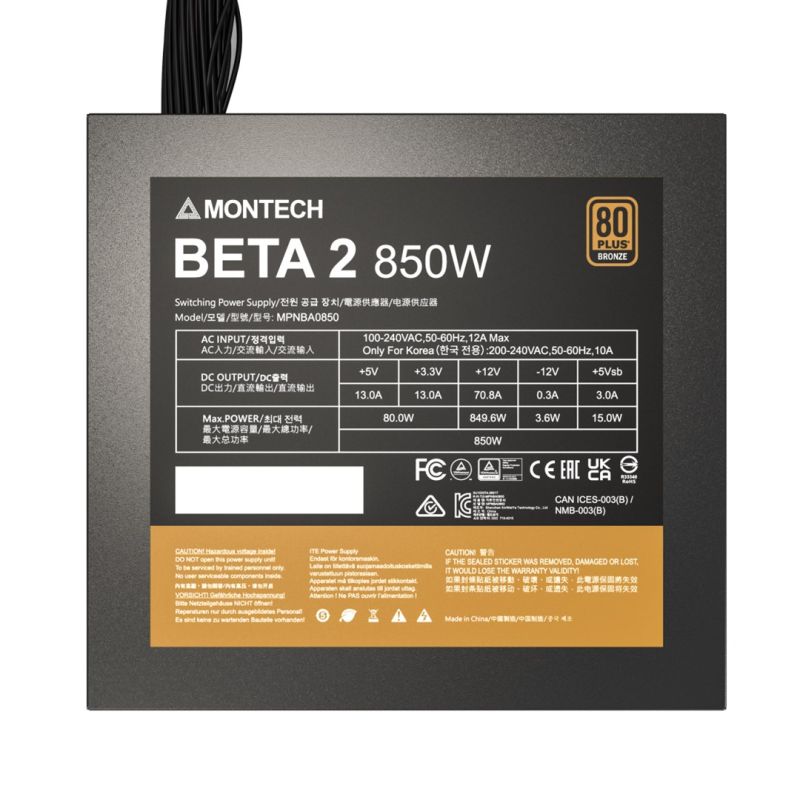

- Power
- AC input voltage: 100 - 240 V
- Maximum output current (+3.3V): 13 A
- Maximum output current (+5V): 13A
- Total power (-12V): 3.6 W
- Maximum output current (+12V): 70.8 A
- Maximum output current (-12V): 0.3A
- Input current: 12 A
- AC input frequency: 50/60 Hz
- Power protection features
- Protection against overvoltage
- Overload protection
- Low voltage protection
- Short circuit
- Overheating protection
- Overcurrent
- Total power (+12V): 849.6 W
- Total power: 850 W
- Total power (+5V): 80 W
- Total power (+5 Vsb): 15 W
- Total power (+3.3V): 80 W
- Maximum output current (+5 Vsb): 3 A
- Weight and dimensions
- Product height: 86 mm
- Product depth: 140 mm
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- ATX version: 3.1
- 80 PLUS Certificate: 80 PLUS Bronze
- Bearing technology: HDB
- Intended use: PC
- Power supply type (PSU): ATX
- Packaging data
- Packaging type: Box
- Certificates
- Certificates of conformity
- UKCA
- Central Committee
- BSMI
- Federal Communications Commission (FCC)
- RCM
- KCC
- cTUVus
- EAC
- CB
- RoHS
- TÜV mark
- Certificates of conformity
- Ports and interfaces
- CPU power supply connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- Wiring Type: Non-Modular
- Number of SATA power connectors: 6
- Motherboard power connector: 20+4 pin ATX
- Peripheral (Molex) Power Connectors (4-pin): 4
- Number of SATA power cables: 2
- PCI Express power connectors (16-pin): 1
- Logistics data
- Warranty period: 5 years
| Name | Details |
|---|---|
| Producer | Montech |
