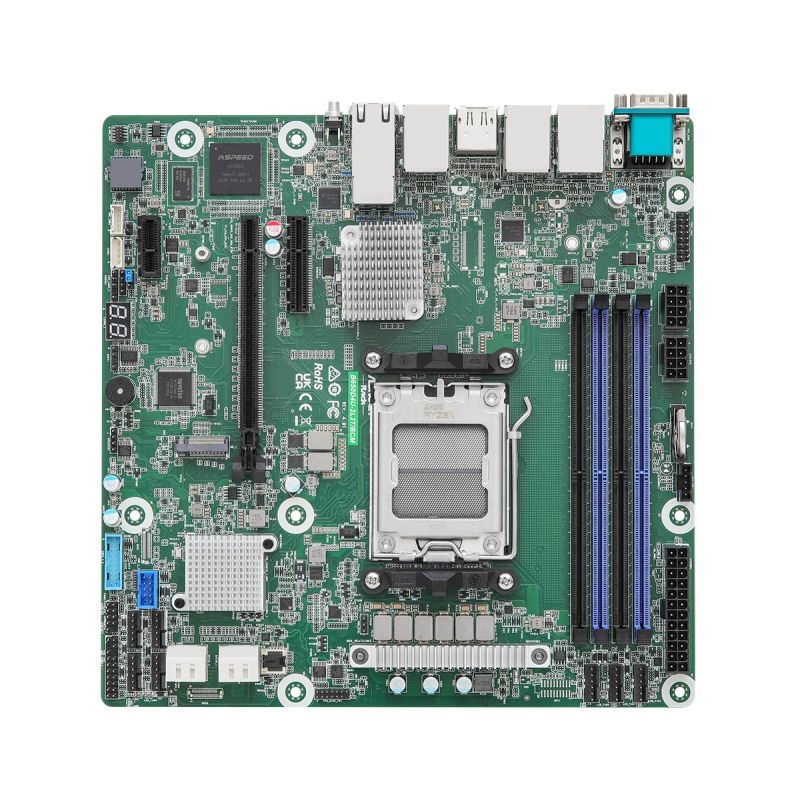

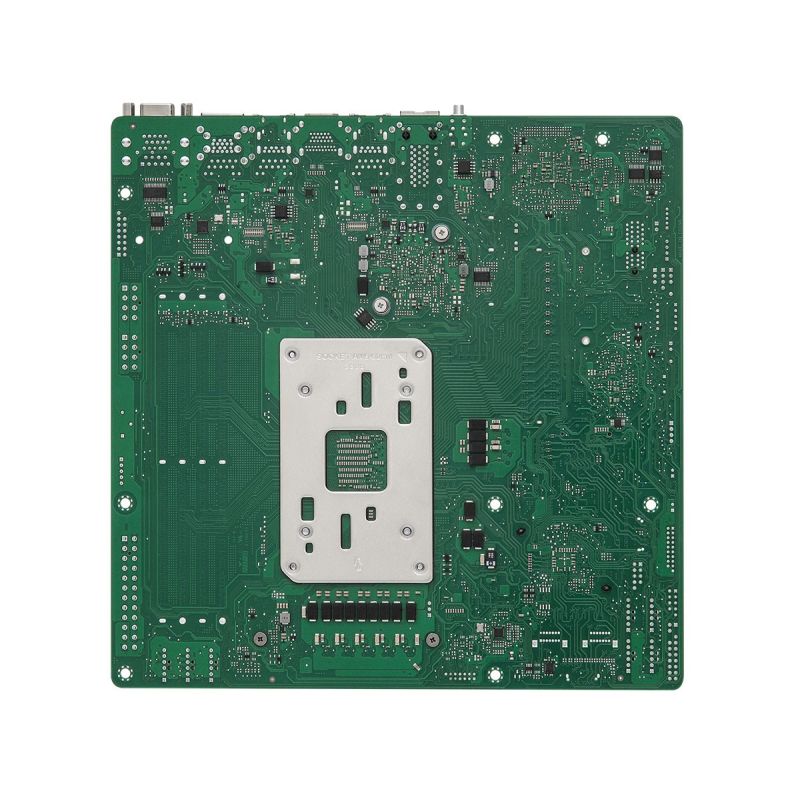

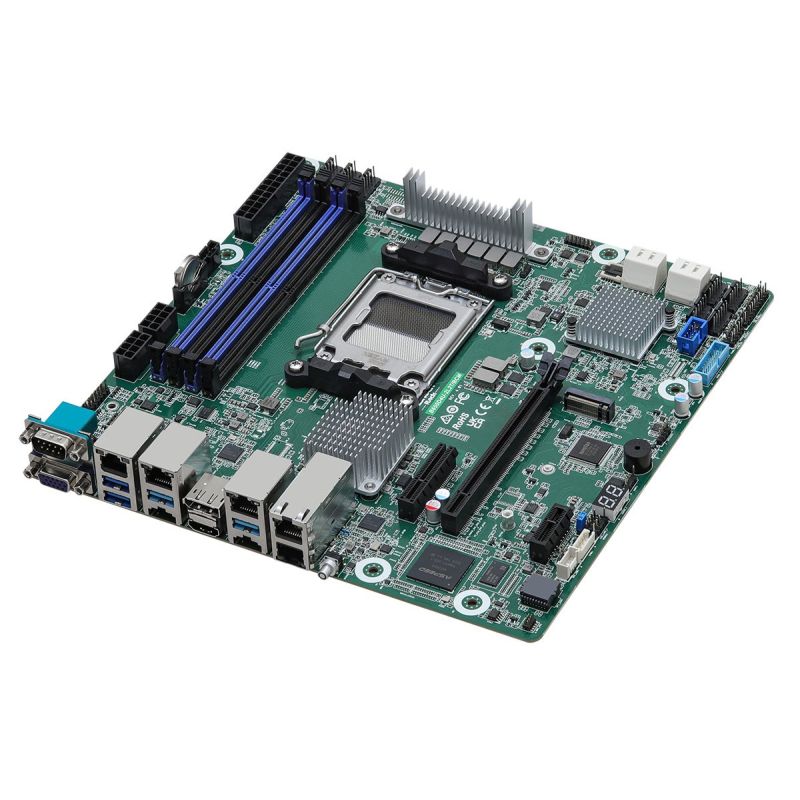

Motherboard ASRock B650D4U-2L2T/BCM 1x AM5 AMD Ryzen 7000 B650E (4xDIMM, SATA, 1xM.2, 2xGbE, 2x10GbE, IPMI)
Motherboard ASRock B650D4U-2L2T/BCM 1x AM5 AMD Ryzen 7000 B650E (4xDIMM, SATA, 1xM.2, 2xGbE, 2x10GbE, IPMI)
Motherboard ASRock B650D4U-2L2T/BCM 1x AM5 AMD Ryzen 7000 B650E (4xDIMM, SATA, 1xM.2, 2xGbE, 2x10GbE, IPMI)
PRICE:
809,99
€
IN A WAREHOUSE
2 pcs
Goods available on request - delivery time to 4 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Processor
- AMD Ryzen™ 5
- AMD Ryzen™ 3
- Maximum number of SMP processors: 1
- Processor socket: Socket AM5
- Graphics
- Built-in graphics card model: Aspeed AST2600
- Memory
- Maximum memory capacity: 32 GB
- Supported memory clock speeds
- 5200 MHz
- 3600 MHz
- Memory voltage: 1.1 V
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Number of memory slots: 4
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speed (max): 5200 MHz
- Characteristics
- Purpose: Server
- Monitoring computer status
- Fan
- Processor
- Tension
- Chipset Board Family: AMD
- Motherboard Layout: AMD B650 Express
- Motherboard format: Micro ATX
- Weight and dimensions
- Product width: 243.8 mm
- Product depth: 243.8 mm
- Working conditions
- Temperature range (operation): 10 - 35 °C
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 20 - 90%
- Internal I/O
- Number of COM sockets: 1
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- TPM Connector: Yes
- EPS power supply connector (8-pin): Yes
- Network
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS memory size: 256 Mbit
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- ACPI version: 6.4
- System BIOS (SMBIOS) Version: 3.5
- Memory drivers
- RAID Service: Yes
- RAID levels
- 1
- 0
- 10
- Supported hard drive interfaces: M.2, SATA III

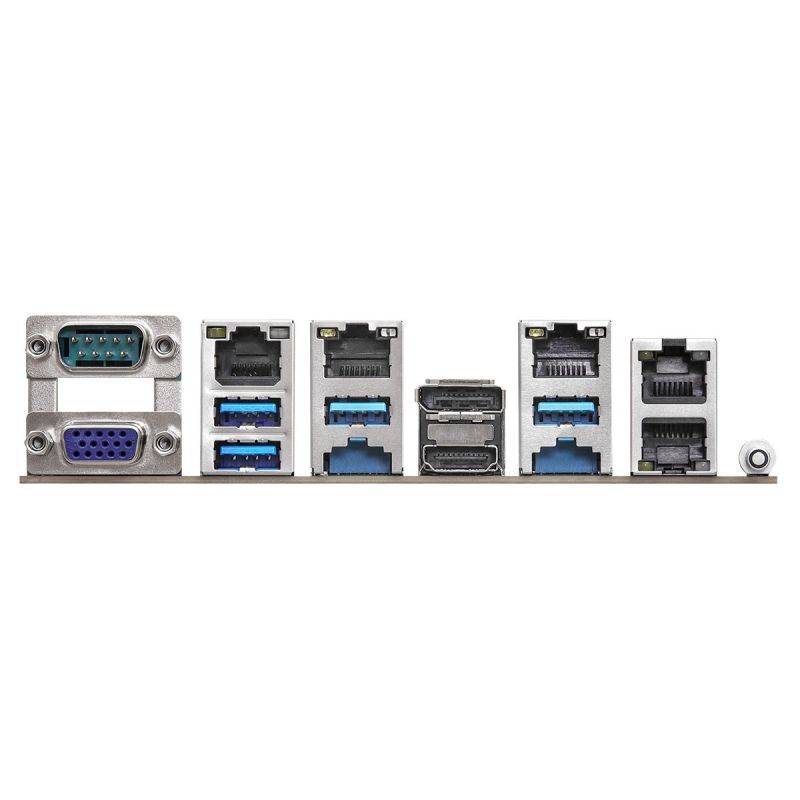

- Rear Panel I/O Ports
- DisplayPort Quantity: 1
- Number of HDMI ports: 1
- IPMI LAN Port (RJ-45): Yes
- Number of Ethernet LAN ports (RJ-45): 4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of VGA (D-Sub) ports: 1
- Serial communication ports: 1
- Expansion slots
- PCI Express x4 slots (Gen 4.x): 1
- Safety warning
- Warnings
- The motherboard may contain electronic components hazardous to health – avoid direct contact.
- Do not open or disassemble the motherboard.
- Use only in a dry and well-ventilated place.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
