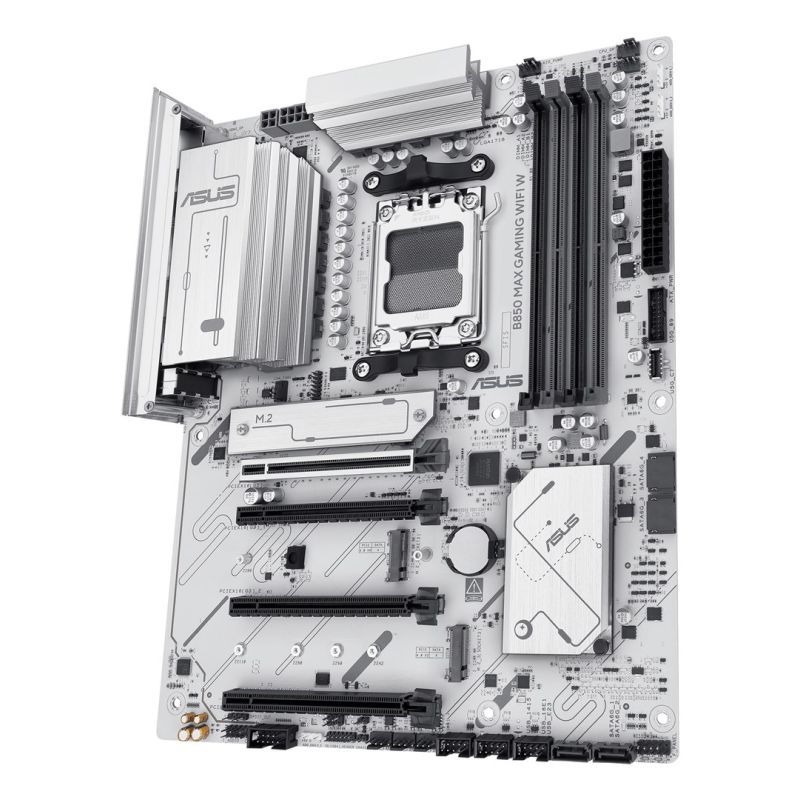

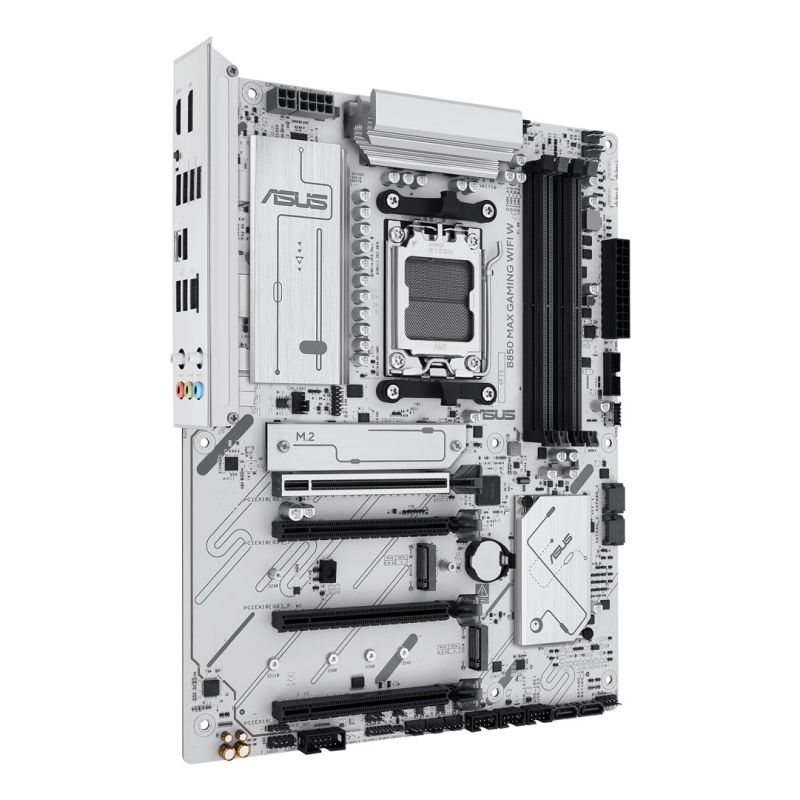

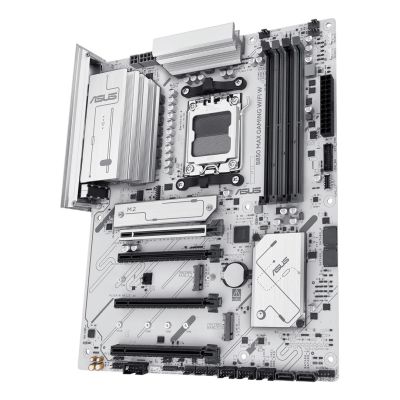

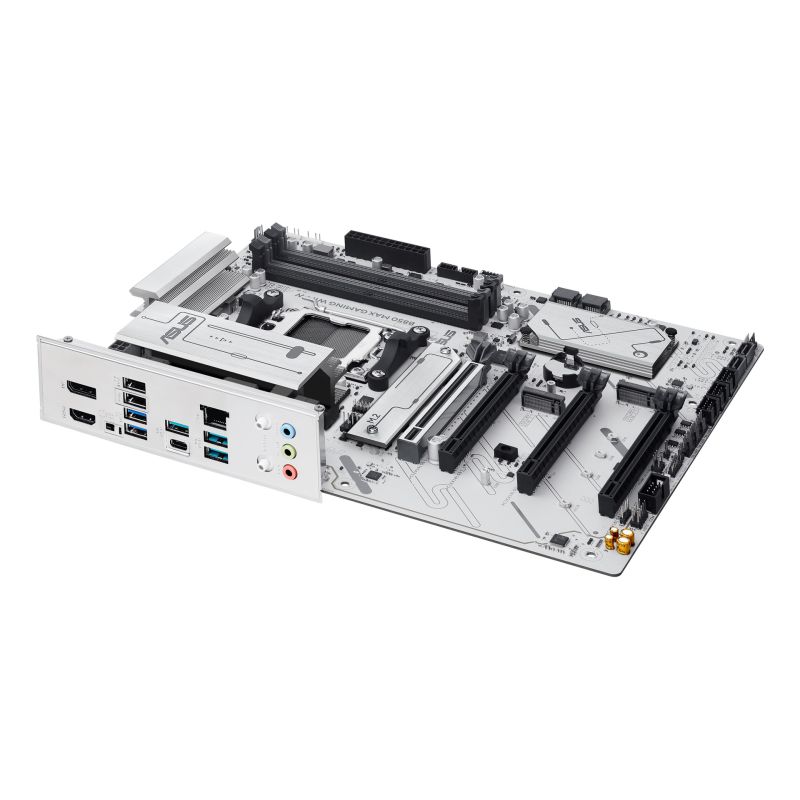

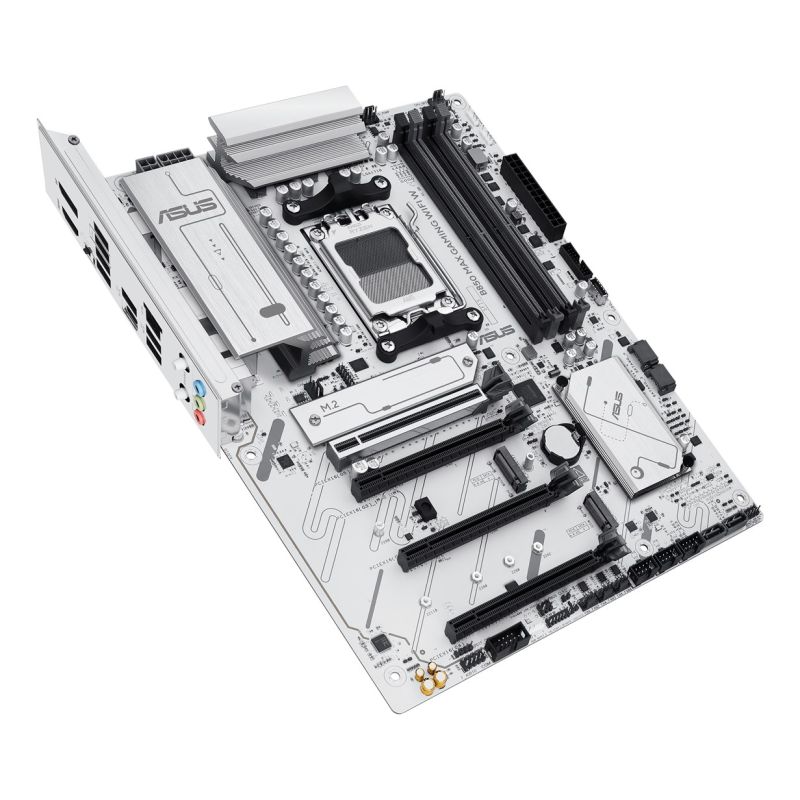

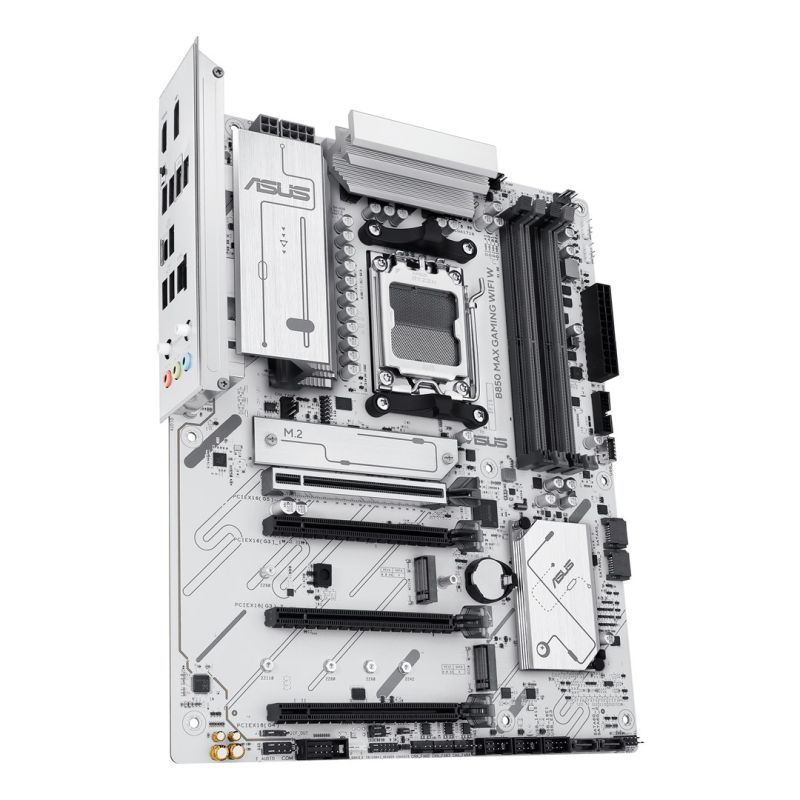

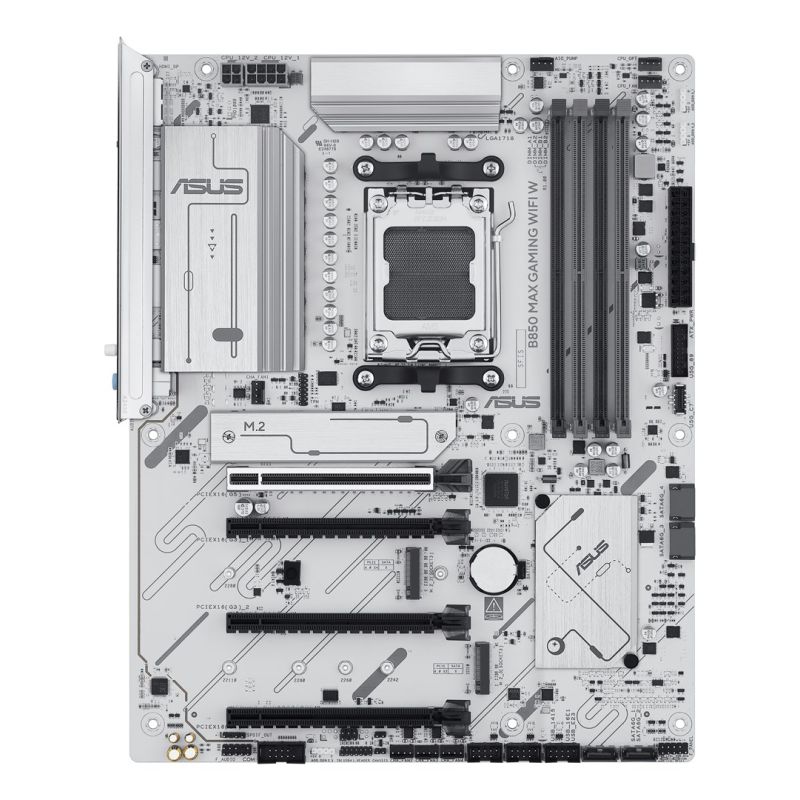

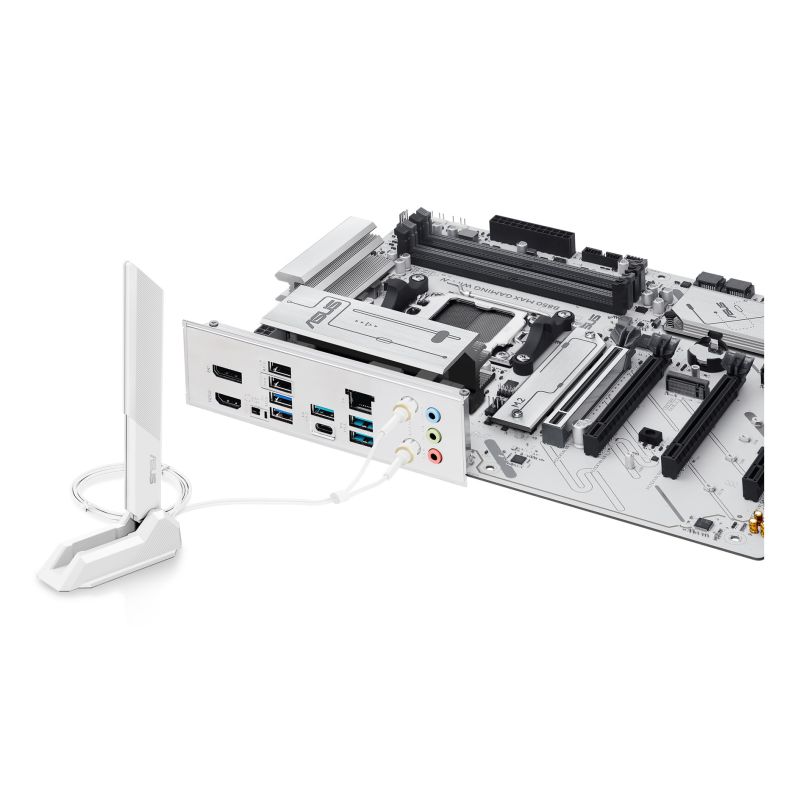

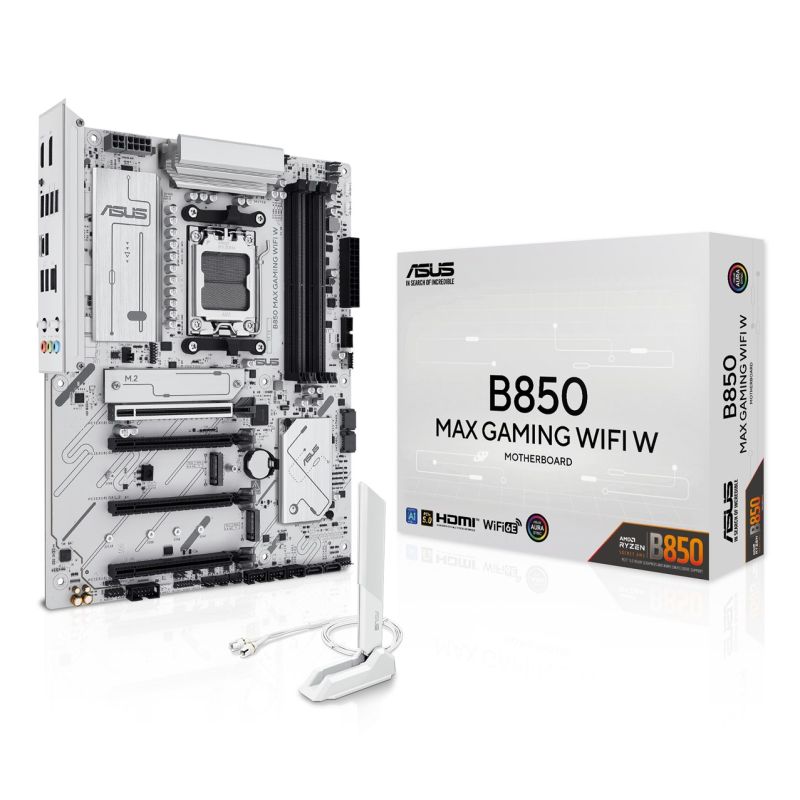

Motherboard MB AMD B850 SAM5 ATX MAX GAMING WIFI ASUS
Motherboard MB AMD B850 SAM5 ATX MAX GAMING WIFI ASUS
Motherboard MB AMD B850 SAM5 ATX MAX GAMING WIFI ASUS
PRICE:
390,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Processor manufacturer: AMD
- Graphics
- Built-in graphics card: No
- Parallel Processing Support: Not Supported
- Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- ECC Compatibility: ECC or Non-ECC
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Characteristics
- Motherboard format: ATX
- Cooling type: Passive
- Audio output channels: 7.1 ch.
- Supported Windows operating systems
- Windows 11
- Windows 10 x64
- Chipset Board Family: AMD
- Intended use: PC
- Product color: White
- Motherboard Layout: AMD B850
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Internal I/O
- Number of CPU fan connectors: 1
- 12V power connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Peripheral (Molex) Power Connectors (4-pin): 1
- Front panel audio connector: Yes
- Thunderbolt Ends: 1
- EPS power supply connector (8-pin): Yes
- RGB LED: Yes
- TPM Connector: Yes
- Housing intrusion sensor connector: Yes
- Number of COM sockets: 1
- CPU fan connector: Yes
- Number of case fan connectors: 4
- Number of USB 2.0 ports: 3
- Number of RGB LED connectors: 3
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Front panel connector: Yes
- S/PDIF jack: Yes
- Network
- Bluetooth version: 5.3
- Wired LAN: Yes
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- Ethernet interface type: 2.5 Gigabit Ethernet
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- Bluetooth: Yes
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- Packaging data
- Weight with packaging: 1.26 kg
- Package depth: 273 mm
- Package height: 68 mm
- Package width: 353 mm
- Package contents
- Screws Included: Yes
- Antenna Included: Yes
- Cables: SATA
- Memory drivers
- Number of supported storage drive sizes: 7
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 1
- 0
- 10
- 5
- RAID Service: Yes
- Number of supported HDDs: 4
- Supported drive types: HDD & SSD

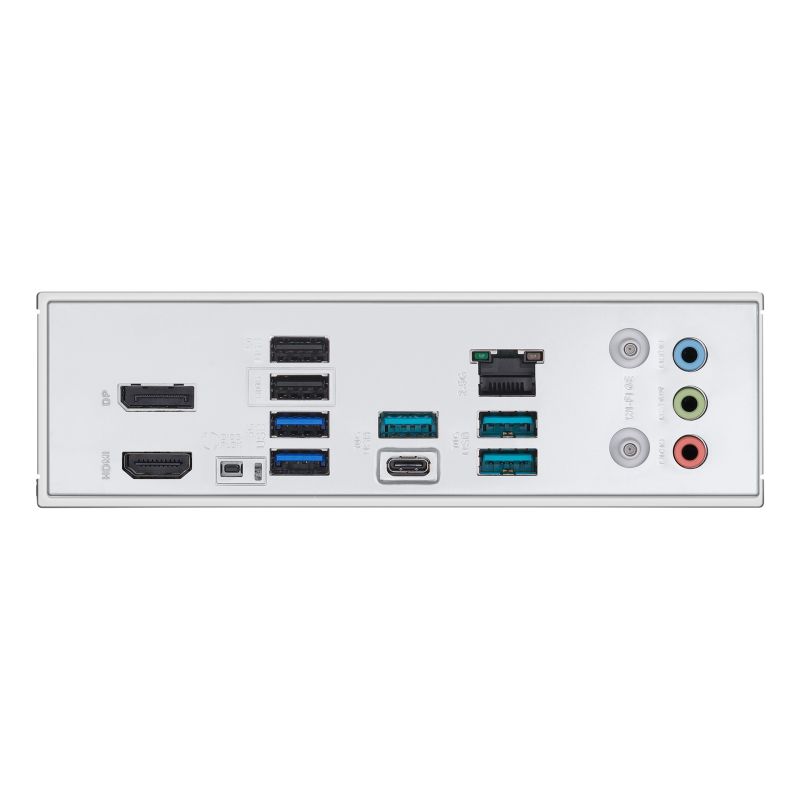

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Line Input: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of HDMI ports: 1
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- WiFi-AP Antenna Jack Plug: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3
- DisplayPort Quantity: 1
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 2
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 5.0
- 3. largest M.2 key size: 22110
- 1. largest M.2 key size: 2280
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 3
- 2nd largest M.2 key size: 2280
- 3. M.2 highest generation PCI Express: 4.0
| Name | Details |
|---|---|
| Producer | Asus |
