MSI A520M PRO Socket AM4 micro ATX
MSI A520M PRO Socket AM4 micro ATX
MSI A520M PRO Socket AM4 micro ATX
PRICE:
111,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor: AMD Ryzen 3000 Series
- Processor socket: Socket AM4
- Maximum number of SMP processors: 1
- Processor manufacturer: AMD
- Graphics
- Maximum resolution: 4096 x 2160 px
- Memory
- Unbuffered memory: No
- Supported memory clock speeds
- 4133 MHz
- 2133 MHz
- 1866 MHz
- 2800 MHz
- 2933 MHz
- 3200 MHz
- 3066 MHz
- 2667 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 3866 MHz
- 4400 MHz
- 3000 MHz
- 3466 MHz
- 3733 MHz
- 4466 MHz
- 4266 MHz
- Maximum memory capacity: 64 GB
- Memory slot type: DIMM
- Number of memory slots: 2
- Supported memory types: DDR4-SDRAM
- Memory Channel Support: Dual Channel
- ECC Compatibility: ECC or Non-ECC
- Characteristics
- Audio chip: Realtek ALC892
- Chipset Board Family: AMD
- Motherboard format: Micro ATX
- Power supply type: ATX
- Audio output channels: 7.1 ch.
- Motherboard Layout: AMD A520
- Intended use: PC
- Number of mounting holes: 6
- Weight and dimensions
- Product width: 244 mm
- Product height: 65 mm
- Product depth: 210 mm
- Internal I/O
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- ATX power socket (24-pin): Yes
- Total number of SATA connectors: 4
- Front panel connector: Yes
- CPU fan connector: Yes
- Housing intrusion sensor connector: Yes
- Number of case fan connectors: 1
- Network
- LAN controller: Realtek 8111H
- Wired LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Memory drivers
- Supported hard drive interfaces: PCI Express 3.0, SATA
- Supported drive types: HDD & SSD
- RAID levels
- 1
- 10
- 0

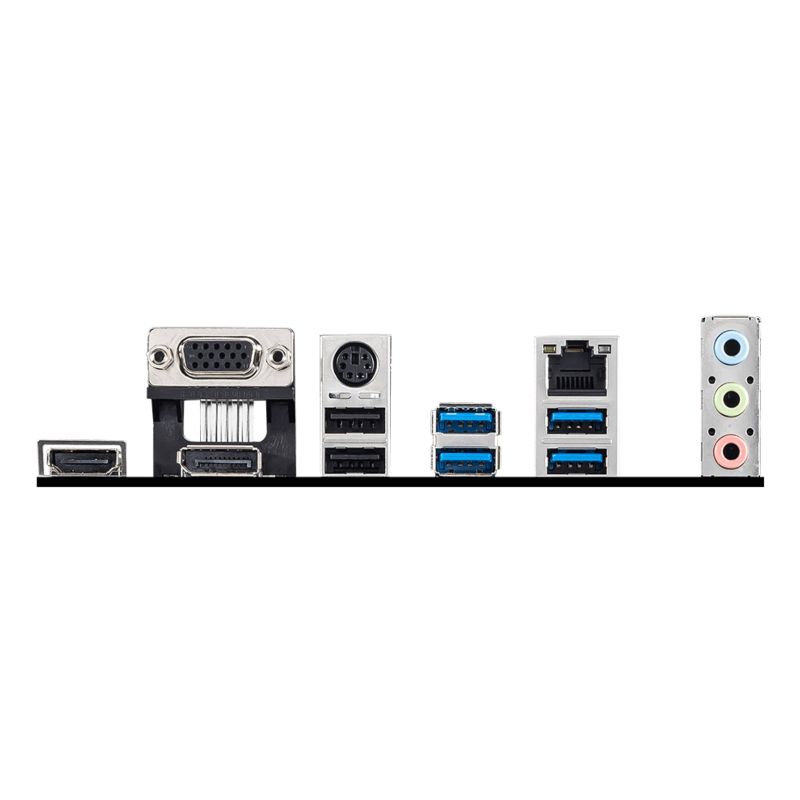

- Rear Panel I/O Ports
- DisplayPort Quantity: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of VGA (D-Sub) ports: 1
- Microphone: Yes
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of PS/2 ports: 1
- Expansion slots
- PCI Express x16 slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 3.x) slots: 2
- Other functions
- Product weight: 698 g
- Logistics data
- Harmonized System (HS) code: 84733020
| Name | Details |
|---|---|
| Producer | MSI |
