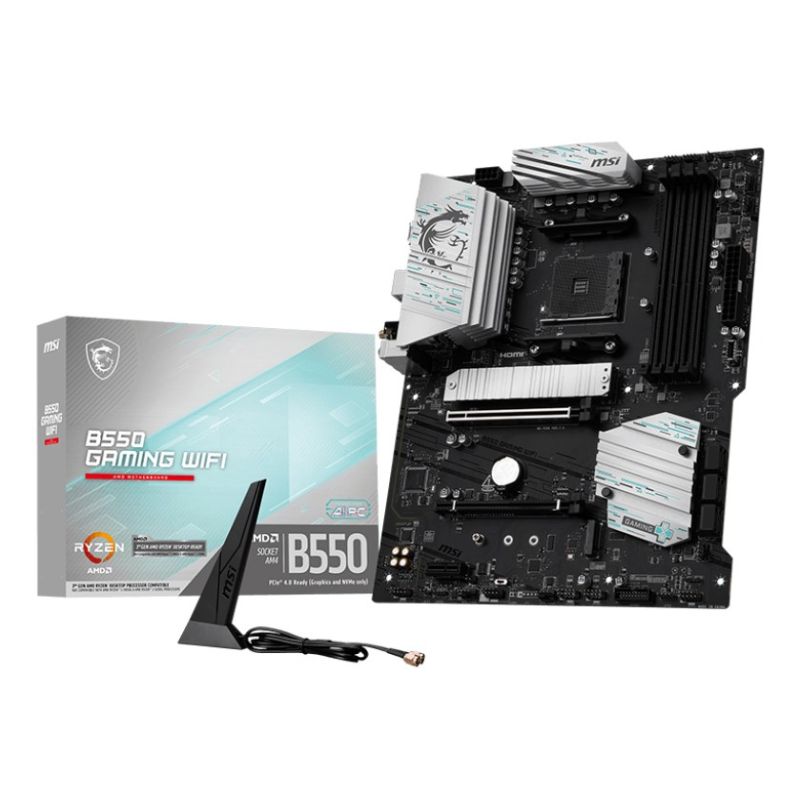

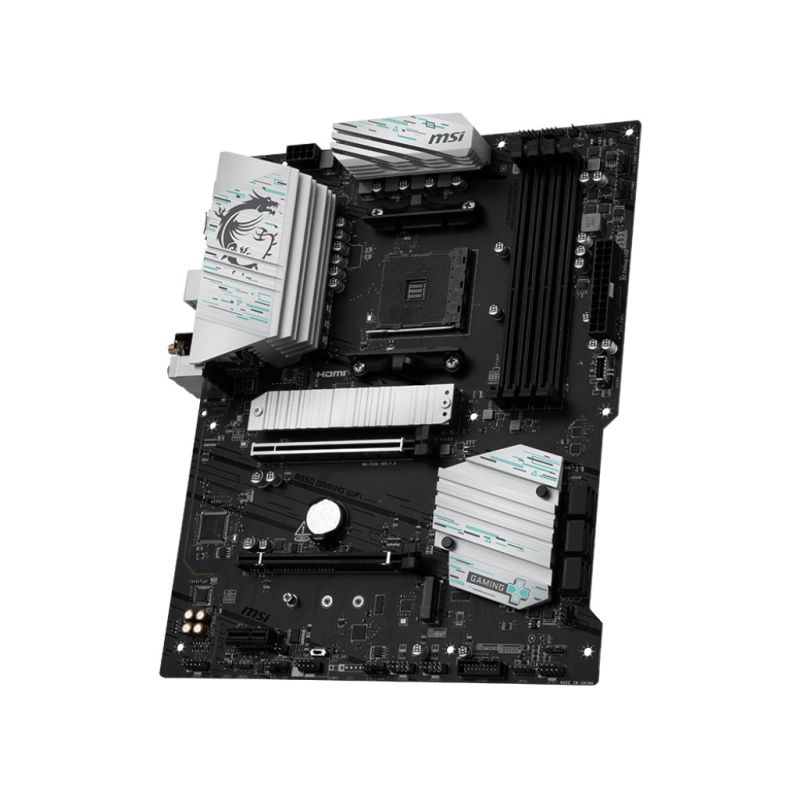

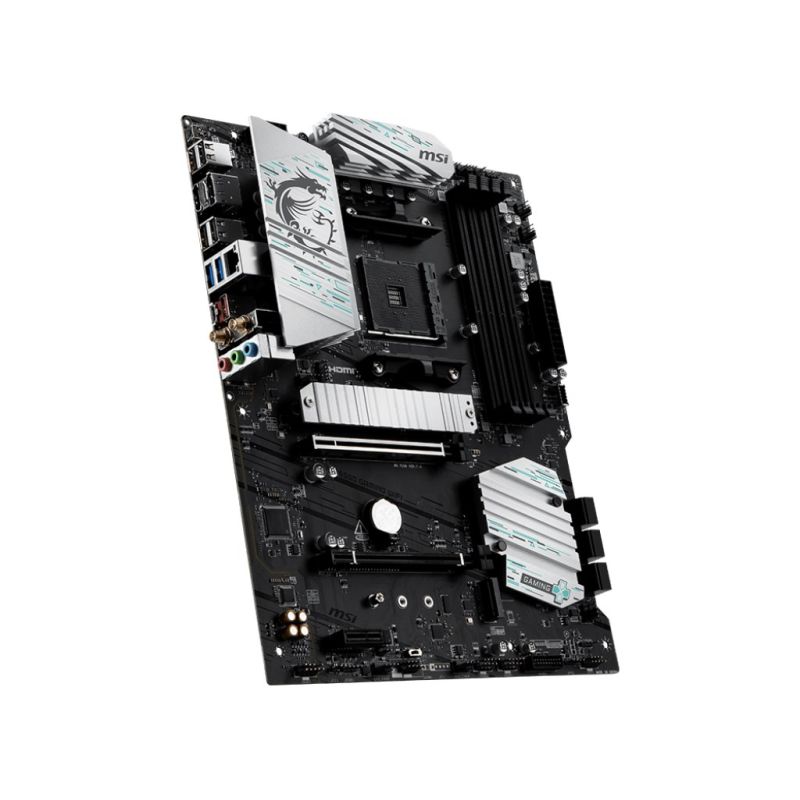

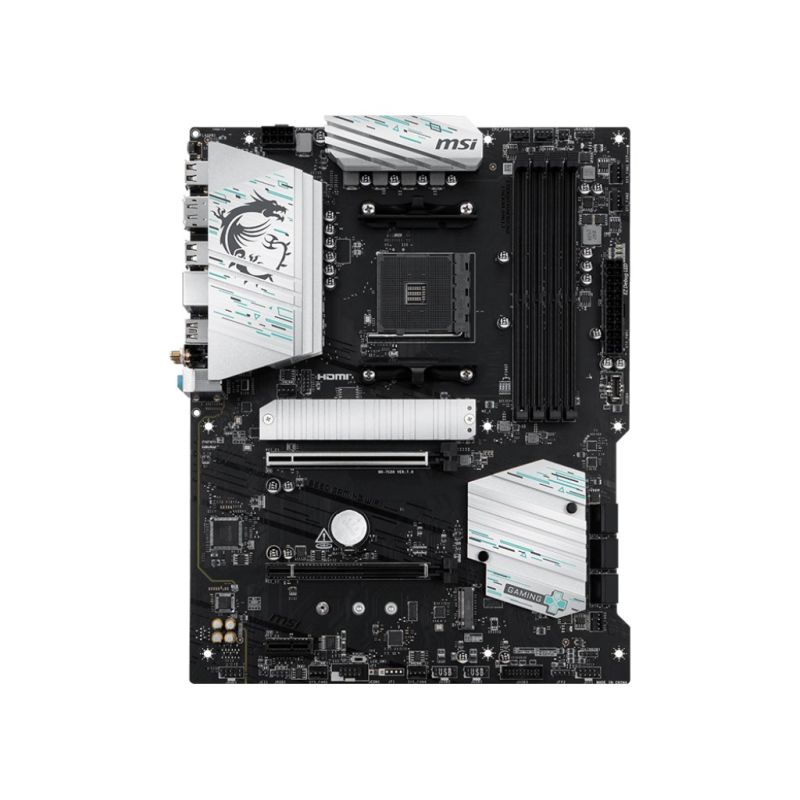

MSI B550 GAMING WIFI Motherboard
MSI B550 GAMING WIFI Motherboard
MSI B550 GAMING WIFI Motherboard
PRICE:
246,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Maximum number of SMP processors: 1
- Processor: AMD Ryzen 3000 Series
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Graphics
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory clock speeds
- 2800 MHz
- 4400 MHz
- 2933 MHz
- 4800 MHz
- 4133 MHz
- 3866 MHz
- 4600 MHz
- 3066 MHz
- 4533 MHz
- 4866 MHz
- 3000 MHz
- 3600 MHz
- 4000 MHz
- 3200 MHz
- 4733 MHz
- 3466 MHz
- 4266 MHz
- 3733 MHz
- 2667 MHz
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- ECC Compatibility: ECC or Non-ECC
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- Characteristics
- Audio chip: Realtek ALC897
- Motherboard Layout: AMD B550
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Motherboard format: ATX
- Weight and dimensions
- Product depth: 243.8 mm
- Product width: 304.8 mm
- Internal I/O
- RGB LED: Yes
- TPM Connector: Yes
- Number of SATA III connectors: 6
- Number of case fan connectors: 6
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Front panel audio connector: Yes
- Front panel connector: Yes
- CPU fan connector: Yes
- Total number of SATA connectors: 6
- Number of USB 2.0 ports: 4
- Network
- Bluetooth: Yes
- LAN controller: Realtek 8111H
- Ethernet interface type: Gigabit Ethernet
- Bluetooth version: 5.0
- Wired LAN: Yes
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards: Wi-Fi 5 (802.11ac)
- Package contents
- Cables: SATA
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III

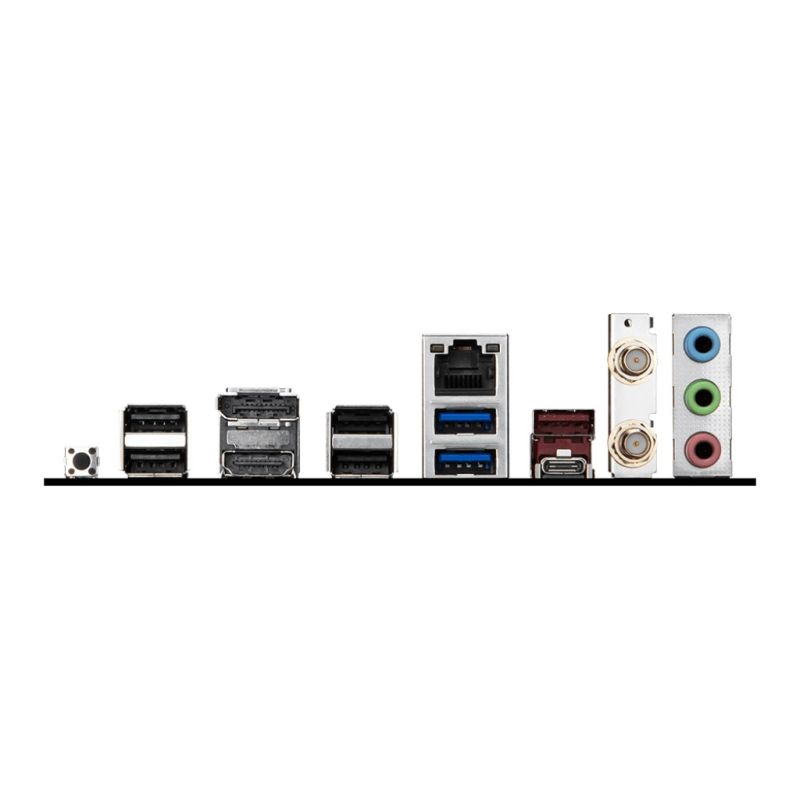

- Rear Panel I/O Ports
- WiFi-AP Antenna Jack Plug: 2
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- DisplayPort version: 1.2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- 2nd largest M.2 key size: 2280
- PCI Express x16 slots: 2
- 2. M.2 highest generation PCI Express: 3.0
- 1. largest M.2 key size: 22110
- PCI Express x1 slots: 1
- 1. M.2 highest generation PCI Express: 4.0
- Number of M.2 (M) slots: 2
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | MSI |
| Department | Electronics |
