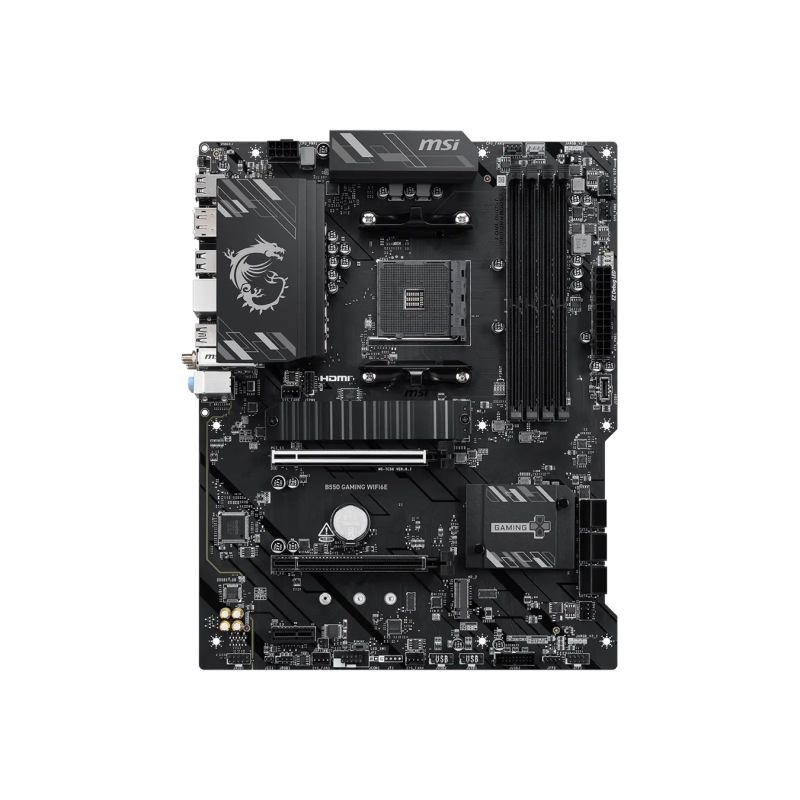

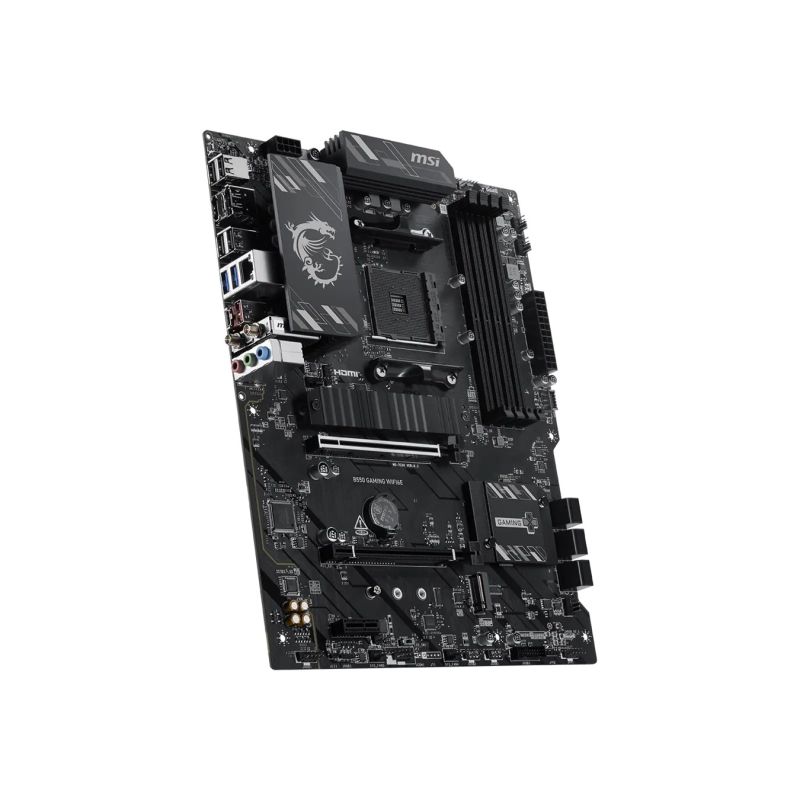

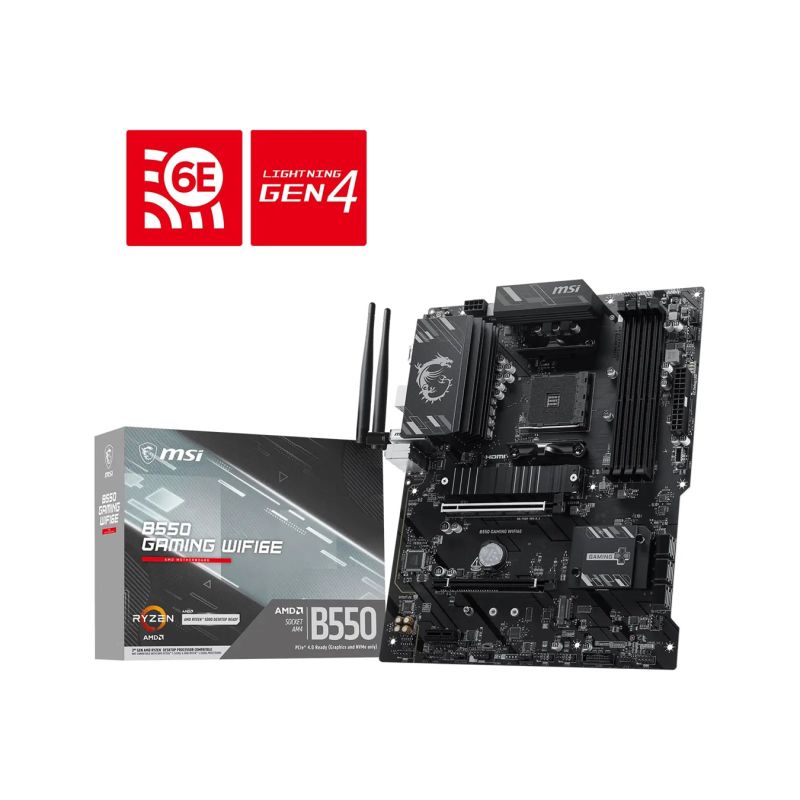

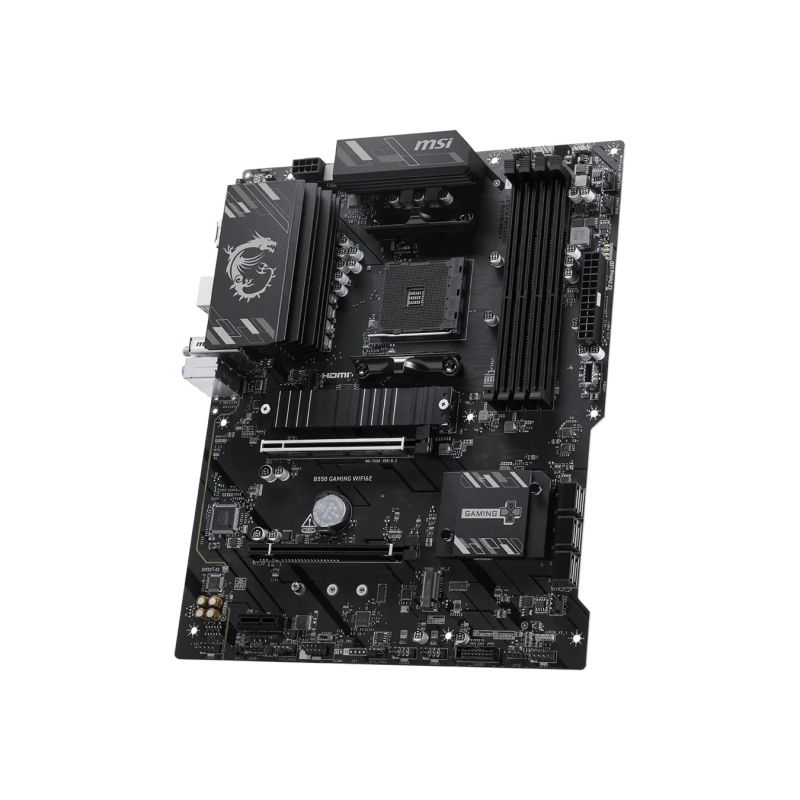

MSI B550 GAMING WIFI6E motherboard AMD B550 Socket AM4
MSI B550 GAMING WIFI6E motherboard AMD B550 Socket AM4
MSI B550 GAMING WIFI6E motherboard AMD B550 Socket AM4
PRICE:
209,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported processor sockets: Socket AM4
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 4000 Series
- AMD Ryzen 5000 Series
- AMD Ryzen 3000 Series
- Processor socket: Socket AM4
- Memory
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- Supported memory clock speeds
- 2800 MHz
- 4400 MHz
- 4133 MHz
- 3866 MHz
- 4600 MHz
- 2933 MHz
- 4800 MHz
- 4733 MHz
- 3200 MHz
- 3733 MHz
- 3600 MHz
- 4000 MHz
- 3066 MHz
- 4533 MHz
- 3466 MHz
- 4266 MHz
- 4866 MHz
- 2667 MHz
- 3000 MHz
- Supported memory types: DDR4-SDRAM
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Supported memory clock speed (max): 4800 MHz
- Number of memory slots: 4000
- ECC Compatibility: Non-ECC
- Characteristics
- Audio output channels: 7.1 ch.
- Intended use: PC
- Chipset Board Family: AMD
- Audio chip: Realtek ALC897
- Motherboard Layout: AMD B550
- Internal I/O
- CPU fan connector: Yes
- Number of SATA ports: 6
- Housing intrusion sensor connector: Yes
- ATX power socket (24-pin): Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 3
- Number of SATA III connectors: 6
- Number of USB 2.0 ports: 4000
- Front panel connector: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 2
- RGB LED: Yes
- Total number of SATA connectors: 6
- TPM Connector: Yes
- Network
- Bluetooth: Yes
- LAN controller: Realtek 8111H
- Wired LAN: Yes
- Wi-Fi standards: Wi-Fi 6 (802.11ax)
- Bluetooth version: 5.3
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- Ethernet interface type: Gigabit Ethernet
- BIOS
- BIOS Type: UEFI AMI
- ACPI version: 6.0
- BIOS memory size: 256 Mbit
- System BIOS (SMBIOS) version: 2.8
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 3.0, SATA
- Number of supported storage drive sizes: 2

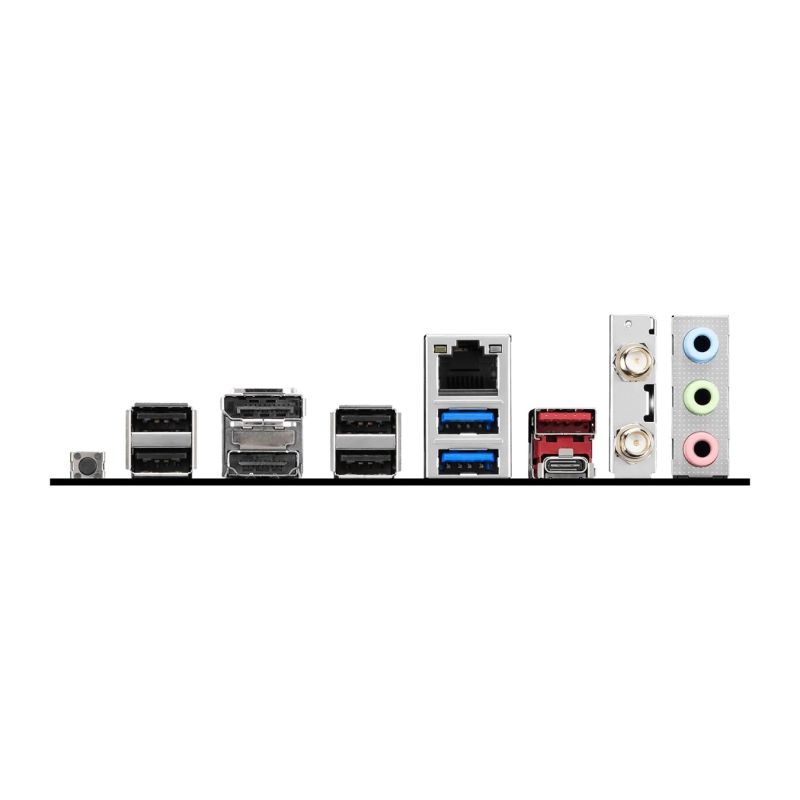

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 8
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- DisplayPort version: 1.2
- Number of HDMI ports: 1
- HDMI version: 1.4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 2
- PCI Express x16 slots: 1
- 2nd largest M.2 key size: 2280
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 4.x) slots: 1
- 1. M.2 highest generation PCI Express: 4.0
- 2. M.2 highest generation PCI Express: 3.0
- 1. largest M.2 key size: 2280
| Name | Details |
|---|---|
| Producer | MSI |
