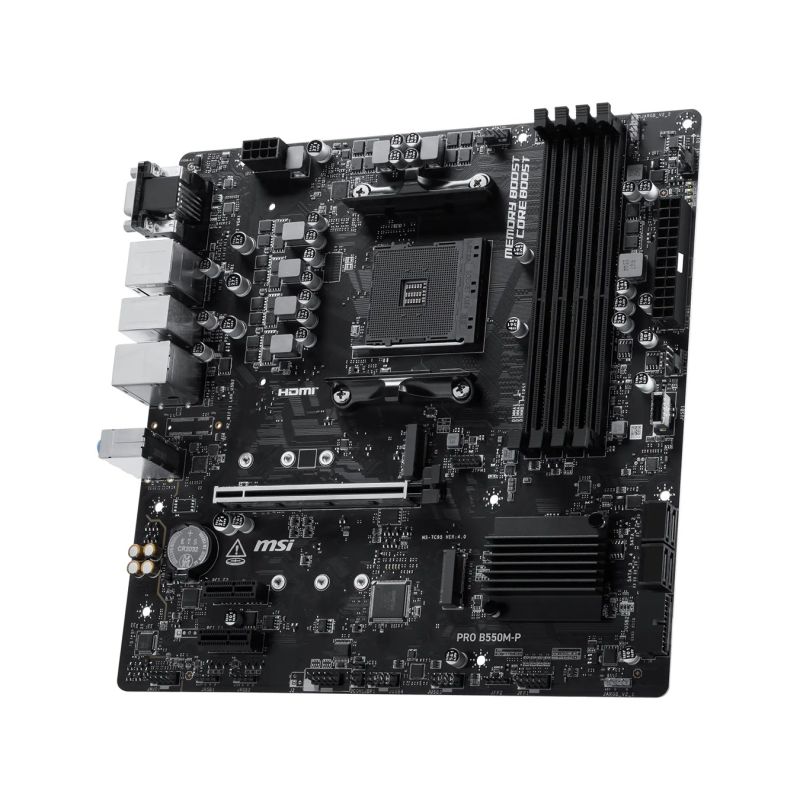

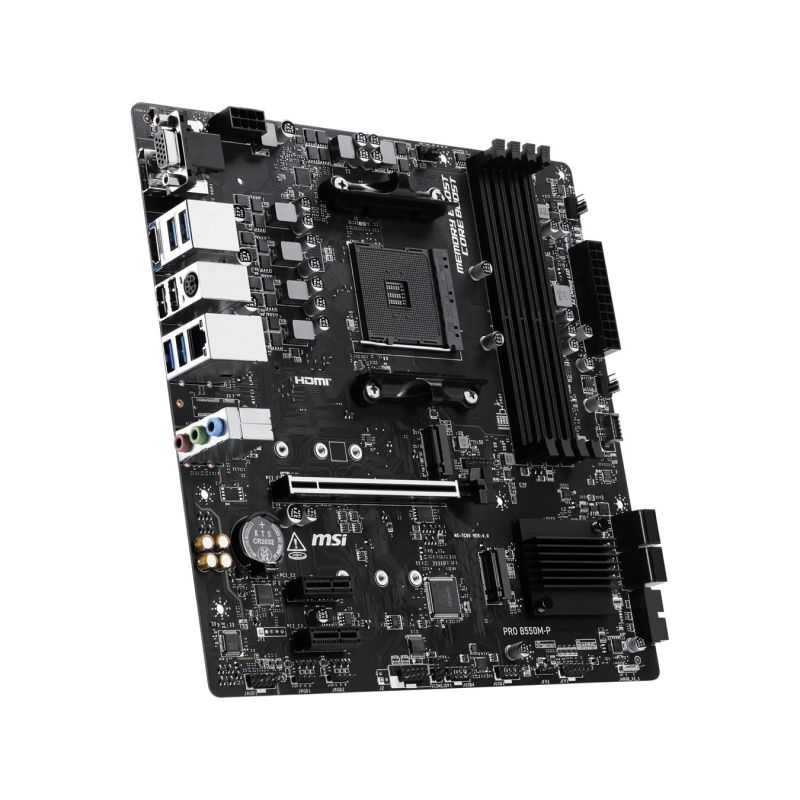

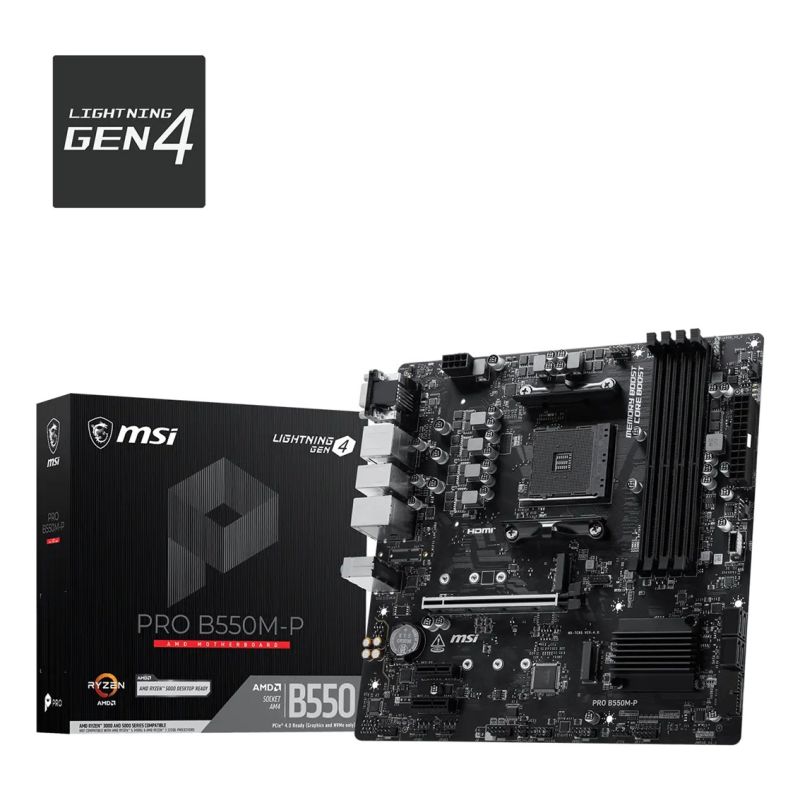

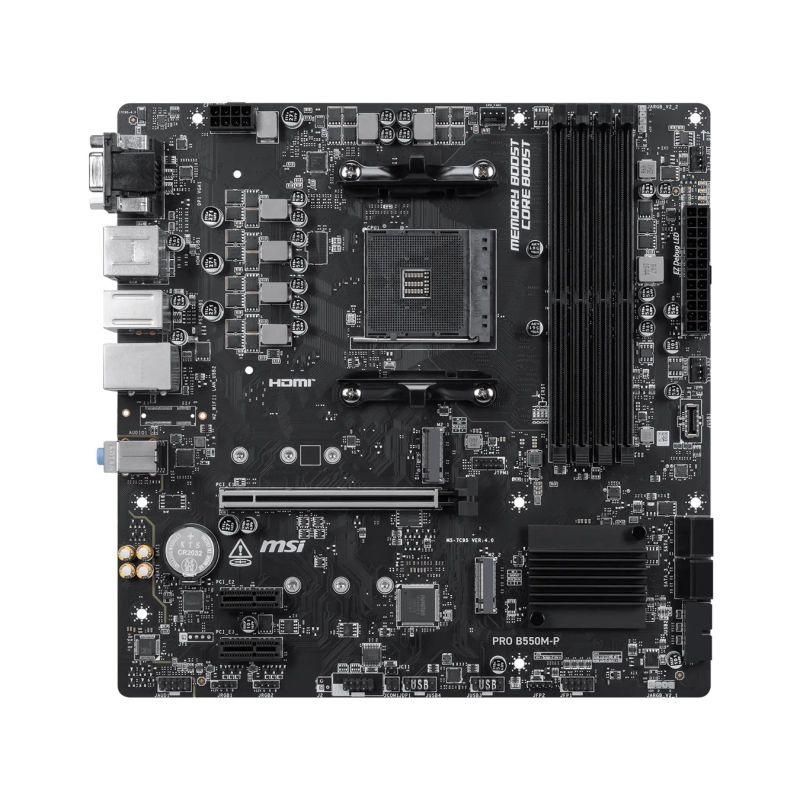

MSI B550M-P WiFi6E (B550, AM4, mATX, AMD)
MSI B550M-P WiFi6E (B550, AM4, mATX, AMD)
MSI B550M-P WiFi6E (B550, AM4, mATX, AMD)
PRICE:
170,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor
- AMD Ryzen 5000 Series
- AMD Ryzen 4000 Series
- AMD Ryzen 3000 Series
- Processor socket: Socket AM4
- Supported processor sockets: Socket AM4
- Processor manufacturer: AMD
- Processor
- Graphics
- Parallel processing support: Not supported
- Memory
- ECC compatibility: Non-ECC
- Unbuffered memory: Yes
- Number of memory slots: 4
- Supported memory clock speeds
- 3200 MHz
- 2933 MHz
- 3000 MHz
- 3466 MHz
- 2800 MHz
- 4400 MHz
- 4266 MHz
- 3733 MHz
- 3066 MHz
- 4133 MHz
- 3866 MHz
- 2667 MHz
- 3600 MHz
- 4000 MHz
- Supported memory types: DDR4-SDRAM
- Maximum memory capacity: 128 GB
- Memory slot type: DIMM
- Memory channels: Dual-channel
- Supported maximum memory clock speed: 4400 MHz
- Features
- Audio output channels: 7.1 channels
- Audio chip: Realtek ALC897
- Motherboard chipset: AMD B550
- Motherboard form factor: Micro ATX
- Chipset family: AMD
- Weight and dimensions
- Product depth: 243.8 mm
- Product width: 243.8 mm
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Total number of SATA connectors: 4
- TPM connector: Yes
- Front panel connector: Yes
- Front panel audio connector: Yes
- Case intrusion detection connector: Yes
- Number of USB 2.0 connectors: 4
- Number of SATA III connectors: 4
- Number of SATA connectors: 4
- CPU fan connector: Yes
- RGB LED: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Bluetooth: Yes
- Wi-Fi: Yes
- LAN controller: Realtek 8111H
- Wi-Fi frequency: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
- BIOS
- BIOS type: UEFI AMI
- Storage controllers
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 3.0, SATA
- RAID levels
- 1
- 0
- 10
- RAID support: Yes
- Supported drive types: HDD & SSD
- Number of supported storage drive sizes: 3
- Number of supported HDDs: 4

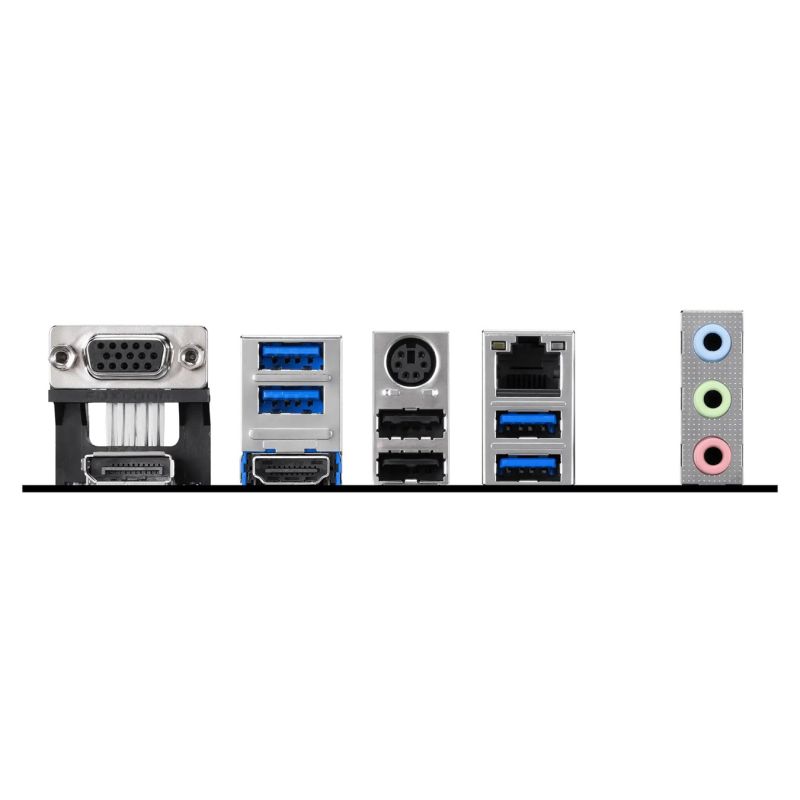

- Rear panel I/O ports
- HDMI version: 2.1
- Number of Ethernet LAN (RJ-45) ports: 1
- DisplayPort version: 1.4
- Number of DisplayPorts: 1
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of HDMI ports: 1
- Number of VGA (D-Sub) ports: 1
- Expansion slots
- 1. M.2, maximum PCI Express generation: 4.0
- 2. M.2, maximum key size: 2280
- 2. M.2, maximum PCI Express generation: 3.0
- 1. M.2, maximum key size: 2280
- PCI Express x1 slots (Gen 3.x): 2
- Number of M.2 (M) slots: 2
- PCI Express x16 slots (Gen 3.x): 1
- PCI Express x16 slots: 1
- PCI Express x16 slots (Gen 4.x): 1
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | MSI |
| Department | Electronics |
