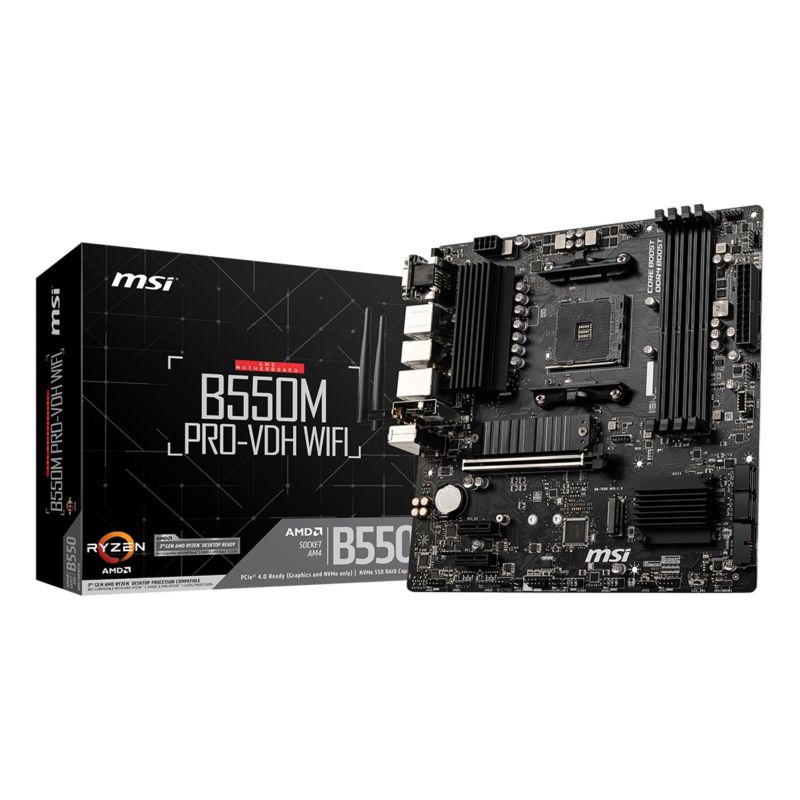

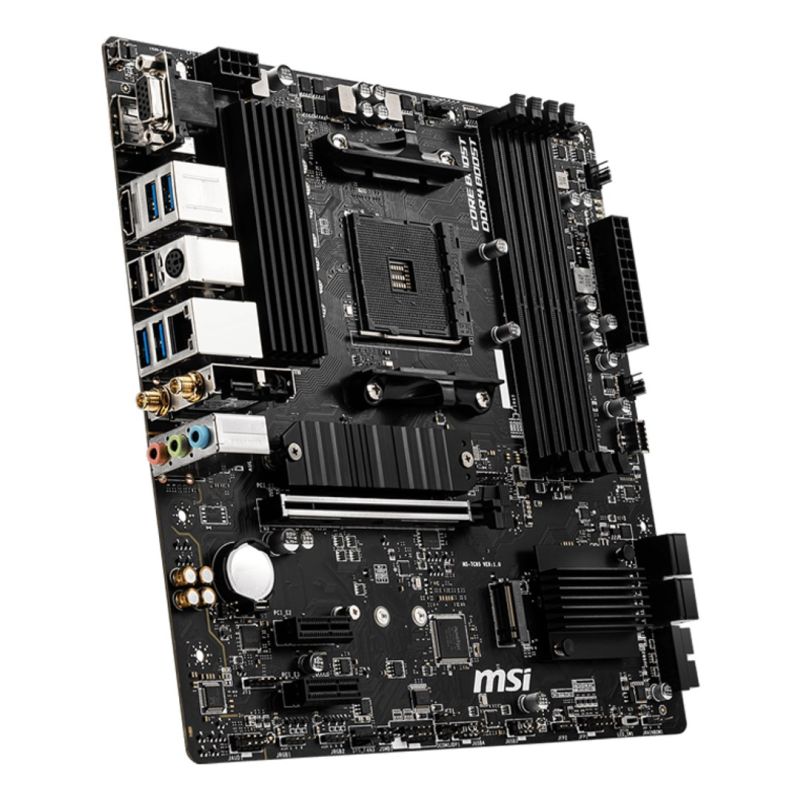

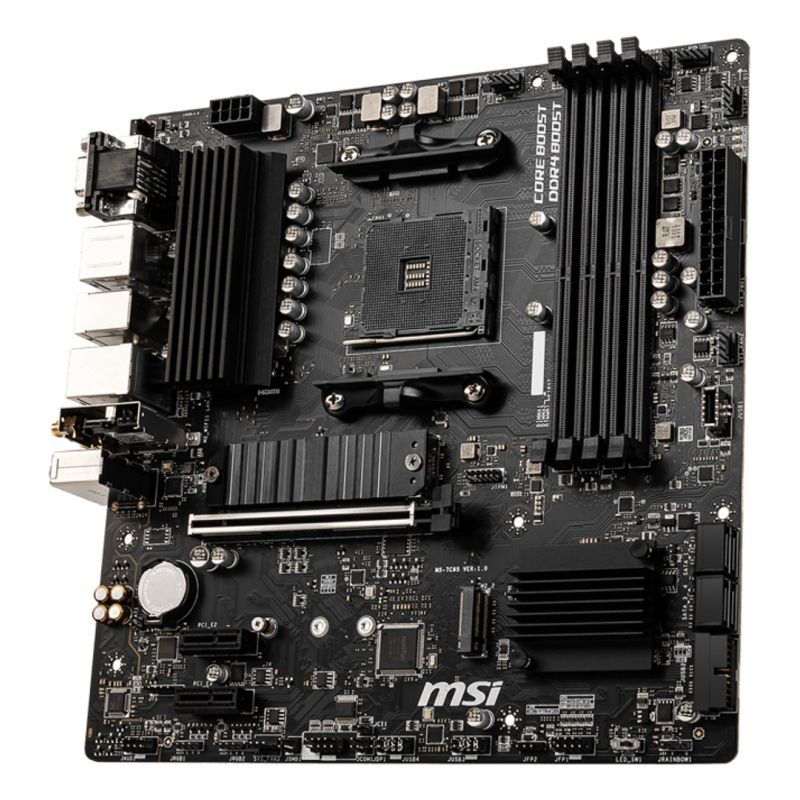

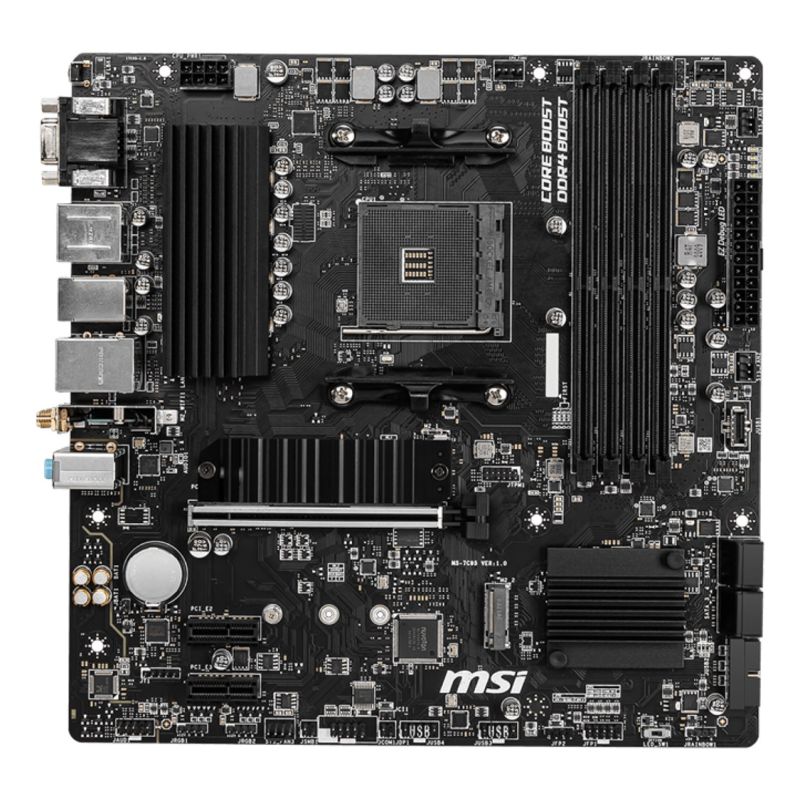

MSI B550M PRO-VDH WIFI Motherboard
MSI B550M PRO-VDH WIFI Motherboard
MSI B550M PRO-VDH WIFI Motherboard
PRICE:
172,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Processor: AMD Ryzen 3000 Series
- Supported processor sockets: Socket AM4
- Maximum number of SMP processors: 1
- Processor socket: Socket AM4
- Graphics
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- Maximum graphics card memory: 16000 MB
- Memory
- Supported memory clock speeds
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 2800 MHz
- 4400 MHz
- 4266 MHz
- 3466 MHz
- 2933 MHz
- 3200 MHz
- 2133 MHz
- 1866 MHz
- 3733 MHz
- 2667 MHz
- 3066 MHz
- 3000 MHz
- 4133 MHz
- 3866 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- Memory Channel Support: Dual Channel
- ECC Compatibility: ECC or Non-ECC
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Supported memory clock speeds
- Characteristics
- Product color: Black
- Audio chip: Realtek ALC892
- Motherboard Layout: AMD B550
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Motherboard format: Micro ATX
- Number of mounting holes: 8
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Product height: 65 mm
- Internal I/O
- Serial port connector: 1
- Number of USB 2.0 ports: 2
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of case fan connectors: 3
- RGB LED: Yes
- 12V power connector: Yes
- Network
- Bluetooth: Yes
- LAN controller: Realtek 8111HN
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- Ethernet interface type: Gigabit Ethernet
- Bluetooth version: 4.2
- Wired LAN: Yes
- BIOS
- Clear CMOS Jumper: Yes
- Package contents
- Cables: SATA
- Drivers included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- RAID Service: Yes
- RAID levels
- 0
- 1
- 10
- Supported hard drive interfaces: SATA III

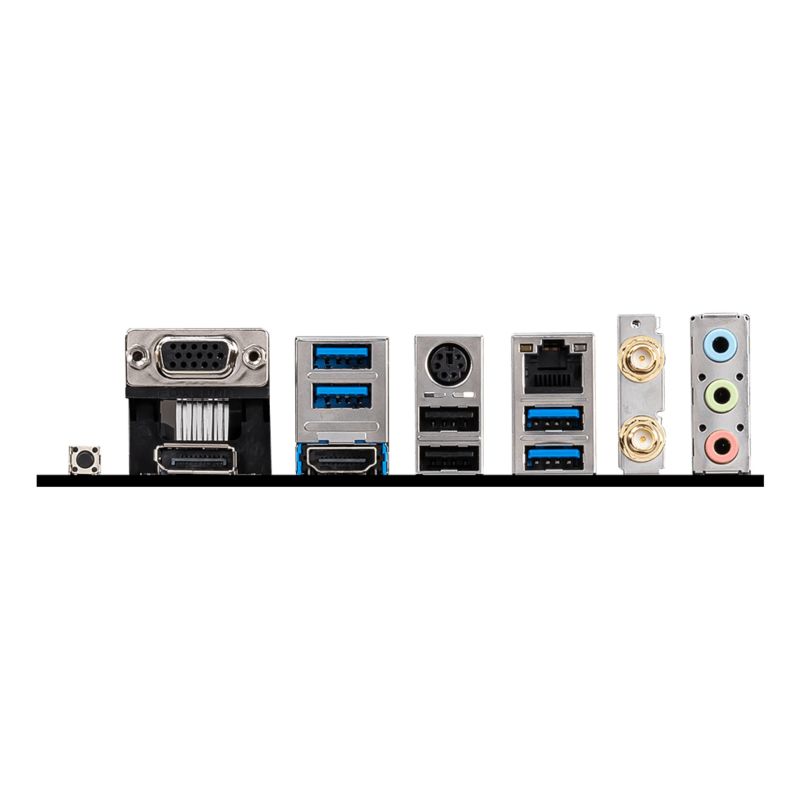

- Rear Panel I/O Ports
- DisplayPort Quantity: 1
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- WiFi-AP Antenna Jack Plug: 2
- Number of VGA (D-Sub) ports: 1
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Other functions
- Product weight: 1 kg
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- Store away from water and sources of moisture.
- Dispose of in accordance with local regulations regarding electronic waste.
- Avoid direct contact with sensitive electronic components.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | MSI |
| Department | Electronics |
