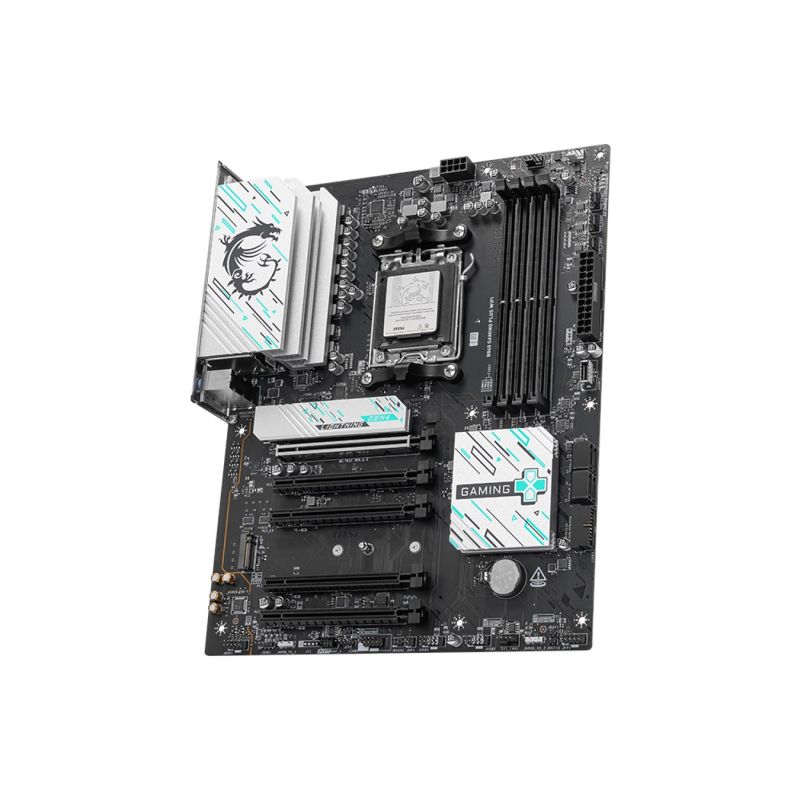

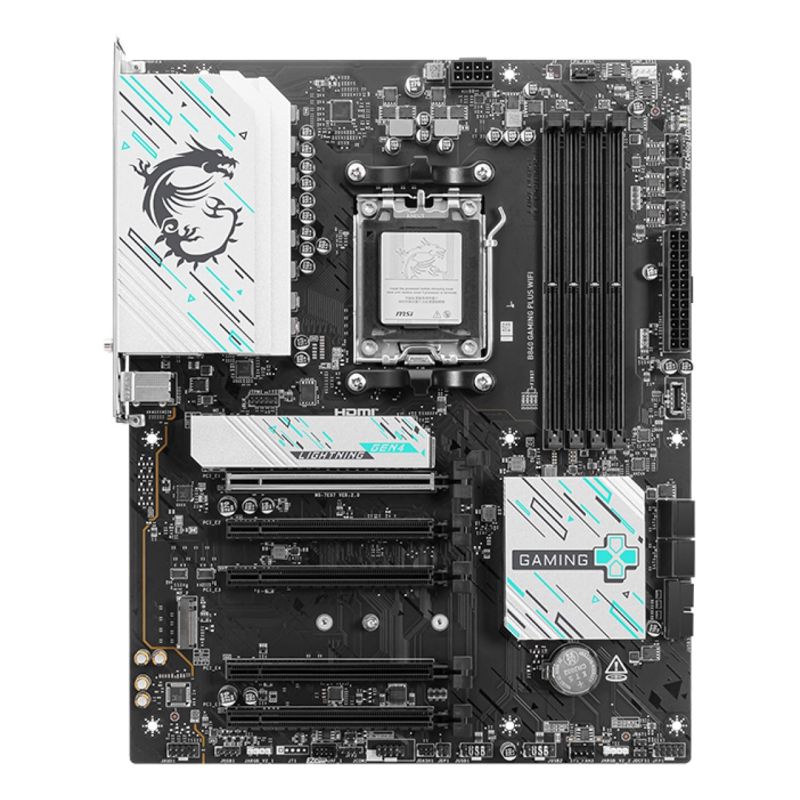

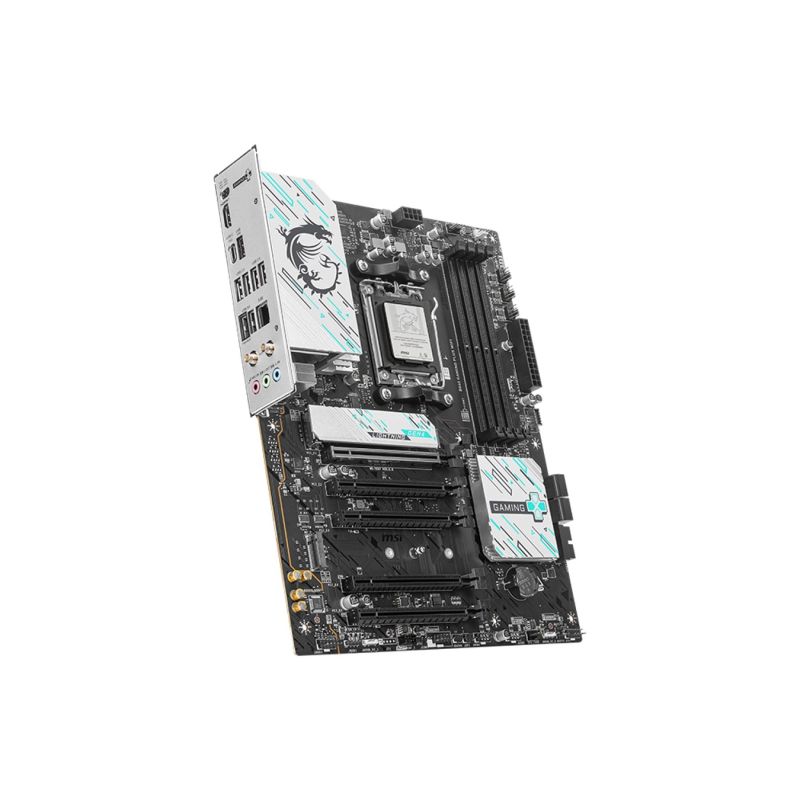

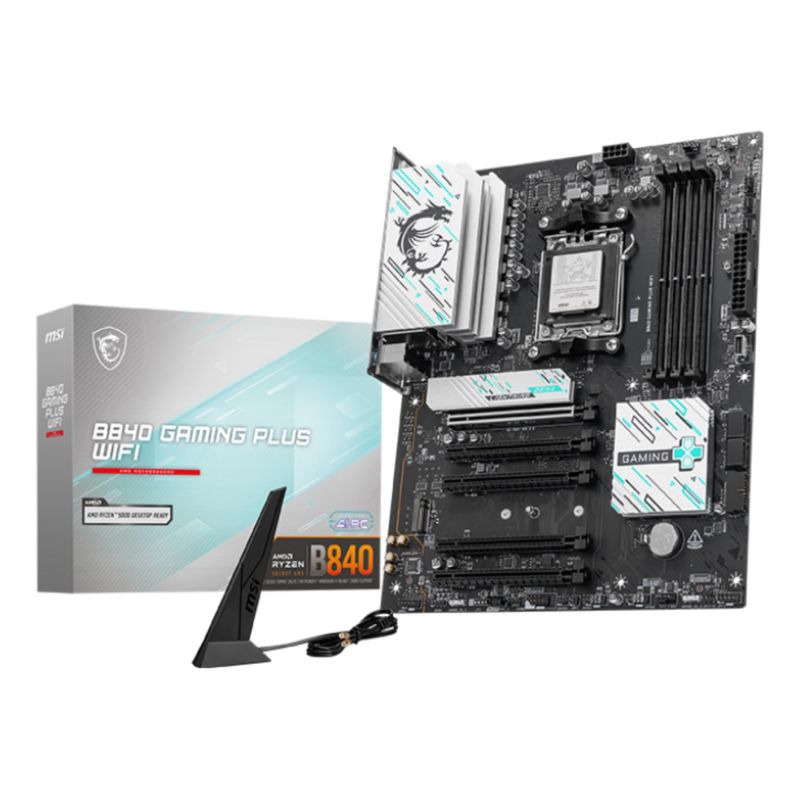

MSI B840 GAMING PLUS WIFI Motherboard
MSI B840 GAMING PLUS WIFI Motherboard
MSI B840 GAMING PLUS WIFI Motherboard
PRICE:
197,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Maximum internal memory supported by the processor: 256 GB
- Graphics
- Built-in graphics card: No
- Memory
- Maximum memory capacity: 256 GB
- Supported memory clock speeds
- 8000
- 5600 MHz
- 4800 MHz
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- ECC Compatibility: Non-ECC
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Supported memory clock speed (max): 8000 MHz
- Characteristics
- Product color: Black
- Audio chip: Realtek ALC897
- Motherboard Layout: AMD B840
- Chipset Board Family: AMD
- Supported Windows operating systems: Windows 11 x64
- Monitoring computer status
- Tension
- Temperature
- Processor
- Fan
- Motherboard format: ATX
- Audio output channels: 7.1 ch.
- Weight and dimensions
- Product width: 243.8 mm
- Product depth: 304.8 mm
- Internal I/O
- Total number of SATA connectors: 4
- Number of case fan connectors: 5
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of USB 2.0 ports: 4
- Number of SATA III connectors: 4
- RGB LED: Yes
- Number of CPU fan connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Number of RGB LED connectors: 3
- Number of water pump connections: 1
- Network
- Bluetooth: Yes
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 6E (802.11ax)
- 802.11g
- Wi-Fi 5 (802.11ac)
- 802.11b
- Wi-Fi 4 (802.11n)
- 802.11a
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Ethernet interface type: 2.5 Gigabit Ethernet
- Bluetooth version: 5.4
- Wired LAN: Yes
- Wi-Fi: Yes
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- Supported drive types: HDD & SSD
- RAID levels
- 10
- 1
- 0
- Supported hard drive interfaces: M.2, Micro SATA III
- RAID Service: Yes
- Number of supported storage drive sizes: 6
- Number of supported HDDs: 4

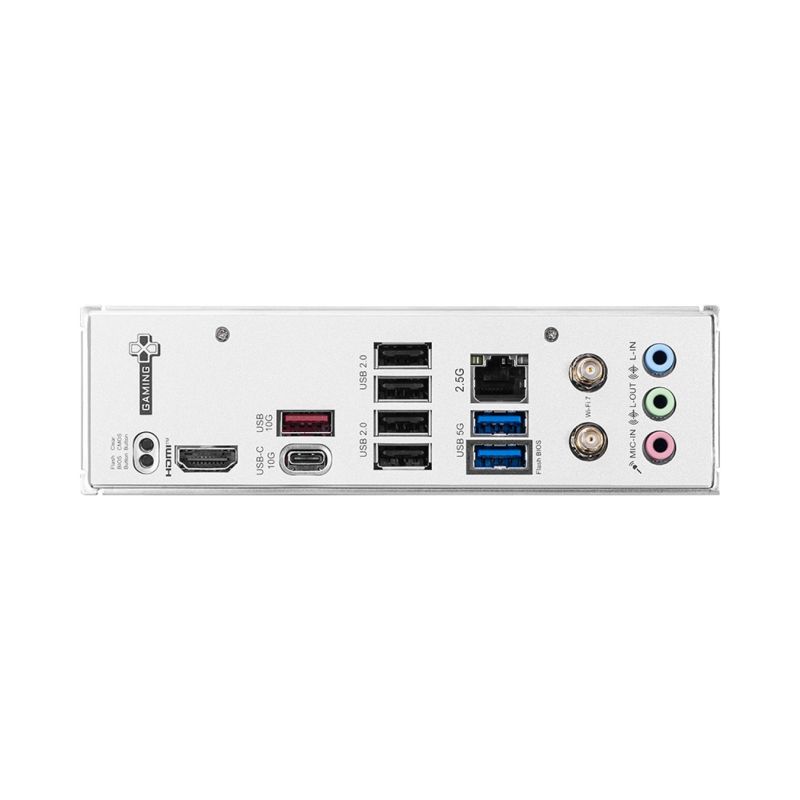

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 2.0 ports: 4
- HDMI version: 2.1
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 4
- Number of M.2 (M) slots: 2
- 1. M.2 highest generation PCI Express: 4.0
- 2. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- PCI Express x16 (Gen 4.x) slots: 1
- 2nd largest M.2 key size: 22110
- Safety warning
- Warnings
- Dispose of in accordance with local regulations for electronic waste.
- Avoid contact with liquids to prevent electronic damage.
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Warnings
| Name | Details |
|---|---|
| Producer | MSI |
