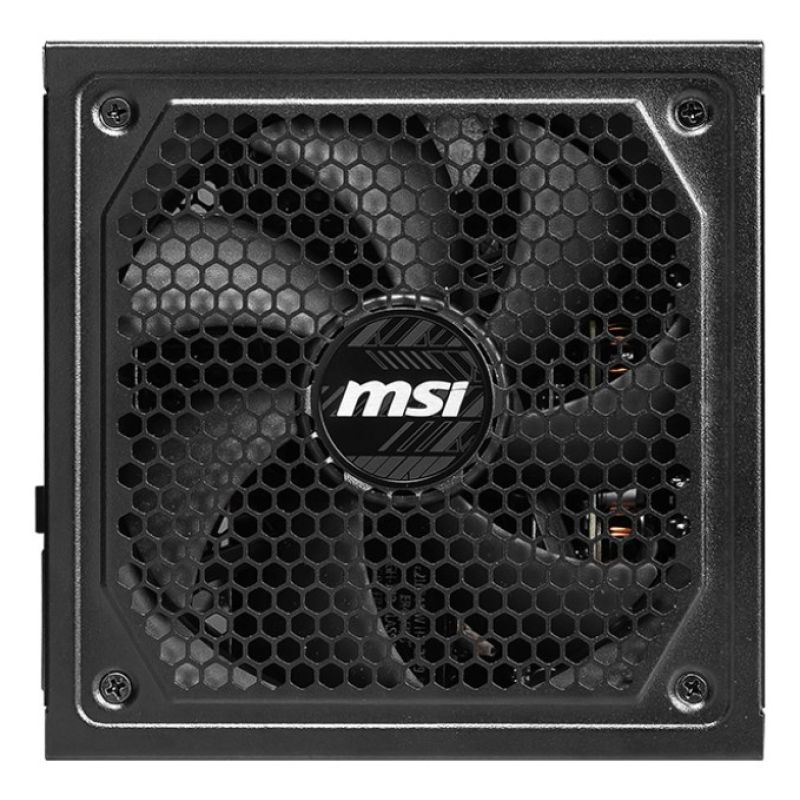

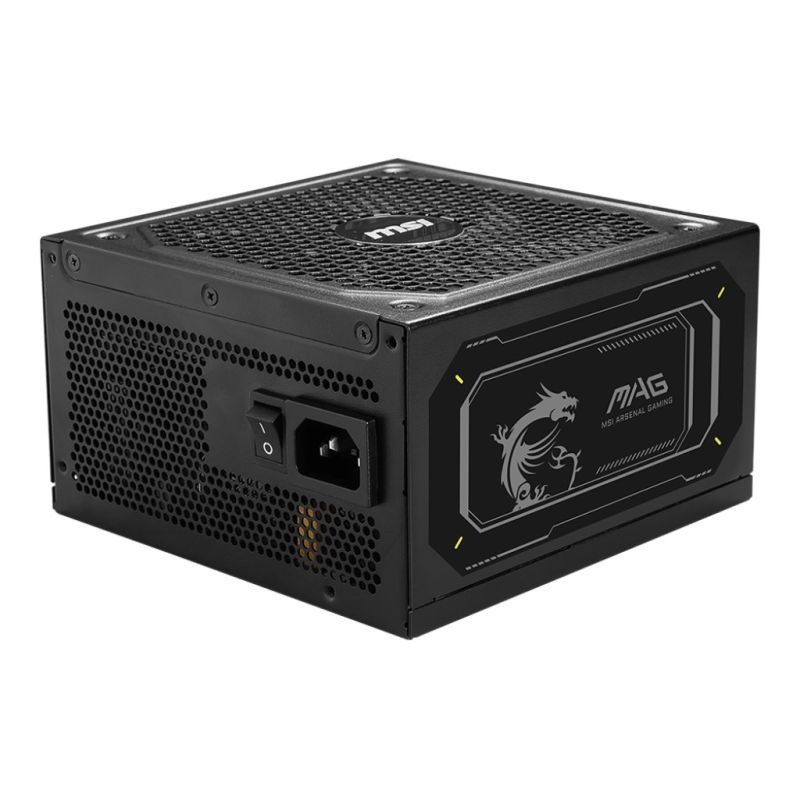

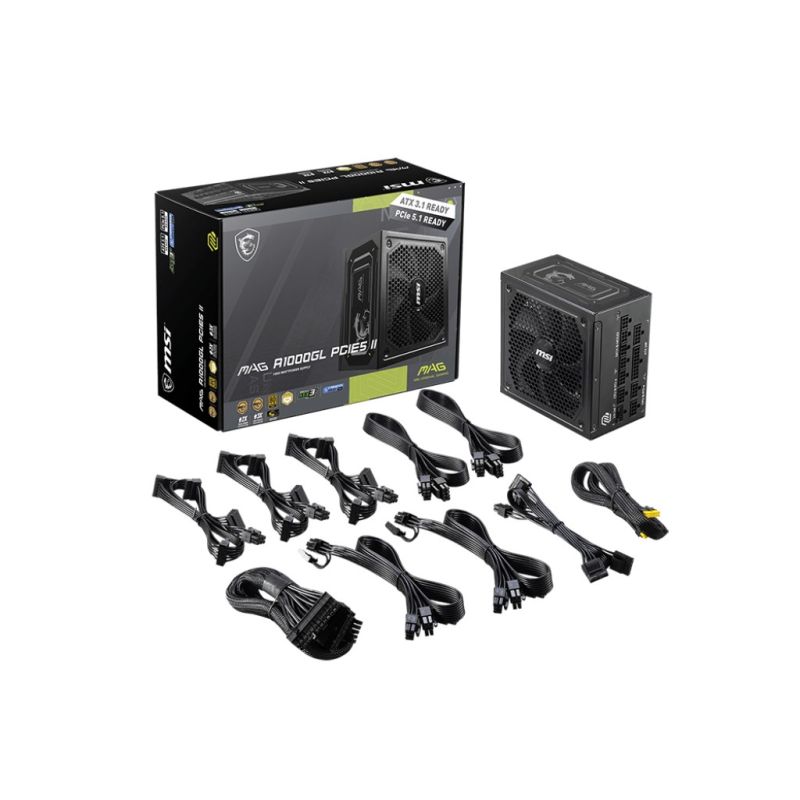

MSI MAG A1000GL PCIE5 II Power Supply
MSI MAG A1000GL PCIE5 II Power Supply
MSI MAG A1000GL PCIE5 II Power Supply
PRICE:
229,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Built-in switch: Yes
- Product color: Black
- Cooling type: Active
- Fan bowl diameter: 13.5 cm
- Fan speed: 500 - 1800 RPM
- Number of fans: 1 fan
- Backlight: No
- Power
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Maximum output current (+3.3V): 22 A
- Total power (+3.3V): 120 W
- Total power: 1000 W
- Efficiency: 90%
- PFC (Power Factor Correction) Type: Active
- Maximum output current (-12V): 0.3A
- Total power (+5 Vsb): 15 W
- Power protection features
- Protection against overvoltage
- Overcurrent
- Short circuit
- Overheating protection
- Low voltage protection
- Overload protection
- Total power (+5V): 120 W
- Total power (-12V): 3.6 W
- Maximum output current (+12V): 83.3A
- Maximum output current (+5 Vsb): 3 A
- Total power (+12V): 999.6 W
- Maximum output current (+5V): 22A
- Number of +12V rails: 1
- Weight and dimensions
- Product depth: 150 mm
- Product width: 150 mm
- Product weight: 169 g
- Product height: 86 mm
- Efficiency
- Bearing Technology: FDB
- ATX version: 3.1
- 80 PLUS Certificate: 80 PLUS Gold
- Intended use: PC
- Power supply type (PSU): ATX

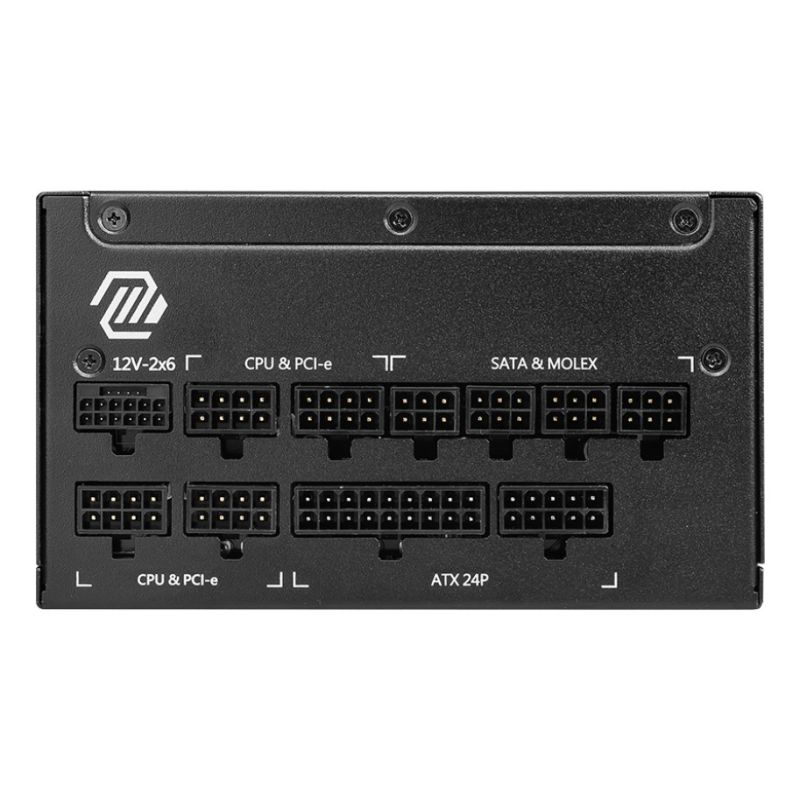

- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 1
- EPS power supply connector (8-pin): No
- SATA power cable length
- 500 mm
- 150
- Peripheral (Molex) Power Cable Length
- 500 mm
- 450 mm
- PCI Express power connectors (16-pin): 1
- Motherboard power connector: 24-pin ATX
- PCI Express power connectors (6+2 pin): 4
- Wiring Type: Fully Modular
- Number of SATA power connectors: 12
- Motherboard cable length: 60 cm
- EPS power connector (4+4 pin): Yes
| Name | Details |
|---|---|
| Producer | MSI |
