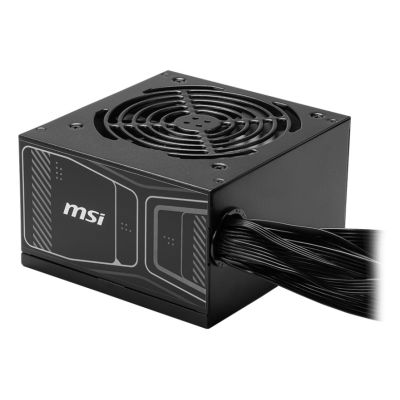

MSI MAG A850GN PCIE5 Power Supply Module 850W 20+4 pin ATX ATX Black
MSI MAG A850GN PCIE5 Power Supply Module 850W 20+4 pin ATX ATX Black
MSI MAG A850GN PCIE5 Power Supply Module 850W 20+4 pin ATX ATX Black
PRICE:
160,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Built-in switch: Yes
- Number of fans: 1 fan
- Backlight: No
- Fan bowl diameter: 12 cm
- Product color: Black
- Cooling type: Active
- Power
- Number of +12V rails: 1
- Maximum output current (+3.3V): 20 A
- Maximum output current (+5 Vsb): 3 A
- Total power (+12V): 846 W
- Total power (+5 Vsb): 15 W
- Total power: 850 W
- Efficiency: 90%
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 70.5A
- Power protection features
- Protection against overvoltage
- Overcurrent
- Overload protection
- Short circuit
- Overheating protection
- Total power (+3.3V): 110 W
- Total power (-12V): 3.6 W
- AC input frequency: 47 - 63 Hz
- Total power (+5V): 110 W
- Maximum output current (+5V): 20A
- AC input voltage: 100 - 240 V
- Maximum output current (-12V): 0.3A
- Weight and dimensions
- Product depth: 140 mm
- Product height: 86 mm
- Product width: 150 mm
- Efficiency
- Power supply type (PSU): ATX
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Gold
- Packaging data
- Packaging type: Box
- Ports and interfaces
- PCI Express power connectors (16-pin): 1
- CPU power supply connector (4+4 pin): Yes
- Motherboard power connector: 20+4 pin ATX
- Wiring Type: Non-Modular
- EPS power connector (4+4 pin): Yes
- ATX power supply connector (20+4 pin): No
- Peripheral (Molex) Power Connectors (4-pin): 2
- Number of SATA power connectors: 4
- Motherboard cable length: 60 cm
- EPS power supply connector (8-pin): No
- PCI Express power connectors (6+2 pin): 2
- ATX power socket (24-pin): No
- Logistics data
- Harmonized System (HS) code: 84733020
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Product Type | Power supplies |
| Producer | MSI |
| Colour | Black |
| Department | Electronics |
