MSI MAG X870E TOMAHAWK MAX WIFI Motherboard AMD X870E Socket AM5 ATX
MSI MAG X870E TOMAHAWK MAX WIFI Motherboard AMD X870E Socket AM5 ATX
MSI MAG X870E TOMAHAWK MAX WIFI Motherboard AMD X870E Socket AM5 ATX
PRICE:
567,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Graphics
- Built-in graphics card: No
- Memory
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 8400 MHz
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 256 GB
- Memory slot type: DIMM
- Supported memory clock speeds
- 8400 MHz
- 4800 MHz
- 5600 MHz
- 6400 MHz
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Unbuffered memory: Yes
- Characteristics
- Chipset Board Family: AMD
- Motherboard Layout: AMD X870E
- Intended use: PC
- Product color: Black
- Monitoring computer status
- Temperature
- Tension
- Processor
- Fan
- Motherboard format: ATX
- Audio output channels: 7.1 ch.
- Weight and dimensions
- Product width: 243.8 mm
- Product depth: 304.8 mm
- Internal I/O
- Front panel connector: Yes
- Front panel audio connector: Yes
- Total number of SATA connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Number of USB 2.0 ports: 4
- EPS power supply connector (8-pin): Yes
- Number of SATA III connectors: 4
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Network
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6E (802.11ax)
- Bluetooth version: 5.4
- Wired LAN: Yes
- LAN controller: Realtek RTL8126
- Bluetooth: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards
- BIOS
- ACPI version: 6.5
- BIOS Type: UEFI AMI
- System BIOS (SMBIOS) version: 3.7
- BIOS memory size: 512 Mbit
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 8
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 10
- 1
- 0
- RAID Service: Yes

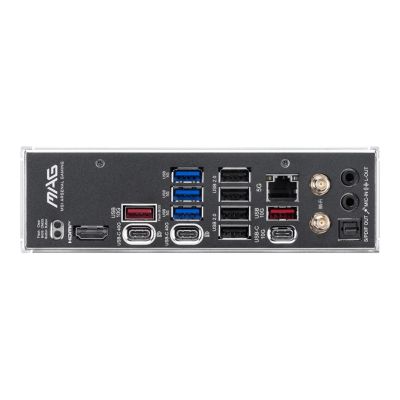

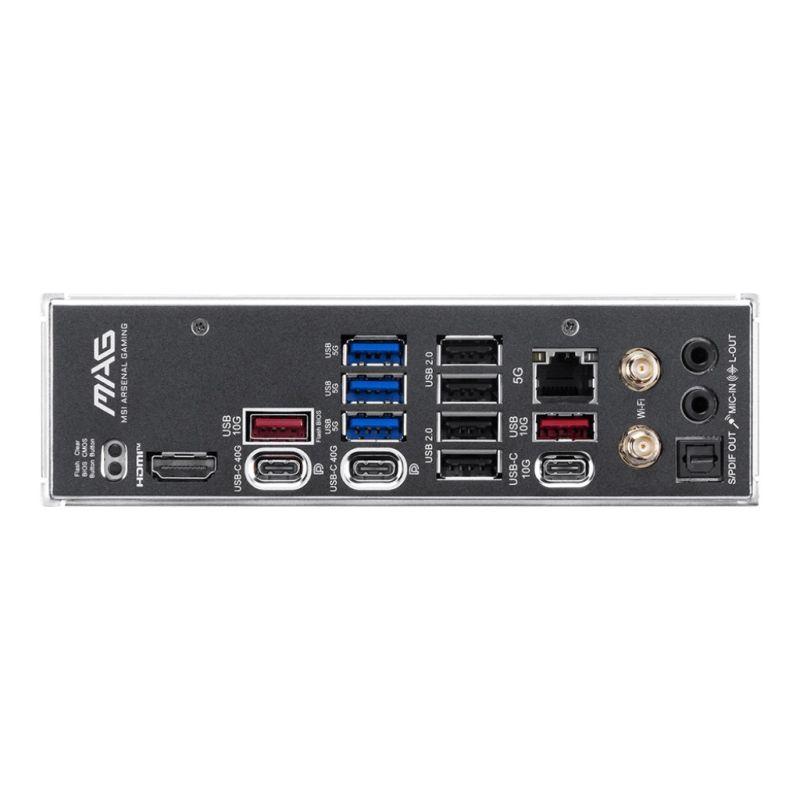

- Rear Panel I/O Ports
- Number of USB4 Gen 2x2 ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- S/PDIF Output Port: Yes
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- HDMI version: 2.1
- Number of HDMI ports: 1
- Number of DisplayPorts: 2
- Microphone: Yes
- Expansion slots
- 2nd largest M.2 key size: 2280
- 3. largest M.2 key size: 2280
- 4. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 5.0
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 5.x) slots: 1
- 2. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 22110
- PCI Express x16 (Gen 3.x) slots: 1
- 4. M.2 highest generation PCI Express: 4.0
- 3. M.2 highest generation PCI Express: 4.0
| Name | Details |
|---|---|
| Producer | MSI |
