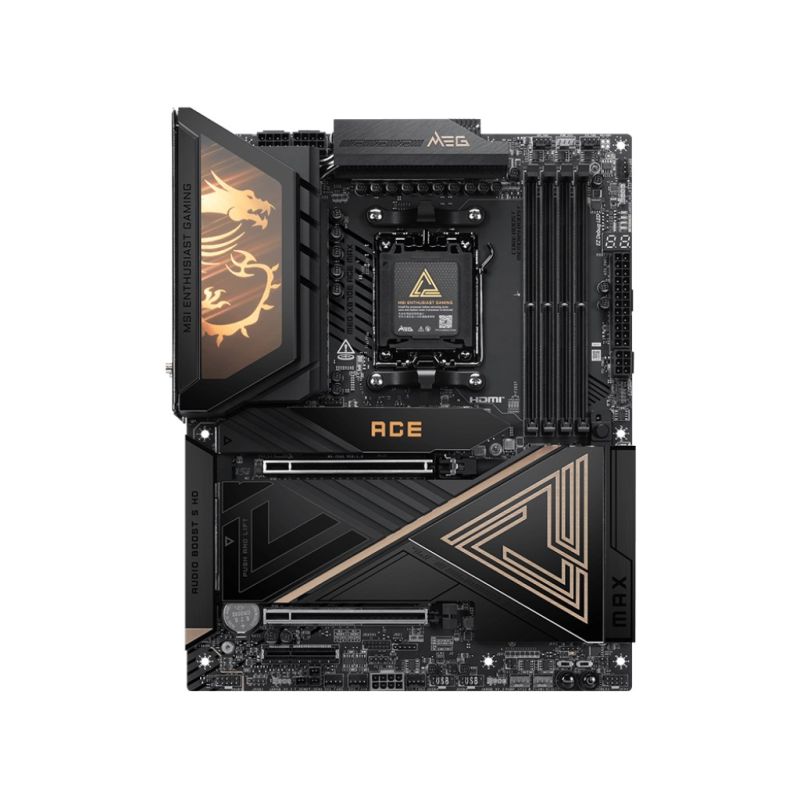

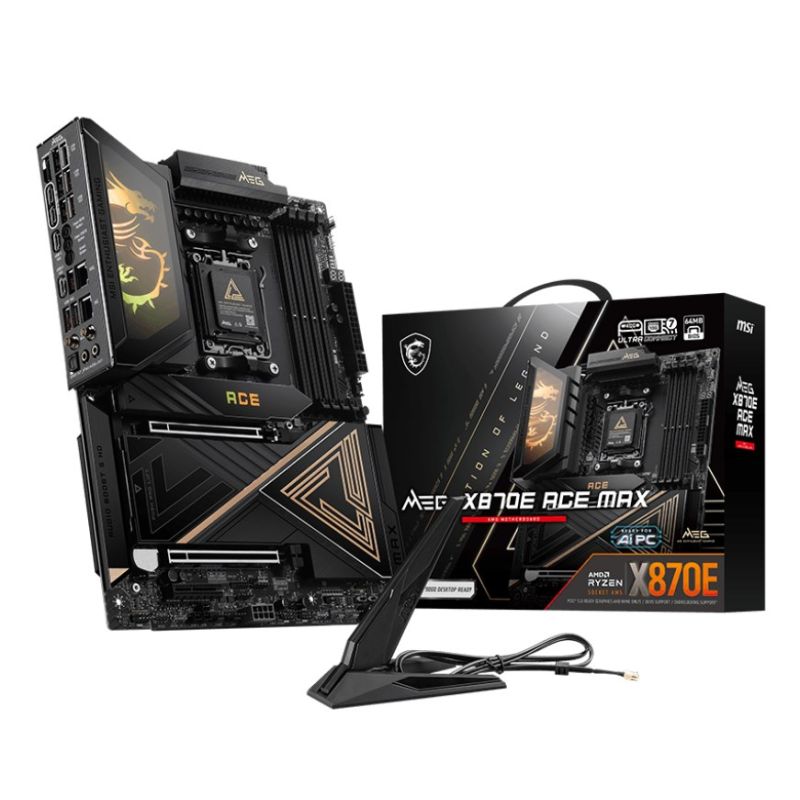

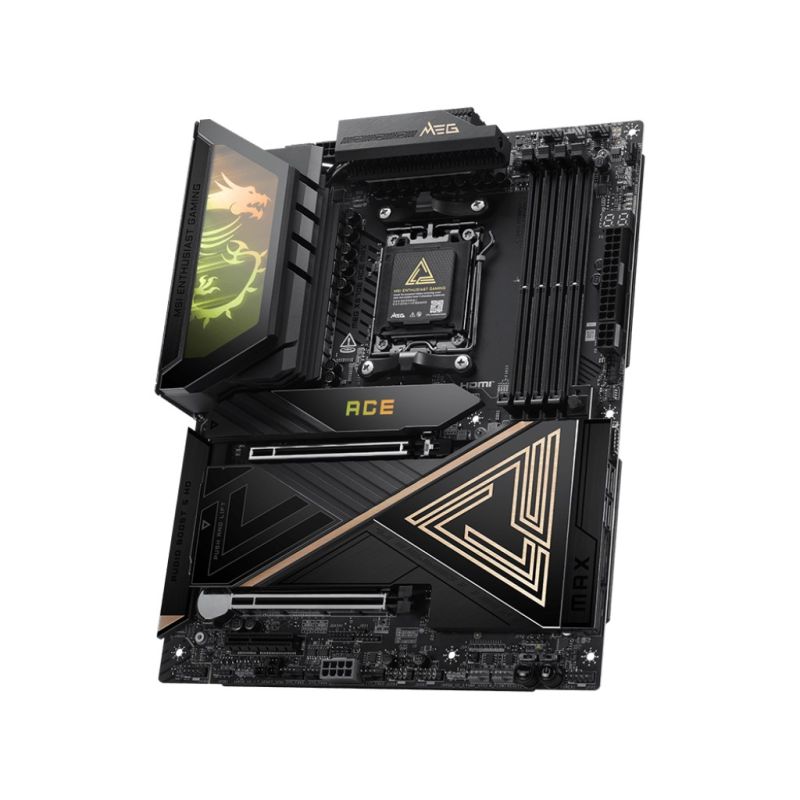

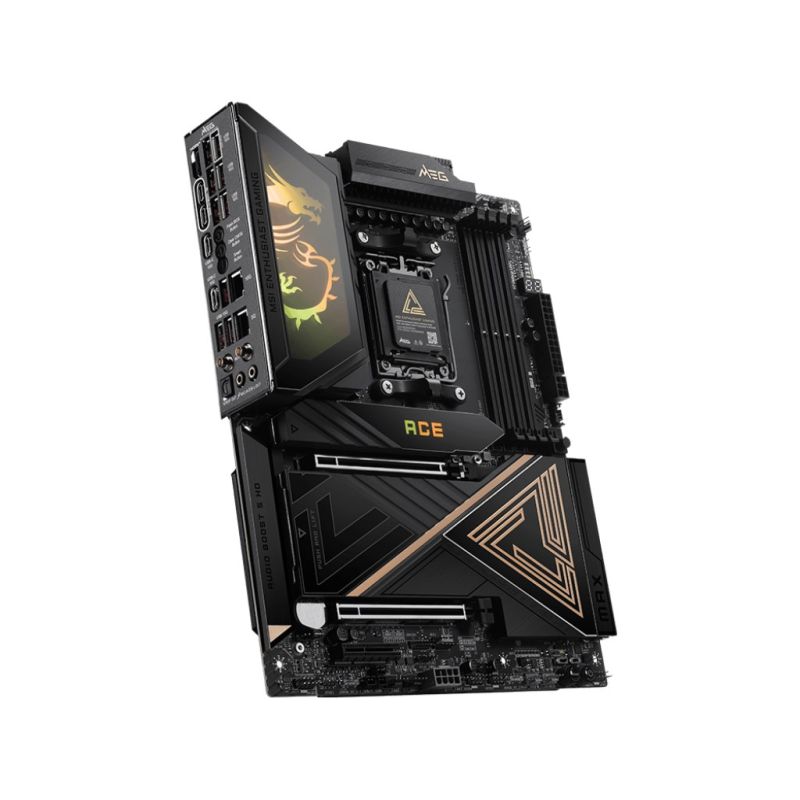

MSI MEG X870E ACE MAX Motherboard AMD X870E Socket AM5 ATX
MSI MEG X870E ACE MAX Motherboard AMD X870E Socket AM5 ATX
MSI MEG X870E ACE MAX Motherboard AMD X870E Socket AM5 ATX
PRICE:
1172,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Processor manufacturer: AMD
- Graphics
- Built-in graphics card: No
- Memory
- ECC Compatibility: Non-ECC
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 9000 MHz
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- 5600 MHz
- 6400 MHz
- 9000
- 4800 MHz
- Maximum memory capacity: 256 GB
- Characteristics
- Supported Windows operating systems: Windows 11 x64
- Monitoring computer status
- Tension
- Fan
- Temperature
- Processor
- Product color: Black
- Audio output channels: 7.1 ch.
- Intended use: PC
- Chipset Board Family: AMD
- Motherboard Layout: AMD X870E
- Motherboard format: ATX
- Weight and dimensions
- Product depth: 30438 mm
- Product width: 243.8 mm
- Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Total number of SATA connectors: 4
- EPS power supply connector (8-pin): Yes
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
- ATX power socket (24-pin): Yes
- Number of USB 2.0 ports: 4
- CPU fan connector: Yes
- Network
- Wi-Fi: Yes
- Bluetooth version: 5.4
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wired LAN: Yes
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- 802.11g
- 802.11a
- 802.11b
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Ethernet interface type: 5 Gigabit Ethernet
- Bluetooth: Yes
- BIOS
- ACPI version: 6.4
- System BIOS (SMBIOS) version: 3.7
- BIOS Type: UEFI AMI
- BIOS memory size: 512 Mbit
- Memory drivers
- Number of supported storage drive sizes: 9
- Number of supported HDDs: 4
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- 10
- 1
- 0
- RAID Service: Yes

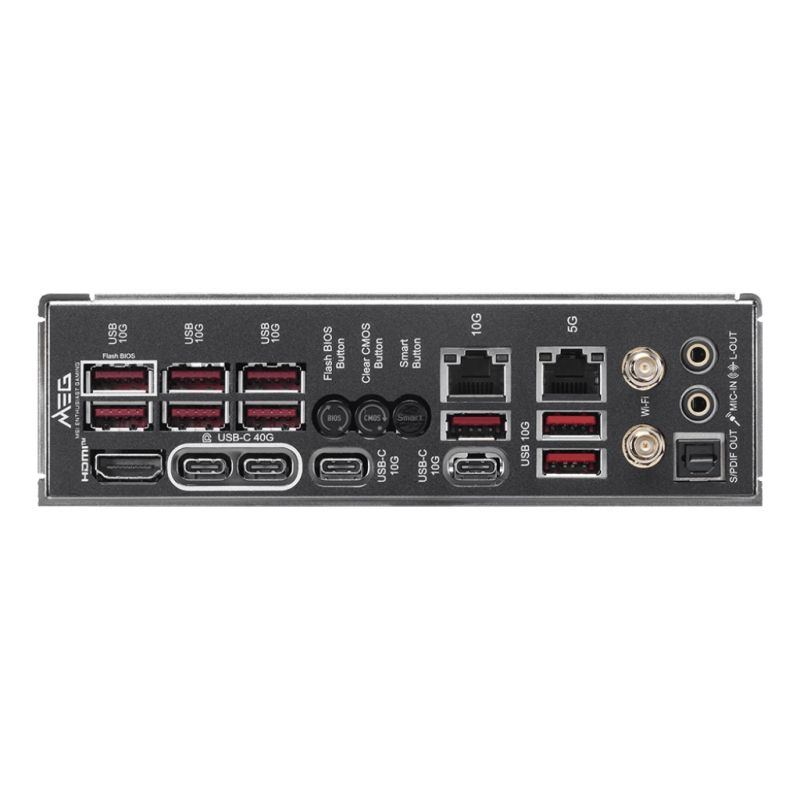

- Rear Panel I/O Ports
- Microphone: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 2
- Number of USB4 Gen 2x2 ports: 2
- HDMI version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 9
- S/PDIF Output Port: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- 4. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- 5. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 5.0
- 2. M.2 highest generation PCI Express: 5.0
- 4. Largest M.2 key size: 2280
- 3. largest M.2 key size: 22110
- 3. M.2 highest generation PCI Express: 4.0
- 5. largest M.2 key size: 2280
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 5
- PCI Express x16 (Gen 3.x) slots: 1
| Name | Details |
|---|---|
| Producer | MSI |
