MSI MPG B760I EDGE WIFI Motherboard
MSI MPG B760I EDGE WIFI Motherboard
MSI MPG B760I EDGE WIFI Motherboard
PRICE:
333,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1700
- Processor socket: LGA 1700
- Processor
- Intel® Celeron®
- Intel® Pentium® Gold
- Maximum number of SMP processors: 1
- Graphics
- Built-in graphics card: No
- Memory
- Number of memory slots: 2
- Maximum memory capacity: 96 GB
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 7200 MHz
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- 5000 MHz
- 5200 MHz
- 5400 MHz
- 6200 MHz
- 5800 MHz
- 7200
- 4800 MHz
- 7000
- 6600
- 6800
- 5600 MHz
- 6400 MHz
- 6000 MHz
- Characteristics
- Supported Windows operating systems
- Windows 11
- Windows 10
- Motherboard format: Mini ATX
- Audio chip: Realtek ALC897
- Power supply type: ATX
- Product color
- Silver
- Black
- Motherboard Layout: Intel B760
- Audio output channels: 7.1 ch.
- Chipset Board Family: Intel
- Supported Windows operating systems
- Weight and dimensions
- Product width: 170 mm
- Product depth: 170 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- RGB LED: Yes
- Number of SATA III connectors: 4
- TPM Connector: Yes
- Front panel connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of USB 2.0 ports: 2
- Network
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Bluetooth version: 5.3
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Bluetooth: Yes
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- RAID Service: Yes
- RAID levels
- 5
- 10
- 0
- 1
- Supported hard drive interfaces: M.2, SATA III

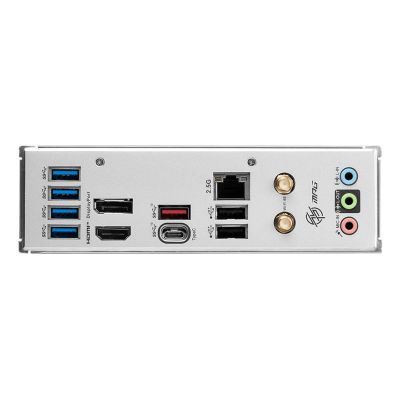

- Rear Panel I/O Ports
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 2
- HDMI version: 2.1
- Number of USB 2.0 ports: 2
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 2
- Safety warning
- Warnings
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Warnings
| Name | Details |
|---|---|
| Producer | MSI |
