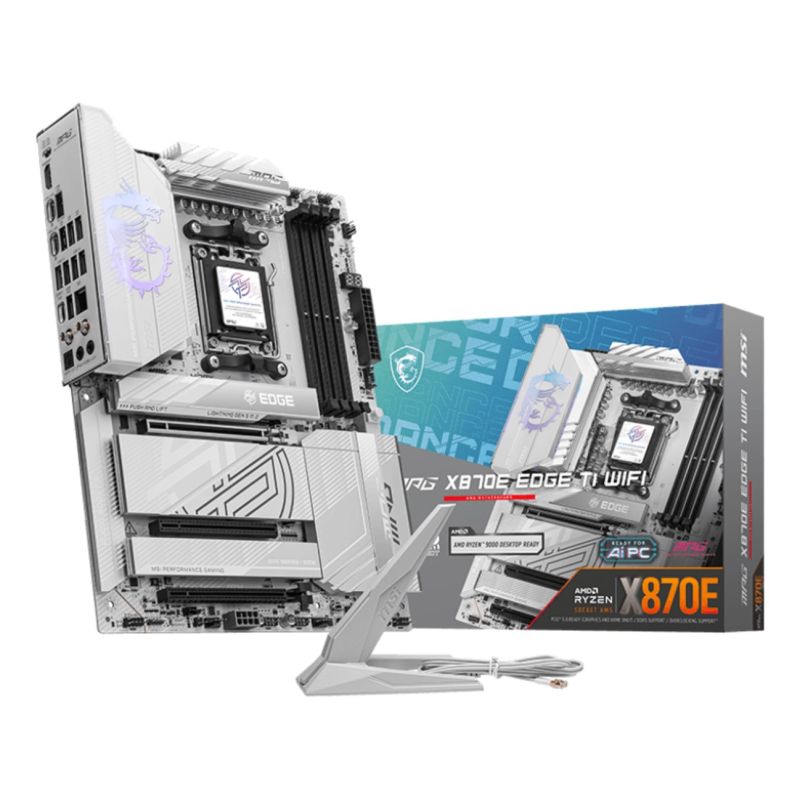

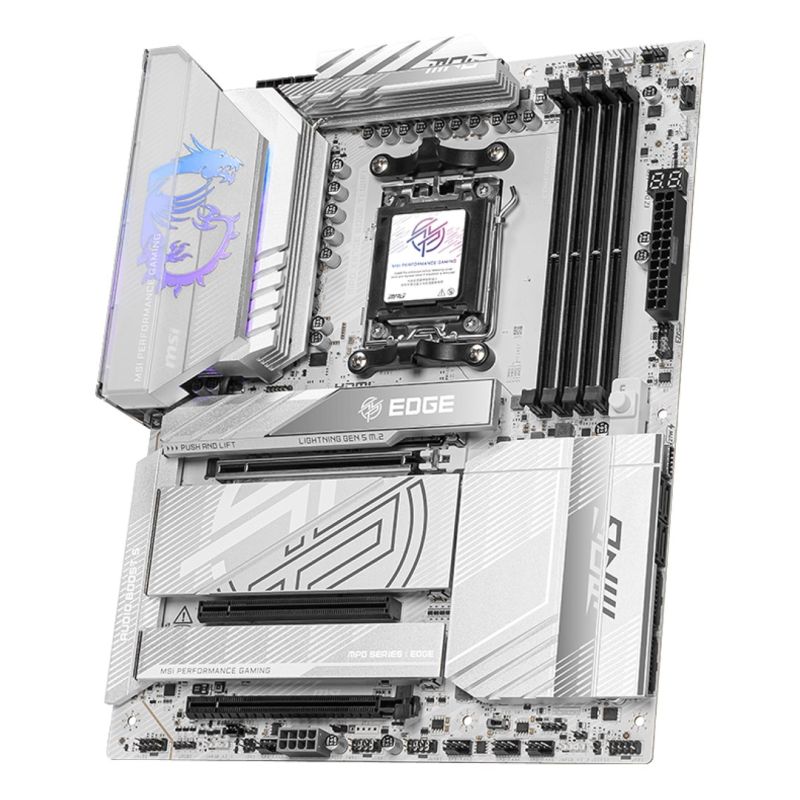

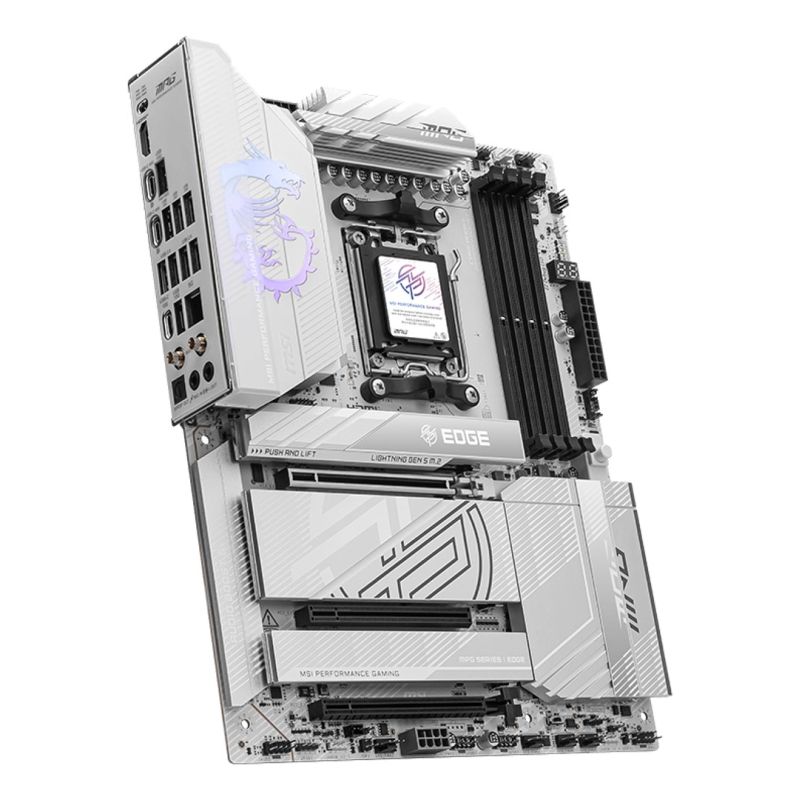

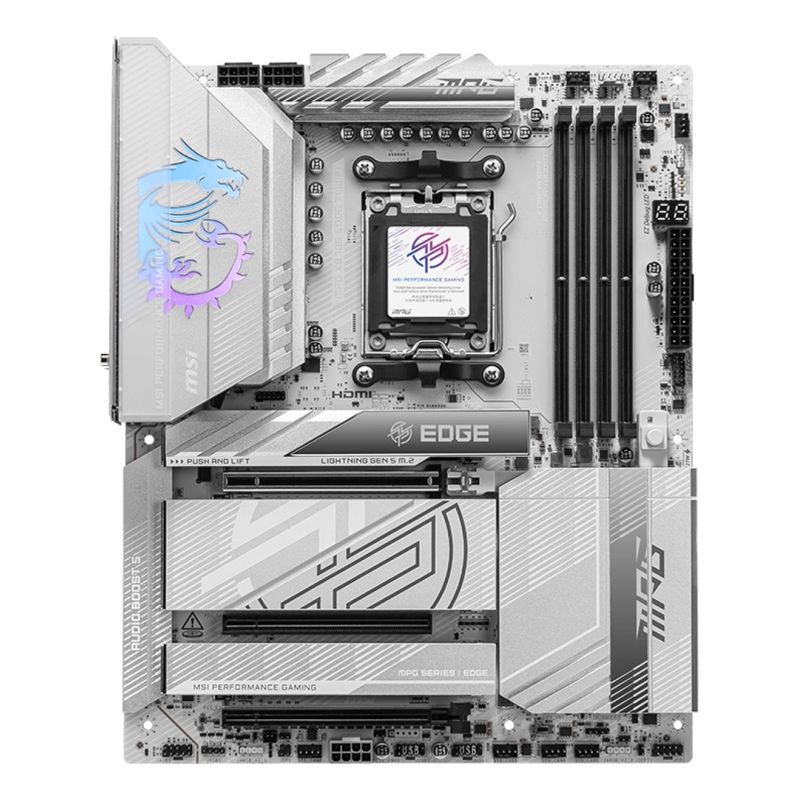

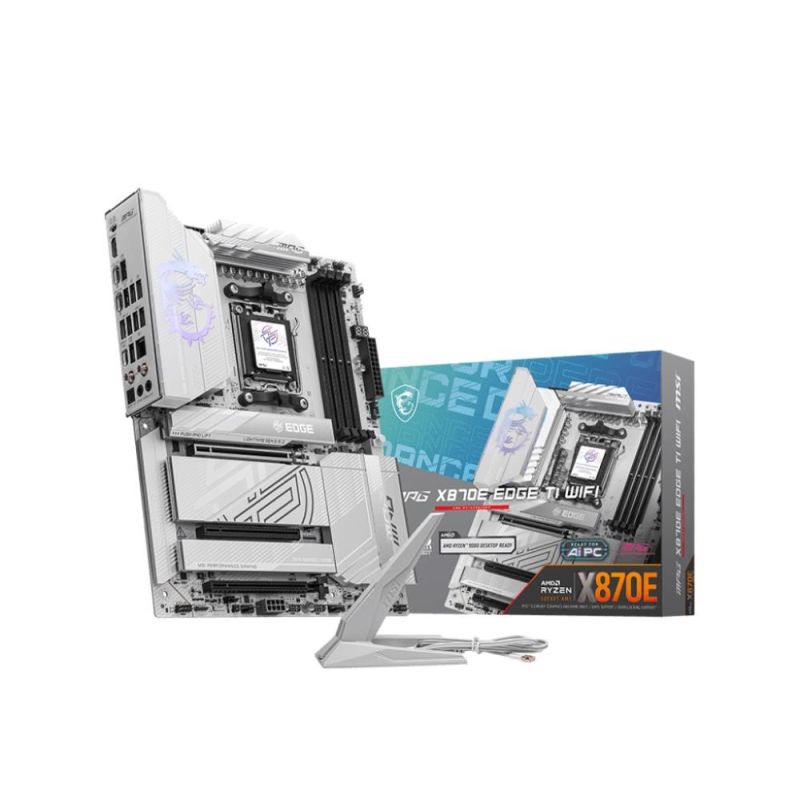

MSI MPG X870E EDGE TI WIFI Motherboard
MSI MPG X870E EDGE TI WIFI Motherboard
MSI MPG X870E EDGE TI WIFI Motherboard
PRICE:
516,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- Processor manufacturer: AMD
- Maximum internal memory supported by the processor: 256 GB
- Processor socket: Socket AM5
- Graphics
- Built-in graphics card: No
- Memory
- Supported memory clock speeds
- 5600 MHz
- 8400 MHz
- 4800 MHz
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 256 GB
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory clock speed (max): 8400 MHz
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- Characteristics
- Monitoring computer status
- Tension
- Fan
- Temperature
- Processor
- Product color: White
- Motherboard Layout: AMD X870E
- Chipset Board Family: AMD
- Motherboard format: ATX
- Audio output channels: 7.1 ch.
- Monitoring computer status
- Weight and dimensions
- Product width: 243.8 mm
- Product depth: 304.8 mm
- Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Total number of SATA connectors: 4
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
- Number of USB 2.0 ports: 4
- Network
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 6E (802.11ax)
- 802.11b
- Wi-Fi 4 (802.11n)
- LAN controller: Realtek RTL8126
- Wi-Fi: Yes
- Bluetooth: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- Wired LAN: Yes
- Bluetooth version: 5.4
- Memory drivers
- RAID levels
- 1
- 10
- 5
- 0
- Number of supported storage drive sizes: 8
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- Number of supported HDDs: 4
- RAID levels

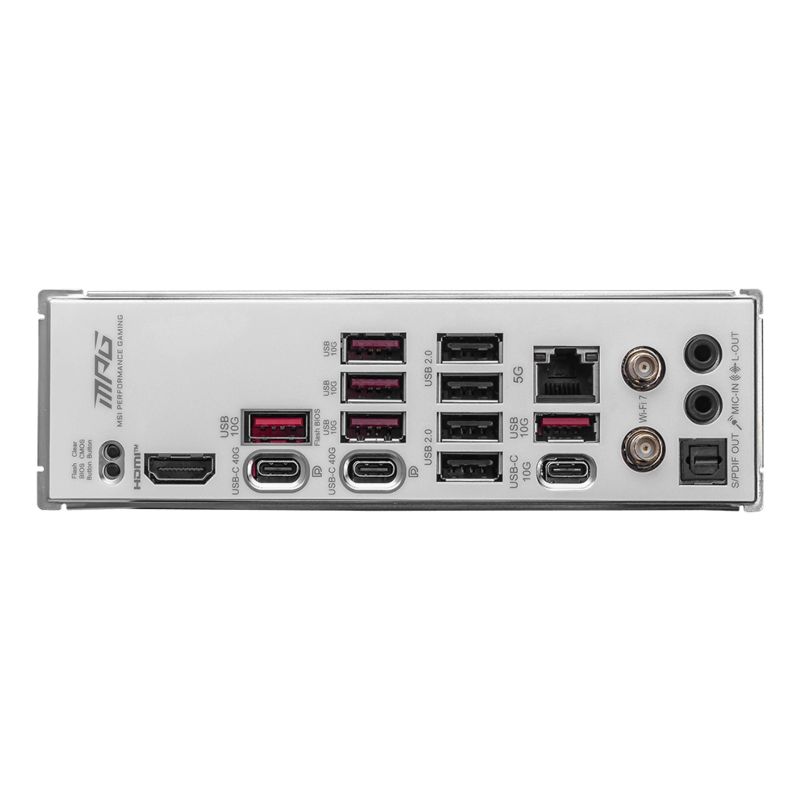

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 4
- Microphone: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 5
- Number of DisplayPorts: 2
- Number of HDMI ports: 1
- HDMI version: 2.1
- S/PDIF Output Port: Yes
- DisplayPort version: 1.4
- Number of USB4 Gen 2x2 ports: 1
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- 3. largest M.2 key size: 2280
- 4. M.2 highest generation PCI Express: 4.0
- 3. M.2 highest generation PCI Express: 4.0
- 4. largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 5.0
- 1. M.2 highest generation PCI Express: 5.0
- 2nd largest M.2 key size: 2280
- 1. largest M.2 key size: 22110
- Safety warning
- Warnings
- Dispose of in accordance with local regulations for electronic waste.
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Avoid contact with liquids to prevent electronic damage.
- Warnings
| Name | Details |
|---|---|
| Producer | MSI |
