MSI MPG X870I EDGE TI EVO WIFI Motherboard AMD X870 Socket AM5 Mini ATX
MSI MPG X870I EDGE TI EVO WIFI Motherboard AMD X870 Socket AM5 Mini ATX
MSI MPG X870I EDGE TI EVO WIFI Motherboard AMD X870 Socket AM5 Mini ATX
PRICE:
717,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Graphics
- Built-in graphics card: No
- Memory
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Number of memory slots: 2
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 9000 MHz
- Supported memory clock speeds
- 7000 MHz
- 9000
- 8000
- Maximum memory capacity: 256 GB
- ECC Compatibility: Non-ECC
- Characteristics
- Chipset Board Family: AMD
- Intended use: PC
- Motherboard format: Mini ATX
- Audio chip: Realtek ALC4080
- Product color: White
- Monitoring computer status
- Fan
- Processor
- Temperature
- Tension
- Audio output channels: 7.1 ch.
- Motherboard Layout: AMD X870
- Weight and dimensions
- Product width: 170 mm
- Product depth: 170 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- Total number of SATA connectors: 2
- Number of SATA III connectors: 2
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Network
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Bluetooth version: 5.4
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wired LAN: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- LAN controller: Realtek RTL8126
- Bluetooth: Yes
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 512 Mbit
- System BIOS (SMBIOS) version: 3.7
- ACPI version: 6.5
- Memory drivers
- Number of supported storage drive sizes: 3
- RAID levels
- 0
- 1
- 5
- 10
- RAID Service: Yes
- Number of supported HDDs: 2
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD

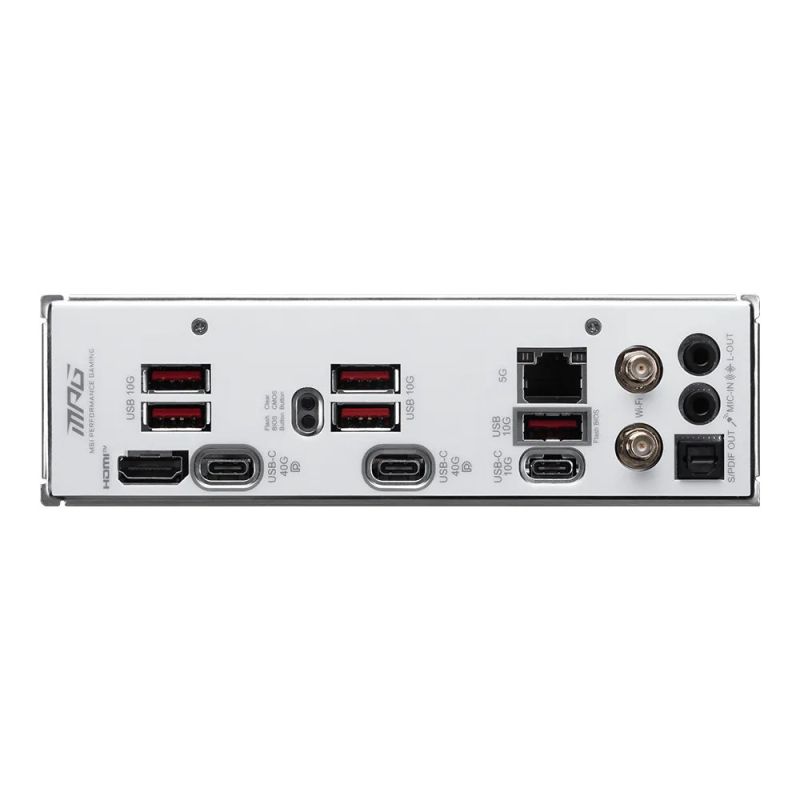

- Rear Panel I/O Ports
- Number of USB4 Gen 2x2 ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- HDMI version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of DisplayPorts: 2
- Number of HDMI ports: 1
- Microphone: Yes
- S/PDIF Output Port: Yes
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2280
| Name | Details |
|---|---|
| Producer | MSI |
