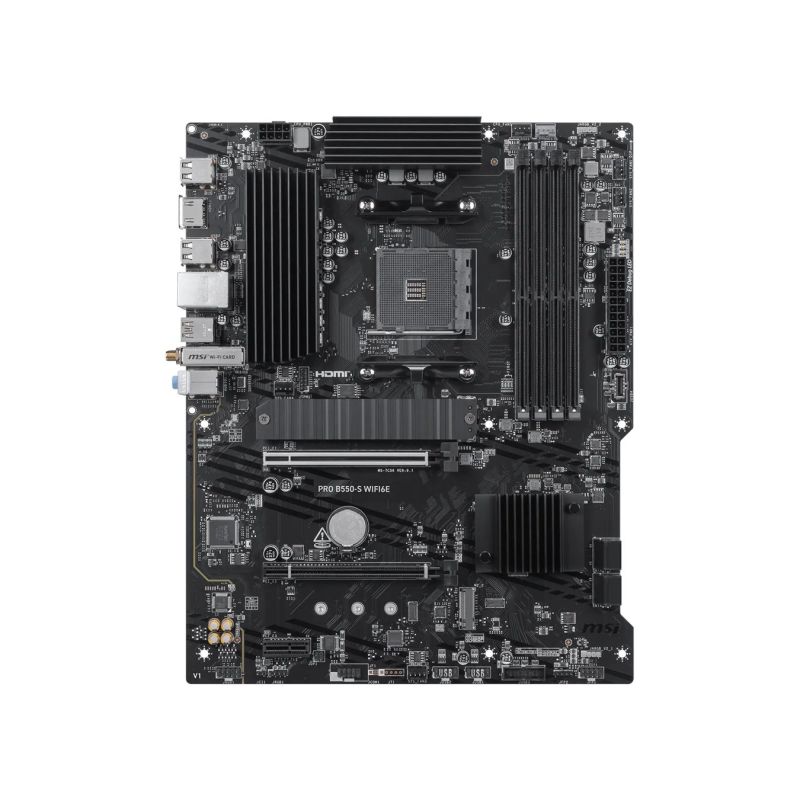

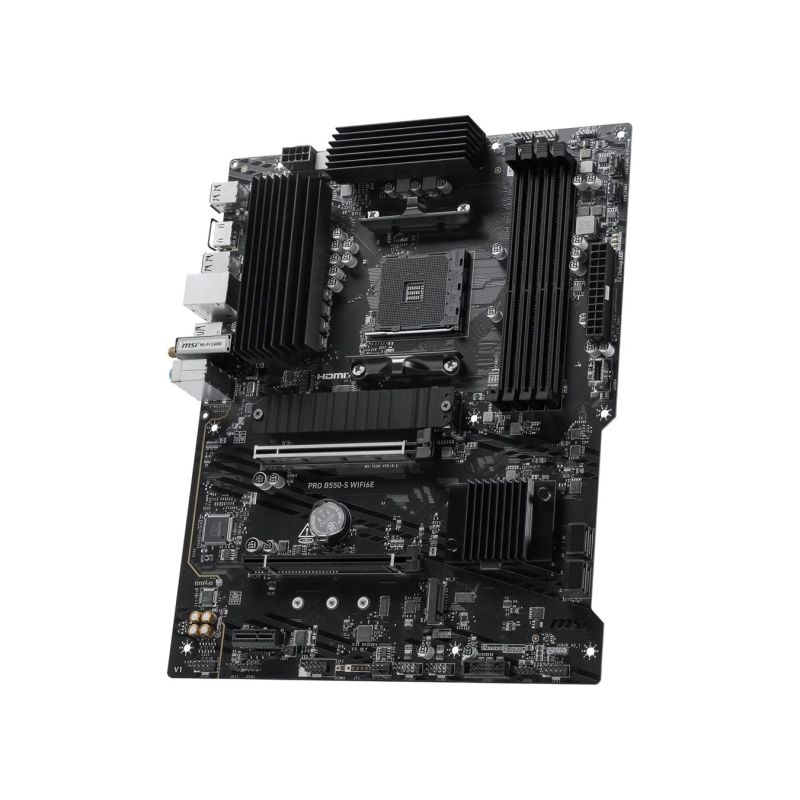

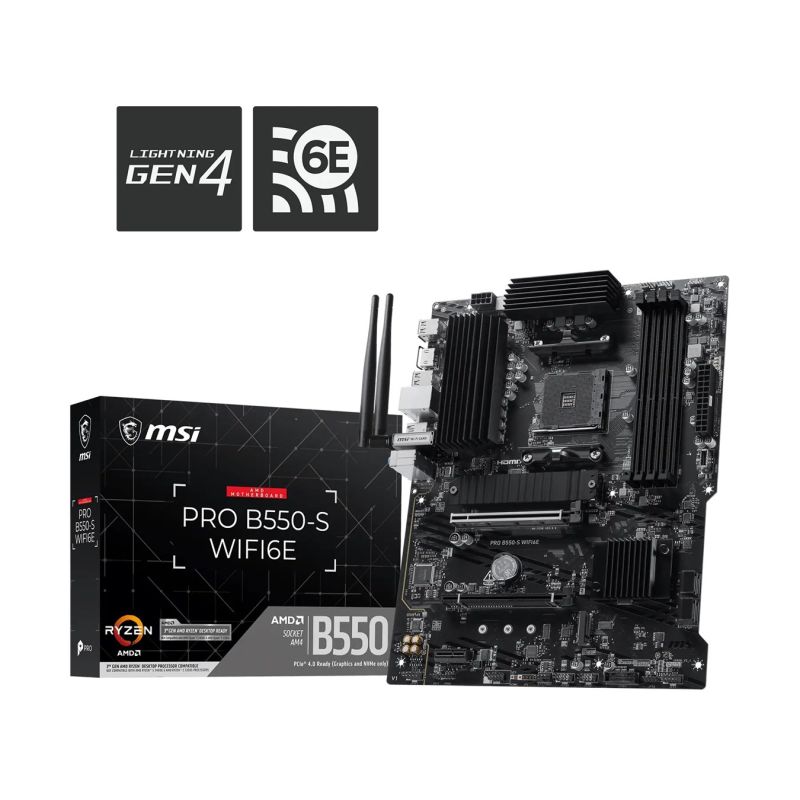

MSI PRO B550-S WIFI6E Motherboard
MSI PRO B550-S WIFI6E Motherboard
MSI PRO B550-S WIFI6E Motherboard
PRICE:
217,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor
- AMD Ryzen 4000 Series
- AMD Ryzen 3000 Series
- AMD Ryzen 5000 Series
- Processor socket: Socket AM4
- Supported processor sockets: Socket AM4
- Processor manufacturer: AMD
- Processor
- Memory
- Supported memory clock speed (max.): 4800 MHz
- Supported memory clock speeds
- 2667 MHz
- 3733 MHz
- 3200 MHz
- 4866 MHz
- 3066 MHz
- 4533 MHz
- 4133 MHz
- 3866 MHz
- 4600 MHz
- 3000 MHz
- 3600 MHz
- 4000 MHz
- 2933 MHz
- 4800 MHz
- 4733 MHz
- 2800 MHz
- 4400 MHz
- 4266 MHz
- 3466 MHz
- ECC compatibility: Non-ECC
- Memory slot type: DIMM
- Unbuffered memory: Yes
- Memory channels: Dual-channel
- Maximum memory capacity: 128 GB
- Number of memory slots: 4000
- Supported memory types: DDR4-SDRAM
- Features
- Audio chip: Realtek ALC897
- Motherboard chipset family: AMD
- Motherboard chipset: AMD B550
- Audio output channels: 7.1 channels
- Weight and dimensions
- Product width: 243.8 mm
- Product depth: 304.8 mm
- Internal I/O
- ATX power connector (24-pin): Yes
- Number of SATA III connectors: 6
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
- Number of USB 2.0 connectors: 4000
- Front panel audio connector: Yes
- Total number of SATA connectors: 6
- CPU fan connector: Yes
- Front panel connector: Yes
- Number of SATA connectors: 6
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 2
- RGB LED: Yes
- Chassis intrusion sensor connector: Yes
- TPM connector: Yes
- Network
- Ethernet network interface type: Gigabit Ethernet
- Bluetooth: Yes
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- IEEE 802.11n
- IEEE 802.11ac
- 802.11b
- Bluetooth version: 5.3
- Wired LAN: Yes
- Wi-Fi: Yes
- LAN controller: Realtek 8111H
- Primary Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Storage controllers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 3.0, SATA
- Number of supported storage drive sizes: 2

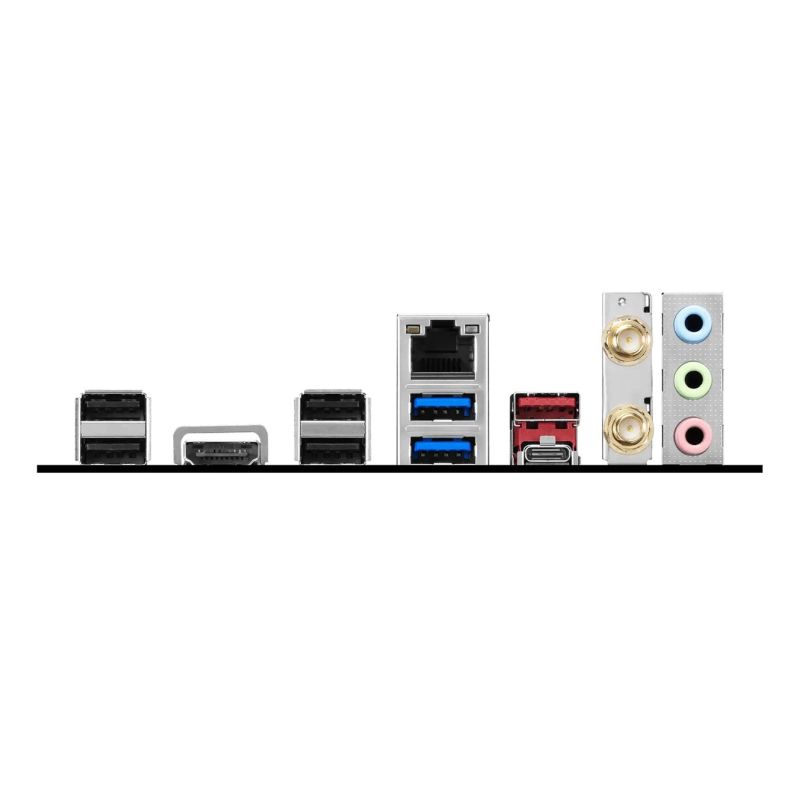

- Rear I/O ports
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of HDMI ports: 1
- Expansion slots
- Number of M.2 (M) slots: 2
- 2nd M.2 maximum PCI Express generation: 3.0
- 2nd M.2 largest key size: 2280
- PCI Express x16 slots: 2
- 1st M.2 largest key size: 22110
- 1st M.2 maximum PCI Express generation: 4.0
