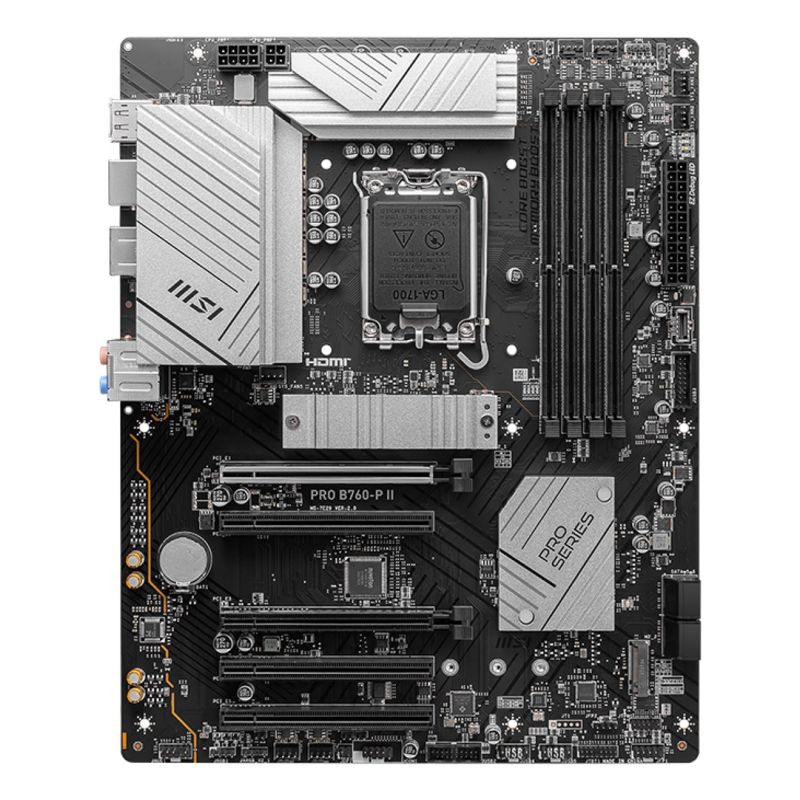

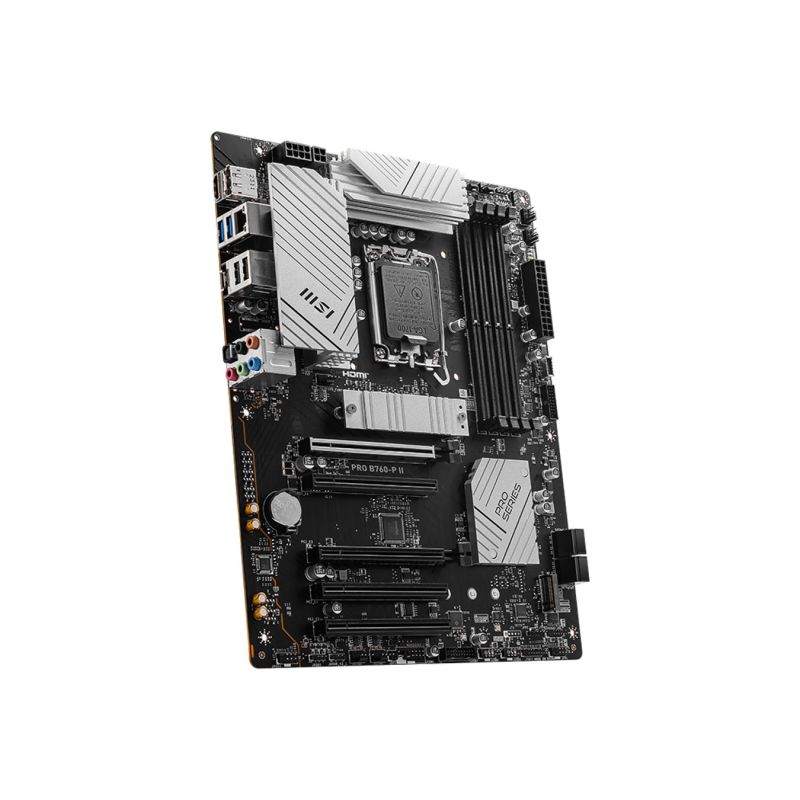

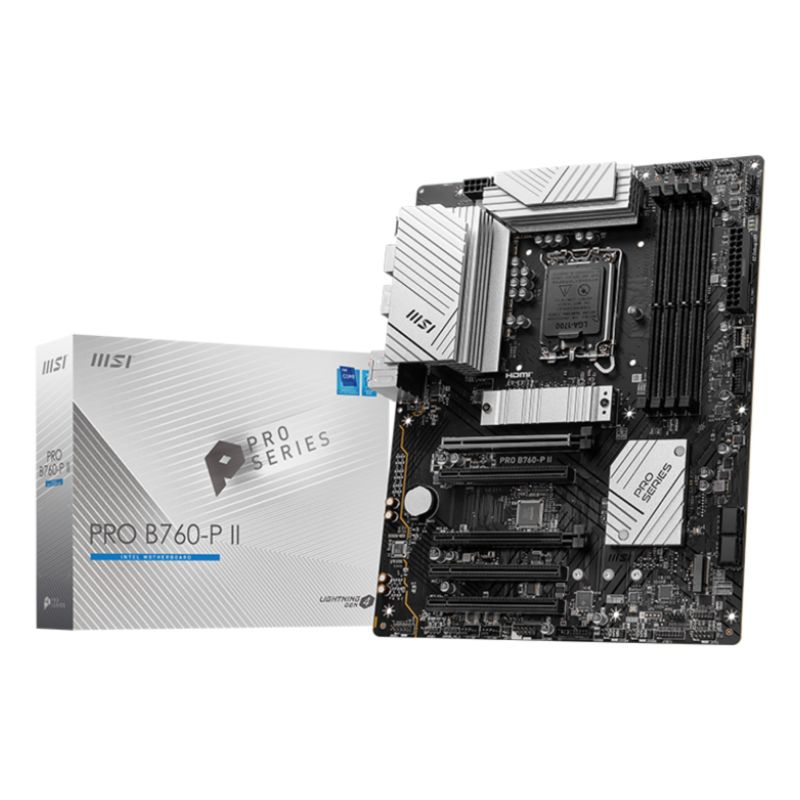

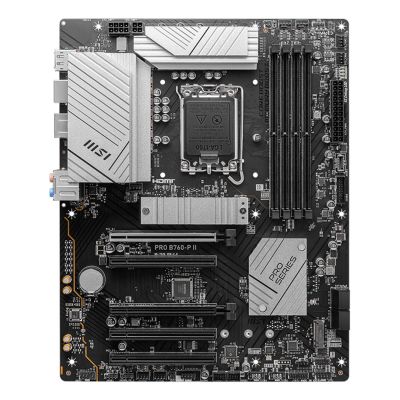

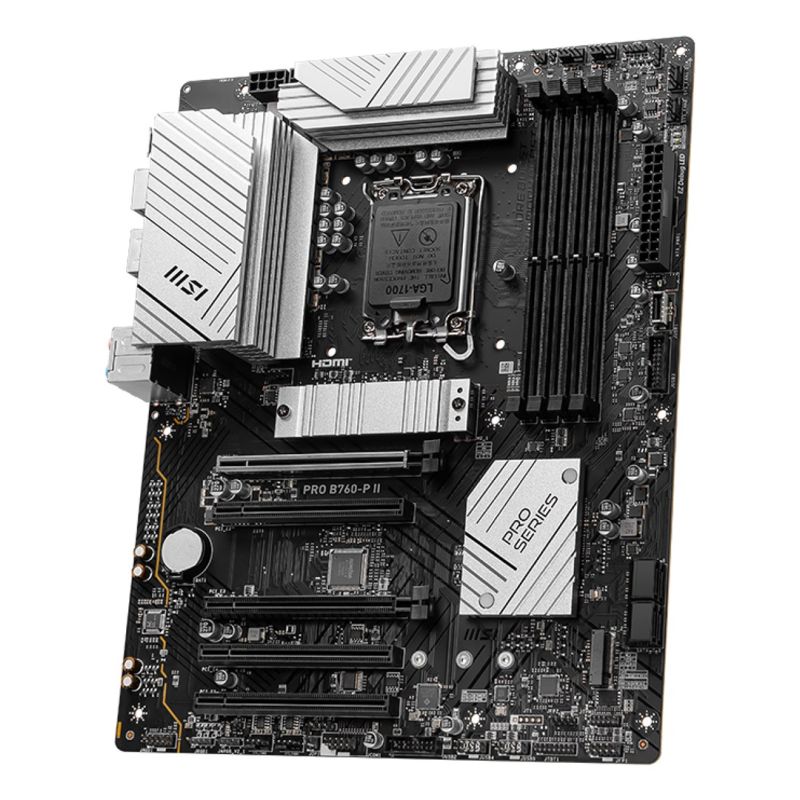

MSI PRO B760-P II motherboard
MSI PRO B760-P II motherboard
MSI PRO B760-P II motherboard
PRICE:
207,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: LGA 1700
- Maximum internal memory supported by the processor: 256 GB
- Processor manufacturer: Intel
- Processor
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Core™ i3
- Intel® Pentium® Gold
- Intel® Core™ i7
- Memory
- Supported memory clock speed (max): 7000 MHz
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- ECC Compatibility: Non-ECC
- Number of memory slots: 4
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Supported memory clock speeds
- 4800 MHz
- 7000
- 6000 MHz
- 5400 MHz
- 6200 MHz
- 5600 MHz
- 6400 MHz
- 5000 MHz
- 6600
- 6800
- 5200 MHz
- 5800 MHz
- Memory Channel Support: Dual Channel
- Characteristics
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC897
- Motherboard format: ATX
- Motherboard Layout: Intel B760
- Chipset Board Family: Intel
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Weight and dimensions
- Product depth: 304.8 mm
- Product width: 243.8 mm
- Internal I/O
- 12V power connector: Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- ATX power socket (24-pin): Yes
- Fan connector: Yes
- Number of USB 2.0 ports: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
- Front panel audio connector: Yes
- CPU fan connector: Yes
- Housing intrusion sensor connector: Yes
- S/PDIF jack: Yes
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- LAN controller: Realtek RTL8125-BG
- BIOS
- Clear CMOS Button: Yes
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- Package contents
- Cables: SATA
- Drivers included: Yes
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6
- RAID levels
- 0
- 5
- 1
- 10
- Supported hard drive interfaces: PCI Express 4.0, SATA III
- RAID Service: Yes

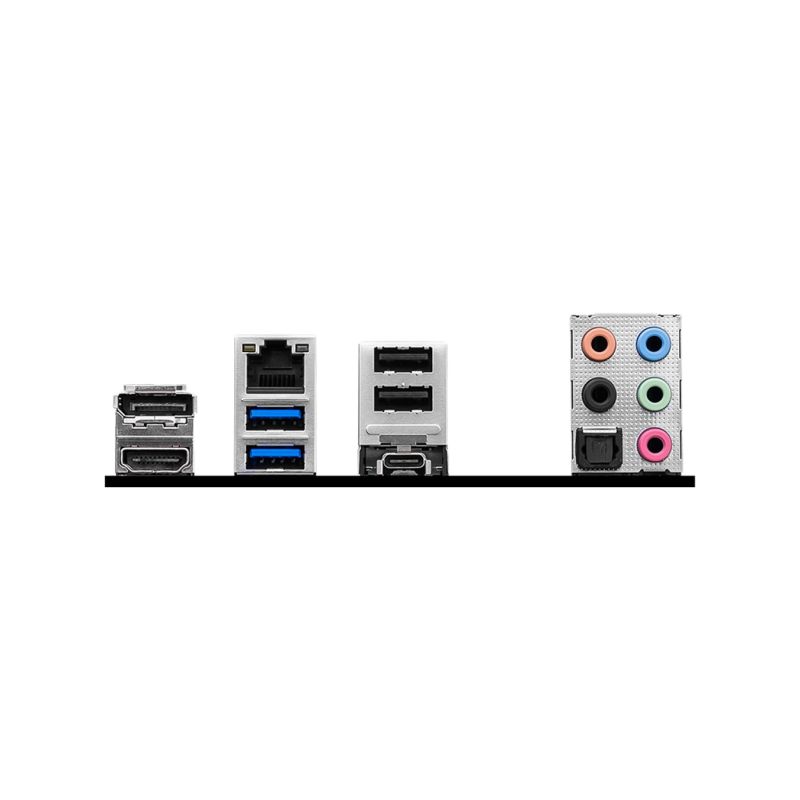

- Rear Panel I/O Ports
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 2.0 ports: 4
- HDMI version: 2.1
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- DisplayPort Quantity: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- PCI Express x1 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x4 slots (Gen 4.x): 1
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 1
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Warnings
| Name | Details |
|---|---|
| Producer | MSI |
