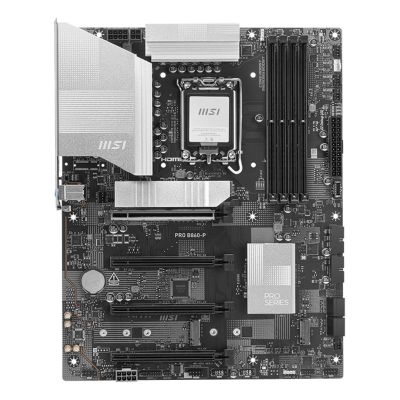

MSI PRO B860-P motherboard
MSI PRO B860-P motherboard
MSI PRO B860-P motherboard
PRICE:
291,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: LGA 1851
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Maximum internal memory supported by the processor: 256 GB
- Memory
- Maximum memory capacity: 256 GB
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- 4800 MHz
- 6400 MHz
- 8800
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 8800 MHz
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Characteristics
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Supported Windows operating systems: Windows 11 x64
- Product color: Black
- Chipset Board Family: AMD
- Motherboard Layout: Intel B860
- Motherboard format: ATX
- Weight and dimensions
- Product depth: 304.8 mm
- Product width: 243.8 mm
- Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Number of SATA III connectors: 4
- Number of RGB LED connectors: 3
- CPU fan connector: Yes
- Total number of SATA connectors: 4
- Number of USB 2.0 ports: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
- Number of water pump connections: 1
- Number of CPU fan connectors: 1
- RGB LED: Yes
- Network
- Wi-Fi: No
- Wired LAN: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- RAID Service: Yes
- Supported hard drive interfaces: M.2, Micro SATA III
- Supported drive types: HDD & SSD
- Number of supported storage drive sizes: 7
- RAID levels
- 5
- 0
- 1
- 10
- Number of supported HDDs: 4

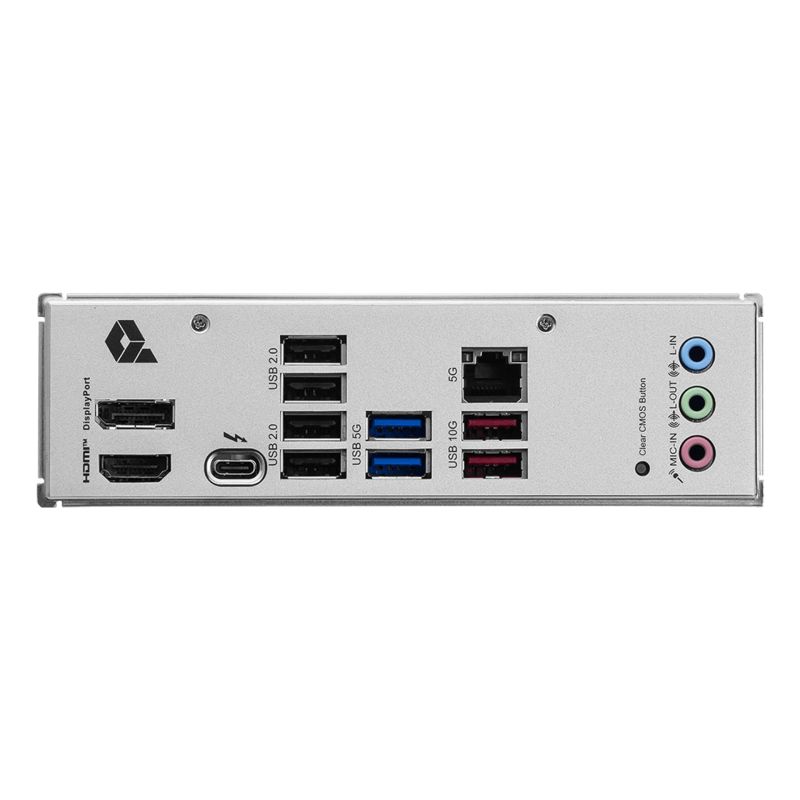

- Rear Panel I/O Ports
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of USB 2.0 ports: 4
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- 2nd largest M.2 key size: 2280
- Number of M.2 (M) slots: 3
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 5.0
- 2. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 5.x) slots: 1
- 3. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 2280
- PCI Express x16 (Gen 4.x) slots: 3
- Safety warning
- Warnings
- If you experience any problems with installation, please contact a qualified service center.
- Do not open or modify the motherboard to prevent damage.
- When disposing of this product, please follow local regulations for electronics recycling.
- Warnings
| Name | Details |
|---|---|
| Producer | MSI |
