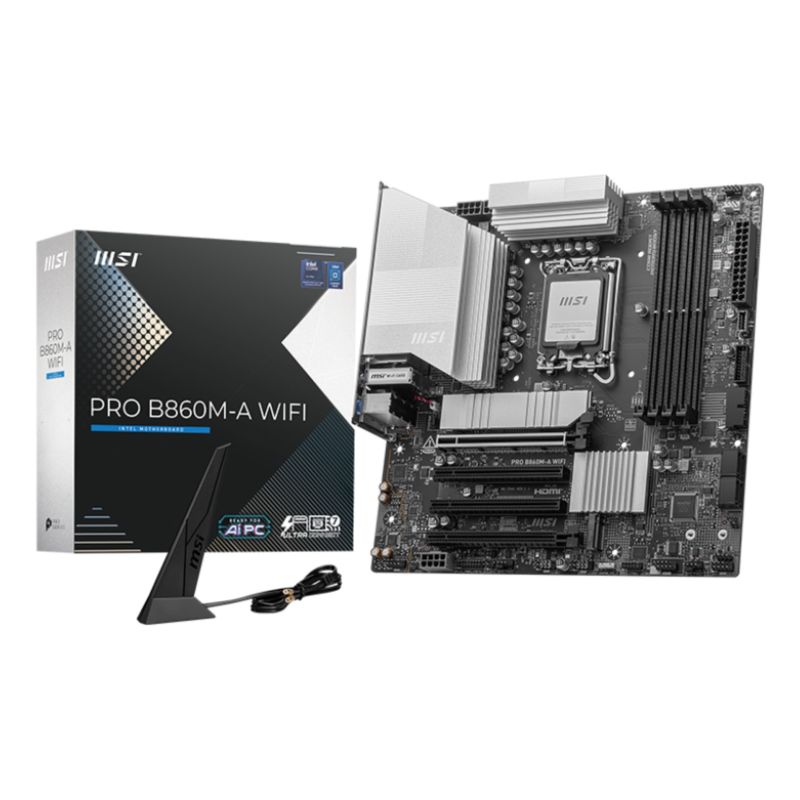

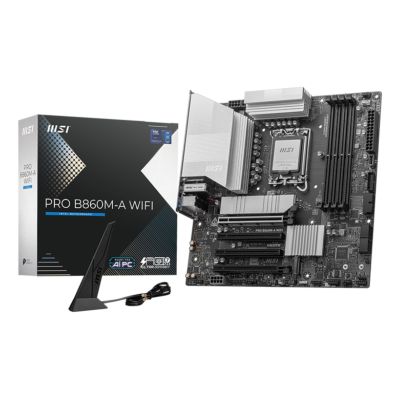

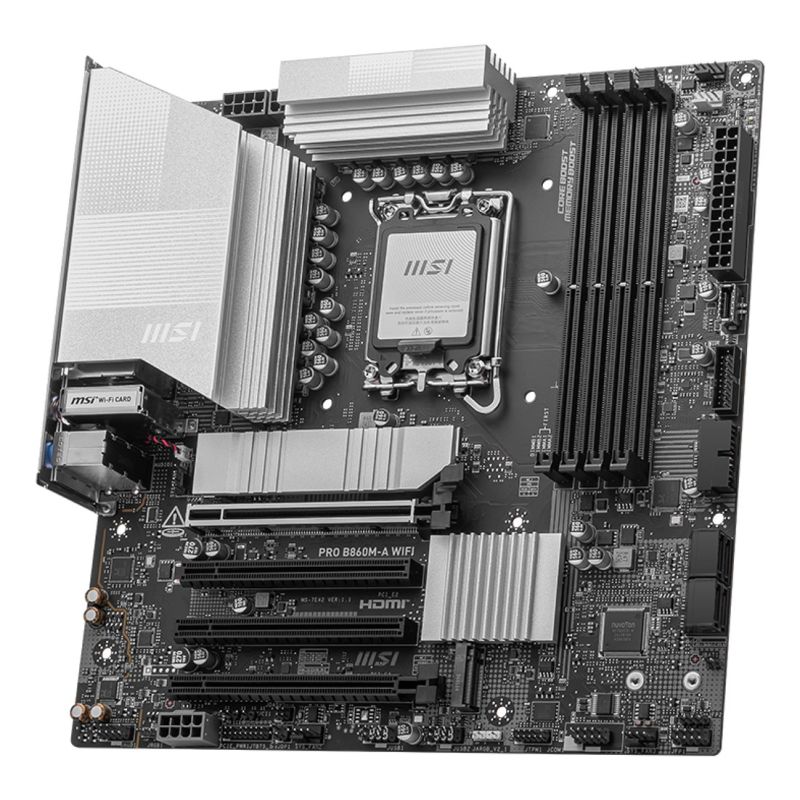

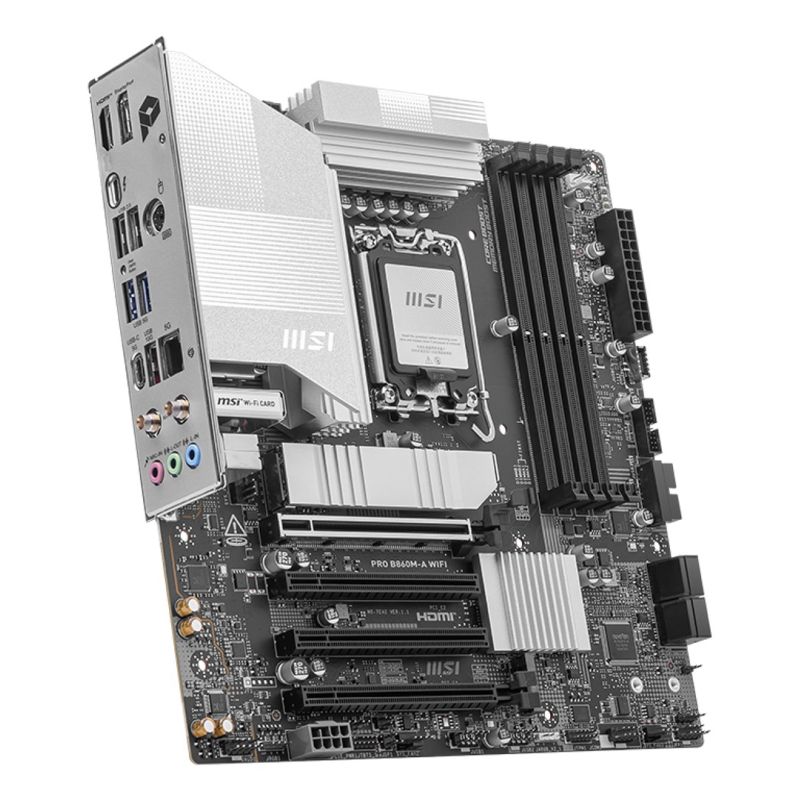

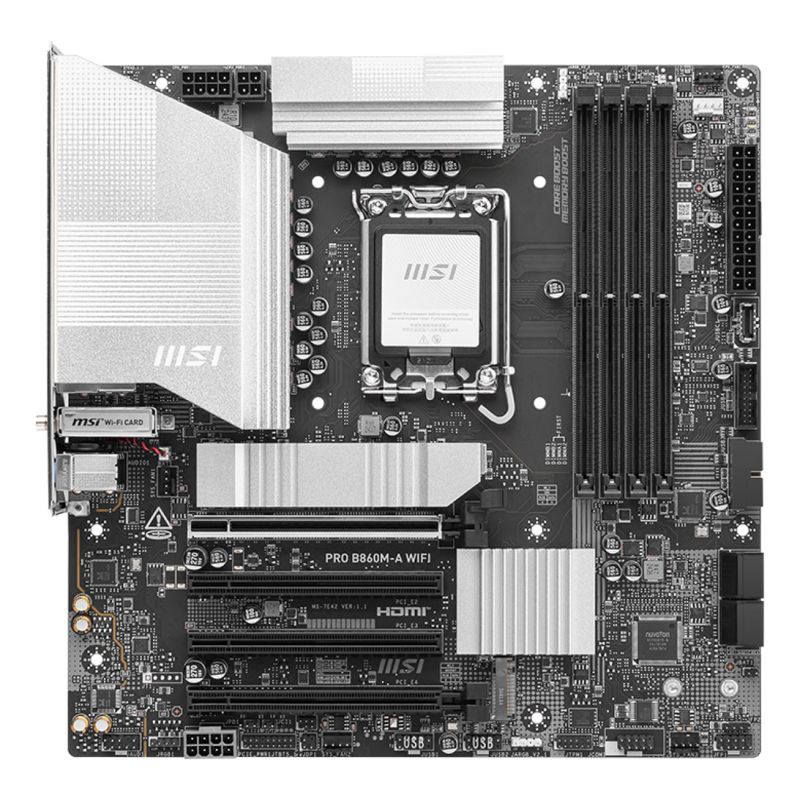

MSI PRO B860M-A WIFI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
MSI PRO B860M-A WIFI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
MSI PRO B860M-A WIFI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
PRICE:
271,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: LGA 1851
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Maximum internal memory supported by the processor: 256 GB
- Graphics
- Built-in graphics card: No
- Memory
- Supported memory clock speeds
- 4800 MHz
- 8800 MHz
- 6400 MHz
- ECC Compatibility: Non-ECC
- Maximum memory capacity: 256 GB
- Supported memory clock speed (max): 8800 MHz
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Supported memory clock speeds
- Characteristics
- Product color: Black
- Audio chip: Realtek ALC897
- Chipset Board Family: AMD
- Intended use: PC
- Motherboard format: Micro ATX
- Motherboard Layout: Intel B860
- Audio output channels: 7.1 ch.
- Supported Windows operating systems: Windows 11 x64
- Weight and dimensions
- Product depth: 243.8 mm
- Product width: 243.8 mm
- Internal I/O
- Number of water pump connections: 1
- Number of CPU fan connectors: 1
- Number of RGB LED connectors: 3
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
- Number of USB 2.0 ports: 4
- CPU fan connector: Yes
- Total number of SATA connectors: 4
- RGB LED: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Network
- Bluetooth: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards
- 802.11b
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 6E (802.11ax)
- Wired LAN: Yes
- Bluetooth version: 5.4
- Wi-Fi: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- BIOS
- BIOS memory size: 256 Mbit
- BIOS Type: UEFI AMI
- ACPI version: 6.5
- System BIOS (SMBIOS) version: 3.7
- Memory drivers
- RAID Service: Yes
- Supported drive types: HDD & SSD
- RAID levels
- 5
- 1
- 0
- 10
- Supported hard drive interfaces: M.2, Micro SATA III
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 7

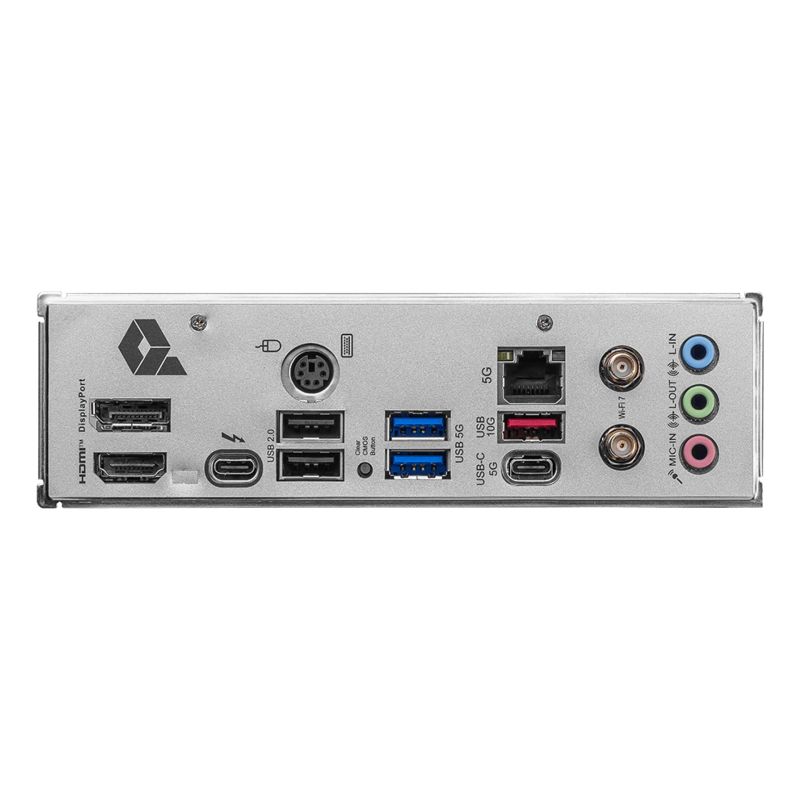

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- HDMI version: 2.1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Expansion slots
- 3. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- 3. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 5.0
- 2nd largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 4.0
- Number of M.2 (M) slots: 3
- PCI Express x16 (Gen 4.x) slots: 3
- PCI Express x16 (Gen 5.x) slots: 1
| Name | Details |
|---|---|
| Producer | MSI |
