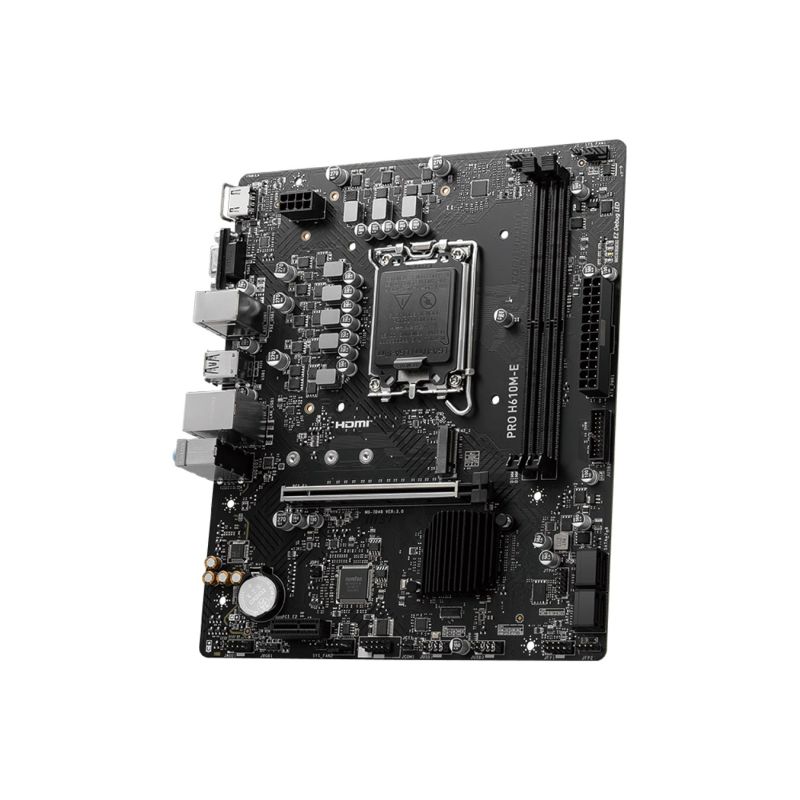

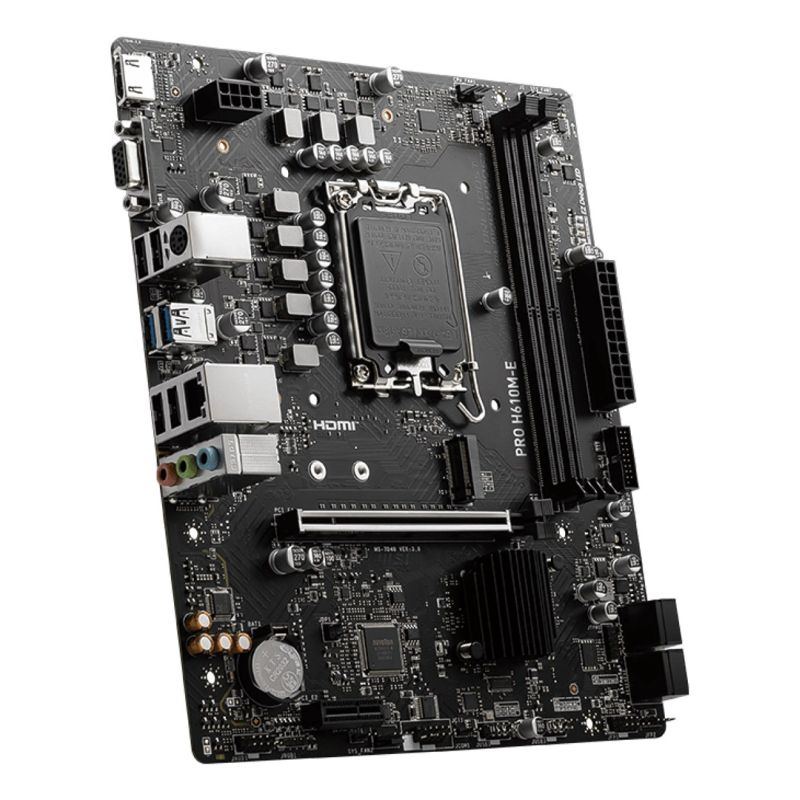

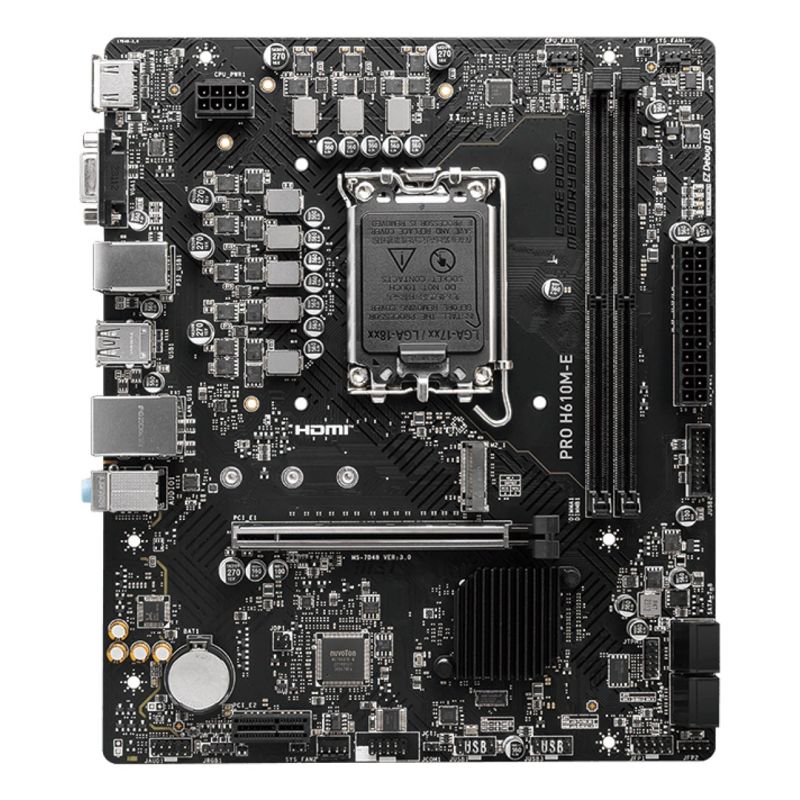

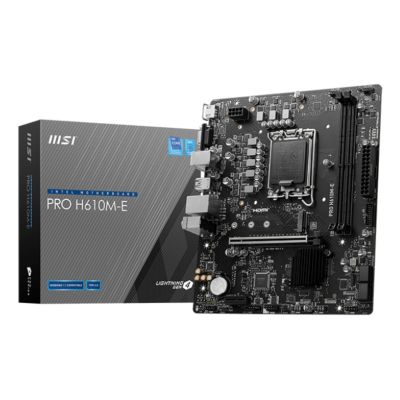

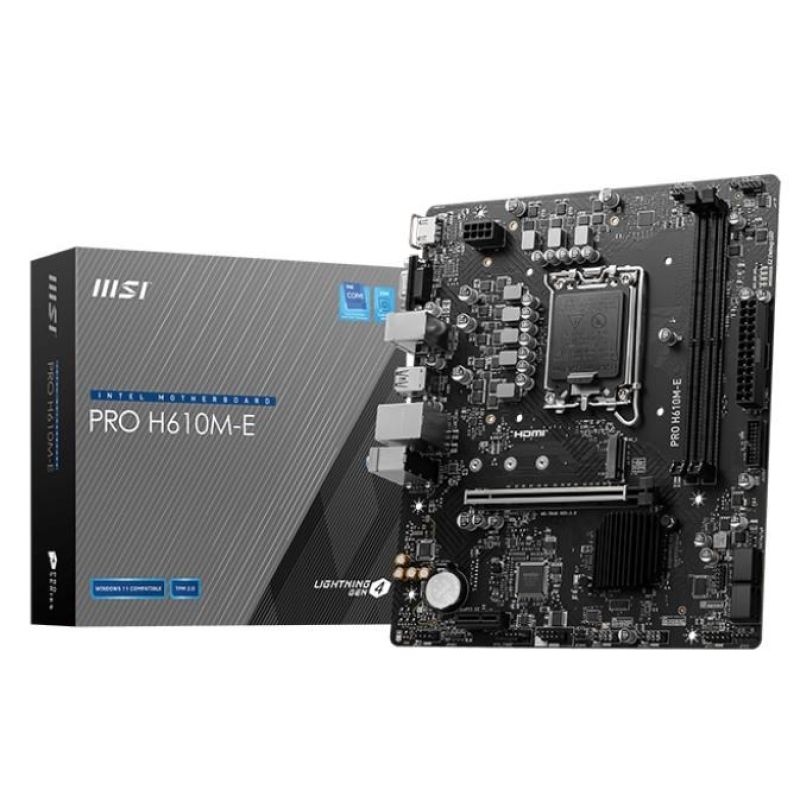

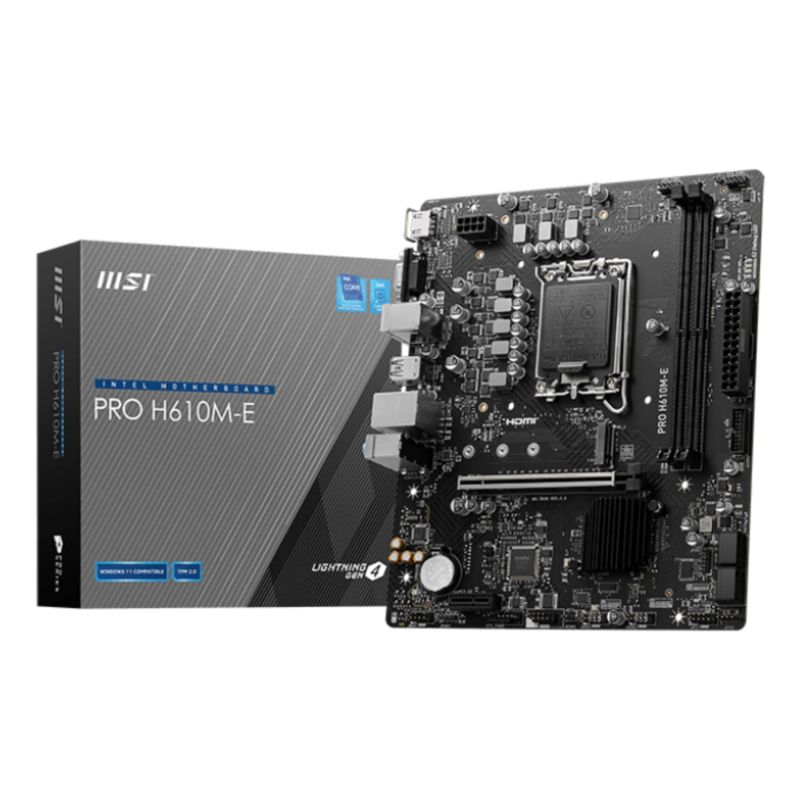

MSI PRO H610M-E motherboard
MSI PRO H610M-E motherboard
MSI PRO H610M-E motherboard
PRICE:
74,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: LGA 1700
- Processor manufacturer: Intel
- Processor
- Intel® Core™ i3
- Intel® Core™ i9
- Intel® Core™ i7
- Intel® Pentium G
- Intel® Core™ i5
- Intel® Celeron®
- Processor socket: LGA 1700
- Memory
- Maximum memory capacity: 96 GB
- Supported memory module capacities
- 4GB
- 32GB
- 8GB
- 16GB
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- ECC Compatibility: Non-ECC
- Number of memory slots: 2
- Memory slot type: DIMM
- Supported memory clock speeds: 5600 MHz
- Characteristics
- Motherboard Layout: Intel H610
- Power supply type: ATX
- Audio output channels: 7.1 ch.
- Supported Windows operating systems
- Windows 11
- Windows 10
- Cooling type: Active
- Chipset Board Family: Intel
- Motherboard format: Micro ATX
- Weight and dimensions
- Product depth: 236.2 mm
- Product width: 200 mm
- Internal I/O
- Number of USB 2.0 ports: 4
- Number of case fan connectors: 2
- CPU fan connector: Yes
- Number of COM sockets: 2
- ATX power socket (24-pin): Yes
- EPS power supply connector (8-pin): Yes
- Front panel audio connector: Yes
- Number of SATA III connectors: 4
- Thunderbolt Ends: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Audio connector: Yes
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Drivers included: Yes
- Cables: SATA
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 10
- 5
- 0
- 1
- RAID Service: Yes

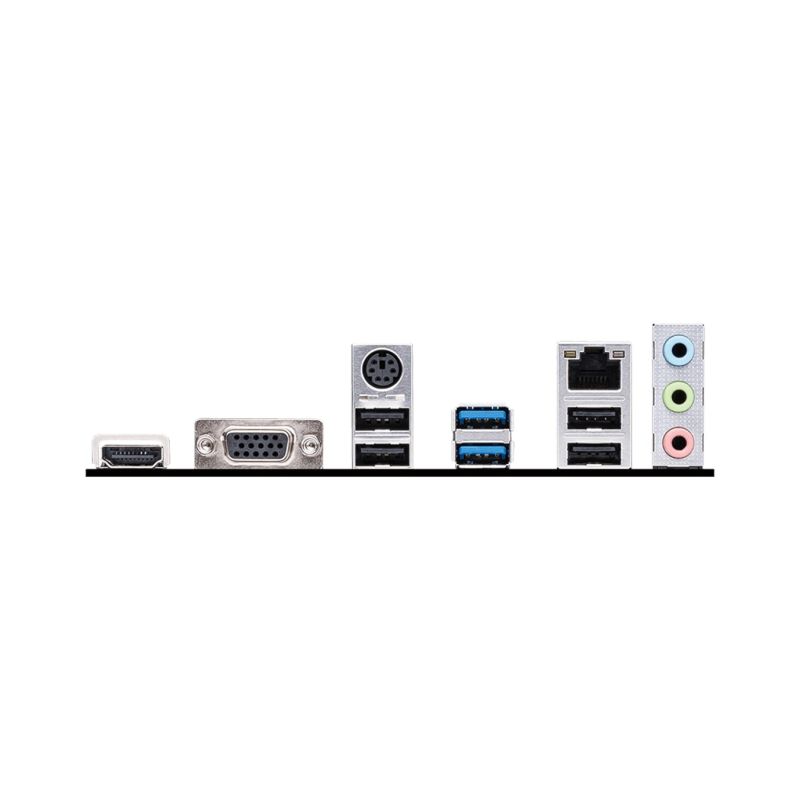

- Rear Panel I/O Ports
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 4
- Headphone outputs: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Microphone: Yes
- Number of VGA (D-Sub) ports: 1
- HDMI version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of PS/2 ports: 1
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Warnings
| Name | Details |
|---|---|
| Producer | MSI |
