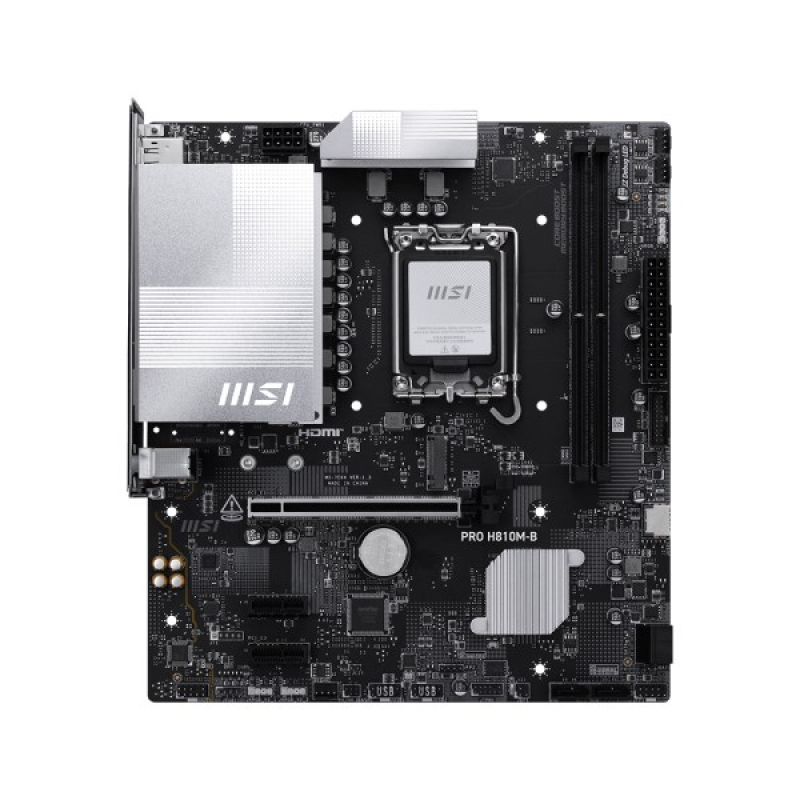

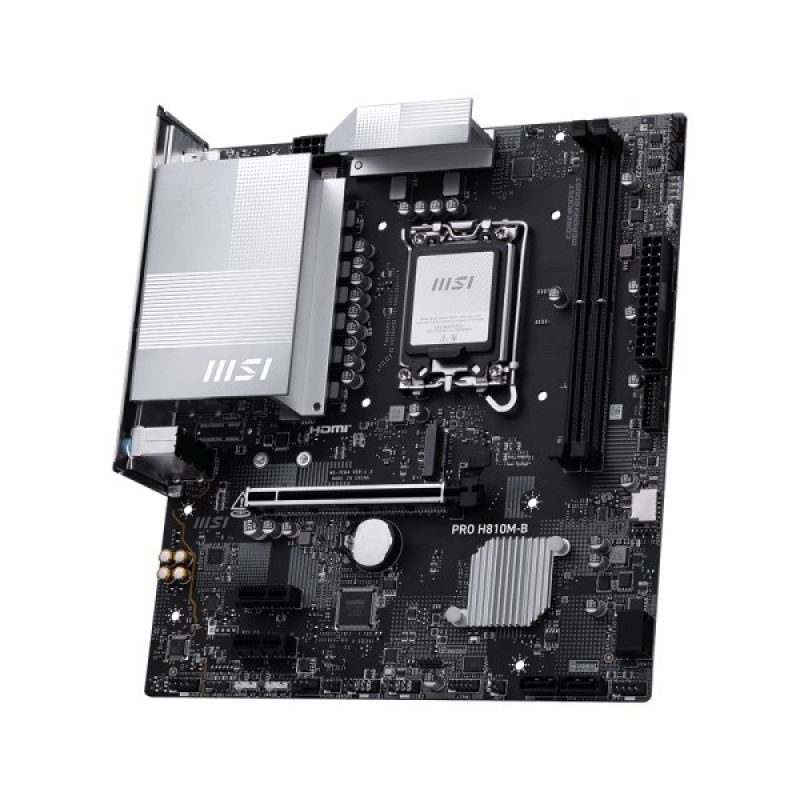

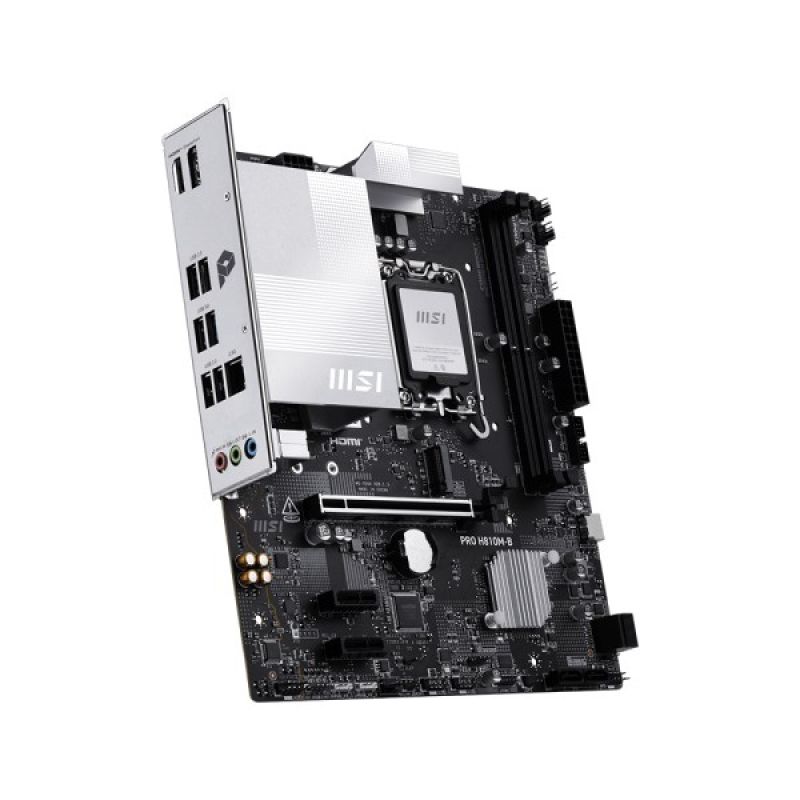

MSI PRO H810M-B motherboard
MSI PRO H810M-B motherboard
MSI PRO H810M-B motherboard
PRICE:
148,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Memory
- Supported memory clock speeds
- 6400 MHz
- 4800 MHz
- Number of memory slots: 2
- Maximum memory capacity: 128 GB
- Supported memory types: DDR5 UDIMM
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- Characteristics
- Audio chip: Realtek ALC897
- Chipset Board Family: Intel
- Motherboard Layout: Intel H810
- Supported Windows operating systems: Windows 11
- Motherboard format: Micro ATX
- Audio output channels: 7.1 ch.
- Weight and dimensions
- Product width: 220 mm
- Product depth: 243.8 mm
- Internal I/O
- 12V power connector: Yes
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Fan connector: Yes
- Audio connector: Yes
- CPU fan connector: Yes
- RGB LED: Yes
- Front panel audio connector: Yes
- Number of USB 2.0 ports: 4
- USB 3.2 (Gen 2) Type-C ports quantity: 1
- Number of case fan connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 2
- TPM Connector: Yes
- Number of RGB LED connectors: 1
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- Package contents
- Cables: SATA
- Memory drivers
- Supported hard drive interfaces: SATA III
- Supported drive types: HDD & SSD

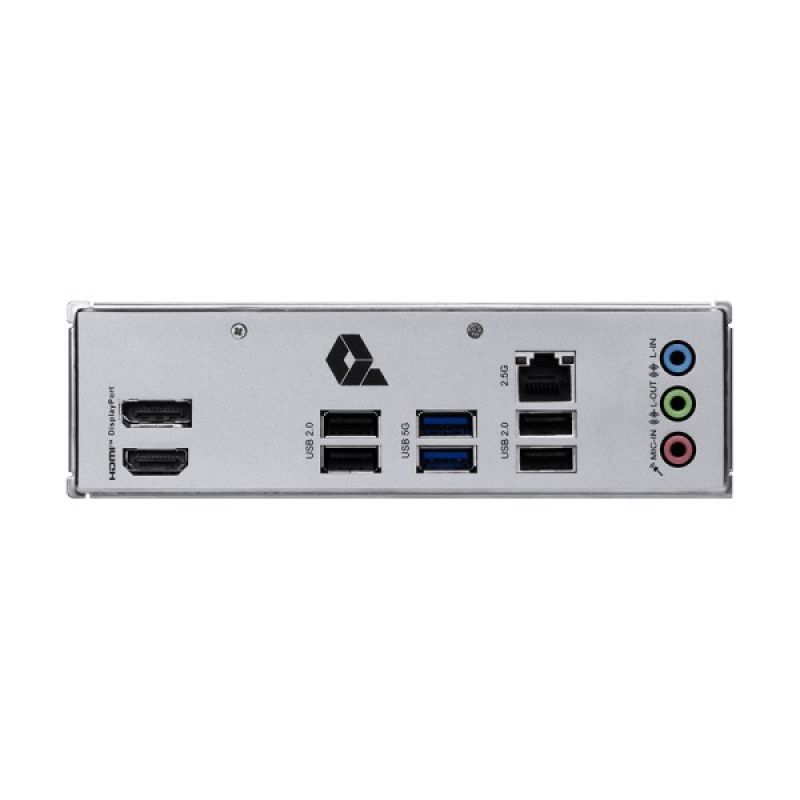

- Rear Panel I/O Ports
- DisplayPort Quantity: 1
- HDMI version: 2.1
- Number of HDMI ports: 1
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- Audio connector: Yes
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x1 slots: 2
| Name | Details |
|---|---|
| Department | Electronics |
| Category | Computers and accessories |
| Product Type | Motherboards |
| Producer | MSI |
