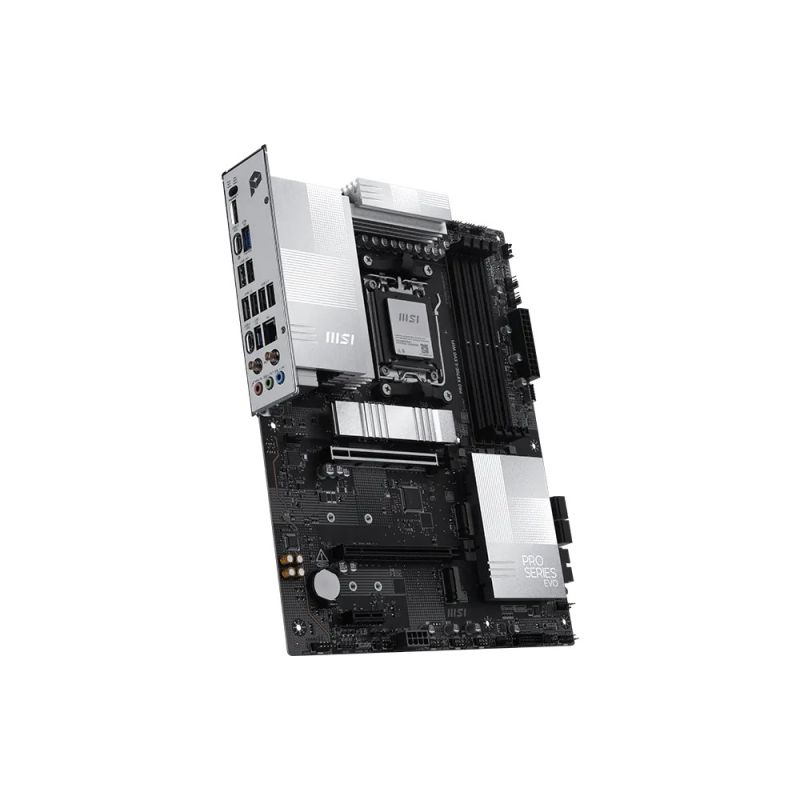

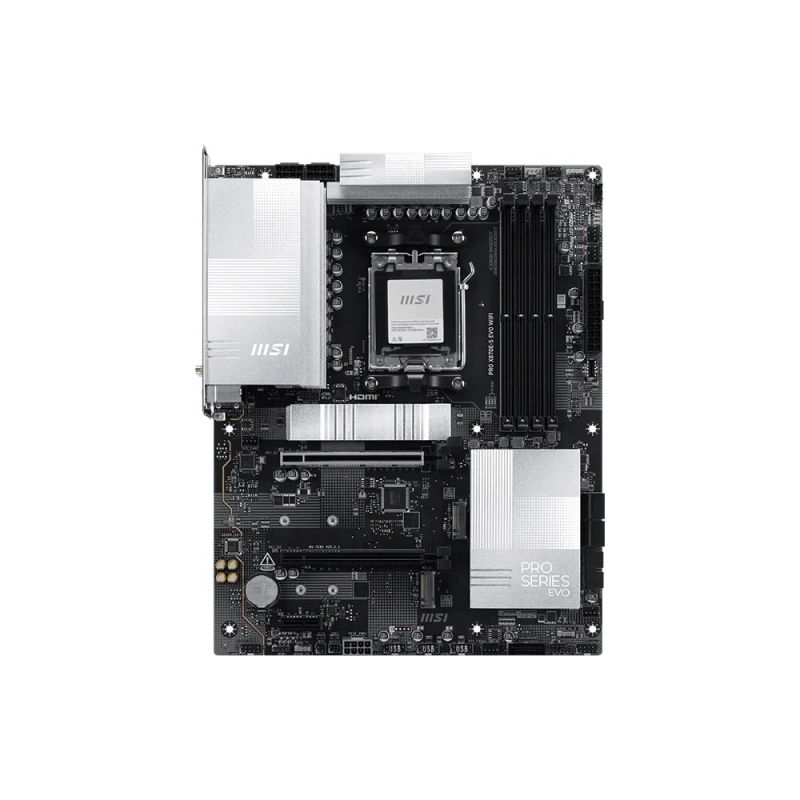

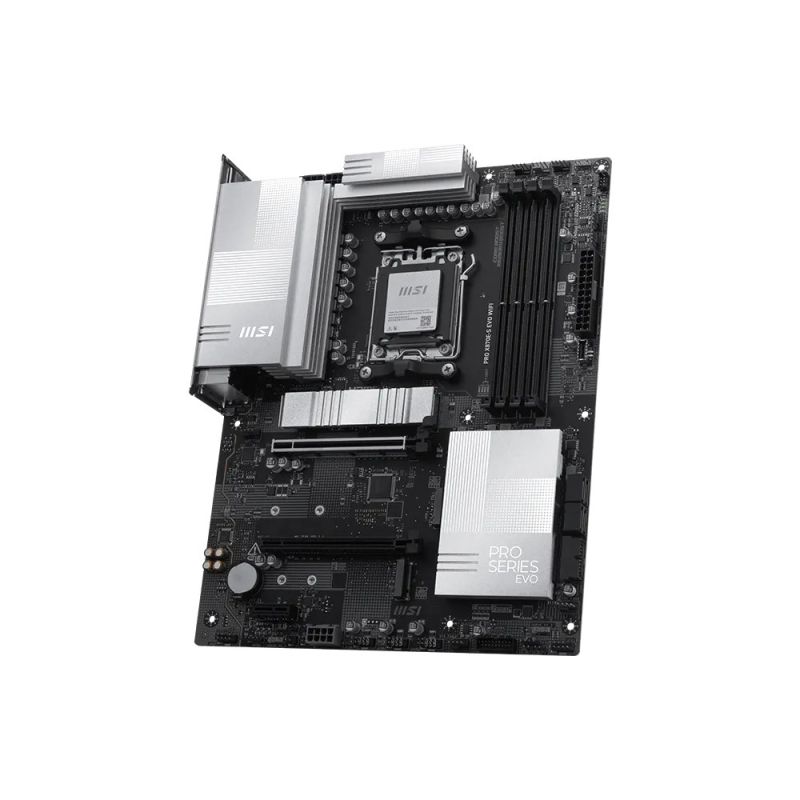

MSI PRO X870E-S EVO WIFI Motherboard AMD X870E Socket AM5 ATX
MSI PRO X870E-S EVO WIFI Motherboard AMD X870E Socket AM5 ATX
MSI PRO X870E-S EVO WIFI Motherboard AMD X870E Socket AM5 ATX
PRICE:
395,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- Processor socket: Socket AM5
- Graphics
- Built-in graphics card: No
- Memory
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Maximum memory capacity: 256 GB
- Supported memory clock speeds
- 4800 MHz
- 5600 MHz
- 8200
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 8200 MHz
- Memory slot type: DIMM
- ECC Compatibility: Non-ECC
- Characteristics
- Monitoring computer status
- Processor
- Fan
- Temperature
- Tension
- Supported Windows operating systems: Windows 11 x64
- Chipset Board Family: AMD
- Product color: Black
- Audio chip: Realtek ALC897
- Intended use: PC
- Audio output channels: 7.1 ch.
- Motherboard Layout: AMD X870E
- Motherboard format: ATX
- Monitoring computer status
- Internal I/O
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- EPS power supply connector (8-pin): Yes
- Number of USB 2.0 ports: 6
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- TPM Connector: Yes
- Total number of SATA connectors: 4
- RGB LED: Yes
- Network
- Bluetooth: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth version: 5.4
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 512 Mbit
- ACPI version: 6.5
- System BIOS (SMBIOS) version: 3.7
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes
- RAID levels
- 0
- 1
- Number of supported storage drive sizes: 7
- Number of supported HDDs: 4

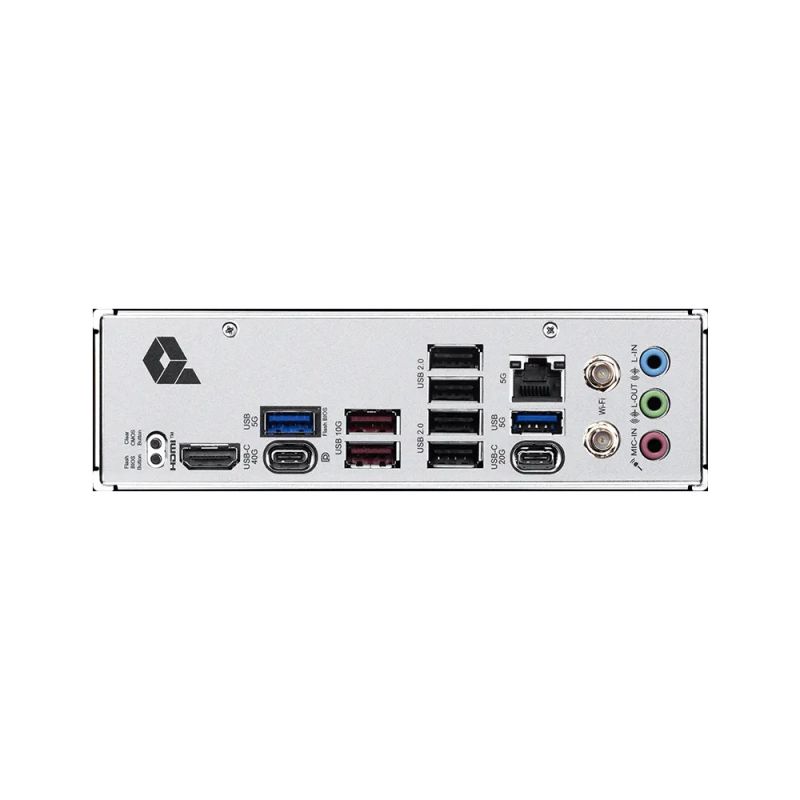

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of DisplayPorts: 2
- DisplayPort version: 1.4
- Number of USB 2.0 ports: 4
- HDMI version: 2.1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of USB4 Gen 3x2 ports: 1
- Number of USB4 Gen 2x2 ports: 1
- Expansion slots
- PCI Express x16 slots: 3
- Number of M.2 (M) slots: 3
- PCI Express x1 slots: 1
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 5.0
- 3. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- 2nd largest M.2 key size: 22110
- 3. largest M.2 key size: 2280
| Name | Details |
|---|---|
| Producer | MSI |
