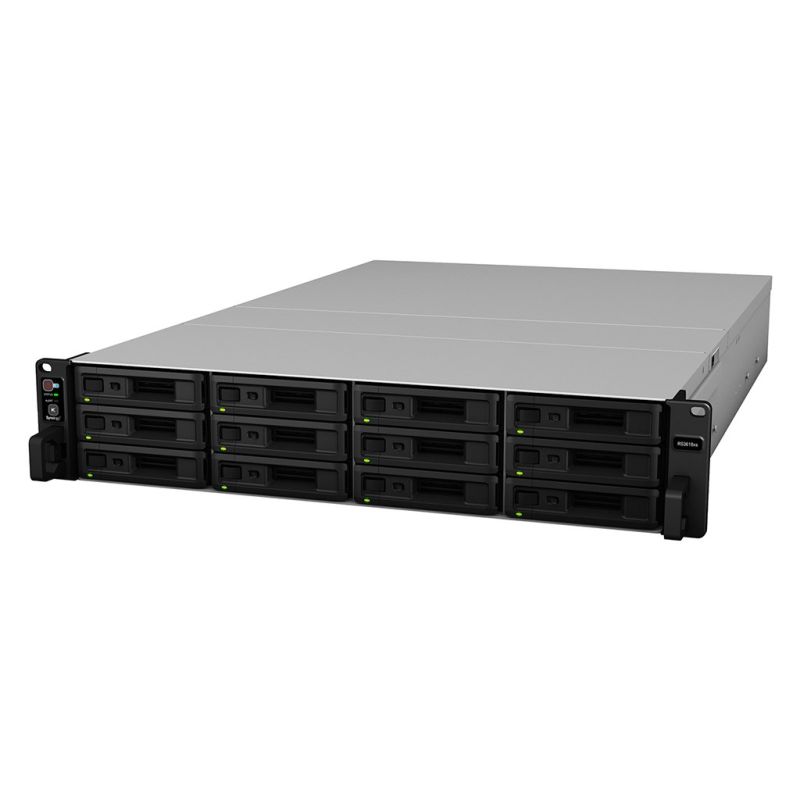

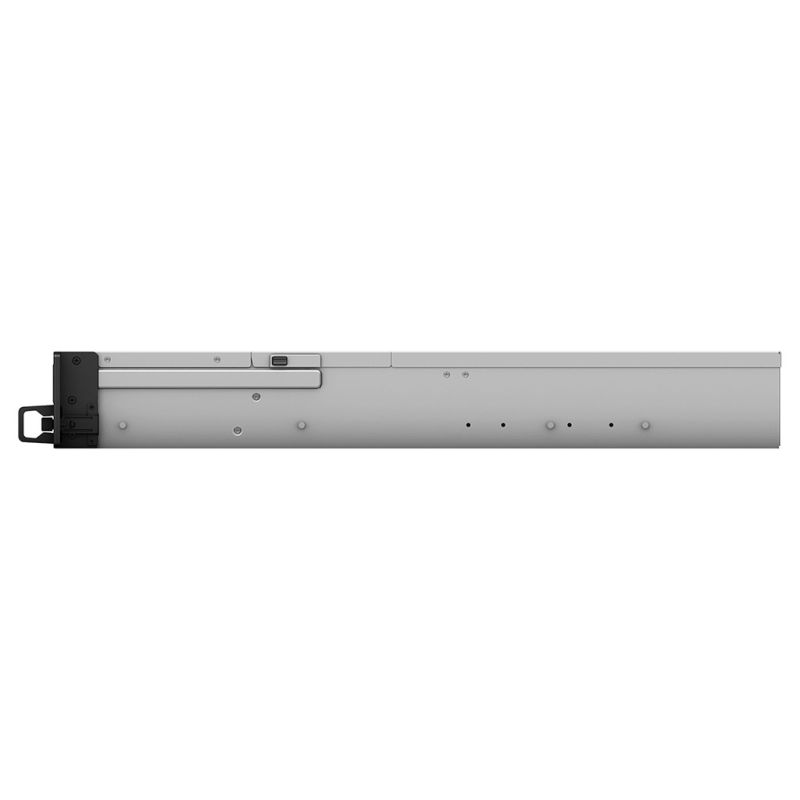

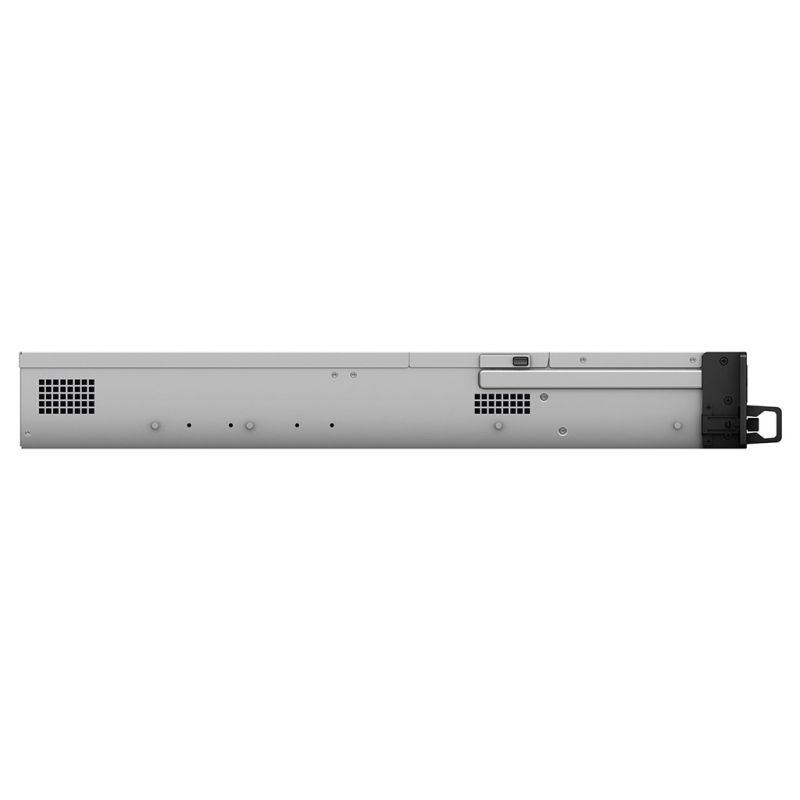

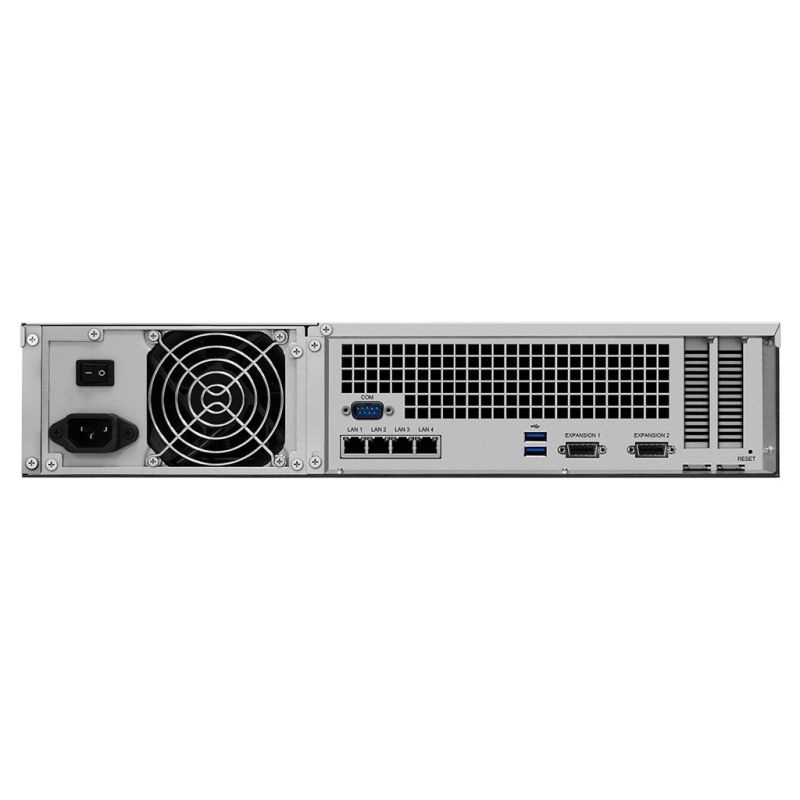

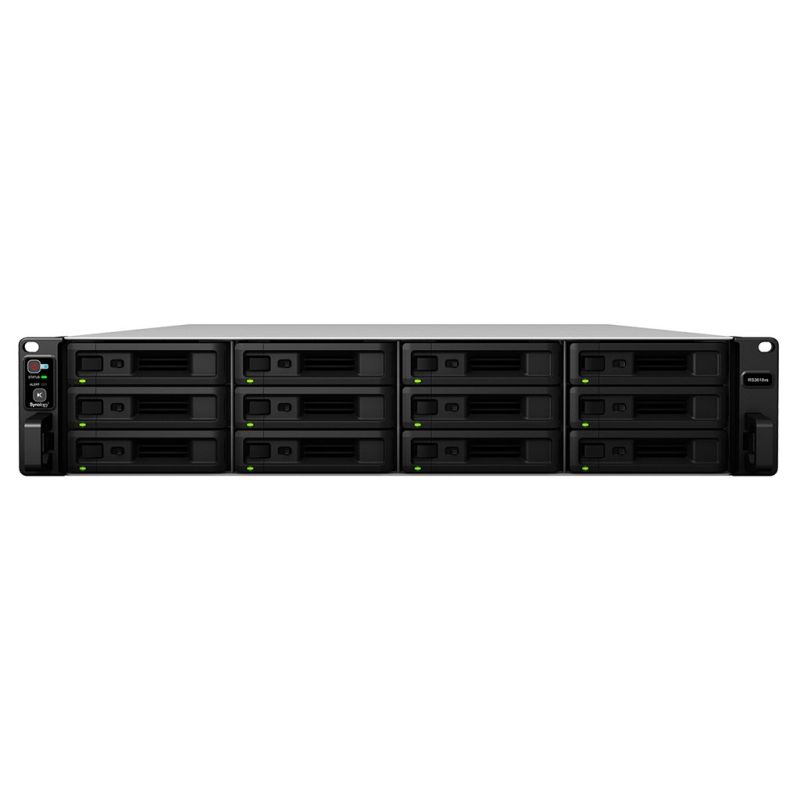

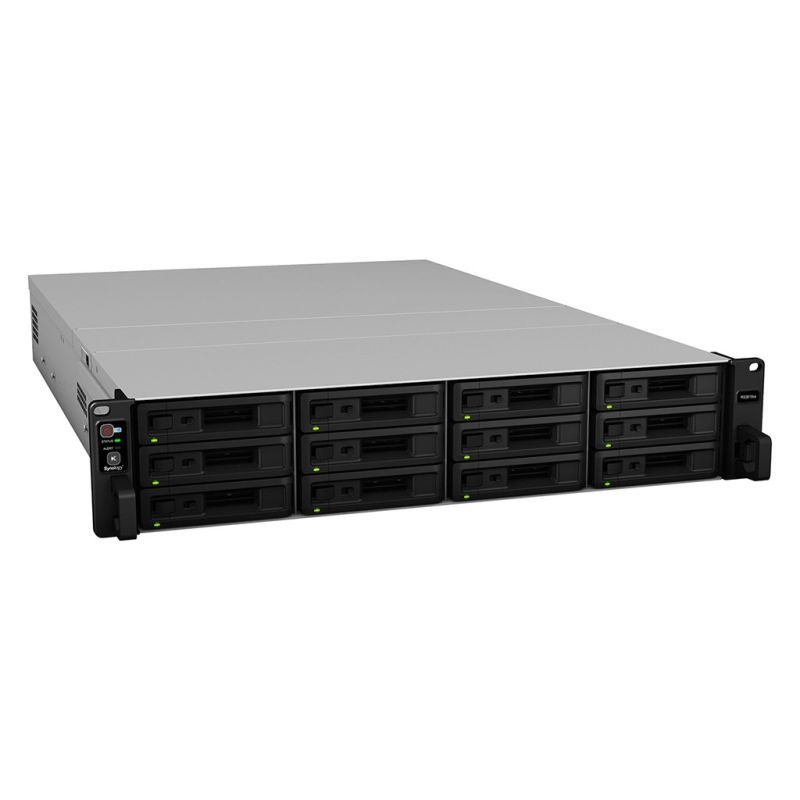

NAS Synology RS3618xs; 2U RACK; 12x (3.5" SATA HDD/2.5" SATA HDD); Intel Xeon D-1521; 8 GB DDR4 ECC UDIMM (max. 64 GB), 4x 1GbE RJ-45
NAS Synology RS3618xs; 2U RACK; 12x (3.5" SATA HDD/2.5" SATA HDD); Intel Xeon D-1521; 8 GB DDR4 ECC UDIMM (max. 64 GB), 4x 1GbE RJ-45
NAS Synology RS3618xs; 2U RACK; 12x (3.5" SATA HDD/2.5" SATA HDD); Intel Xeon D-1521; 8 GB DDR4 ECC UDIMM (max. 64 GB), 4x 1GbE RJ-45
PRICE:
5567,99
€
IN A WAREHOUSE
LAST ITEM!
Goods available on request - delivery time to 7 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Maximum processor clock speed: 2.7 GHz
- Maximum CPU configuration: 1
- Processor Cache: 6 MB
- PCI Express configurations
- 1x8
- 1x16
- 1x4
- Conflict-free processor: Yes
- Slot version (PCI Express)
- 3.0
- 2.0
- Stepping: V2
- Maximum internal memory supported by the processor: 128 GB
- Number of processor cores: 4
- Processor model: D-1521
- Processor Type: Intel® Xeon® D
- Processor Code: SR2DF
- Thermal Design Power (TDP): 45 W
- Number of threads: 8
- Processor series: Intel Xeon D-1500
- Processor package size: 37.5 x 37.5 mm
- Lithographic process: 14 nm
- Processor operating mode: 64-bit
- Scalability: 1S
- Processor manufacturer: Intel
- Processor clock speed: 2.4 GHz
- ECC memory supported by processor: Yes
- Processor Codename: Broadwell
- Processor socket: BGA 1667
- Memory
- Memory clock speed: 2133 MHz
- RAM: 8 GB
- Memory slots: 4
- Maximum RAM: 64 GB
- RAM type: DDR4
- Design
- Cooling type: Active
- Product color: Black
- Number of fans: 4 fans
- Housing: Rack (2U)
- Fan bowl diameter: 8 cm
- LED diodes
- Power supply
- HDD
- Power
- AC input frequency: 50 - 60 Hz
- Power Location: Built-in
- Number of power units: 1
- Power consumption: 142.76 W
- Power consumption (HDD standby): 55.05 W
- Power supply power: 500 W
- AC input voltage: 100 - 240 V
- Weight and dimensions
- Product weight: 14.5 kg
- Product height: 88 mm
- Product depth: 692 mm
- Product width: 430.5 mm
- Working conditions
- Permissible operating altitude (above sea level): 0 - 5000 m
- Relative humidity range: 5 - 95%
- Temperature range (operation): 5 - 35 °C
- Temperature range (storage): -20 - 60 °C
- Network
- Wi-Fi: No
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Supported network protocols: CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)
- iSCSI Support: Yes
- Connection Aggregator: Yes
- Wired LAN: Yes
- Wake-On-LAN: Yes
- Efficiency
- Model: US
- Encryption/Security
- SSH
- SSL/TLS
- HTTPS
- Hot Reserve Elements: Yes
- Reset button: Yes
- Built-in switch: Yes
- Access Control List (ACL): Yes
- Backup function: Yes
- Number of users: 16000 users.
- Multilingual support: Yes
- System log: Yes
- Device class: Small and Medium Business
- Noise level: 50.2 dB
- SMART Support: Yes
- Website management: Yes
- Supported browsers: Chrome, Firefox, Internet Explorer 10, Safari
- Backup Features
- Cloud
- iSCSI LUN
- Sharing Folder: CIFS/AFP/FTP
- Package contents
- Quick Installation Guide: Yes
- Wires: Alternating Current
- Special features of the processor
- New AES Instructions (Intel® AES-NI): Yes
- Intel® VT-x with Extended Page Tables (EPT): Yes
- Intel® Hyper Threading Technology (Intel® HT Technology): Yes
- Enhanced Intel SpeedStep Technology: Yes
- Built-in options available: No
- Intel® Secure Key Technology Version: 1.00
- Intel® Enhanced Halt State: Yes
- Intel® OS Guard: Yes
- Maximum PCI Express lanes: 32
- Intel® TSX-NI: Yes
- Intel® Virtualization Technology (VT-x): Yes
- Idle: Yes
- Intel® Virtualization Technology (Directed I/O) (VT-d): Yes
- Execute Disable Bit (EDB) Technology: Yes
- UART: Yes
- Thermal Monitoring Technologies: Yes
- Intel® 64: Yes
- Intel® Trusted Execution Technology: Yes
- Memory types supported by the processor
- DDR3-SDRAM
- DDR4-SDRAM
- Intel® Turbo Boost Technology: 2.0
- Memory channels supported by the processor: Dual
- Intel® TSX-NI Version: 1.00
- Intel® Secure Key: Yes
- Software
- Mac compatible: Yes
- Installed operating system: DiskStation Manager
- Supported server operating systems
- Windows Server 2012 R2
- Windows Server 2012
- Supported Windows operating systems
- Windows 10
- Windows 7
- Supported Mac operating systems
- Mac OS X 10.12 Sierra
- Mac OS X 10.11 El Capitan
- Data carrier
- RAID Service: Yes
- RAID levels
- 5
- JBOD
- 1
- 10
- F1
- 0
- 6
- Supported storage drive sizes
- 2.5
- 3.5
- Installed storage device: No
- Maximum supported capacity: 144 TB
- Types of installed drives: No
- Supported file systems
- ext4
- ext3
- Fat
- BTRFS
- NTFS
- HFS+
- Hot-swap bay: Yes
- Number of supported storage drive sizes: 12
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: SATA, SATA II, SATA III
- Ports and interfaces
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 4
- USB port: Yes
- PCI Express x8 (Gen 3.x) slots: 2
- Other functions
- ARK Processor ID: 91202
- Certificates of conformity: RoHS
- Logistics data
- Harmonized System (HS) code: 84714100
- Safety warning
- Warnings
- Do not throw this device into regular trash. This product requires special disposal.
- Avoid contact with liquids.
- Do not disassemble the device yourself.
- Warnings
| Name | Details |
|---|---|
| Producer | Synology |
