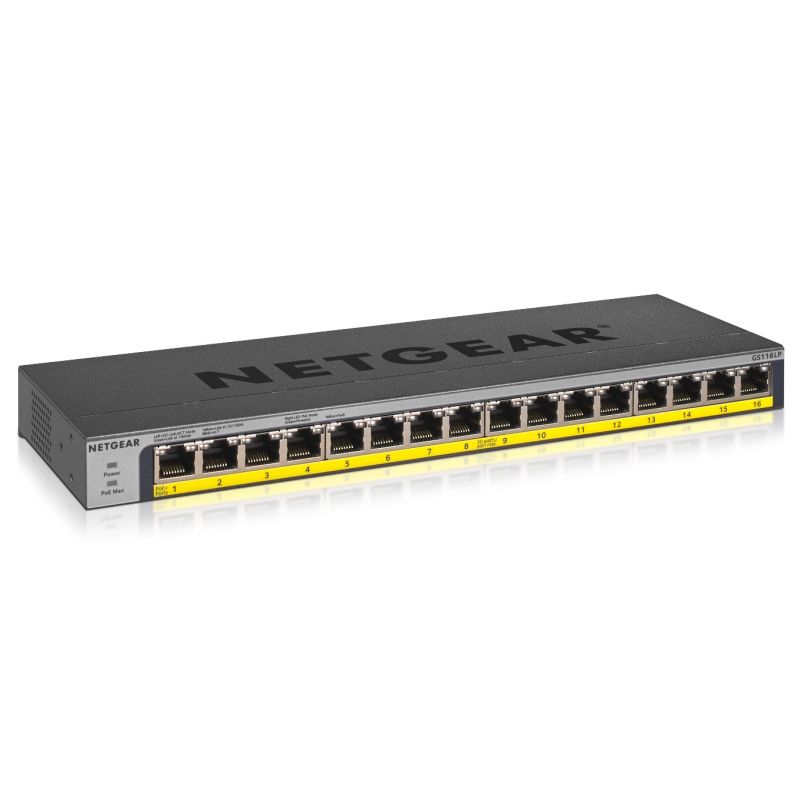

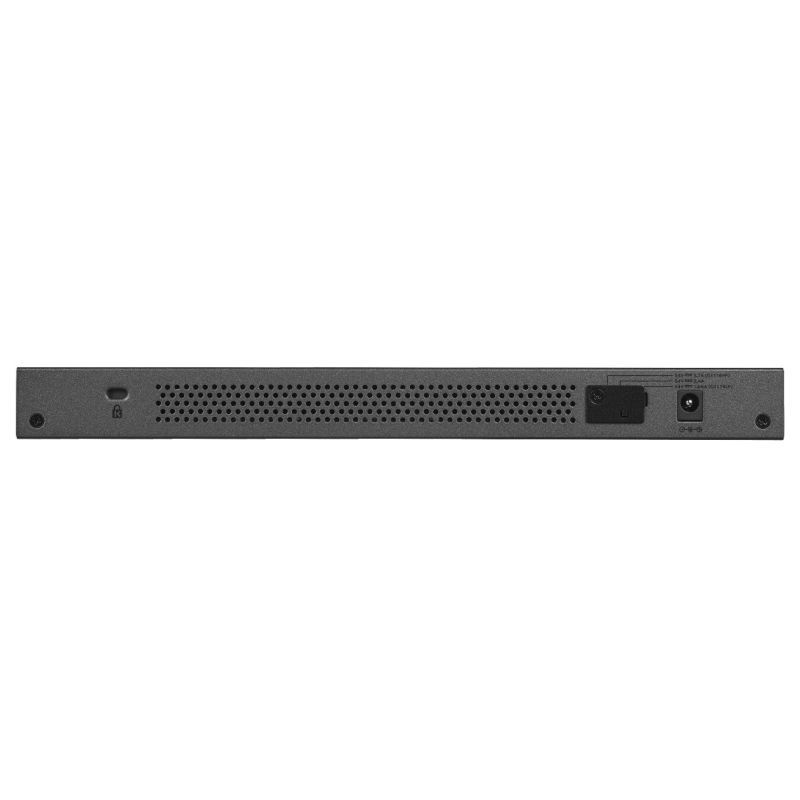

Netgear GS116LP-100EUS 16-Port PoE Switch, 76 W* (PoE+: 16 ports), Unmanaged Gigabit
Netgear GS116LP-100EUS 16-Port PoE Switch, 76 W* (PoE+: 16 ports), Unmanaged Gigabit
Sign up and unlock up to 10% off!
- Design
- Product colour: Black
- LED indicators: Yes
- Rack mounting: Yes
- Number of fans: 1 fan
- Power
- DC input voltage: 54 V
- Power source: DC/PoE
- Input current: 1.66 A
- Power consumption: 90 W
- Weight and dimensions
- Product depth: 102 mm
- Product weight: 880 g
- Product height: 27 mm
- Product width: 286 mm
- Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
- Operating conditions
- Relative humidity range: 0–90%
- Permitted relative humidity: 0–95%
- Heat dissipation: 270.18 BTU/h
- Operating temperature range: 0–40 °C
- Permitted operating altitude above sea level: 0–3000 m
- Storage temperature range: -20–70 °C
- Network
- 10G support: No
- Communication standards
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.3at
- Flow control support: Yes
- Performance
- Buffer size: 1000 KB
- MTBF (Mean Time Between Failures): 2088514 h
- Ports and interfaces
- Basic switching Ethernet RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of Gigabit Ethernet ports: 16
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transmission
- Address table size: 4000 entries
- Jumbo Frames support: Yes
- Routing/switching capacity: 32 Gbit/s
- Power over Ethernet (PoE)
- PoE support: Yes
- Power over Ethernet Plus (PoE+) ports: 16
- Total Power over Ethernet (PoE) budget: 76 W
- Safety warning
- Warnings
- Do not open the device housing due to the risk of electric shock.
- Electronic devices should be recycled in accordance with local regulations.
- Do not use the device in damp locations to avoid a short circuit.
