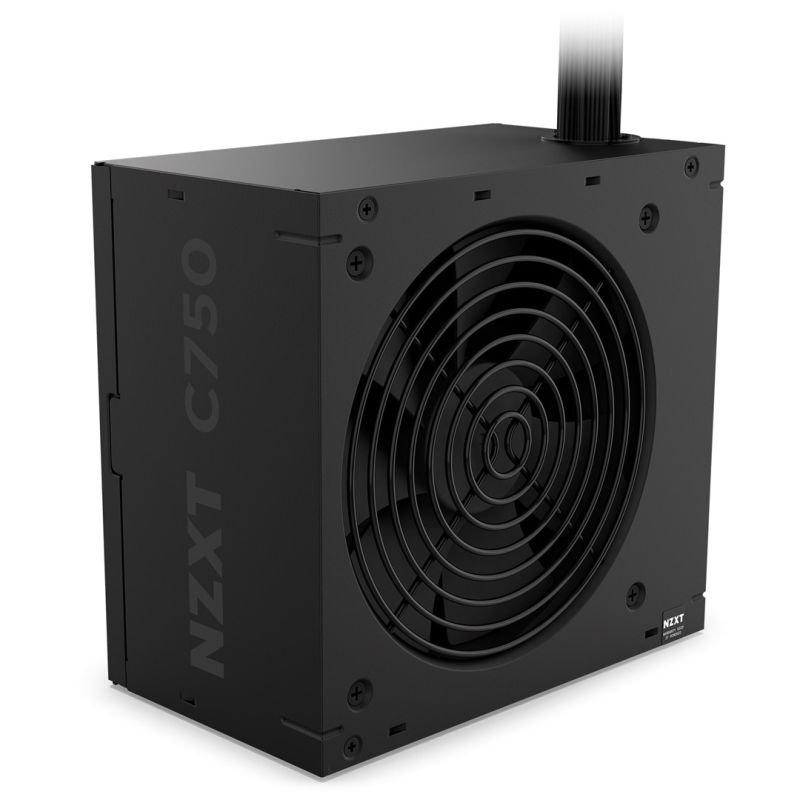

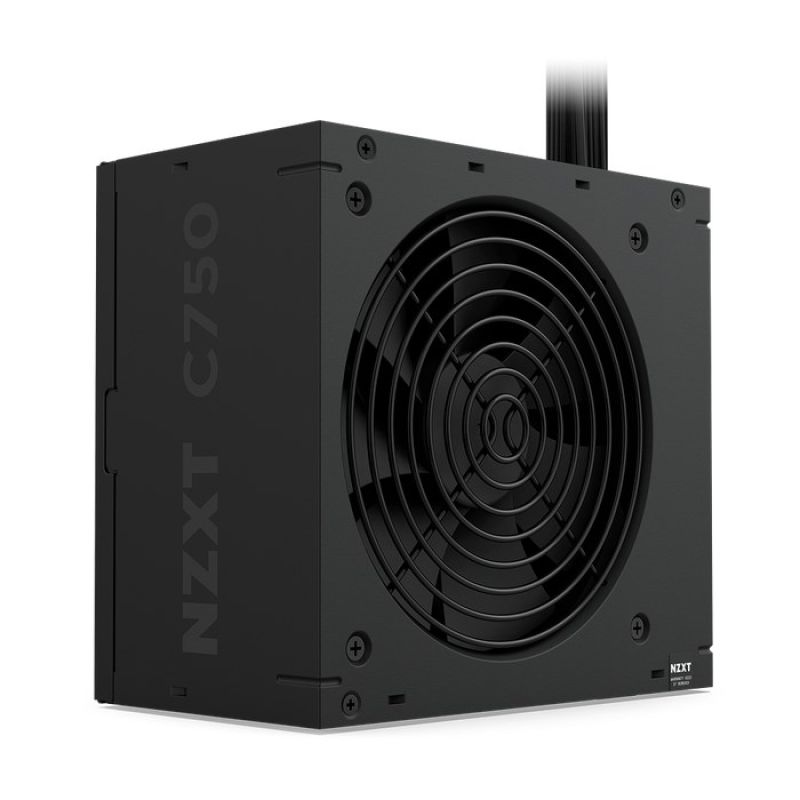

NZXT C750 Bronze Power Supply Module 750W 24-pin ATX
NZXT C750 Bronze Power Supply Module 750W 24-pin ATX
NZXT C750 Bronze Power Supply Module 750W 24-pin ATX
PRICE:
113,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Sustainability: Yes
- Design
- Product color: Black
- Fan bowl diameter: 12 cm
- Cooling type: Active
- Fan speed: 2400 - 2400 RPM
- Built-in switch: Yes
- Number of fans: 1 fan
- Power
- Total power (+3.3V): 120 W
- Maximum output current (-12V): 0.3A
- Maximum input current (@ 110V): 10 A
- AC input voltage: 100 - 240 V
- Total power (-12V): 3.6 W
- AC input frequency: 50/60 Hz
- Maximum output current (+3.3V): 20 A
- Total power (+5V): 120 W
- Total power (+12V): 750 W
- Maximum output current (+5 Vsb): 2.5 A
- Input current: 10-5 A
- PFC (Power Factor Correction) Type: Active
- Power protection features
- Low voltage protection
- Protection against overvoltage
- Overcurrent
- Short circuit
- Overheating protection
- Total power: 750 W
- Total power (+5 Vsb): 12.5 W
- Maximum input current (@ 220V): 5 A
- Maximum output current (+12V): 62.5A
- Maximum output current (+5V): 20A
- Weight and dimensions
- Product width: 150 mm
- Product depth: 140 mm
- Product height: 86 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- 80 PLUS Certificate: 80 PLUS Bronze
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Power supply type (PSU): ATX
- EPS version: 2.92
- ATX version: 2.53
- Noise level: 39.92 dB
- Package contents
- Cables: AC, Processor, PCIe, Peripheral (Molex), SATA
- Certificates
- Certificates of conformity
- REACH
- CE
- China RoHS
- UKCA
- RoHS
- Certificates of conformity
- Ports and interfaces
- ATX power socket (24-pin): Yes
- Peripheral (Molex) Power Cable Length
- 150 mm
- 500 mm
- CPU power supply connector (4+4 pin): Yes
- Motherboard power connector: 24-pin ATX
- PCI Express power connectors (6+2 pin): 2
- SATA power cable length
- 150
- 500 mm
- Peripheral (Molex) Power Connectors (4-pin): 4
- Wiring Type: Non-Modular
- Number of SATA power connectors: 4
- Motherboard cable length: 60 cm
- Logistics data
- Warranty period: 5 years
