OnLine UPS Digitus OnLine UPS Module DN-170106, 6000VA, 6000W, 2U, 1x USB 2.0 type B, 1x RS232, LCD, LED, pure sine wave, 440x86.5x620mm, 14kg 6000 VA 6000 W
OnLine UPS Digitus OnLine UPS Module DN-170106, 6000VA, 6000W, 2U, 1x USB 2.0 type B, 1x RS232, LCD, LED, pure sine wave, 440x86.5x620mm, 14kg 6000 VA 6000 W
OnLine UPS Digitus OnLine UPS Module DN-170106, 6000VA, 6000W, 2U, 1x USB 2.0 type B, 1x RS232, LCD, LED, pure sine wave, 440x86.5x620mm, 14kg 6000 VA 6000 W
PRICE:
1175,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Power factor: 0.99
- Input operating voltage (maximum): 276 V
- Input current THD level: 5%
- Overload capacity (1 minute): 130%
- Response time (typical): 20 ms
- Crest Factor: 3:1
- Input operating voltage (minimum): 120 V
- Output operating voltage (maximum): 208 V
- Output frequency adjustment: 1 Hz
- Input frequency: 45/66 Hz
- ECO mode: Yes
- Output frequency: 50/60 Hz
- Maximum configurable power: 6 kVA
- Number of input phases: 1
- Output voltage regulation: 5%
- Emergency Power Off: Yes
- Noise level: 55 dB
- Actual power: 6000 W
- Output current THD level: 5%
- Efficiency: 93.5%
- UPS Topology: Double Conversion (Online)
- Number of output phases: 1
- Output operating voltage (minimum): 240 V
- Waveform: Pure sine
- Overload capacity (10 minutes): 110%
- Design

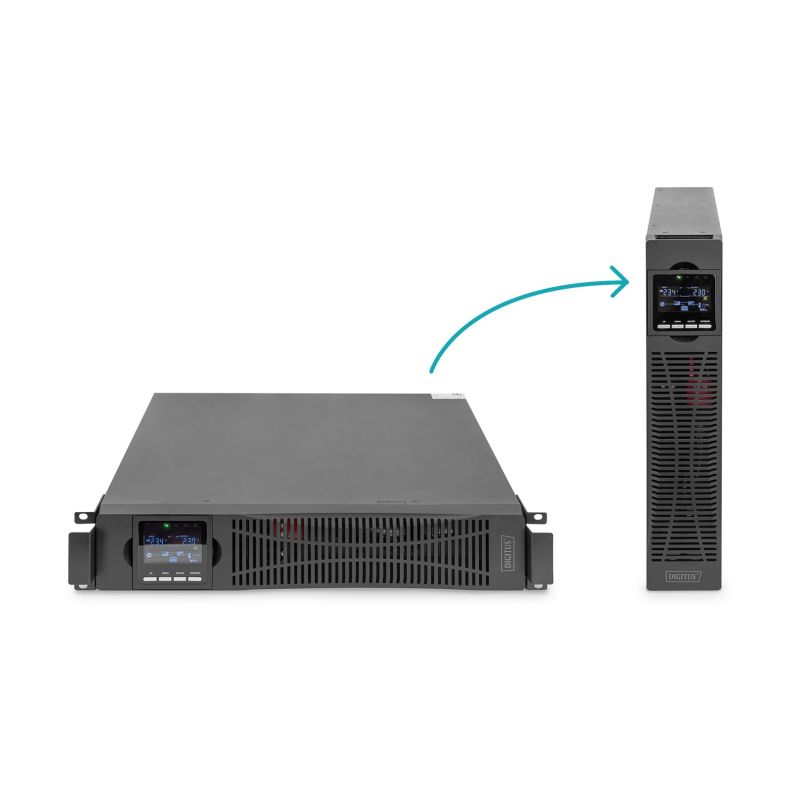

- Layout: Rackmount/Tower
- Fan speed control: Yes
- Cooling type: Active

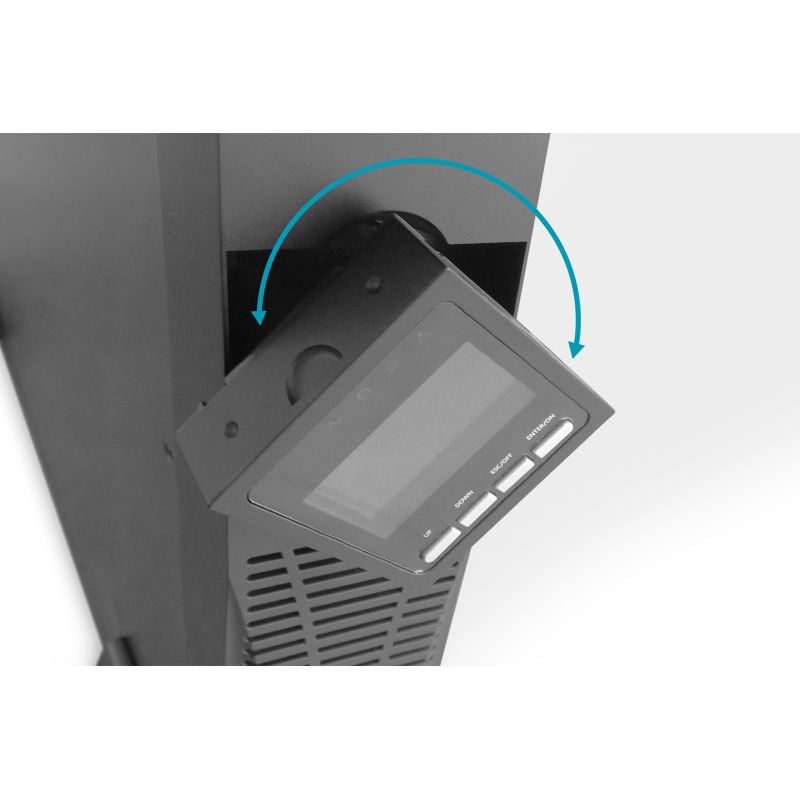

- Display type: LCD + LED
- Product color: Black
- Housing material: Metal
- IP protection class: IP20
- Rack capacity: 2U
- Built-in fan: Yes
- Weight and dimensions
- Product depth: 620 mm
- Product width: 440 mm
- Product weight: 14 kg
- Product height: 86.5 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Packaging data
- Package width: 615 mm
- Packaging capacity: 100682 cm³
- Package contents
- User Manual: Yes

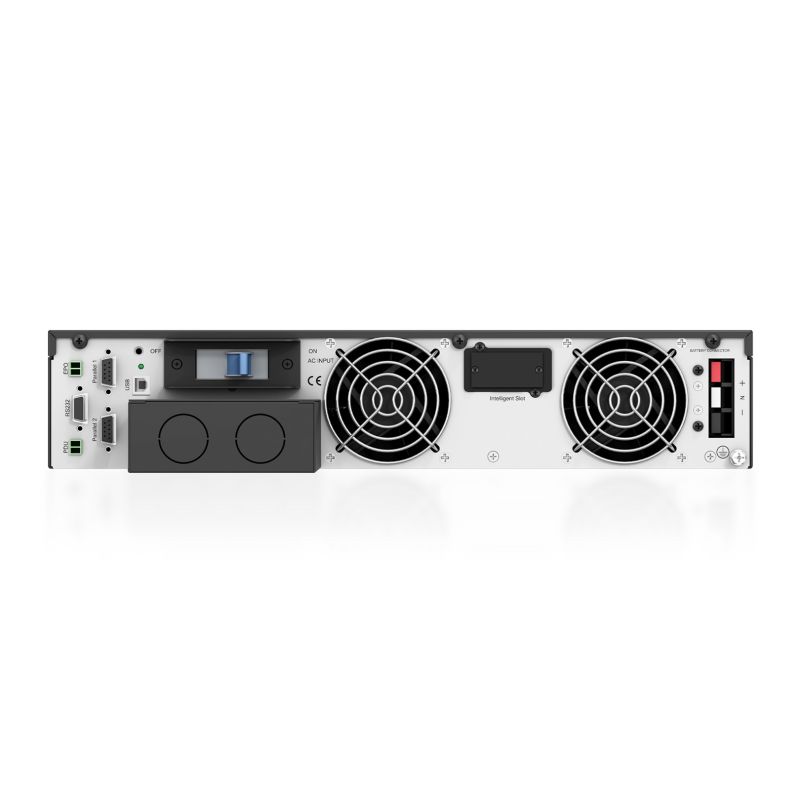

- Ports and interfaces
- RS-232 port: 3
- Number of USB 2.0 ports: 1
- Emergency Power Off (EPO) Connector: Yes
- USB port type: USB Type B
- USB port: Yes
- Plug: Hardwire
- Battery
- Cold start: Yes
- Charging current: 1 A
- Number of batteries supported: 20
- Charging time: 8 h
- Hot-swappable batteries: Yes
- Other functions
- Size: 48.3 cm (19")
- Logistics data
- Harmonized System (HS) code: 85078000
- Mask with serial number: 85044085
- Safety warning
- Warnings
- The device should be used in well-ventilated areas to avoid overheating.
- Do not disassemble the device housing, as this may result in electric shock.
- Keep away from sources of fire and water.
- Warnings
