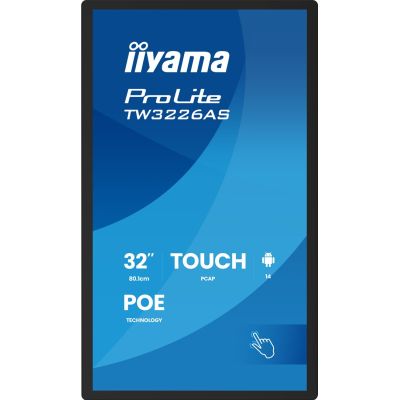

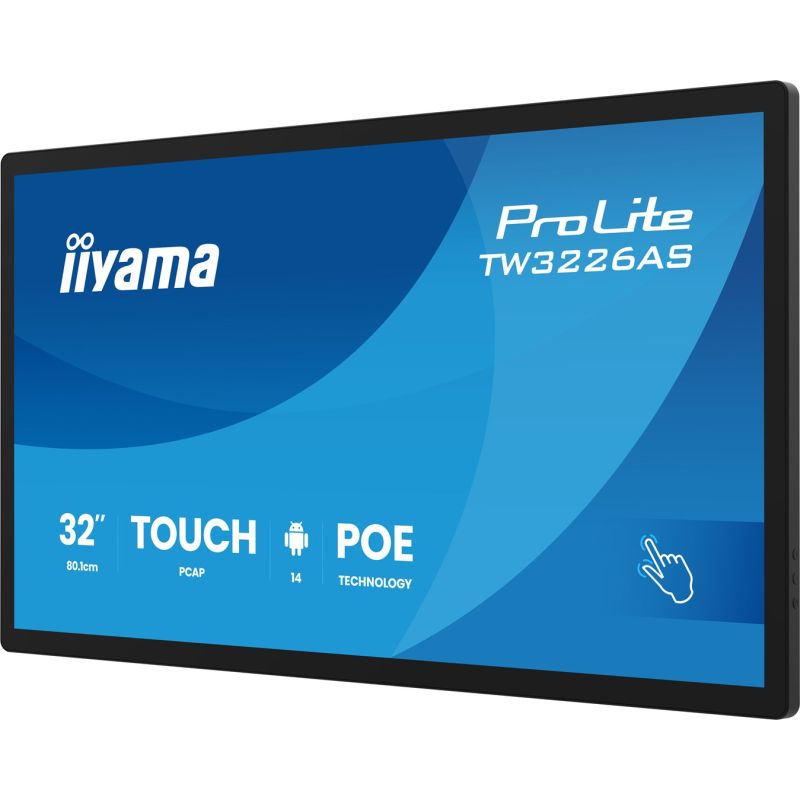

Panel-PC iiyama TW3226AS-B3P 32" with Android 14+GMS SOC Octa-core RK3576 4GB Memory 32GB PCAP 10-Point Touchscreen 1920x1080 VA
Panel-PC iiyama TW3226AS-B3P 32" with Android 14+GMS SOC Octa-core RK3576 4GB Memory 32GB PCAP 10-Point Touchscreen 1920x1080 VA
Sign up and unlock up to 10% off!
- Technical details
- Environmental (sustainability) certification: ErP
- Certificates of conformity
- REACH
- WEEE
- CE
- EAC
- UKCA
- RoHS
- Monitor controls: Power switch, volume/ button +, volume/ button -
- Design
- VESA Standard: Yes
- Frame color: Black
- Intended use: Internal

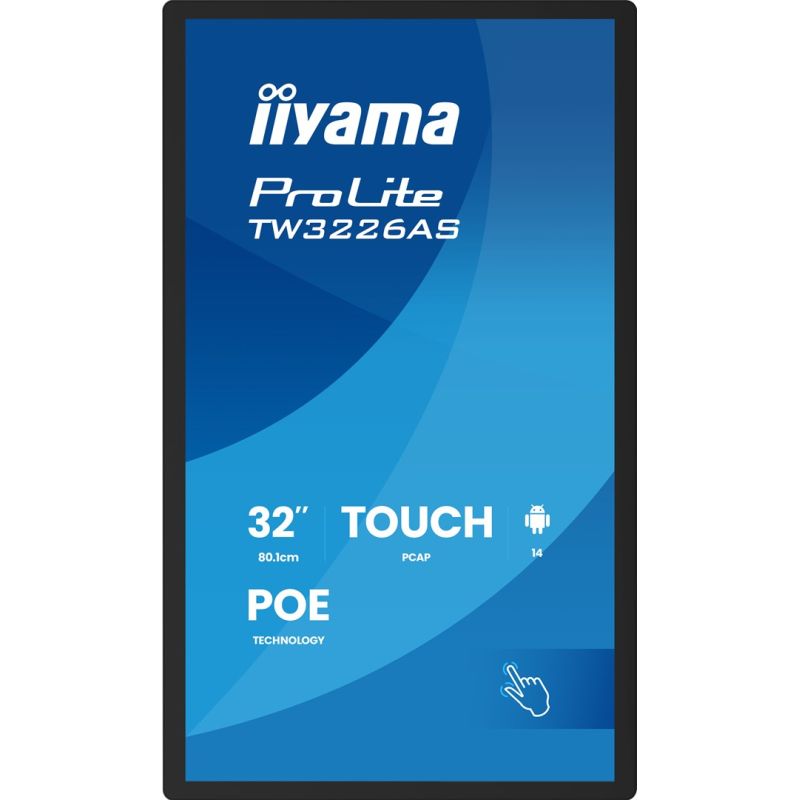

- Orientation: Landscape/Vertical
- Product Type: Kiosk
- Product color: Black

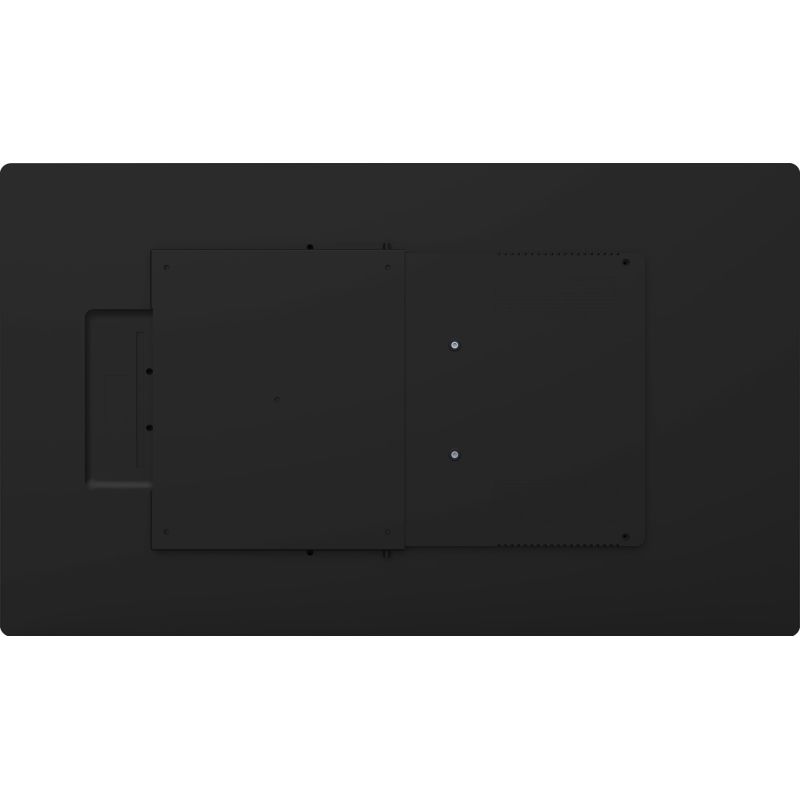

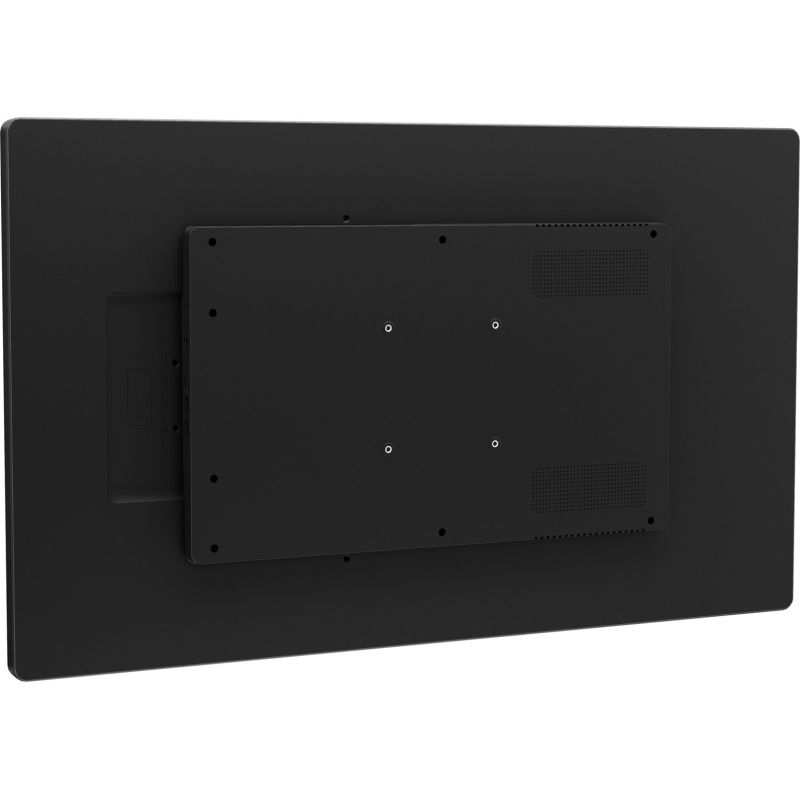

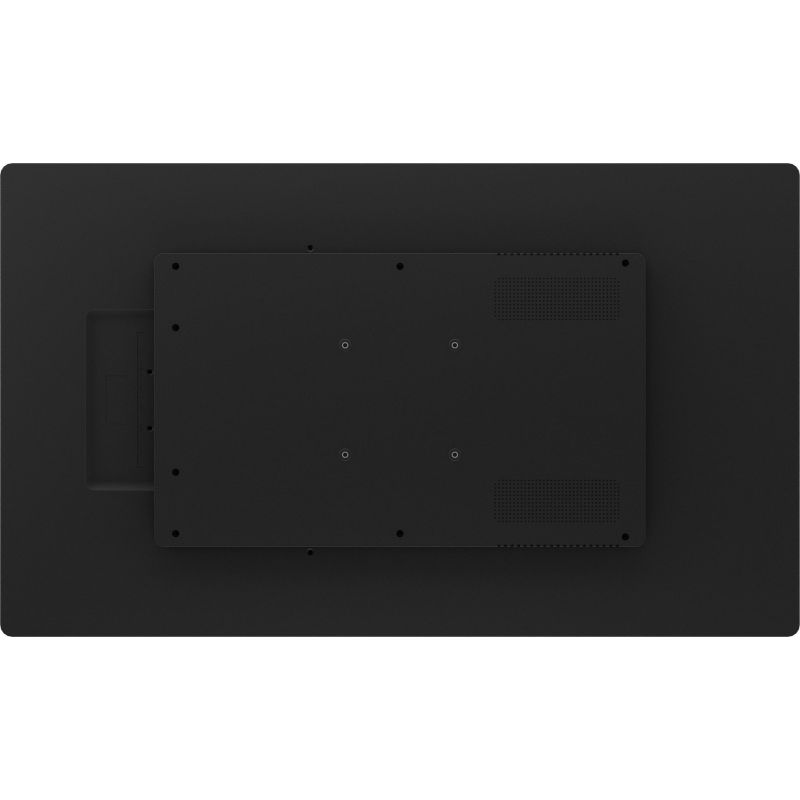

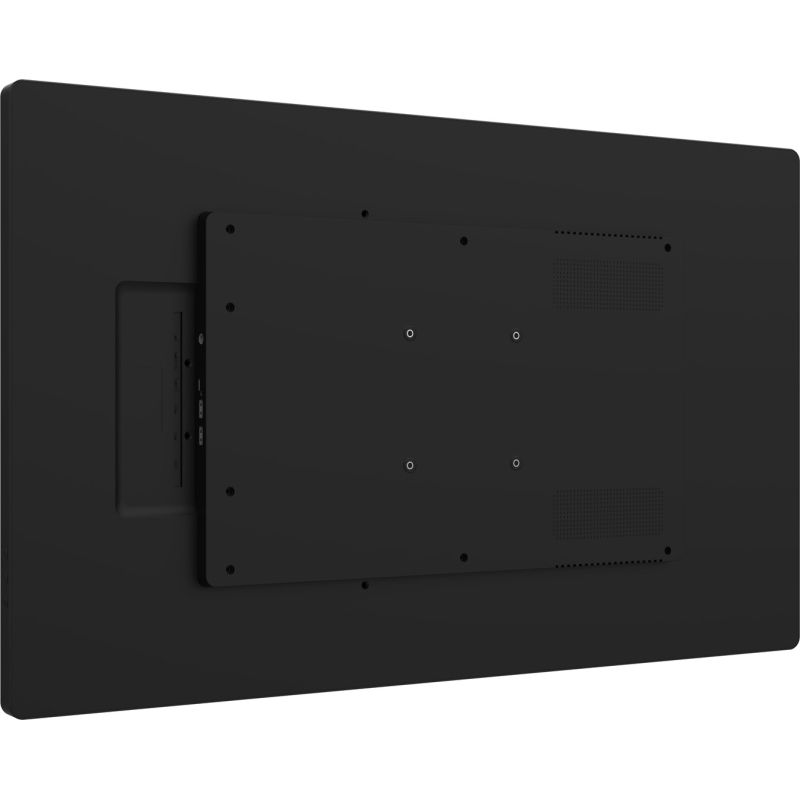

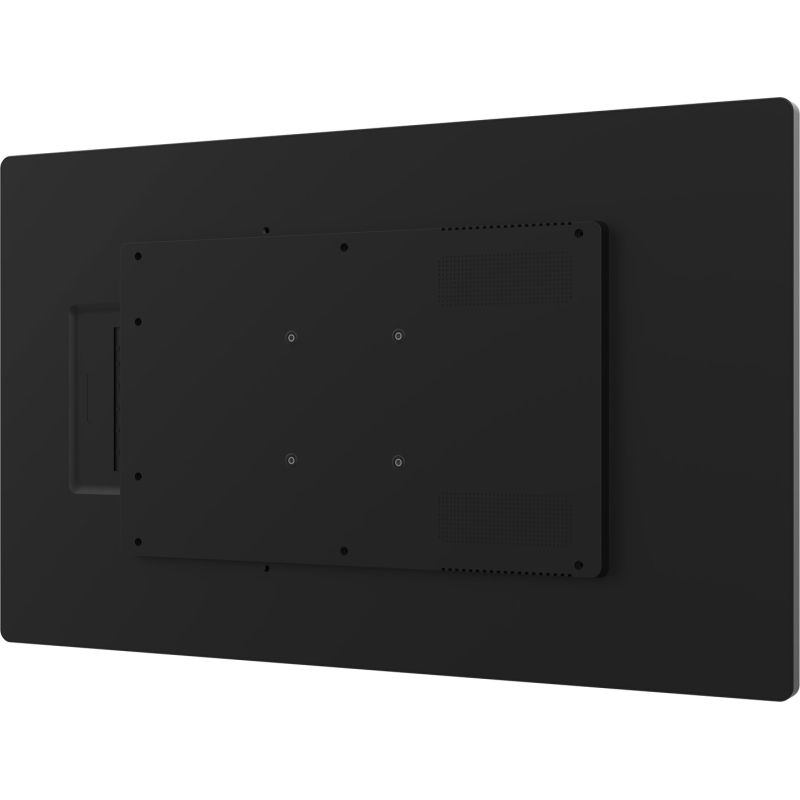

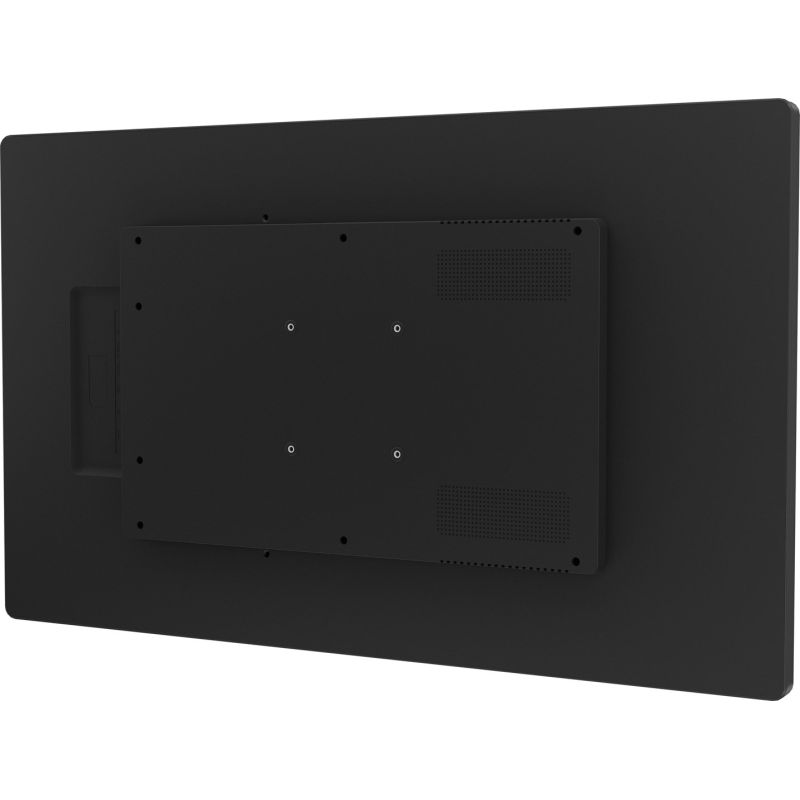

- Panel mounting interface: 100 x 100 mm
- Power
- Power consumption in standby mode: 0.5 W
- Off mode: 0.3 W
- Power consumption: 36.34 W
- Weight and dimensions
- Product height: 436 mm
- Product depth: 35 mm
- Weight (with base): 7.7 kg
- Display height: 436 mm
- Display weight: 7.7 kg
- Display depth: 35 mm
- Display width: 735 mm
- Product width: 735 mm
- Device width (with base): 735 mm
- Device depth (with base): 35 mm
- Device height (with base): 436 mm
- Product weight: 7.7 kg
- Network
- Wired LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards
- 802.11b
- Wi-Fi 4 (802.11n)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- 1000 Mbps
- Efficiency
- Purpose: Universal
- Working hours (hours/days): 24/7
- MTBF (Mean Time Between Failures): 50000 h
- HDCP: Yes
- Packaging data
- Package width: 833 mm
- Package height: 508 mm
- Package depth: 126 mm
- Weight with packaging: 12.4 kg
- Package contents
- Power supply included: Yes
- Mounting kit: Yes
- Wires: Alternating Current
- Display
- Display technology: LED
- Touchscreen: Yes
- Matrix type: VA
- Touchscreen technology: Capacitive
- Contrast ratio (typical): 4000:1
- Brightness: 430 cd/m²
- Multi-touch: Yes
- Active screen area (W x H): 698.4 x 392.8 mm
- Surface hardness: 3H
- Screen diagonal length (cm): 80.1 cm
- Number of simultaneous touch points: 10
- Color depth: 8 bit
- Screen diagonal: 31.5"
- Viewing angle (vertical): 178°
- Horizontal viewing angle: 178°
- Resolution: 1920 x 1080 px
- Display colors: 16.7 million colors
- Native aspect ratio: 16:9
- Spot size: 0.3637 x 0.3637 mm
- Response time (typical): 8 ms
- HD type: Full HD
- Audio
- Output power (RMS): 10 W
- Number of built-in speakers: 2
- Built-in speakers: Yes

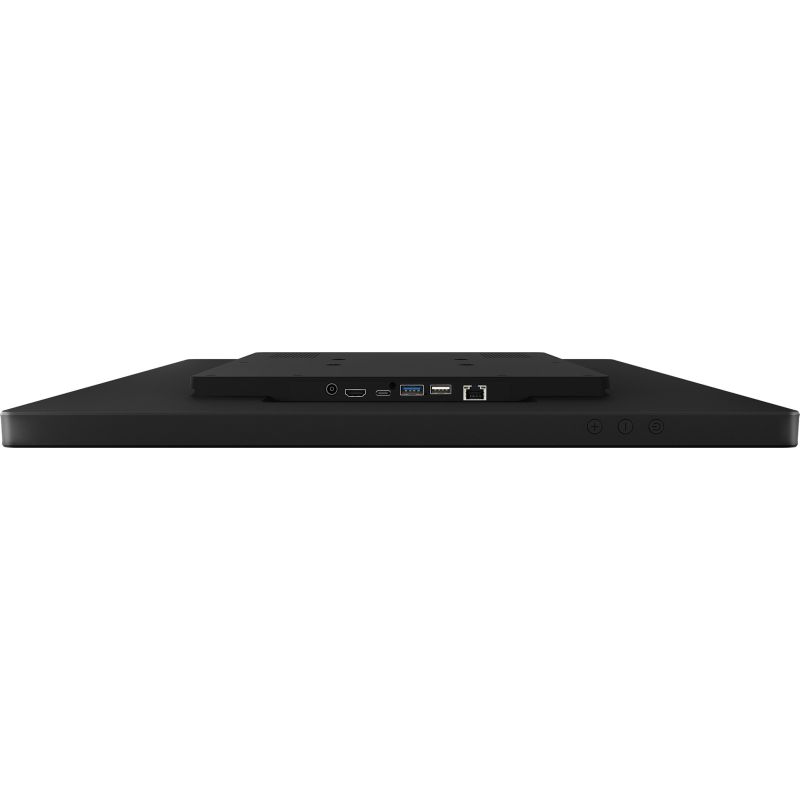

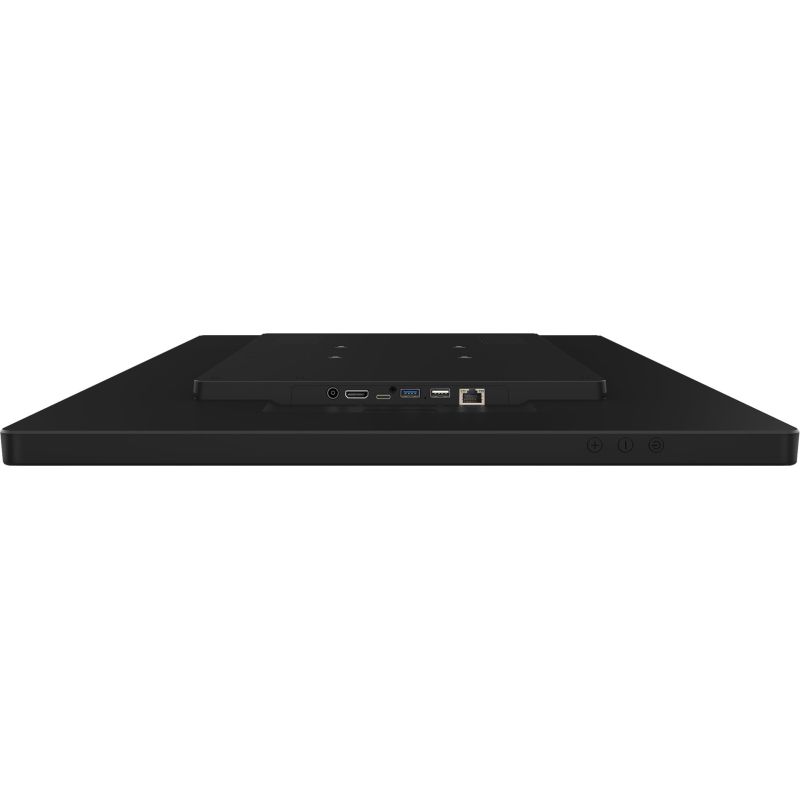

- Ports and interfaces
- USB port: Yes
- USB Version: 3.2 Gen 1 (3.1 Gen 1)
- Number of HDMI input ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Number of USB ports: 3
- Supported USB type
- USB Type-C
- USB Type-A
- Number of Ethernet LAN ports (RJ-45): 1
- HDMI version: 1.4
- Number of HDMI ports: 1
- DC output socket: Yes
- DVI Port: No
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Other functions
- Power supply type: External
- Image size (horizontal): 69.8 cm
- Audio output: Mini Jack
- Image size (vertical): 39.3 cm
- Cable management: Yes
- Brightness: 430 cd/m²
- Bluetooth version: 5.3
- AC adapter: Yes
- Bluetooth: Yes
- Quick Start Guide: Yes
- Computer system
- Installed operating system: Android
- Built-in processor: Yes
- Operating system version: 14
- Built-in memory: 32 GB
- Google App Support
- Google Chrome
- Google Calendar
- Gmail
- Processor architecture: ARM Cortex-A53+Cortex-A72
- Number of processor cores: 8
- Processor model: Rockchip RK3576
- Built-in graphics card model: Mali-G52 MC3
- Processor manufacturer: ARM
- Processor type: ARM Rockchip
- RAM: 4 GB
| Name | Details |
|---|---|
| Producer | IIYAMA |
