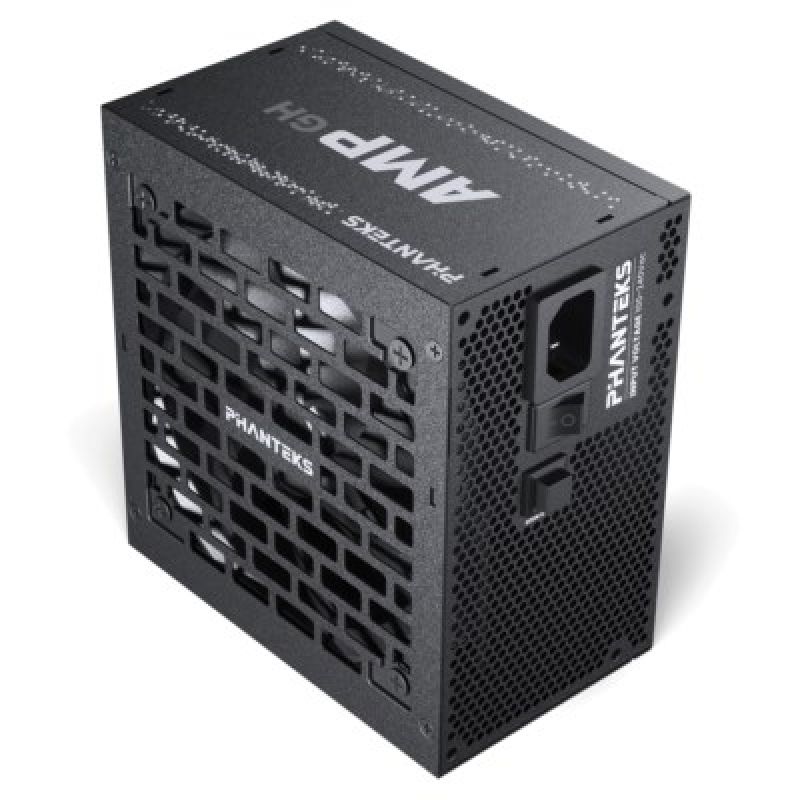

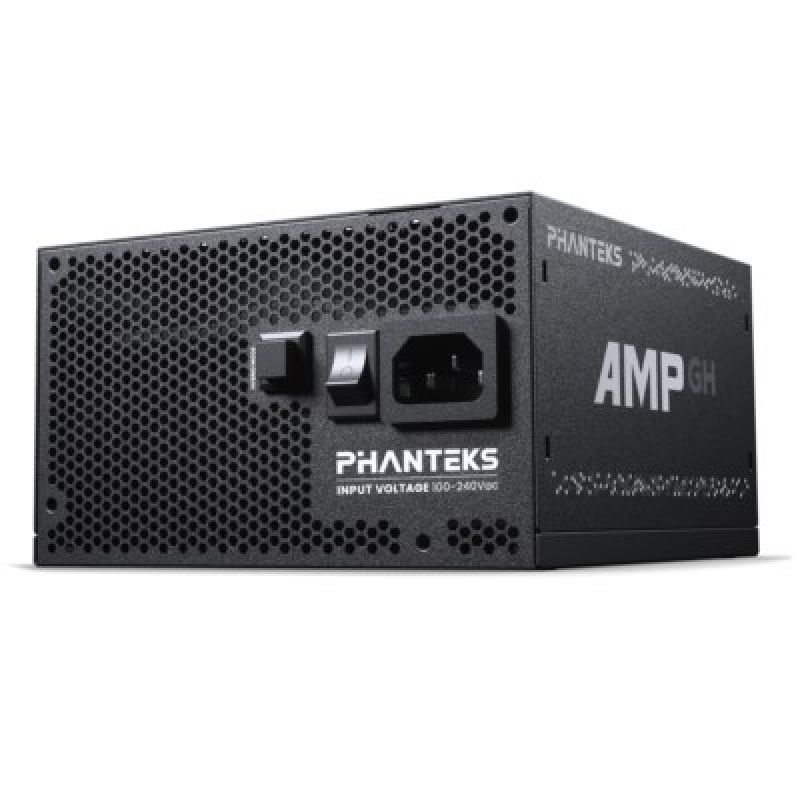

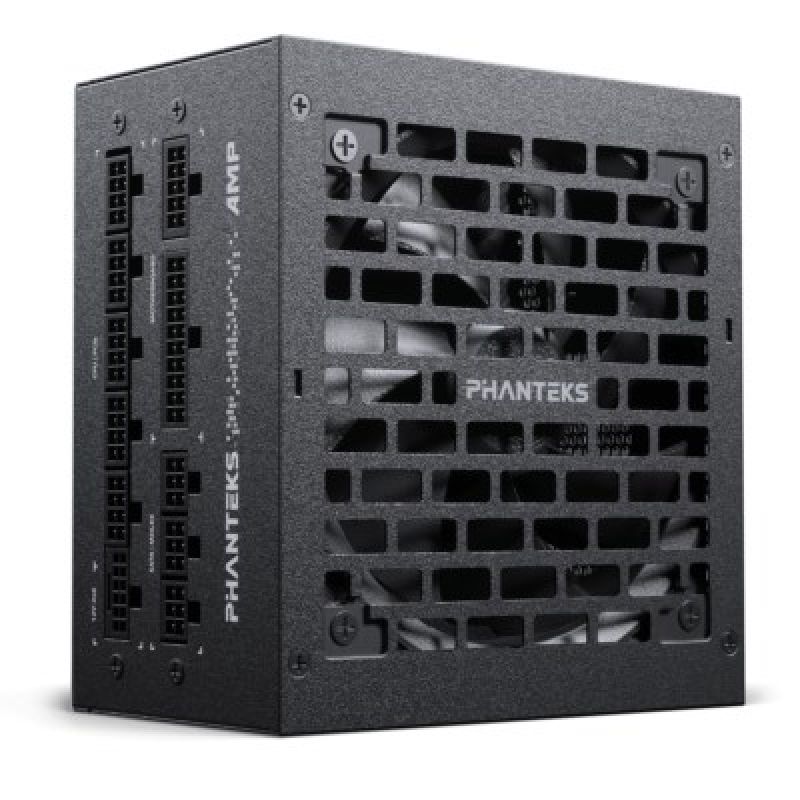

Phanteks AMP GH Power Supply Module 750 W 18+10 pin ATX ATX Black, White
Phanteks AMP GH Power Supply Module 750 W 18+10 pin ATX ATX Black, White
Phanteks AMP GH Power Supply Module 750 W 18+10 pin ATX ATX Black, White
PRICE:
148,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 8 years
- Design
- Product color
- White
- Black
- Cooling type: Active
- Built-in switch: Yes
- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Product color
- Power
- AC input voltage: 200 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10 A
- Total power (+5 Vsb): 12.5 W
- Total power (-12V): 3.6 W
- Maximum input current (@ 220V): 10 A
- Power protection features
- Overload protection
- Overcurrent
- Overcharge protection
- Short circuit
- Overheating protection
- Maximum output current (-12V): 0.3A
- Total power (+3.3V): 100 W
- Total power: 750 W
- Maximum output current (+5V): 20A
- Total power (+5V): 100 W
- Maximum output current (+12V): 62A
- Maximum output current (+3.3V): 20 A
- Total power (+12V): 744 W
- Maximum output current (+5 Vsb): 2.5 A
- Weight and dimensions
- Product weight: 1.4 kg
- Product height: 86 mm
- Product depth: 150 mm
- Product width: 140 mm
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- 80 PLUS Certificate: 80 PLUS Gold
- Intended use: PC
- Power supply type (PSU): ATX
- Packaging data
- Packaging type: Box
- Weight with packaging: 3.2 kg

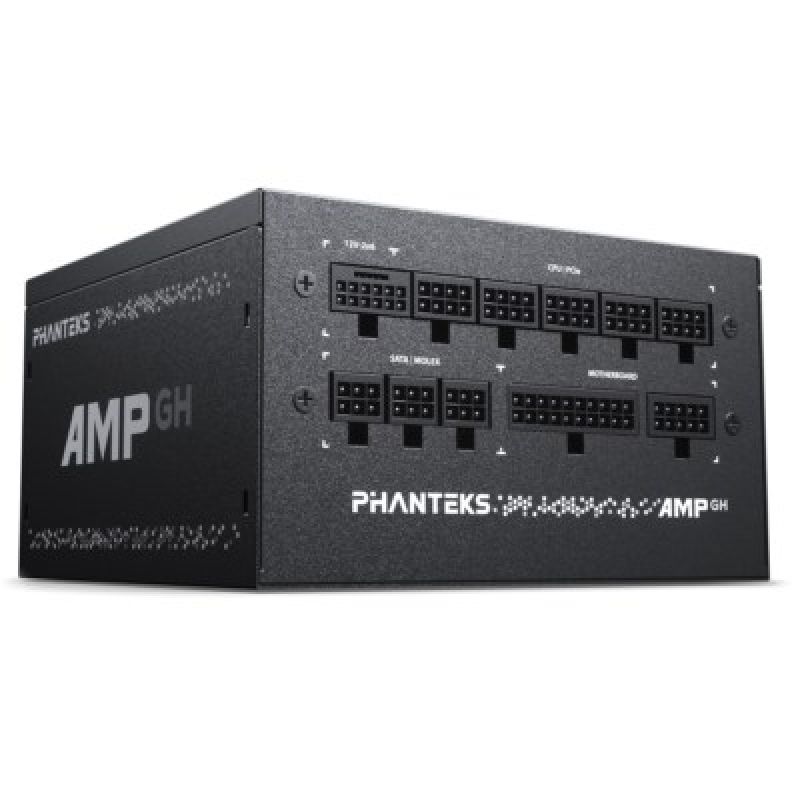

- Ports and interfaces
- PCI Express power connectors (6+2 pin): 4
- Number of SATA power connectors: 4
- Peripheral (Molex) Power Connectors (4-pin): 2
- Motherboard power connector: 18+10 pin ATX
- Wiring Type: Fully Modular
- CPU power supply connector (4+4 pin): Yes
- Safety warning
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Hazard pictogram(s)
- GHS07: Irritating substances
- GHS02: Flammable substances
- GHS09: Environmentally Harmful Substances
- Warnings
| Name | Details |
|---|---|
| Producer | Phanteks |
