Phanteks Revolt 1000W ATX Power Supply Module Black
Phanteks Revolt 1000W ATX Power Supply Module Black
Phanteks Revolt 1000W ATX Power Supply Module Black
PRICE:
293,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 12 years
- Design
- Cooling type: Active
- Fan bowl diameter: 13.5 cm
- Built-in switch: Yes
- Product color: Black
- Number of fans: 1 fan
- Power
- AC input frequency: 50/60 Hz
- Input current: 10 - 5 A
- Total power (+5 Vsb): 15 W
- Maximum output current (+3.3V): 25 A
- Total power: 1000 W
- AC input voltage: 100 - 240 V
- Total power (+5V): 125 W
- Total power (-12V): 3.6 W
- Maximum output current (-12V): 0.3A
- Maximum output current (+12V): 83A
- Total power (+12V): 996 W
- Maximum output current (+5 Vsb): 3 A
- Power protection features
- Overload protection
- Short circuit
- Overheating protection
- Overcharge protection
- Overcurrent
- Total power (+3.3V): 125 W
- Maximum input current (@ 110V): 13 A
- Maximum output current (+5V): 25A
- Maximum input current (@ 220V): 6.5 A
- Weight and dimensions
- Product weight: 2.05 kg
- Product width: 160 mm
- Product depth: 150 mm
- Product height: 86 mm
- Working conditions
- Temperature range (operation): 0 - 50 °C
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Platinum
- Power supply type (PSU): ATX
- Packaging data
- Packaging type: Box
- Weight with packaging: 2.5 kg
- Ports and interfaces

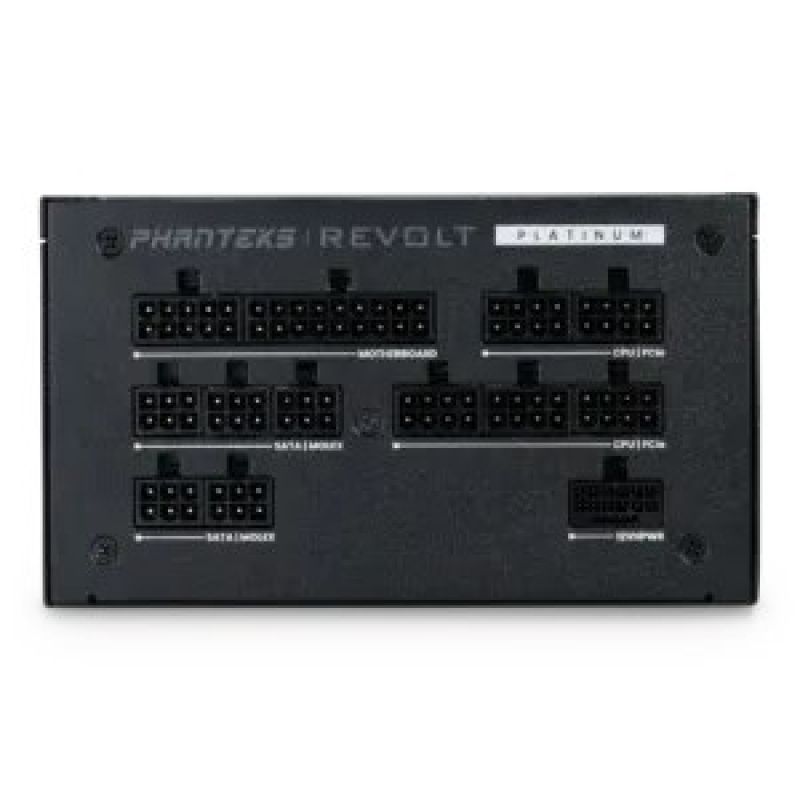

- Wiring Type: Fully Modular
- PCI Express Power (6-pin): 8
- ATX power socket (24-pin): Yes
- Number of SATA power connectors: 4
- Peripheral (Molex) Power Connectors (4-pin): 5
- PCI Express slot: Yes
- Safety warning
- Hazard pictogram(s)
- GHS02: Flammable substances
- GHS09: Environmentally Harmful Substances
- GHS07: Irritating substances
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Hazard pictogram(s)
| Name | Details |
|---|---|
| Producer | Phanteks |
