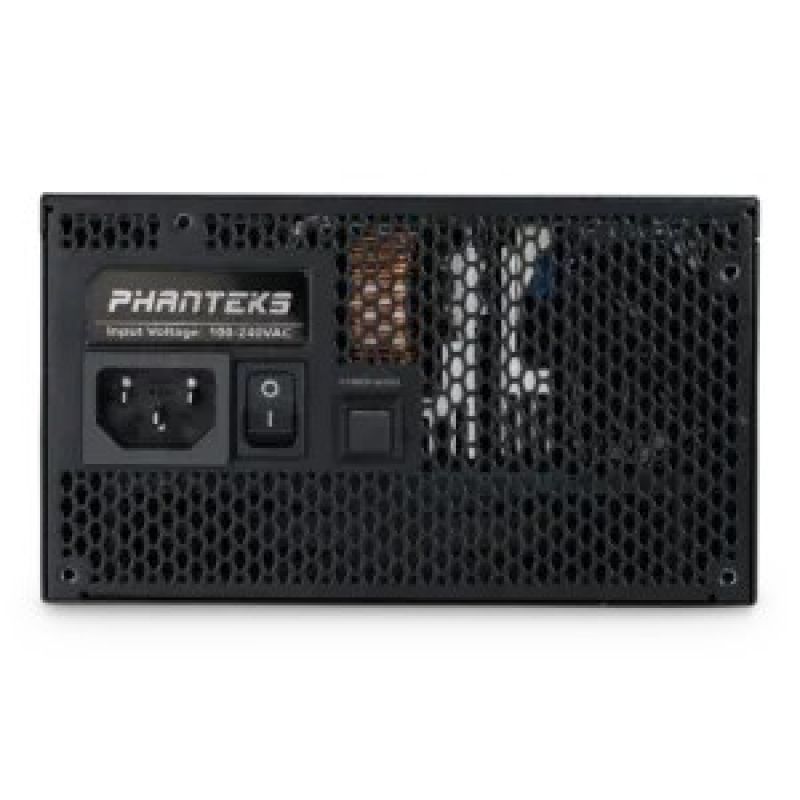

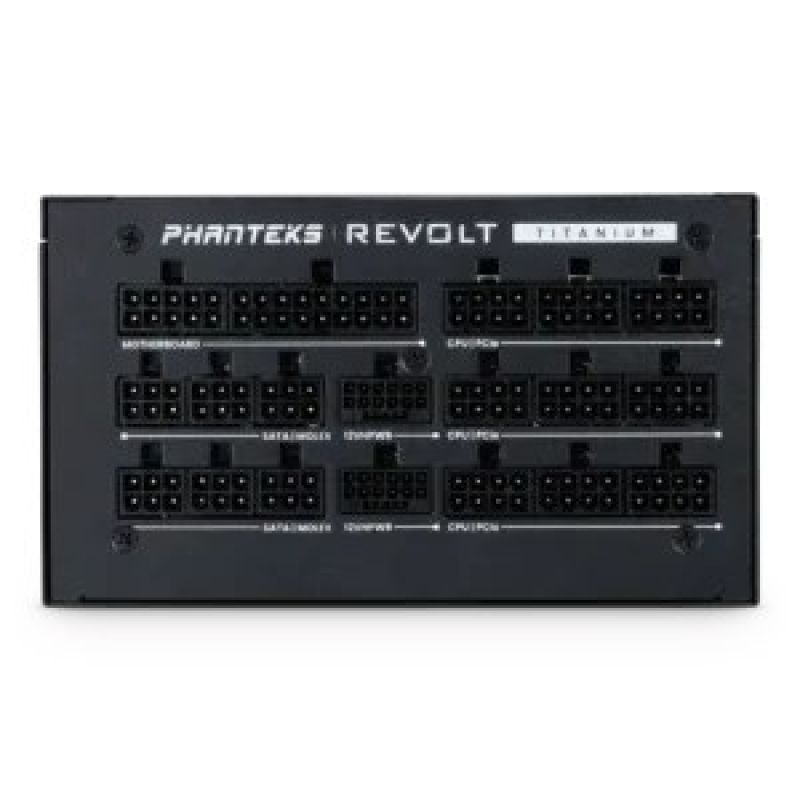

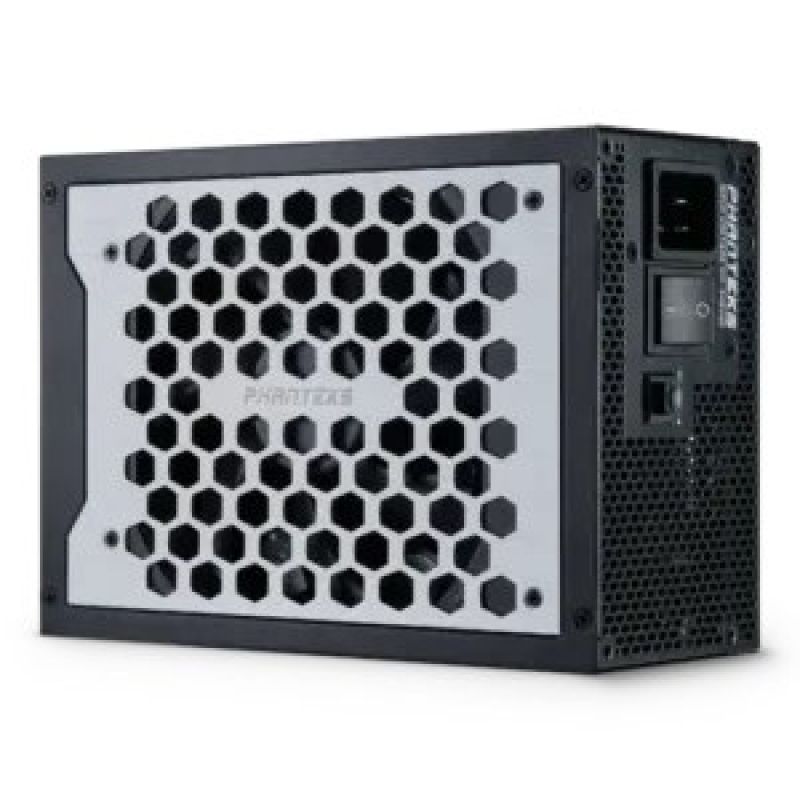

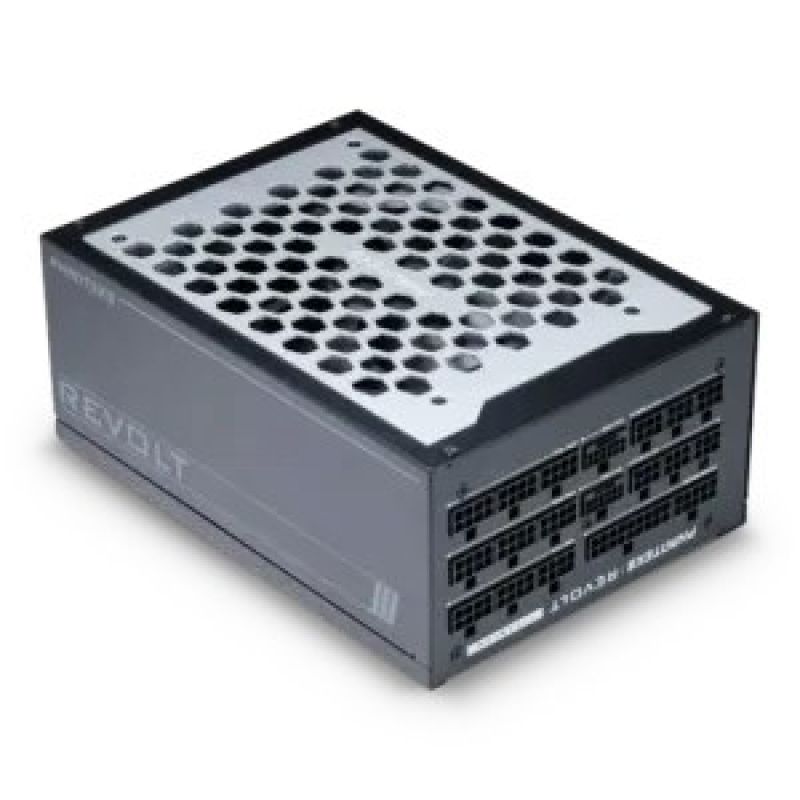

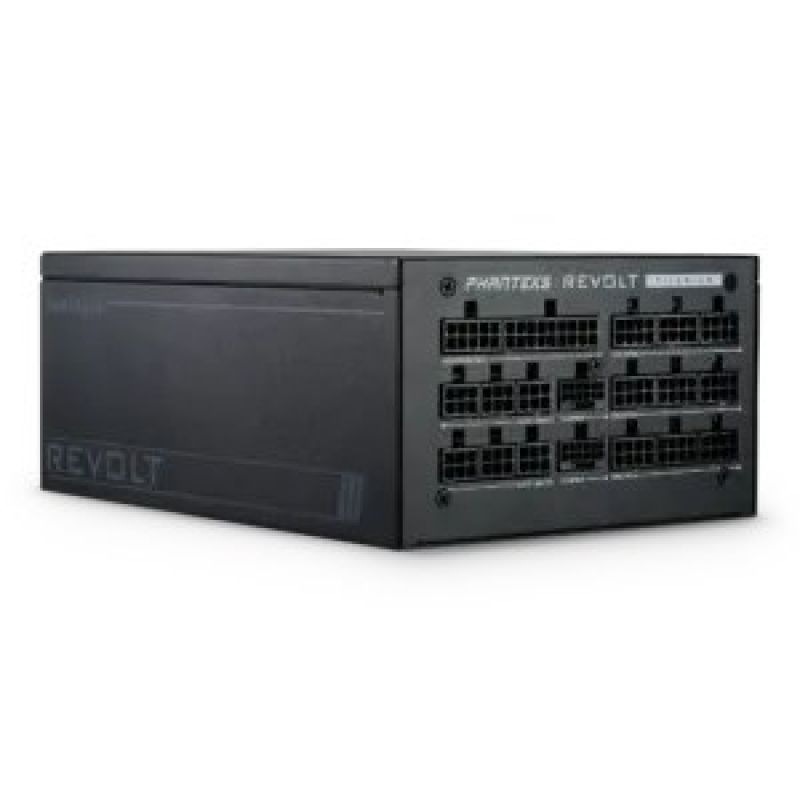

Phanteks Revolt 1600W ATX Power Supply Module Black
Phanteks Revolt 1600W ATX Power Supply Module Black
Phanteks Revolt 1600W ATX Power Supply Module Black
PRICE:
567,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 12 years
- Design
- Cooling type: Active
- Built-in switch: Yes
- Product color: Black
- Number of fans: 1 fan
- Fan bowl diameter: 13.5 cm
- Power
- Total power: 1600 W
- Total power (+12V): 1600 W
- Maximum output current (+5 Vsb): 3 A
- Power protection features
- Overcurrent
- Short circuit
- Overheating protection
- Overload protection
- Overcharge protection
- Total power (+3.3V): 125 W
- Maximum input current (@ 110V): 15 A
- Maximum output current (+12V): 133.33A
- Total power (+5V): 125 W
- Total power (+5 Vsb): 15 W
- Total power (-12V): 6 W
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Maximum input current (@ 220V): 10 A
- Input current: 15 - 10 A
- Maximum output current (+3.3V): 25 A
- Maximum output current (-12V): 0.5A
- Maximum output current (+5V): 25A
- Weight and dimensions
- Product depth: 150 mm
- Product height: 86 mm
- Product width: 210 mm
- Product weight: 3.22 kg
- Efficiency
- 80 PLUS Certified: 80 PLUS Titanium
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Power supply type (PSU): ATX
- Packaging data
- Packaging type: Box
- Weight with packaging: 3.67 kg
- Ports and interfaces
- Wiring Type: Fully Modular
- PCI Express slot: Yes
- Safety warning
- Hazard pictogram(s)
- GHS02: Flammable substances
- GHS07: Irritating substances
- GHS09: Environmentally Harmful Substances
- Warnings
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Do not open the housing – risk of electric shock.
- Hazard pictogram(s)
| Name | Details |
|---|---|
| Producer | Phanteks |
