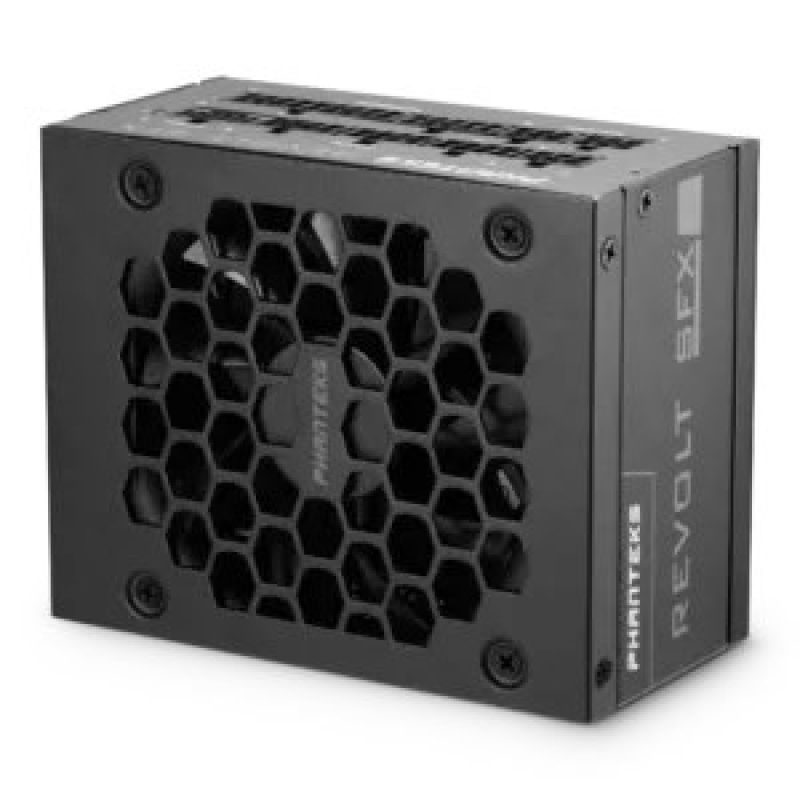

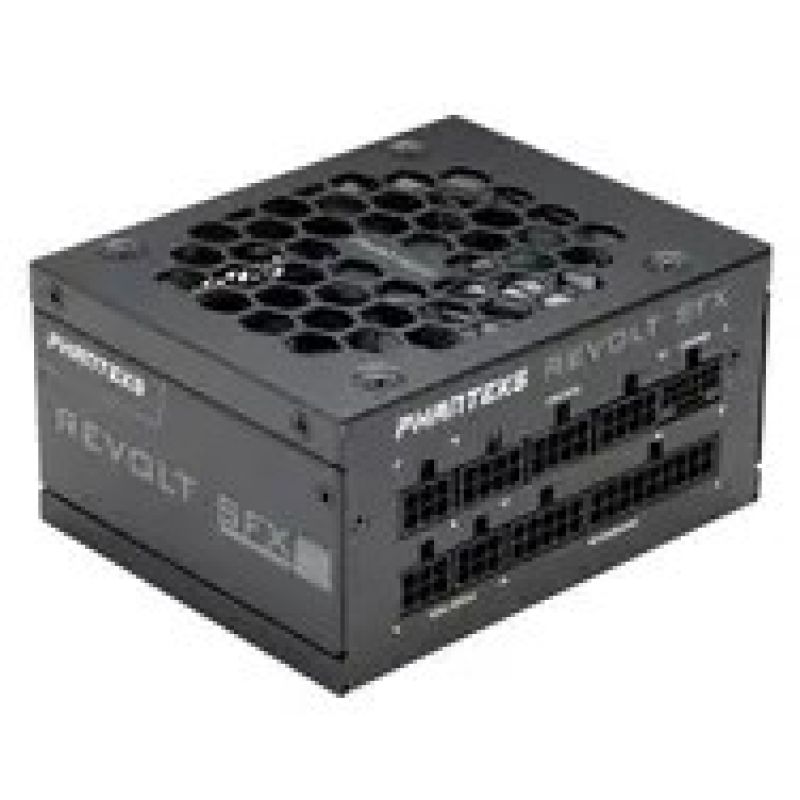

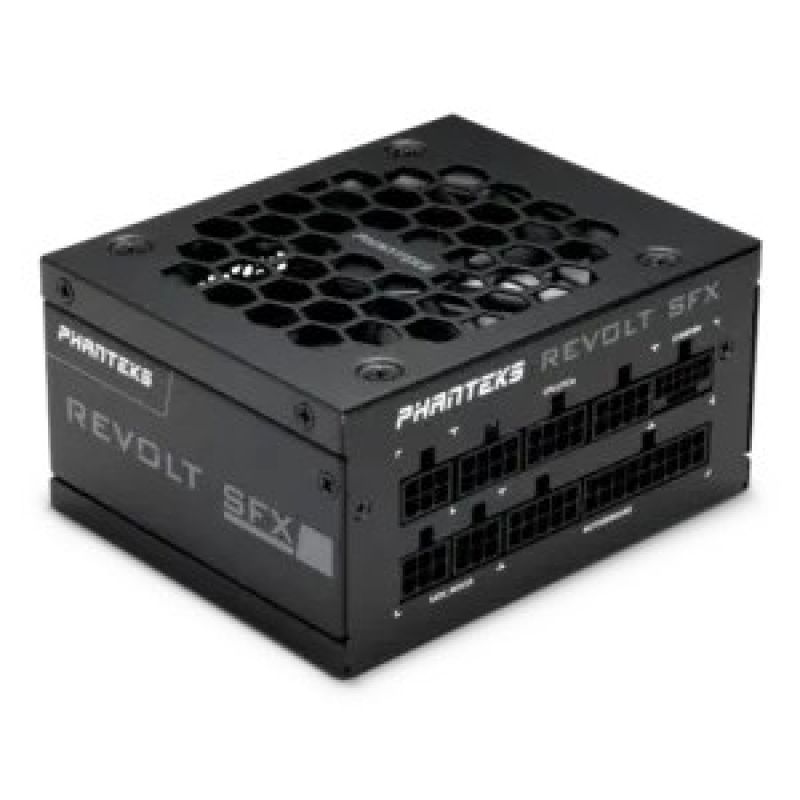

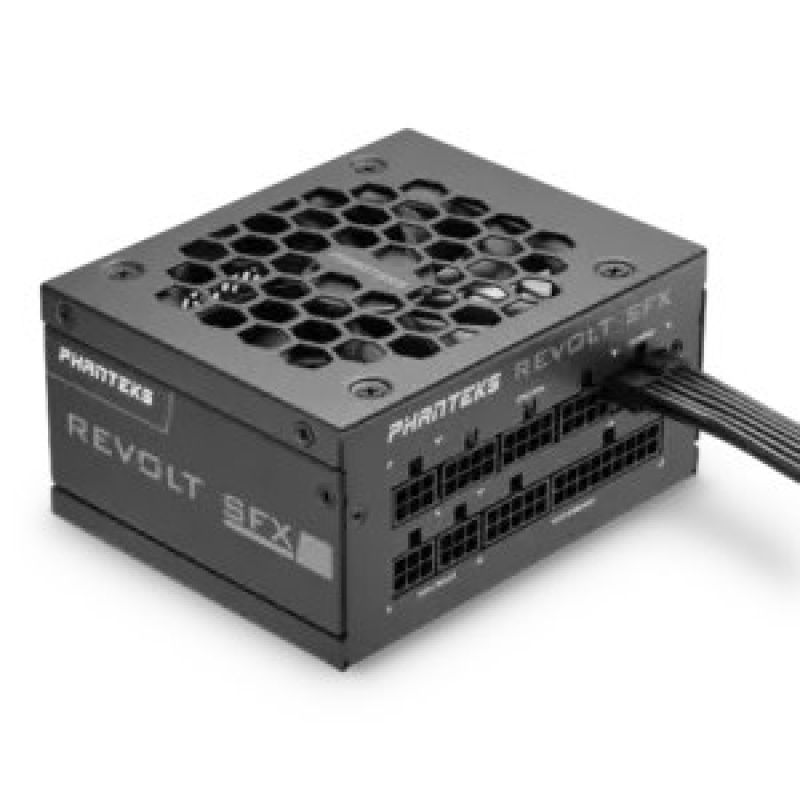

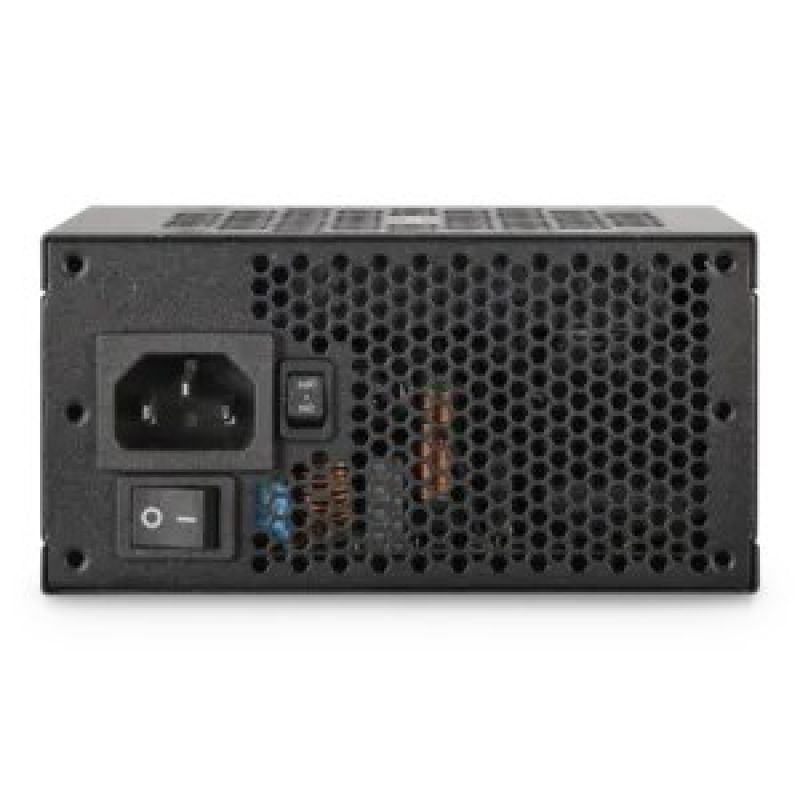

Phanteks Revolt SFX Power Supply Module 850W 18+10 pin ATX Black
Phanteks Revolt SFX Power Supply Module 850W 18+10 pin ATX Black
Phanteks Revolt SFX Power Supply Module 850W 18+10 pin ATX Black
PRICE:
330,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Fan bowl diameter: 9.2 cm
- Cooling type: Active
- Built-in switch: Yes
- Number of fans: 1 fan
- Power
- Maximum input current (@ 220V): 6 A
- Total power: 850 W
- AC input frequency: 50/60 Hz
- Total power (+5V): 100 W
- AC input voltage: 100 - 240 V
- Maximum output current (+3.3V): 20 A
- Total power (-12V): 3.6 W
- Power protection features
- Overcharge protection
- Overload protection
- Short circuit
- Overheating protection
- Overcurrent
- Total power (+3.3V): 100 W
- Input current: 12 - 6 A
- Maximum output current (-12V): 0.3A
- Maximum output current (+5V): 20A
- Maximum input current (@ 110V): 12 A
- Maximum output current (+12V): 70.8 A
- Total power (+12V): 850 W
- Total power (+5 Vsb): 15 W
- Maximum output current (+5 Vsb): 3 A
- Weight and dimensions
- Product depth: 100 mm
- Product height: 63.5 mm
- Product width: 125 mm
- Working conditions
- Temperature range (operation): 0 - 50 °C
- Efficiency
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- 80 PLUS Certificate: 80 PLUS Platinum
- Power supply unit (PSU) type: SFX
- Packaging data
- Packaging type: Box

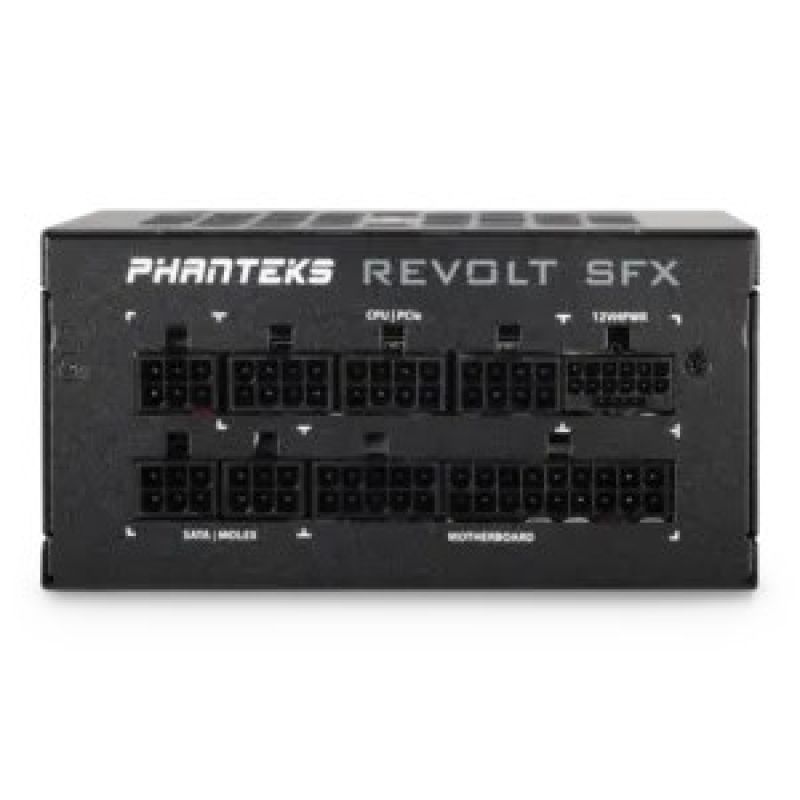

- Ports and interfaces
- CPU power supply connector (4+4 pin): Yes
- PCI Express power supply connector (8-pin): 2
- Wiring Type: Fully Modular
- Motherboard power connector: 18+10 pin ATX
- CPU power cable length: 42 cm
- Motherboard cable length: 31 cm
- PCI Express power connectors (16-pin): 1
- Logistics data
- Warranty period: 10 years
| Name | Details |
|---|---|
| Producer | Phanteks |
