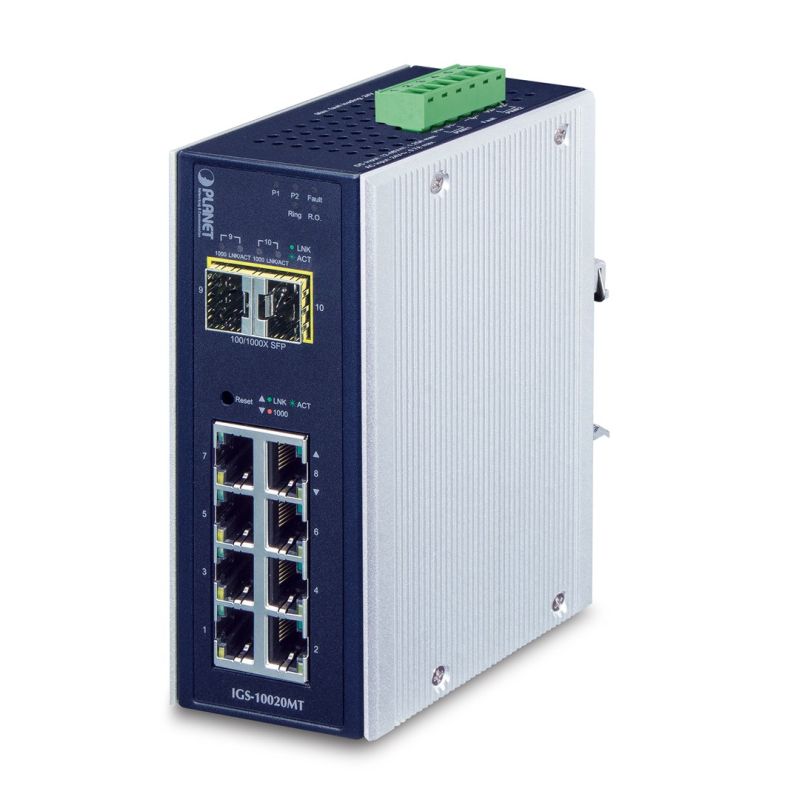

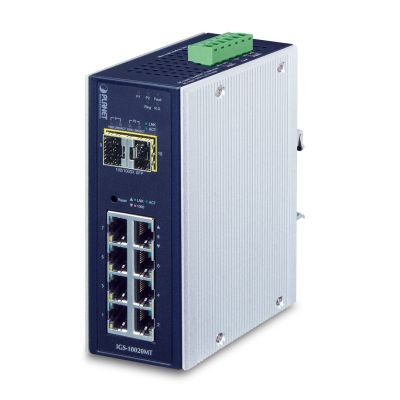

Planet IGS-10020MT industrial switch 10p Managed Gigabit/Multigigabit
Planet IGS-10020MT industrial switch 10p Managed Gigabit/Multigigabit
Planet IGS-10020MT industrial switch 10p Managed Gigabit/Multigigabit
PRICE:
627,99
€
IN A WAREHOUSE
LAST ITEM!
Goods available on request - delivery time to 9 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- DIN rail mounting: Yes
- IP protection class: IP30
- LEDs: Yes
- Rack mounting options: No
- Housing material: Aluminum
- Product color: Black
- Wall mountable: Yes
- Power
- Power consumption: 10 W
- Weight and dimensions
- Product weight: 720 g
- Product width: 56 mm
- Product depth: 87.8 mm
- Product height: 135 mm
- Security
- IGMP snooping: Yes
- Access Control List (ACL): Yes
- Encryption/Security
- SSH
- SSL/TLS
- 802.1x RADIUS
- Management features
- MIB support: MIB, MIB-II
- Switch Layer: L2+
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Working conditions
- Heat emission: 34 BTU/h
- Permissible relative humidity: 5 - 95%
- Temperature range (storage): -40 - 75 °C
- Relative humidity range: 5 - 95%
- Temperature range (operation): -40 - 75 °C
- Network
- Port Mirroring: Yes
- Spanning Tree Protocol: Yes
- 10G Support: No
- Number of VLANs: 255
- Flow Control Support: Yes
- Connection Aggregator: Yes
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- Communication standards
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3z
- IEEE 1588
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.1p
- IEEE 802.3
- IEEE 802.3bz
- IEEE 802.1ad
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.1s
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.1ag
- VLAN support: Yes
- Copper Ethernet cabling technology
- 100BASE-TX
- 1000BASE-T
- 10BASE-T
- Efficiency
- Buffer size: 512 KB
- Device software updates: Yes
- Protocols
- Management protocols: SSH, SSL, SNMP, Telnet
- Ports and interfaces
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Number of SFP Module slots: 2
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Throughput: 14.8 Mpps
- Jumbo Frames Expansion: 9000
- Store-and-forward: Yes
- Number of rounds: 8
- Address table size: 8000 entries
- Routing/switching capacity: 26 Gbit/s
- Jumbo Frame Compatible: Yes
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Safety warning
- Warnings
- Avoid contact of the device with liquid.
- Make sure the device's ventilation is not blocked.
- Follow electrical safety guidelines.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Planet |
| Department | Electronics |
